Single Cylinder Spark Ignition Engine

This example shows a crank-angle-resolved, naturally aspirated, spark ignited single cylinder engine. This example varies control inputs including the spark angle and the intake VVT during the simulation.


Simulation Results from Simscape Logging

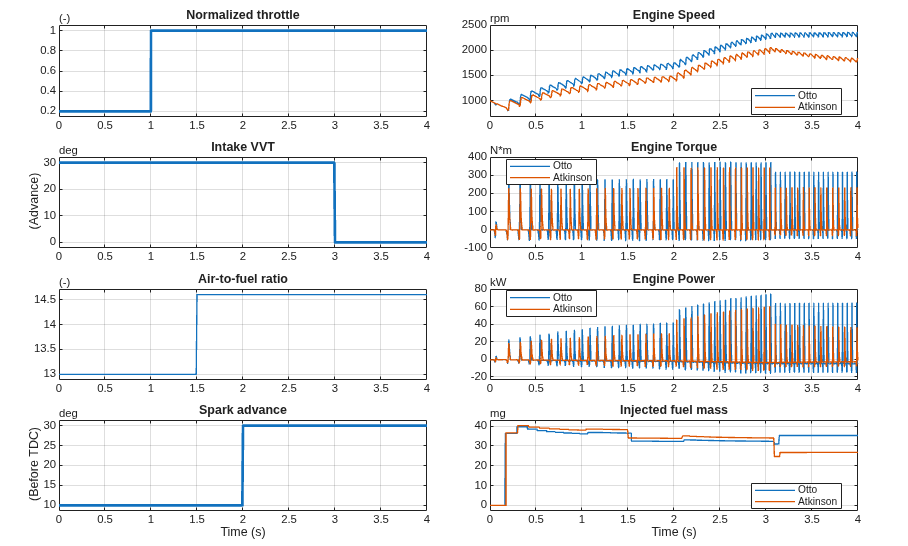

The plots below show the throttle, spark angle, and intake VVT inputs to the engine and the speed, torque, and power responses.
