Convert Scattering Parameter to Impulse Response for SerDes System

This example covers two topics: the first shows how to combine a Scattering-Parameter (S-Parameter) model of a baseband communication channel with an analog transmitter and receiver into a single 4-port S-Parameter. The second shows a possible method to fit a transfer function to the S-Parameter and find its impulse response for use with SerDes Toolbox™ using the functions rational (RF Toolbox) and impulse (RF Toolbox) from RF Toolbox™.

Configure Variables

The S-Parameter file representing the baseband channel should be a 4-port .s4p file with a reference impedance of 50-Ohms (100-Ohms differential). For different channel impedance (such as 42.5-Ohms single-ended or 85-Ohms differential), you may reconfigure the analog transmitter and receiver values to match. Also, you will see in this example the values for Datarate is set to 10 GHz and SamplesPerSymb is set to 32, and these values may be different for your system. You can adjust the rise time and amplitude of the transmitter using TxRiseTime and TxAmplitude, respectively, and adjust the duration of the calculated impulse response using endTime. Also, you can optimize the fit model using the function rational by adjusting the control parameters errorTolerance and nPoles.

showPlots = true;
%Define system data rate and discrete sampling
dataRate = 10*1e9;
samplesPerSymbol = 32;
stopTime = 100e-9; %(seconds) set the time duration of impulse response

%Specify channel S-parameter
ChannelFilename = 'default.s4p';

%Define transmitter analog model
TxR = 50; % Ohms
TxC = 0.1e-12; %Farads
TxAmplitude = 1.2;   %Voltage
TxRiseTime2080 = 40e-12; % 20/80% rise time

%Define receiver analog model
RxR = 50; %Ohms
RxC = 0.2e-12; %Farads

%Specify rational fitting parameters
nPoles = 1600;  %Maximum number of poles to use
errTolerance = -50; %(dB) desired error tolerance of fit

%% Form channel modeling including transmitter/receiver termination
Rshort = 1.0e-6;

Import Differential S-Parameter Model of Communication Channel

Import the S-Parameter data file and keep the original frequency content.

%% Import Differential S-Parameter Model of Communication Channel
%Import the S-Parameter data file and keep the original frequency content.
origSparam = sparameters(ChannelFilename);
freq = origSparam.Frequencies;

Combine S-Parameter of Communication Channel with Analog Sections of Transmitter and Receiver

You can see how to use MATLAB to convert impedance characteristics of the analog Tx and Rx circuits into S-Parameter equivalents. These can then be combined with the S-Parameter of the Communication Channel to create an S-Parameter model of the system.

Convert Analog Model of Transmitter to S-Parameter

cktTx = circuit('txAnalog');
add(cktTx,[1 3],resistor(TxR,'R1'))
add(cktTx,[3 0],capacitor(TxC,'C1'))
add(cktTx,[2 4],resistor(TxR,'R2'))
add(cktTx,[4 0],capacitor(TxC,'C2'))
setports(cktTx,[1 0],[2 0],[3 0],[4 0])
StxAnalog = sparameters(cktTx,freq,50);

Configure Port Order for S-Parameter of Communication Channel

cktCh = circuit('ChannelSparam');
channel = nport(ChannelFilename); % Create s-parameter circuit element from the 4-port S-parameter file.
add(cktCh,[1 3 2 4],channel);
setports(cktCh,[1 0],[2 0],[3 0],[4 0])
Schannel = sparameters(cktCh,freq,50);

Convert Analog Model of Receiver to S-Parameter

cktRx = circuit('rxAnalog');
add(cktRx,[1 0],resistor(RxR,'R3'))
add(cktRx,[1 0],capacitor(RxC,'C3'))
add(cktRx,[2 0],resistor(RxR,'R4'))
add(cktRx,[2 0],capacitor(RxC,'C4'))
add(cktRx,[1 3],resistor(Rshort,'R5'))
add(cktRx,[2 4],resistor(Rshort,'R6'))
setports(cktRx,[1 0],[2 0],[3 0],[4 0])
SrxAnalog = sparameters(cktRx,freq,50);

Create Combined S-Parameter Object

You can combine the S-Parameters using cascadesparams. Set values of data, freq and z0 for use by the rational function. Use s2sdd to convert the data to a 4-port differential S-Parameter diffdata. Note: RF Toolbox™ applies ports first from top to bottom on an S-parameter, then from left to right. Be aware that ports on an imported S-Paramter may be formatted as left-to-right, then top-to-bottom, and may have to be re-configured for use by RF Toolbox™.

sparamWithAnalog = cascadesparams(StxAnalog,Schannel,SrxAnalog);

data = sparamWithAnalog.Parameters;
freq = sparamWithAnalog.Frequencies;
z0 = sparamWithAnalog.Impedance;

diffdata = s2sdd(data,2);
diffz0 = 2*z0;
diffsparams = sparameters(diffdata,freq,diffz0);

Convert S-Parameter to Transfer Function

You can find the transfer function using the MATLAB function s2tf using the control parameters for reference impedance zRef, source impedance zSource and load impedance zLoad.

Note: The source impedance is set to short-circut and load impedance is set to open-circuit, because the impedance characteristics of the Tx and Rx are already included S-Parameter model of the LTI system.

zRef = diffz0;   % Reference impedance of S-Parameters
zSource = 1e-6;  % Short circuit the source impedance since it is included in the Tx Analog model.
zLoad = 1e6;     % Open circuit the load impedance since it is included in the Rx Analog model.
difftransfunc = s2tf(diffdata,zRef,zSource,zLoad);

Find Fit for theTransfer Function by using Rational Function

You can see how to use rational to obtain a fit:

Note: for the function rational, it is recommended to set TendsToZero to true for fast TX rise times in order to mitigate potential numerical artifacts in the impulse response.

%Fit model to transfer function
rationalResults = rational(freq,difftransfunc,errTolerance,'TendsToZero',true,'MaxPoles',nPoles,'Display',"off");
fprintf('\nThe derived rational function achieved %f dB fit with %d poles.\n',rationalResults.ErrDB,rationalResults.NumPoles);
The derived rational function achieved -51.339448 dB fit with 160 poles.
%% Extract impulse response from rational fit results

%Determine symbol time, time steps and duration (in samples) of the impulse
SymbolTime = 1/dataRate;
ts = SymbolTime/samplesPerSymbol;
pointsInImpulse = round(stopTime/ts);

Find the Impulse Response using Impulse and Rational Output

Use the function impulse to find the impulse response of the fit:

impulseRaw = impulse(rationalResults,ts,pointsInImpulse);

Modelling TX Rise Time and Amplitude

You can include TX rise time and amplitude by convolving a rectangular pulse with the impulse response. Note: You can convert a 20-80% to 0-100% rise time assuming a linear ramp.

TxRiseTime = TxRiseTime2080/0.6;
risetimeSamples = round(TxRiseTime/ts); %Determine width of rise time pulse

Using a Linear Ramp Model for Rise Time

Note: Using a linear ramp model of the rise time in a discrete time system leads to the possibility of some uncertainty of using a linear ramp with given sampling interval. A reduction in uncertainty can be had by increasing the sampling resolution by increasing samples per symbol.

riseTimeUncertainty = (TxRiseTime - risetimeSamples*ts)/TxRiseTime*100;
fprintf('Rise time uncertainty is %g %%\n',riseTimeUncertainty);
Rise time uncertainty is 1.5625 %
%Create rise time pulse response
riseTimePulse = zeros(risetimeSamples*2,1);
riseTimePulse(1:risetimeSamples) = 1/risetimeSamples;

%Convolve rise time pulse with raw impulse response and scale by tx amplitude.
if risetimeSamples>1
    impulseResponse = TxAmplitude*conv(impulseRaw,riseTimePulse,'same');
    impulseResponse = TxAmplitude*impulseRaw;
t = (0:length(impulseResponse)-1)*ts;

Compare Fit Results to Original Data

You can compare the original data and fit differential-mode frequency response by plotting the magnitude and phase of the original transfer function and the esulting output of the rational function.

%Extract frequency response from fit
freqsforresp = linspace(0,max(freq)*2,length(freq))';
resp = freqresp(rationalResults,freqsforresp);

    freqsforresp*1.e-9, 20*log10(abs(resp)),'b--','LineWidth',2)
title(sprintf('Rational Fitting with %d poles',rationalResults.NumPoles),'FontSize',12)
ylabel('Magnitude (decibels)')
xlabel('Frequency (GHz)')
legend('Original data','Fit result')
grid on

origangle = unwrap(angle(difftransfunc))*180/pi;
plotangle = unwrap(angle(resp))*180/pi;
plot(freq*1.e-9,origangle,'r',freqsforresp*1.e-9,plotangle,'b--', ...
ylabel('Phase (deg.)')
xlabel('Frequency (GHz)')
legend('Original data','Fit result')
grid on

Plot Impulse Response

Here you can see a plot of the Impulse Response for the combination of the analog portion of the transmitter, baseband channel, and analog portion of the receiver.

%% Visualize impulse response
xlabel('Time (ns)')
title(sprintf('Impulse Response derived from\n%s\nand Tx/Rx analog model',ChannelFilename),'interpreter','none')
grid on

Use Impulse Response for Channel Model in Serdes Designer

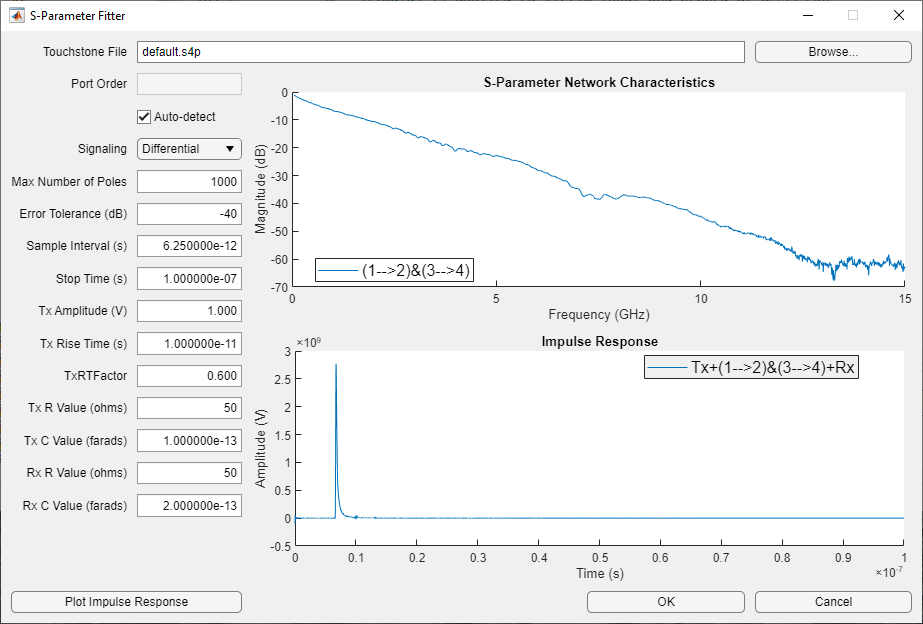

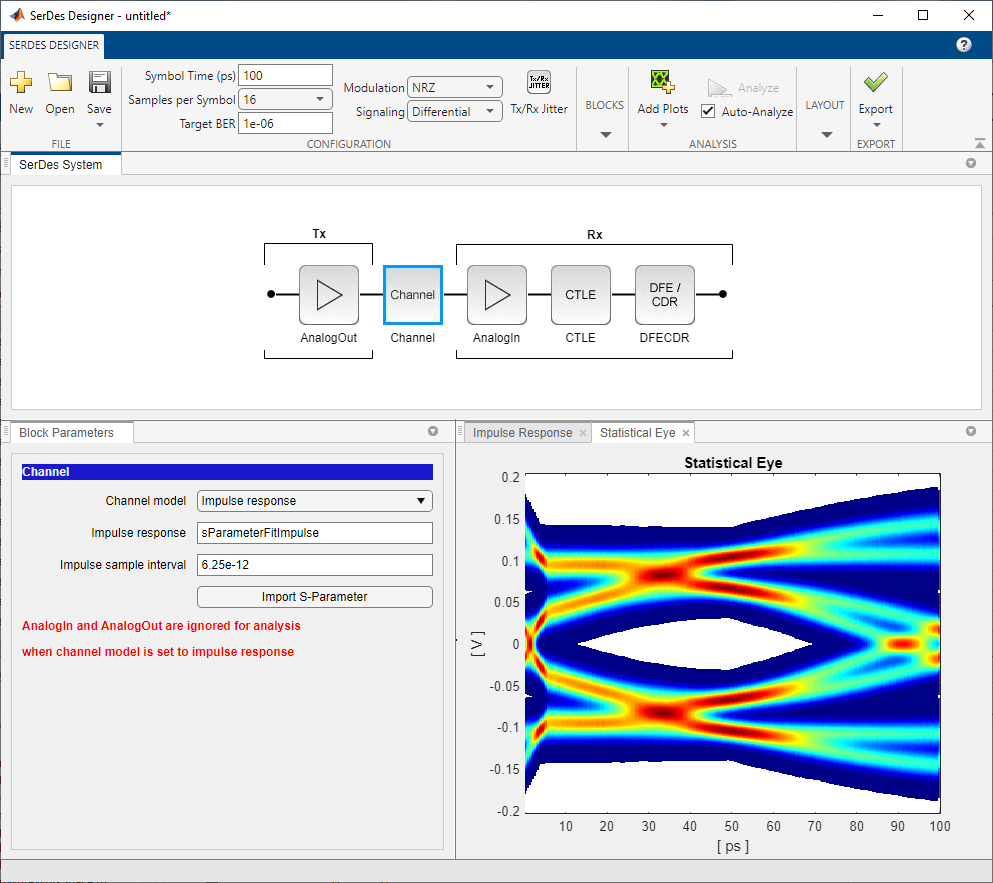

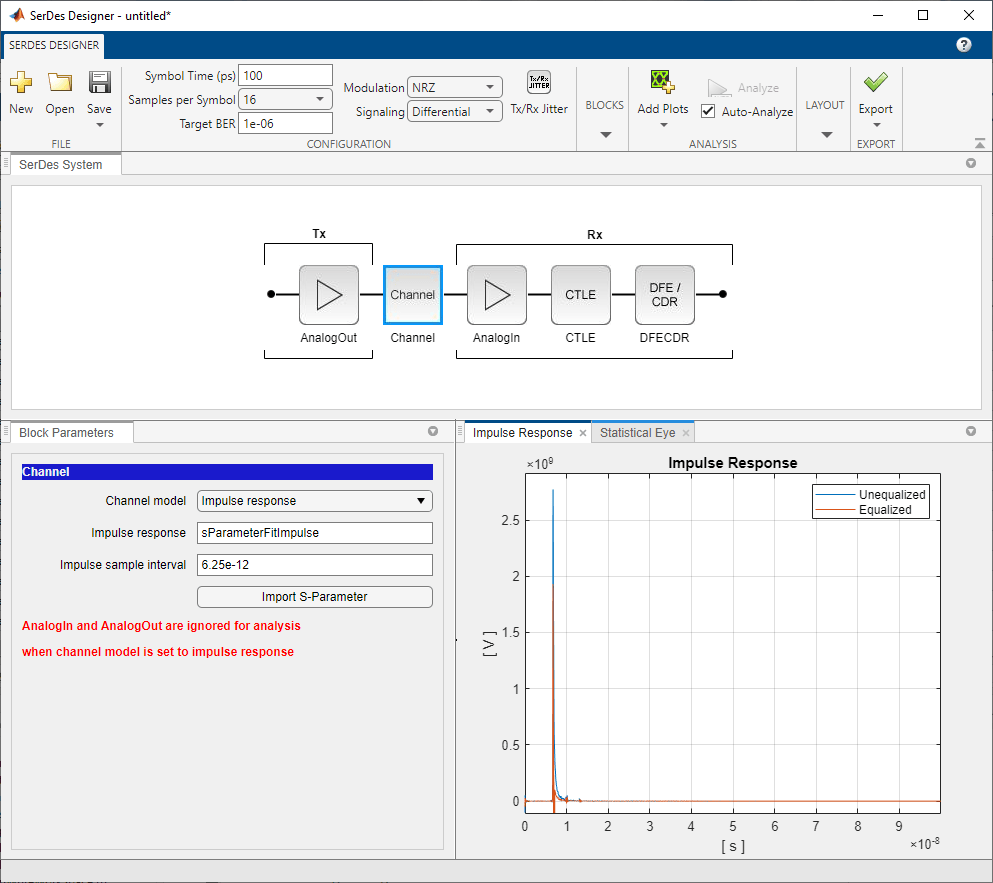

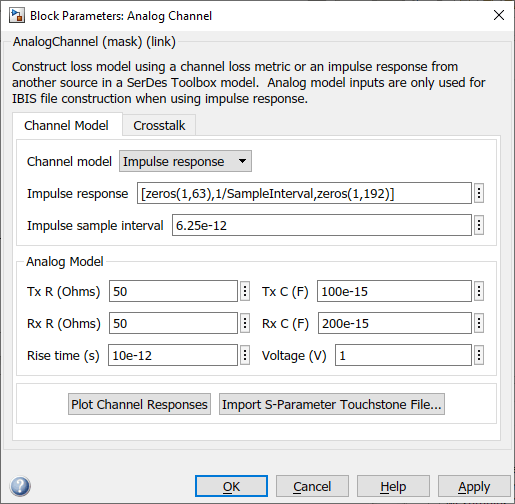

You can use the impulse response of the baseband channel model within Serdes Designer by selecting "Impulse response" for channel model and enter the vector impulseResponse.
