# pulsesep

Separation between bilevel waveform pulses

## Syntax

## Description

returns the
differences between the mid-reference level instants of the final negative-going transitions of
every positive-polarity pulse and the next positive-going transition. To determine the
transitions that compose each pulse, the `S`

= pulsesep(`x`

)`pulsesep`

function estimates the
state levels of the input waveform by a histogram method. The function identifies all regions
that cross the upper-state boundary of the low state and the lower-state boundary of the high
state.

`[`

returns the mid-reference level instants `s`

,`initcross`

,`finalcross`

]
= pulsesep(___)`finalcross`

of the final transition
of each pulse.

`[`

returns the mid-reference level instants `s`

,`initcross`

,`finalcross`

,`nextcross`

]
= pulsesep(___)`nextcross`

of the next detected
transition after each pulse.

`[`

returns the mid-reference level `s`

,`initcross`

,`finalcross`

,`nextcross`

,`midlev`

]
= pulsesep(___)`midlev`

.

`[`

returns the pulse separations with additional options specified by one or more name-value
arguments.`s`

,`initcross`

,`finalcross`

,`nextcross`

,`midlev`

]
= pulsesep(___,`Name,Value`

)

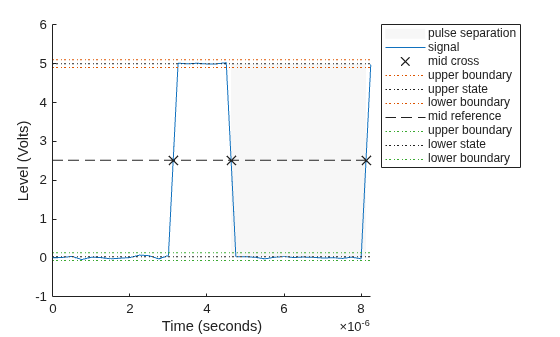

`pulsesep(___)`

plots the signal and darkens the regions
between each pulse where pulse separation is computed. The function marks the location of the
mid crossings and their associated reference level. The function also plots the state levels and
their associated lower and upper boundaries. You can adjust the boundaries using the
`'Tolerance'`

name-value argument.

## Examples

## Input Arguments

## Output Arguments

## More About

## References

[1] *IEEE ^{®} Standard on Transitions,
Pulses, and Related Waveforms*, IEEE Standard 181, 2003.

## Extended Capabilities

## Version History

**Introduced in R2012a**
