Discrete-Event Chart

Discrete event chart

  • Discrete-Event Chart block

Libraries:
SimEvents

Description

The Discrete-Event Chart block is similar to a Stateflow® chart but is used for discrete events. The block requires a Stateflow license.

The distinguishing characteristic of the Discrete-Event Chart block is that it executes in an event-based rather than time-based fashion. The Discrete-Event Chart block provides these advantages for discrete-event modeling:

  • Precise timing — The time resolution for occurrence of events can be arbitrarily precise and is not limited by the sample time of the model.

  • Trigger on arrival — A Discrete-Event Chart block executes immediately on message arrival. It does not wait for the next sample time hit.

  • Variable execution order — A Discrete-Event Chart block does not have a fixed sorted execution order. The order of execution depends on the run-time conditions of the model.

  • Multiple executions per time step — A Discrete-Event Chart block can execute zero or multiple times in a single time step.

The Discrete Event Chart can be used in a similar fashion to the Stateflow Chart (Stateflow).

To access the chart properties, right-click the chart and select Properties. For more information about the block properties, see Create Custom Queuing Systems Using Discrete-Event Stateflow Charts.

For information about SimEvents® common design patterns with Discrete-Event Chart block, see SimEvents Common Design Patterns.

Examples

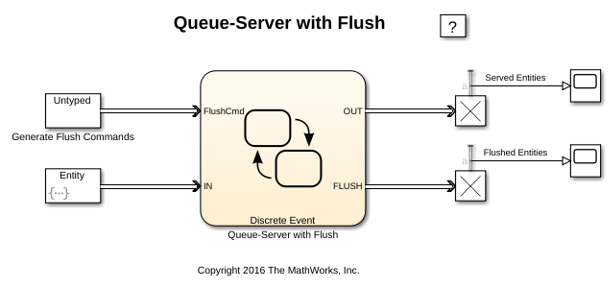

Flush Entities from a Queue-Server

Flush Entities from a Queue-Server

Use a Discrete-Event Chart block to model a queue-server that can flush entities when it receives a message on the "FlushCmd" port.

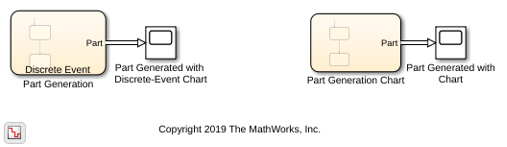

Discrete-Event Chart Precise Timing

Discrete-Event Chart Precise Timing

The precise timing that a Discrete-Event Chart block executes as it generates parts in a facility. The behavior of the Discrete-Event Chart and the Stateflow® blocks are compared. Both blocks require a Stateflow® license. Using a Discrete-Event Chart block, the example shows that the temporal resolution of events can be arbitrarily precise and independent from the model sample time.

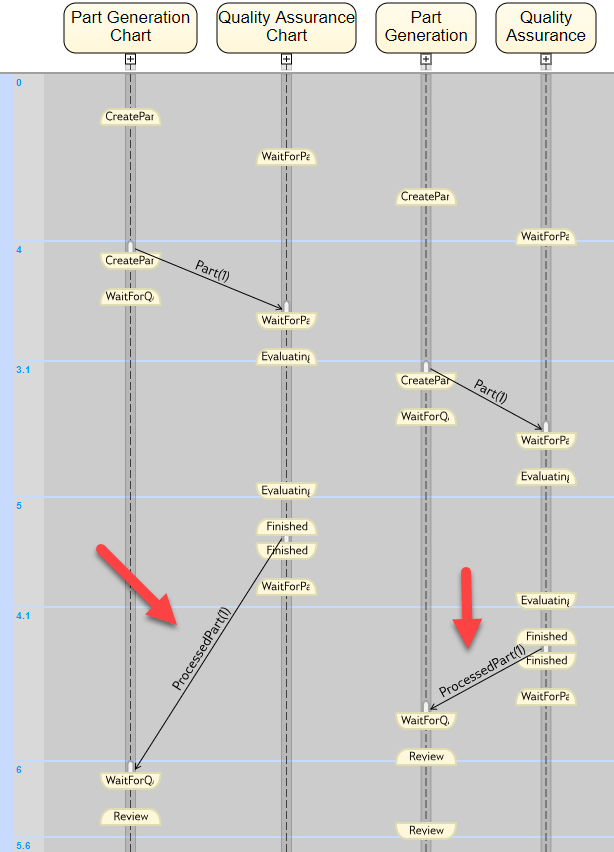

Trigger a Discrete-Event Chart Block on Message Arrival

Trigger a Discrete-Event Chart Block on Message Arrival

Trigger a Discrete-Event Chart Block on the message arrival when generating parts in a facility and performing quality assurance. In the example, behaviors of a Discrete-Event Chart and Stateflow® Chart blocks are compared. Both blocks require a Stateflow® license. The example shows that, a Discrete-Event Chart block executes immediately upon the arrival of a message and does not wait for the next sample time hit.

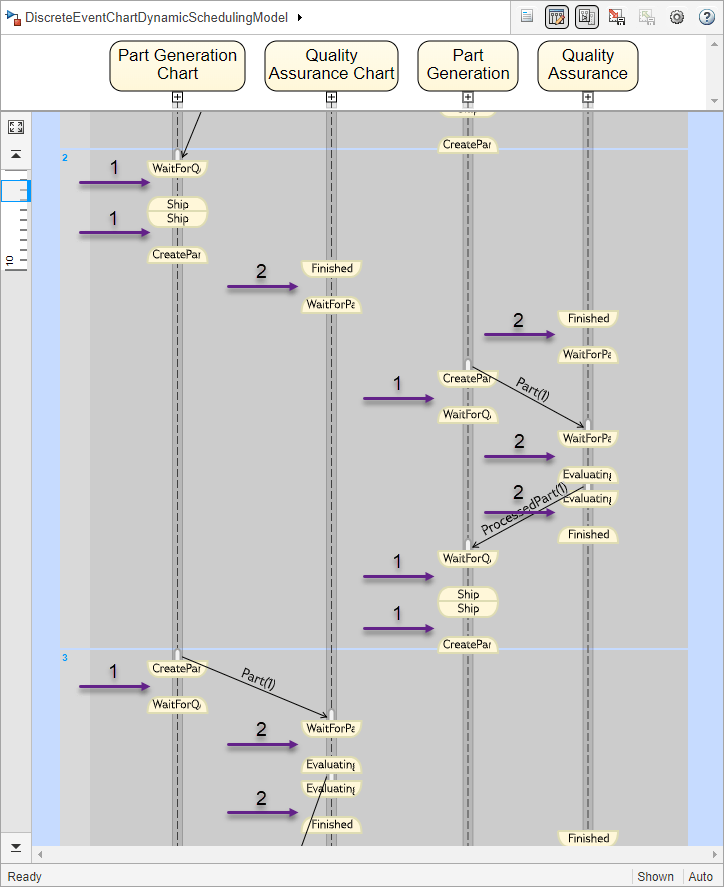

Dynamic Scheduling of Discrete-Event Chart Block

Dynamic Scheduling of Discrete-Event Chart Block

Use the dynamic scheduling that the Discrete-Event Chart block provides. A Discrete Event Chart block can execute zero or multiple times in a time step. The example compares the behaviors of the Discrete-Event Chart and Stateflow® Chart blocks. Both blocks require a Stateflow® license.

Modeling Machine Failure

Modeling Machine Failure

Model random failures and scheduled maintenance of a machine during regular operation. In the model, the machine can transition between three different states.

Version History

Introduced in R2016a
