CAN

R2026b

Communication using CAN protocol

Controller Area Network (CAN) is a robust communication protocol that enables communication between multiple devices. Use CAN to efficiently design and implement reliable CAN-based communication systems.

Blocks

	CAN Transmit	Transmit message to CAN network
	CAN Receive	Receive message from CAN network
	On-board CAN Receive	Receive messages using on-board Arduino CAN controller (Since R2024b)
	On-board CAN Transmit	Transmit messages to CAN network using on-board Arduino CAN controller (Since R2024b)

Model Settings

expand all

CAN Properties

CAN Bus Speed (kBit/s)	Speed at which messages are transmitted
Oscillator Frequency (MHz)	Oscillator frequency of CAN network
Interrupt Pin	SPI pin on the hardware to which the CAN shield is connected
Allow All Messages	Option to allow all IDs to pass filter
Buffer 0 ID Type	Buffer 0 id type
Buffer 0 Acceptance Mask (RXMO)	Value for buffer 0 acceptance mask (RXMO)
Buffer 0 Acceptance Filter (RXF0)	Value for buffer 0 acceptance filter (RXF0)
Buffer 0 Acceptance Filter (RXF1)	Value for buffer 0 acceptance filter (RXF1)

On-Board CAN Properties

CAN Bus Speed (kBits/s)	CAN data transmission speed in kilo bits per second (Since R2024b)
CAN Pins	CAN pins for on-board Arduino Teensy CAN1 controller (Since R2024b)
Filter configuration	Acceptance filter filtering criteria (Since R2024b)
Number of mailbox	Number of CAN mailboxes (Since R2024b)
Mailbox type	Type of CAN mailbox to either receive or transmit data (Since R2024b)
ID type	CAN message ID type (Since R2024b)
ID	CAN receiver filter value (Since R2024b)
ID Range	Matrix of CAN receiver filter identifiers (Since R2024b)
Mask	CAN receiver mask value (Since R2024b)
Enhance filter	Enhanced filtering option (Since R2024b)

External Mode on CAN

CAN interface type	Type of CAN interface used for XCP on CAN external mode communication (Since R2026b)
CAN module	On-board CAN controller module for XCP on CAN external mode communication (Since R2026b)
CAN Bus Speed (kBit/s)	Speed at which messages are transmitted
CAN Vendor	CAN hardware vendor for XCP on CAN external mode communication (Since R2026b)
CAN Device	CAN hardware device for XCP on CAN external mode communication (Since R2026b)
CAN Channel	CAN hardware channel for XCP on CAN external mode communication (Since R2026b)
Extended CAN ID	Use extended 29-bit CAN identifiers for XCP external mode communication (Since R2026b)
CAN ID command	CAN identifier for XCP command messages from host to target (Since R2026b)
CAN ID response	CAN identifier for XCP response messages from target to host (Since R2026b)

XCP on CAN with Arduino

Set Up, Deploy, and Calibrate Arduino Application Using XCP on CAN

Set up XCP on CAN communication, deploy a Simulink^® application to Arduino^®, and perform real-time monitoring and calibration using Simulink or third-party calibration tools.

STEP 1: Set Up CAN Hardware on Host Computer for XCP on CAN Communication
STEP 2: Configure Model for XCP on CAN External Mode
STEP 3: Generate A2L File for Third-Party Calibration Tools Using XCP on CAN Host Communication

Featured Examples

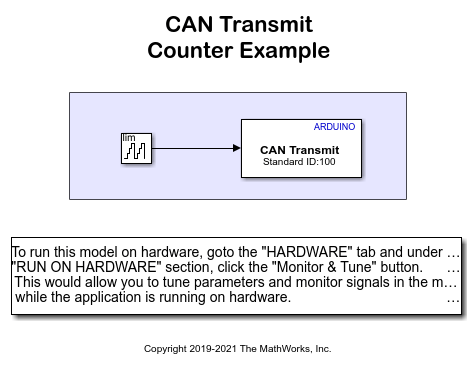

Transmit and Receive Data Using Arduino CAN Blocks

Use Simulink® Support Package for Arduino® Hardware to transmit and receive data from the CAN network using the specified CAN device.

Open Model

Monitor Engine RPM Using Arduino CAN Blocks

Use Simulink® Support Package for Arduino® Hardware to monitor vehicle engine RPM using Arduino CAN blocks.

Open Model
