Advanced Enabled Subsystems

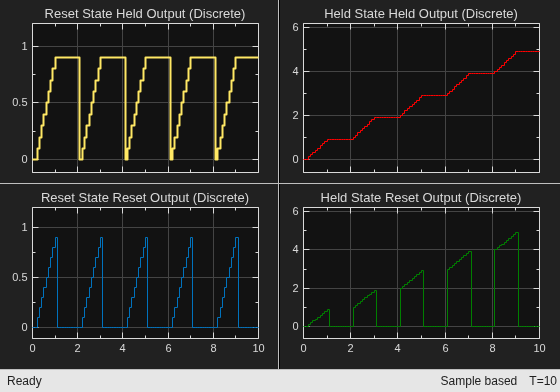

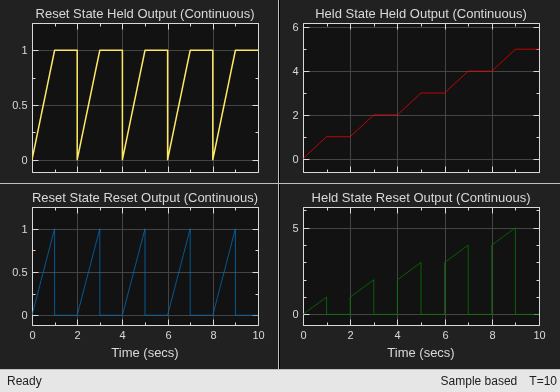

This model shows what happens when a sine wave is fed into an enabled subsystem. The four subsystems in the model contain integrators, either discrete or continuous as described by the subsystem name. After running the simulation, the two scopes show the results for the discrete enabled subsystems (top scope) and continuous enabled subsystems (bottom scope).

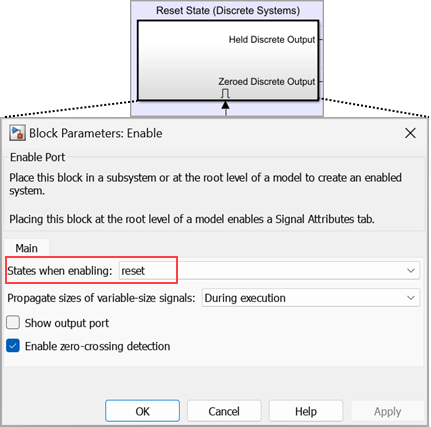

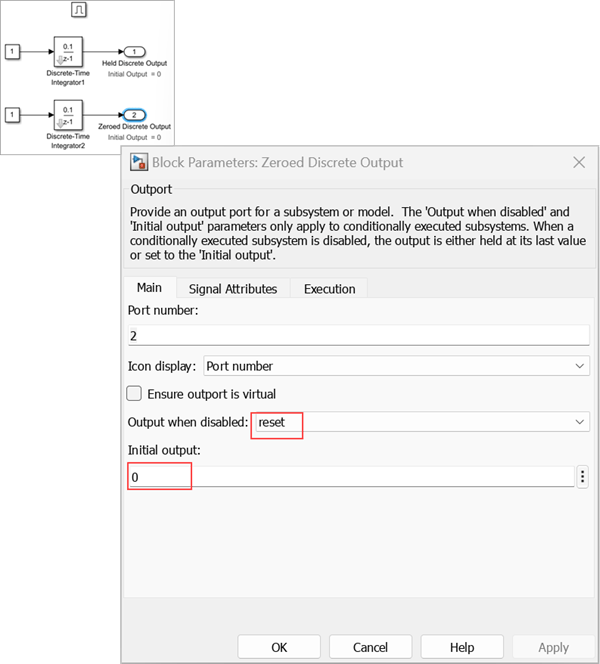

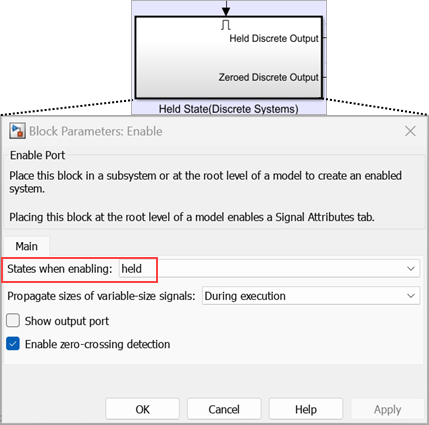

Each scope shows the output for all combinations of the states and outputs of the enabled subsystem being either held or reset when the subsystem is disabled. The colors on the scope correspond to the following state and output configurations:

Yellow: Reset states; Held outputs

Blue: Reset states; Reset outputs

Red: Held states; Held outputs

Green: Held states; Reset outputs
