Callback Button

Execute MATLAB code using button

• Library:

• Simulink / Dashboard

•

Description

The Callback Button block executes MATLAB^® code in response to a click or press of the button. When you press the button, the code executes after a time span that you specify has elapsed or at time intervals that you specify. You can configure the block to execute different code for a click versus for a press.

Double-clicking the Callback Button block does not open its dialog box during simulation or when the block is selected. To edit the block parameters, you can use the Property Inspector or open the block dialog box by:

• Double-clicking the block when the block is not selected and the model is not simulating.

• Right-clicking the block and selecting Block Parameters from the context menu.

The Callback Button block in the Customizable Blocks library provides the same functionality as this Callback Button block and provides additional capabilities to:

• Design the appearance of the block to look like a button in a real system.

• Configure the button type as momentary or latch.

Parameters

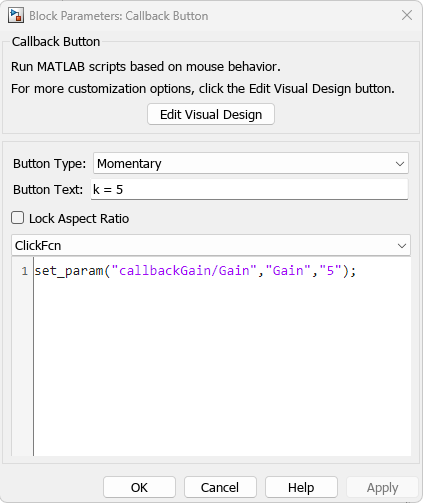

To modify the block parameters of a Callback Button, use the Block Parameters dialog box.

Button Text — Label for button

'Callback Button' (default) | character array

Text label for the button.

Tips

To design a button that displays different text depending on the state of the block, use the Callback Button block in the Customizable Blocks library.

Programmatic Use

Block Parameter: ButtonText

Type: string or character array

Default: 'Callback Button'

ClickFcn — MATLAB code that executes in response to click

MATLAB code

MATLAB code that executes in response to a click of the button.

Every time you click the button, the ClickFcn code executes once, at the point in time when you release the click.

To specify code for the ClickFcn, select ClickFcn from the drop-down menu. Enter the code in the text box below the menu.

PressFcn — MATLAB code that executes in response to press

MATLAB code

MATLAB code that executes in response to a press of the button.

While the button is in the pressed state, the PressFcn code executes once when the Press Delay time has elapsed and periodically at every Repeat Interval.

To specify code for the PressFcn, select PressFcn from the drop-down menu. Enter the code in the text box below the menu.

To execute the PressFcn code, hold down your click for the length of time that you want to press the button.

Note

Every time that you click on the button, even when you do so as part of the process for pressing the button, the ClickFcn code executes once, at the point in time when you release the click.

Press Delay (ms) — Time to hold button for press

500 (default) | scalar

Amount of time required to cause the PressFcn code to execute.

Dependency

Press Delay (ms) is visible only when PressFcn is selected as the Mouse Action.

Repeat Interval (ms) — Time interval to repeat PressFcn code

0 (default) | scalar

Time interval after which the PressFcn code executes again if the Callback Button block is still pressed.

Dependency

Repeat Interval (ms) is visible only when PressFcn is selected as the Mouse Action.

Model Examples

Initialize Your Model Using the Callback Button Block

Use the Callback Button block to perform initialization routines on your model.

Open Model

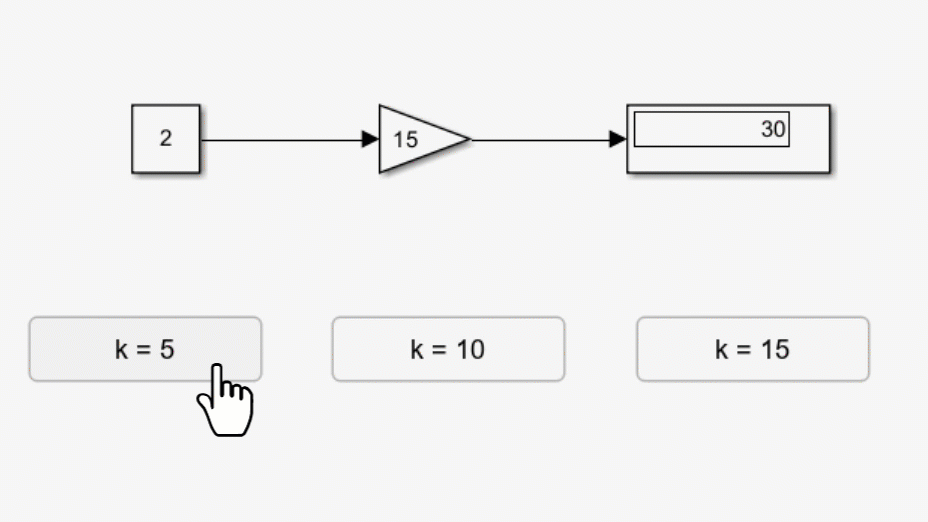

Control a Parameter Value with Callback Button Blocks

Models control of a system that consists of two masses attached on either side of a spring.

Open Model

Block Characteristics

Data Types
Direct Feedthrough	no
Multidimensional Signals	no
Variable-Size Signals	no
Zero-Crossing Detection	no

Extended Capabilities

C/C++ Code Generation

Generate C and C++ code using Simulink® Coder™.

Dashboard blocks are ignored for code generation.

Version History

Introduced in R2017b
