Model Reference Basics

You can include one model in another by using a Model block. Each Model block is a model reference, or a reference to another model. You can reference a model multiple times without making redundant copies, and multiple models can reference the same model. These references create a model hierarchy.

A model can function as both a referenced model and a standalone model, without changing the model or any entities derived from it. To use a referenced model as a standalone model, the referenced model must not depend on data that is available only from a higher-level model.

Each referenced model compiles independently. This standalone behavior can improve the performance of your model hierarchy and help you achieve your modeling goals.

Model Reference Advantages

Like subsystems, model references allow you to organize large models hierarchically. Like libraries, model references allow you to define a set of blocks once and use it repeatedly. Unlike subsystems and libraries, model references provide advantages that result from the referenced models compiling independently. The ideal way to implement a model component depends on your requirements.

When your component is reused multiple times in a model hierarchy and contains many blocks, implementing the component as a model reference can speed up simulation and code generation. For example, when you use model references, you can benefit from:

  • Incremental loading

    The software loads a referenced model when the model is needed, which speeds up model loading.

  • Accelerated simulation

    When a referenced model simulates in accelerator mode, the software converts the referenced model to code. Then, the software simulates the model by running the code, which is faster than running a normal mode simulation.

  • Incremental builds

    The software generates code for a referenced model only if the model has changed since the code was previously generated. When your team members or a continuous integration system generate code for referenced models, Simulink® cache files package this code for reuse. Local copies of these files can speed up simulation and code generation for you.

  • Local solvers (since R2022a)

    When you use a local solver in a referenced model, the software solves a model reference as a separate set of differential equations. The local solver can use a different, larger step size. The choice of solver and solver settings involves a trade off between speed and accuracy in simulation. For more information, see Use Local Solvers in Referenced Models.

  • Parallel computing (with a Parallel Computing Toolbox™ license)

    For large model reference hierarchies, you can increase the speed of diagram updates by building model reference targets in parallel. For a referenced model to build in parallel, you must configure it to run in accelerator mode. For more information, see Reduce Update Time for Referenced Models by Using Parallel Builds.

Model references support collaboration with team members and third parties. For example, model references can help you satisfy these requirements:

  • Modular development

    You can develop a referenced model independent from the models that use it. For example, you can open a referenced model without the context of a model hierarchy. Then, you can simulate and generate code for the referenced model. A referenced model is a standalone component that you can use in an assembly and integrate with other components.

  • Intellectual property protection (with a Simulink Coder™ or HDL Coder™ license)

    You can obscure the contents of a referenced model, allowing you to distribute the model as a protected model without revealing its intellectual property. You can grant the protected model recipient permission to view, simulate, and generate code for the protected model. For more information, see Protect Models to Conceal Contents (Simulink Coder) or Create Protected Models to Conceal Contents and Generate HDL Code (HDL Coder).

Model references help you verify the behavior of your component by offering an isolated environment. For example, model references support your testing and certification requirements with:

  • Unit testing

    You can test a referenced model independently by simulating the referenced model as a top model, isolating its behavior. You can also create a test harness that exercises the referenced model in a test environment with various test scenarios. Unit testing can eliminate retesting for unchanged components and reduce the cost of verification. For more information, see Component Verification. For help verifying compliance with industry standards and guidelines, see Check Your Model Using the Model Advisor.

  • SIL/PIL testing (with an Embedded Coder® license)

    To verify referenced models in an environment that mimics the target environment, you can simulate the referenced models in software-in-the-loop (SIL) or processor-in-the-loop (PIL) mode. These simulations let you generate and test production code that is compiled for and executed on the host platform for SIL simulations and the target platform for PIL simulations. For more information, see SIL and PIL Simulations (Embedded Coder).

  • Single-sourced generated code

    Each referenced model has one set of source code, regardless of how many times a model hierarchy includes the referenced model. Single-sourced code can reduce the cost of verification.

  • Independent traceability for generated code

    You can trace the generated code for a referenced model independently of other models. Suppose you confirm that the generated code traces back to the referenced model with baseline equivalence tests and additional test vectors that target 100% code coverage. Changes to the parent model do not affect this verification testing, which reduces the cost of verification.

    With a Simulink Code Inspector™ license, you can create a traceability matrix for each referenced model. The traceability matrix provides the traceability among model objects, generated code, and model requirements. For more information, see Generate Traceability Matrices (Simulink Code Inspector).

For a video summarizing model reference advantages, see Modular Design Using Model Referencing (2 min, 50 sec).

To compare model references, subsystem references, subsystems, and libraries, see Explore Types of Model Components.

Model Reference Hierarchy

A model hierarchy can use multiple componentization techniques. For example, a model can use a combination of subsystems, referenced models, and Stateflow® charts to create hierarchy.

When a model hierarchy contains referenced models, the top model is the top-level model in the Simulink window. For example, suppose you open the sldemo_mdlref_basic model. Then, you navigate into a referenced model via the Model block named CounterA.

The window title includes two elements.

  • sldemo_mdlref_basic — Name of the top model

  • CounterA — Name of the Model block

Simulink window titled sldemo_mdlref_basic/CounterA

The Explorer Bar includes three elements.

  • sldemo_mdlref_basic — Name of the top model

  • CounterA — Name of the Model block

  • sldemo_mdlref_counter — Name of the referenced model

Explorer Bar displaying sldemo_mdlref_basic > CounterA (sldemo_mdlref_counter)

The Model Browser displays the hierarchy of the top model, referenced models, and other model components.

Model Browser for sldemo_mdlref_basic

Each referenced model can reference other models. To prevent cyclic inheritance, a Model block cannot reference a model that is above it in the model hierarchy. For example, a model cannot reference its parent model, which is the model that references it.

A top model references model A, which references model B. The referenced models, model A and model B, cannot reference the top model. Model B also cannot reference model A, which is its parent model.

A model can contain multiple Model blocks that reference the same model as long as the referenced model does not define global data. For example, the sldemo_mdlref_basic model contains three Model blocks that reference the sldemo_mdlref_counter model.

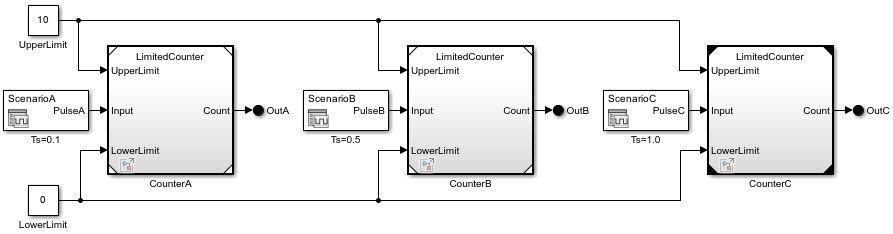

Three Model blocks display the name of the referenced model (sldemo_mdlref_counter) on their block icons.

The referenced model can also appear in other models at any level.

To open a referenced model as a top model, on the Model block icon, click the Open As Top Model badge. The referenced model opens outside of the context of the current model hierarchy.

When you edit a model, the changes affect the same model file regardless of whether the model is open as a referenced model or top model.

Model Reference Interface

The ports on a Model block correspond to blocks at the top level of the referenced model. The ports can be input, output, or control ports.

For example, in the sldemo_mdlref_basic model, each Model block references the sldemo_mdlref_counter model and has:

  • Three input ports, named upper, input, and lower

  • One output port, named output

Each Model block receives three input signals and returns one output signal.

The sldemo_mdlref_counter referenced model has:

  • Three Inport blocks, named upper, lower, and input

  • One Outport block, named output

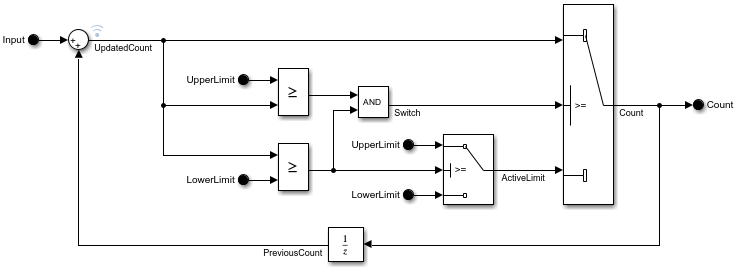

Blocks that represent model input and output are part of the block diagram for the model.

When you connect a signal to a Model block port, you connect the signal to the corresponding port of the referenced model. The output of a Model block can differ despite the referenced model being the same.

For example, in sldemo_mdlref_basic, each Model block port named input receives a signal from a unique Pulse Generator block. Because the input signal from each Pulse Generator block uses a different sample time, the output signal from each Model block differs despite the referenced model being the same.

To view how the output signal for each Model block differs, you can use the Simulation Data Inspector.

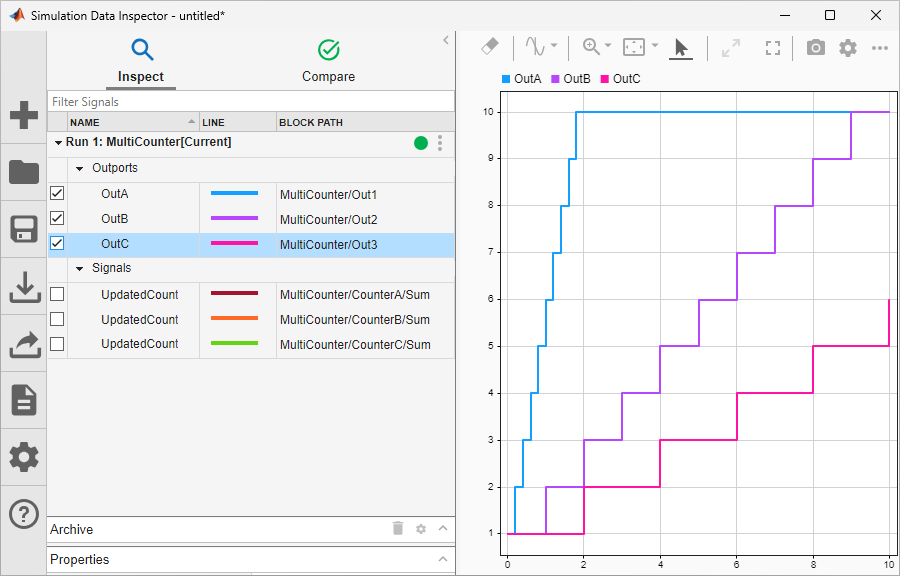

Simulation Data Inspector plot of the output signal for each model instance

Signal attributes in the referenced model are independent from the context of the Model block. For example, signal dimensions and data types do not propagate across the Model block boundary. To define signal attributes in the referenced model, use the block parameters of the root-level Inport and In Bus Element blocks.

Model Workspaces and Data Dictionaries

Each model has its own workspace for storing variable values. In a model hierarchy, each model workspace acts as a unique namespace. Therefore, you can use the same variable name in multiple model workspaces.

To share data among models, use a data dictionary.

Duplicate data definitions can exist in a model reference hierarchy under these conditions:

  • Each model in the hierarchy can see only one definition.

  • Definitions must be the same across models in the hierarchy.

For more information on where you can store variables and objects, see Determine Where to Store Variables and Objects for Simulink Models.

Model Reference Behavior and Execution

During simulation and code generation, a Model block behaves like a single block, or atomic unit. When the Model block executes, the blocks within the referenced model execute the current task without interruption from blocks in the parent system.

To modify how a referenced model behaves and when it executes, consider these features:

  • Independent configuration sets

    The configuration set used by a referenced model can differ from the configuration set of its parent or other referenced models. For more information, see Set Configuration Parameters for Model Hierarchies.

  • Instance parameters

    By default, a block parameter has the same value in each Model block instance of a reusable referenced model. To specify a different block parameter value for each instance of a reusable referenced model, create model arguments. For example, if you add a Gain block to model sldemo_mdlref_counter, model arguments allow each of the three instances of this model to use different gain values. See Parameterize Instances of a Reusable Referenced Model.

  • Model masks

    With a model mask, you can control the appearance of Model blocks and customize the way the blocks display model arguments. For model mask requirements, see Model Masks.

  • Conditional execution

    An external signal can control whether a Model block executes during simulation. For more information, see Conditionally Execute Referenced Models.

  • Dynamic startup and shutdown behavior

    To model dynamic startup and shutdown behavior for a Model block, add custom routines to the default initialization and termination routines of the Model block. For more information, see Using Initialize, Reinitialize, Reset, and Terminate Functions.

  • Variants

    You can use multiple Model blocks to represent multiple design variations of a system component. A conditional expression determines the active variant. For more information, see What Are Variants and When to Use Them.

Model Reference Simulation and Code Generation

When you simulate a model hierarchy, the top model simulates. For example, suppose you open the sldemo_mdlref_basic model. Then, you navigate into a referenced model via the Model block named CounterA.

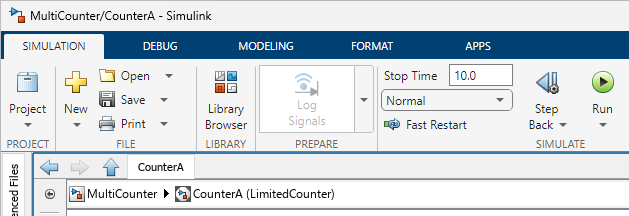

Window with sldemo_mdlref_counter open as referenced model

The sldemo_mdlref_basic model is the top model. When you click Run, the sldemo_mdlref_basic model simulates.

For another example, suppose you open the sldemo_mdlref_counter model as a top model in a new window.

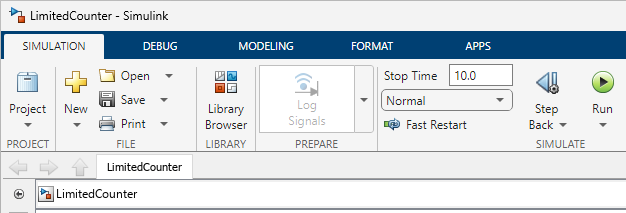

Window with sldemo_mdlref_counter open as top model

In the new window, the sldemo_mdlref_counter model is the top model. When you click Run, the sldemo_mdlref_counter model simulates.

For a referenced model to simulate as a standalone top model, the referenced model must have the data required to execute in a standalone context. For example, the referenced model must have the variables and data types that define parameters and signals.

You can simulate a referenced model either interpretively (in normal mode) or by compiling the referenced model to code and executing the code (in accelerator mode). For details, see Choose Simulation Modes for Model Hierarchies.

For information about generating code for a model reference hierarchy, see Generate Code for Model Reference Hierarchy (Simulink Coder).

Tip

For faster simulation and incremental code generation, consider using Simulink cache files. Simulink cache files contain build artifacts that can speed up simulation and code generation. For more information, see Share Simulink Cache Files for Faster Simulation and Simulink Cache Files for Incremental Code Generation (Simulink Coder).
