sinkedTransitions

Identify transitions with specified destination

Syntax

transitions = sinkedTransitions(destination)

transitions = sinkedTransitions(destination) returns an array of Stateflow.Transition objects with the specified destination.

This example uses:

Find the transition that enters state A2.

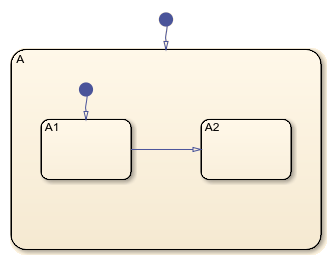

Stateflow chart with a hierarchy of states. The outer state is called A. It contains two inner states called A1 and A2.

Open the model and access the Stateflow.Chart object for the chart.

open_system("sfHierarchyAPIExample")
ch = find(sfroot,"-isa","Stateflow.Chart");

Find the Stateflow.State object named A2.

sA2 = find(sfroot,"-isa","Stateflow.State",Name="A2");

Identify the transition whose destination is state A2. Display the name of the source.

tr = sinkedTransitions(sA2);
tr.Source.Name

ans =
'A1'

Destination object, specified as a Stateflow^® API object of one of these types:

Introduced in R2012a
