classify
Classify observations using discriminant analysis
Syntax
Description
Note
fitcdiscr
and predict
are recommended over classify
for training a
discriminant analysis classifier and predicting labels. fitcdiscr
supports crossvalidation and hyperparameter optimization, and does not require you to
fit the classifier every time you make a new prediction or change prior
probabilities.
classifies each row of the data in class
= classify(sample
,training
,group
)sample
into one of the groups to
which the data in training
belongs. The groups for
training
are specified by group
. The function
returns class
, which contains the assigned groups for each row of
sample
.
[
also returns the apparent error rate (class
,err
,posterior
,logp
,coeff
] = classify(___)err
), posterior probabilities for
training observations (posterior
), logarithm of the unconditional
probability density for sample observations (logp
), and coefficients of
the boundary curves (coeff
), using any of the input argument
combinations in previous syntaxes.
Examples
Classify Using Linear Discriminant Analysis
Load the fisheriris
data set. Create group
as a cell array of character vectors that contains the iris species.
load fisheriris
group = species;
The meas
matrix contains four petal measurements for 150 irises. Randomly partition observations into a training set (trainingData
) and a sample set (sampleData
) with stratification, using the group information in group
. Specify a 40% holdout sample for sampleData
.
rng('default') % For reproducibility cv = cvpartition(group,'HoldOut',0.40); trainInds = training(cv); sampleInds = test(cv); trainingData = meas(trainInds,:); sampleData = meas(sampleInds,:);
Classify sampleData
using linear discriminant analysis, and create a confusion chart from the true labels in group
and the predicted labels in class
.
class = classify(sampleData,trainingData,group(trainInds)); cm = confusionchart(group(sampleInds),class);
The classify
function misclassifies one versicolor iris as virginica in the sample data set.
Classify Using Quadratic Discriminant Analysis and Visualize Decision Boundary
Classify the data points in a grid of measurements (sample data) by using quadratic discriminant analysis. Then, visualize the sample data, training data, and decision boundary.
Load the fisheriris
data set. Create group
as a cell array of character vectors that contains the iris species.
load fisheriris
group = species(51:end);
Plot the sepal length (SL
) and width (SW
) measurements for the iris versicolor and virginica species.
SL = meas(51:end,1); SW = meas(51:end,2); h1 = gscatter(SL,SW,group,'rb','v^',[],'off'); h1(1).LineWidth = 2; h1(2).LineWidth = 2; legend('Fisher versicolor','Fisher virginica','Location','NW') xlabel('Sepal Length') ylabel('Sepal Width')
Create sampleData
as a numeric matrix that contains a grid of measurements. Create trainingData
as a numeric matrix that contains the sepal length and width measurements for the iris versicolor and virginica species.
[X,Y] = meshgrid(linspace(4.5,8),linspace(2,4)); X = X(:); Y = Y(:); sampleData = [X Y]; trainingData = [SL SW];
Classify sampleData
using quadratic discriminant analysis.
[C,err,posterior,logp,coeff] = classify(sampleData,trainingData,group,'quadratic');
Retrieve the coefficients K
, L
, and M
for the quadratic boundary between the two classes.
K = coeff(1,2).const; L = coeff(1,2).linear; Q = coeff(1,2).quadratic;
The curve that separates the two classes is defined by this equation:
$$\mathit{K}+\left[\begin{array}{cc}{\mathit{x}}_{1}& {\mathit{x}}_{2}\end{array}\right]\mathit{L}+\left[\begin{array}{cc}{\mathit{x}}_{1}& {\mathit{x}}_{2}\end{array}\right]\mathit{Q}\left[\begin{array}{c}{\mathit{x}}_{1}\\ {\mathit{x}}_{2}\end{array}\right]=0$$
Visualize the discriminant classification.
hold on h2 = gscatter(X,Y,C,'rb','.',1,'off'); f = @(x,y) K + L(1)*x + L(2)*y + Q(1,1)*x.*x + (Q(1,2)+Q(2,1))*x.*y + Q(2,2)*y.*y; h3 = fimplicit(f,[4.5 8 2 4]); h3.Color = 'm'; h3.LineWidth = 2; h3.DisplayName = 'Decision Boundary'; hold off axis tight xlabel('Sepal Length') ylabel('Sepal Width') title('Classification with Fisher Training Data')
Visualize Classification Boundaries of Linear Discriminant Analysis
Partition a data set into sample and training data, and classify the sample data using linear discriminant analysis. Then, visualize the decision boundaries.
Load the fisheriris
data set. Create group
as a cell array of character vectors that contains the iris species. Create PL
and PW
as numeric vectors that contain the petal length and width measurements, respectively.
load fisheriris
group = species;
PL = meas(:,3);
PW = meas(:,4);
Plot the sepal length (PL
) and width (PW
) measurements for the iris setosa, versicolor, and virginica species.
h1 = gscatter(PL,PW,species,'krb','ov^',[],'off'); legend('Setosa','Versicolor','Virginica','Location','best') xlabel('Petal Length') ylabel('Petal Width')
Randomly partition observations into a training set (trainingData
) and a sample set (sampleData
) with stratification, using the group information in group
. Specify a 10% holdout sample for sampleData
.
rng('default') % For reproducibility cv = cvpartition(group,'HoldOut',0.10); trainInds = training(cv); sampleInds = test(cv); trainingData = [PL(trainInds) PW(trainInds)]; sampleData = [PL(sampleInds) PW(sampleInds)];
Classify sampleData
using linear discriminant analysis.
[class,err,posterior,logp,coeff] = classify(sampleData,trainingData,group(trainInds));
Retrieve the coefficients K
and L
for the linear boundary between the second and third classes.
K = coeff(2,3).const; L = coeff(2,3).linear;

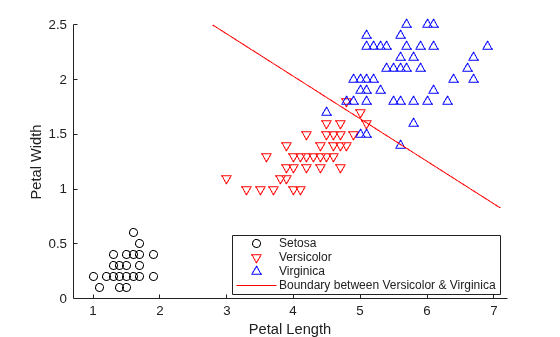

The line that separates the second and third classes is defined by the equation $\text{\hspace{0.17em}}\mathit{K}+\left[\begin{array}{cc}{\mathit{x}}_{1}& {\mathit{x}}_{2}\end{array}\right]\mathit{L}=0$. Plot the boundary line between the second and third classes.
f = @(x1,x2) K + L(1)*x1 + L(2)*x2; hold on h2 = fimplicit(f,[.9 7.1 0 2.5]); h2.Color = 'r'; h2.DisplayName = 'Boundary between Versicolor & Virginica';

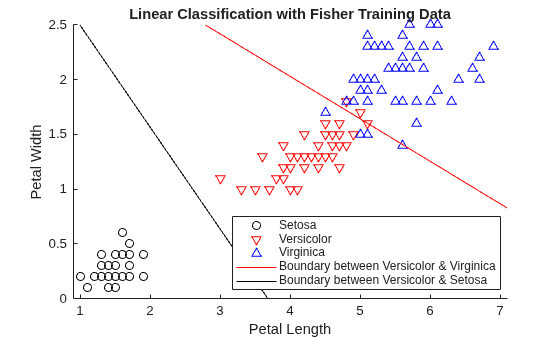

Retrieve the coefficients K
and L
for the linear boundary between the first and second classes.
K = coeff(1,2).const; L = coeff(1,2).linear;
Plot the line that separates the first and second classes.
f = @(x1,x2) K + L(1)*x1 + L(2)*x2; h3 = fimplicit(f,[.9 7.1 0 2.5]); hold off h3.Color = 'k'; h3.DisplayName = 'Boundary between Versicolor & Setosa'; axis tight title('Linear Classification with Fisher Training Data')
Input Arguments
sample
— Sample data
numeric matrix
Sample data, specified as a numeric matrix. Each column of
sample
represents one variable, and each row represents one
sample observation. sample
must have the same number of columns as
training
.
Data Types: single
 double
training
— Training data
numeric matrix
group
— Group names
categorical array  character array  string array  numeric vector  cell array of character vectors
Group names, specified as a categorical array, character array, string array,
numeric vector, or cell array of character vectors. Each element in
group
defines the group to which the corresponding row of
training
belongs. group
must have the same
number of rows as training
.
NaN
, <undefined>
, empty character vector
(''
), empty string (""
), and
<missing>
values in group
indicate missing
values. classify
removes entire rows of
training
data corresponding to a missing group name.
Data Types: categorical
 char
 string
 single
 double
 cell
type
— Discriminant type
'linear'
(default)  'quadratic'
 'diagLinear'
 'diagQuadratic'
 'mahalanobis'
Discriminant type, specified as one of the values in the following table.
Value  Description

'linear'  Fits a multivariate normal density to each group, with a pooled estimate of covariance. This option uses likelihood ratios to assign sample observations to groups.
'quadratic'  Fits multivariate normal densities with covariance estimates stratified by group. This option uses likelihood ratios to assign sample observations to groups.
'diagLinear'  Similar to 'linear' , but with a diagonal covariance
matrix estimate. This diagonal option is a specific example of a naive Bayes
classifier, because it assumes that the variables are conditionally independent
given the group label.
'diagQuadratic'  Similar to 'quadratic' , but with a diagonal covariance
matrix estimate. This diagonal option is a specific example of a naive Bayes
classifier, because it assumes that the variables are conditionally independent
given the group label.
'mahalanobis'  Uses Mahalanobis distances with stratified covariance estimates.
prior
— Prior probabilities for each group
numeric vector  'empirical'
 structure
Prior probabilities for each group, specified as one of the values in the following
table. By default, all prior probabilities are equal to
1/K
, where K is the number of
groups.
Value  Description

numeric vector  Each element is a group prior probability. Order the elements according to
group . classify normalizes the
elements so that they sum to 1.
'empirical'  The group prior probabilities are the group relative frequencies in
group .
structure  A structure

prior
is not used for discrimination by the Mahalanobis
distance, except for the calculation of err
.
Data Types: single
 double
 char
 string
 struct
Output Arguments
class
— Predicted class for sample data
categorical array  character array  string array  numeric vector  cell array of character vectors
Predicted class for the sample data, returned as a categorical array, character
array, string array, numeric vector, or cell array of character vectors.
class
is of the same type as group
. Each
element in class
contains the group to which each row of
sample
has been assigned.
Data Types: categorical
 char
 string
 single
 double
 cell
err
— Apparent error rate
nonnegative number
posterior
— Posterior probabilities for training observations
numeric matrix
Posterior probabilities for training observations, returned as an
nbyk numeric matrix, where
n is the number of observations (rows) in
training
and k is the number of groups in
group
. The element posterior(i,j)
is the
posterior probability that observation i
in
training
belongs to group j
in
group
. If you specify type
as
'mahalanobis'
, the function does not compute
posterior
.
Data Types: single
 double
logp
— Logarithm of unconditional probability density for sample observations
numeric vector
Logarithm of the unconditional probability density for sample observations, returned
as a numeric vector. The predicted unconditional probability density for observation
i
in sample
is
$$P(ob{s}_{i})={\displaystyle \sum _{j=1}^{k}P(ob{s}_{i}\text{}grou{p}_{j})P(grou{p}_{j})},$$
where:
$$P(ob{s}_{i}grou{p}_{j})$$ is the conditional density of observation
i
insample
given groupj
ingroup
.$$P(grou{p}_{j})$$ is the prior probability of group
j
.k
is the number of groups.
If you specify type
as 'mahalanobis'
, the
function does not compute logp
.
Data Types: single
 double
coeff
— Coefficients of boundary curves
structure
Coefficients of the boundary curves between pairs of groups, returned as a
kbyk structure, where k is
the number of groups in group
. The element
coeff(i,j)
contains coefficients of the boundaries between groups
i
and j
. This table lists the
coeff
fields and their values.
Field Name  Value

type  Type of discriminant function, specified by
type
name1  Name of the group i
name2  Name of the group j
const  Constant term of the boundary equation (K)
linear  Linear coefficients of the boundary equation (L)
quadratic  Quadratic coefficient matrix of the boundary equation (Q). The structure
does not include this field when you specify type as
'linear' or 'diagLinear' .
If you specify
type
as'linear'
or'diagLinear'
, the function classifies a rowx
fromsample
into groupi
(instead of groupj
) when0 < K + x*L
.If you specify
type
as'quadratic'
,'diagQuadratic'
, or'mahalanobis'
, the function classifies a rowx
fromsample
into groupi
(instead of groupj
) when0 < K + x*L + x*Q*x'
.
Alternative Functionality
The fitcdiscr
function also performs discriminant
analysis. You can train a classifier by using the fitcdiscr
function and
predict labels of new data by using the predict
function. The fitcdiscr
function supports
crossvalidation and hyperparameter optimization, and does not require you to fit the
classifier every time you make a new prediction or change prior probabilities.
References
[1] Krzanowski, Wojtek. J. Principles of Multivariate Analysis: A User's Perspective. NY: Oxford University Press, 1988.
[2] Seber, George A. F. Multivariate Observations. NJ: John Wiley & Sons, Inc., 1984.
Open Example
You have a modified version of this example. Do you want to open this example with your edits?
MATLAB Command
You clicked a link that corresponds to this MATLAB command:
Run the command by entering it in the MATLAB Command Window. Web browsers do not support MATLAB commands.
Select a Web Site
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
You can also select a web site from the following list:
How to Get Best Site Performance
Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.
Americas
 América Latina (Español)
 Canada (English)
 United States (English)
Europe
 Belgium (English)
 Denmark (English)
 Deutschland (Deutsch)
 España (Español)
 Finland (English)
 France (Français)
 Ireland (English)
 Italia (Italiano)
 Luxembourg (English)
 Netherlands (English)
 Norway (English)
 Österreich (Deutsch)
 Portugal (English)
 Sweden (English)
 Switzerland
 United Kingdom (English)
