Detect Drift
Libraries:
Statistics and Machine Learning Toolbox /
Incremental Learning /
Drift Detection
Description
The Detect Drift block updates the internal statistics and drift status of a drift detector when given new data.
Import an initialized incremental concept drift detector object (incrementalConceptDriftDetector
) into the block by specifying the name of a
workspace variable that contains the object. The input port x receives a
data stream for which the drift is evaluated. The input port reset
receives a signal that resets the internal states of the drift detector. The output port
IsWarm returns a value indicating if the drift detector is warm, which
means that it tracks the drift status. The output port status returns the
current drift status. The optional input port w receives observation
weights.
Examples

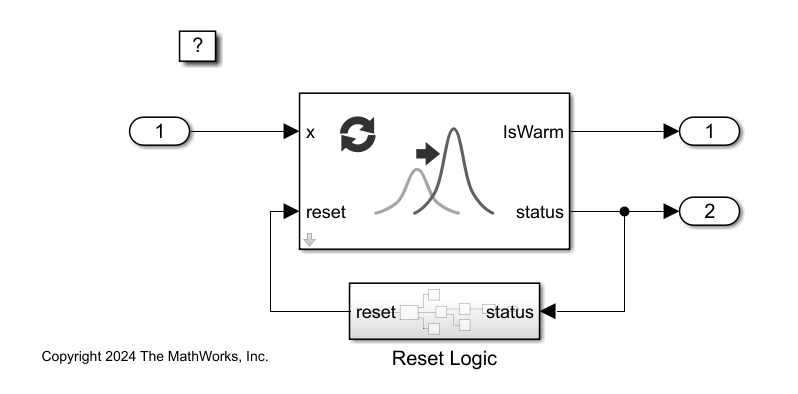

Monitor Drift Using Detect Drift Block
Use the Detect Drift block for monitoring drift in a data stream in Simulink®. The block detects drift in an input datastream using a configured incremental concept drift detector (incrementalConceptDriftDetector) and outputs the drift status. The sample reset logic provided with the example enables the block to reset the internal statistics of the drift detector upon detecting a drift in the data.
- Since R2024b
- Open Live Script
Ports
Input
x — Input data
n-by-1 numeric vector | logical vector
Input data, specified as an n-by-1 numeric vector, where n is the number of observations, or as a logical vector. During initialization of the model:
If the
InputType
value in the call toincrementalConceptDriftDetector
is"continuous"
, then x must be a numeric vector.If the
InputType
value in the call toincrementalConceptDriftDetector
is"binary"
, then x can be a logical vector.
Data Types: single
| double
| half
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
| Boolean
| fixed point
reset — Reset signal
numeric or | 0
(false
) | 1
(true
)
Reset signal, specified as 0
(false
) or
1
(true
or a numeric scalar. When the
reset signal is a positive scalar (greater than 0), the drift
detector resets the internal states of the incrementalConceptDriftDetector
, including
PreviousDriftStatus
and DriftStatus
. After a
drift is detected in the data, the block resets the detector using a user-defined
reset logic subsystem.
Data Types: single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
| Boolean
| fixed point
w — Observation weights
n-by-1 numeric vector
Observation weights, specified as a numeric vector. The Detect Drift block weights the observations in x with the corresponding values in w. The size of w must be equal to the number of observations in x.
You cannot provide observation weights for the Hoeffding's Bounds Drift Detection
Method using exponentially weighted moving averages (HDDMW). To use observation
weights, specify the DetectionMethod
as "ddm"
or
"hddma"
in the call to incrementalConceptDriftDetector
.
Dependencies
To enable this port, select the check box for Add input port for observation weights on the Main tab of the Block Parameters dialog box.
Data Types: single
| double
Output
IsWarm — Flag indicating whether block tracks drift status
0
(false
) | 1
(true
)
Flag indicating whether the Detect Drift block tracks the drift
status, returned as logical 0
(false
) or
1
(true
).
Value | Description |
---|---|
1 (true) | The incrementalConceptDriftDetector object is warm.
Consequently, the block tracks the drift status in the signal output. |
0 (false) | The incrementalConceptDriftDetector object is not
warm. Consequently, the block only updates the internal statistics and does
not track the drift status. |
Data Types: Boolean
status — Current drift status
0
(stable) | 1
(warning) | 2
(drift)
Current drift status, specified as 0
(stable, or no drift),
1
(drift warning) or 2
(drift
detected).
Data Types: single
| double
| half
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
| Boolean
| fixed point
Parameters
To edit block parameters interactively, use the Property Inspector. From the Simulink® Toolstrip, on the Simulation tab, in the Prepare gallery, select Property Inspector.
Main
Select concept drift detector — Initial incremental concept drift detector
IncCDDetector
(default) | incrementalConceptDriftDetector
object
Specify the name of a workspace variable that contains the configured incrementalConceptDriftDetector
object.
Programmatic Use
Block Parameter:
DriftDetector |
Type: character vector or string |
Values:
incrementalConceptDriftDetector object name |
Default:
"IncCDDetector" |
Add input port for observation weights — Add third input port for observation weights
off
(default) | on
Select the check box to include the input port w for observation weights in the Detect Drift block.
Programmatic Use
Block Parameter:
ShowInputWeights |
Type: character vector |
Values:
"off" | "on" |
Default:
"off" |
Sample time (–1 for inherited) — Option to specify sample time
–1
(default) | scalar
Specify the discrete interval between sample time hits or specify another type of sample
time, such as continuous (0
) or inherited (–1
). For more
options, see Types of Sample Time (Simulink).
By default, the Detect Drift block inherits sample time based on the context of the block within the model.
Programmatic Use
Block Parameter:
SystemSampleTime |
Type: string scalar or character vector |
Values: scalar |
Default:
"–1" |
Data Types
Fixed-Point Operational ParametersInteger rounding mode — Rounding mode for fixed-point operations
Floor
(default) | Ceiling
| Convergent
| Nearest
| Round
| Simplest
| Zero
Specify the rounding mode for fixed-point operations. For more information, see Rounding Modes (Fixed-Point Designer).
Block parameters always round to the nearest representable value. To control the rounding of a block parameter, enter an expression into the mask field using a MATLAB® rounding function.
Programmatic Use
Block Parameter:
RndMeth |
Type: character vector |
Values:
"Ceiling" | "Convergent" | "Floor" | "Nearest" | "Round" | "Simplest" |
"Zero" |
Default:
"Floor" |
Saturate on integer overflow — Method of overflow action
off
(default) | on
Specify whether overflows saturate or wrap.
Action | Rationale | Impact on Overflows | Example |
---|---|---|---|
Select this check box
( | Your model has possible overflow, and you want explicit saturation protection in the generated code. | Overflows saturate to either the minimum or maximum value that the data type can represent. | The maximum value that the |
Clear this check box
( | You want to optimize the efficiency of your generated code. You want to avoid overspecifying how a block handles out-of-range signals. For more information, see Troubleshoot Signal Range Errors (Simulink). | Overflows wrap to the appropriate value that the data type can represent. | The maximum value that the |
Programmatic Use
Block Parameter:
SaturateOnIntegerOverflow |
Type: character vector |
Values:
"off" | "on" |
Default:
"off" |
Lock output data type setting against changes by the fixed-point tools — Prevention of fixed-point tools from overriding data type
off
(default) | on
Select this parameter to prevent the fixed-point tools from overriding the data type you specify for the block. For more information, see Use Lock Output Data Type Setting (Fixed-Point Designer).
Programmatic Use
Block Parameter:
LockScale |
Type: character vector |
Values:
"off" | "on" |
Default:
"off" |
Drift status data type — Data type of drift status output
Inherit: auto
(default) | double
| single
| half
| int8
| uint8
| int16
| uint16
| int32
| uint32
| int64
| uint64
| boolean
| fixdt(1,16,0)
| fixdt(1,16,2^0,0)
| <data type expression>
Specify the data type for the drift status
output. The type can be inherited, specified directly, or expressed as a data type
object such as Simulink.NumericType
.
When you select Inherit: auto
, the block uses a rule that
inherits the data type.
For more information about data types, see Control Data Types of Signals (Simulink).
Click the Show data type assistant button to display the Data Type Assistant, which helps you set the data type attributes. For more information, see Specify Data Types Using Data Type Assistant (Simulink).
Programmatic Use
Block Parameter:
DriftStatusDataTypeStr |
Type: character vector or string |
Values: "Inherit: auto"
| "double" | "single" |
"half" | "int8" |
"uint8" | "int16" |
"uint16" | "int32" |
"uint32" | "int64" |
"uint64" | "boolean" |
"fixdt(1,16,0)" | "fixdt(1,16,2^0,0)" |
"<data type expression>" |
Default: "Inherit: auto"
|
Drift status data type Minimum — Minimum value of drift status output for range checking
[]
(default) | scalar
Specify the lower value of the drift status range that Simulink checks.
Simulink uses the minimum value to perform:
Parameter range checking for some blocks (see Specify Minimum and Maximum Values for Block Parameters (Simulink)).
Simulation range checking (see Specify Signal Ranges (Simulink) and Enable Simulation Range Checking (Simulink)).
Optimization of the code that you generate from the model. This optimization can remove algorithmic code and affect the results of some simulation modes, such as software-in-the-loop (SIL) mode or external mode. For more information, see Optimize using the specified minimum and maximum values (Embedded Coder).
Programmatic Use
Block Parameter:
DriftStatusOutMin |
Type: character vector |
Values: '[]' |
scalar |
Default: '[]' |
Drift status data type Maximum — Maximum value of drift status output for range checking
[]
(default) | scalar
Specify the upper value of the drift status range that Simulink checks.
Simulink uses the maximum value to perform:
Parameter range checking for some blocks (see Specify Minimum and Maximum Values for Block Parameters (Simulink)).
Simulation range checking (see Specify Signal Ranges (Simulink) and Enable Simulation Range Checking (Simulink)).
Optimization of the code that you generate from the model. This optimization can remove algorithmic code and affect the results of some simulation modes, such as software-in-the-loop (SIL) mode or external mode. For more information, see Optimize using the specified minimum and maximum values (Embedded Coder).
Programmatic Use
Block Parameter:
DriftStatusOutMax |
Type: character vector |
Values: '[]' |
scalar |
Default: '[]' |
Mean data type — Data type of mean
Inherit: auto
(default) | double
| single
| half
| int8
| uint8
| int16
| uint16
| int32
| uint32
| int64
| uint64
| boolean
| fixdt(1,16,0)
| fixdt(1,16,2^0,0)
| <data type expression>
Specify the data type of the mean (moving average of input observations). The type
can be inherited, specified directly, or expressed as a data type object such as
Simulink.NumericType
.
For more information about data types, see Control Data Types of Signals (Simulink).
Click the Show data type assistant button to display the Data Type Assistant, which helps you set the data type attributes. For more information, see Specify Data Types Using Data Type Assistant (Simulink).
Programmatic Use
Block Parameter:
MeanDataTypeStr |
Type: character vector or string |
Values: "Inherit: auto"
| "double" | "single" |
"half" | "int8" |
"uint8" | "int16" |
"uint16" | "int32" |
"uint32" | "int64" |
"uint64" | "boolean" |
"fixdt(1,16,0)" | "fixdt(1,16,2^0,0)" |
"<data type expression>" |
Default: "Inherit: auto"
|
Mean data type Minimum — Minimum value of mean for range checking
[]
(default) | scalar
Specify the lower value of the mean range that Simulink checks.
Simulink uses the minimum value to perform:
Parameter range checking for some blocks (see Specify Minimum and Maximum Values for Block Parameters (Simulink)).
Simulation range checking (see Specify Signal Ranges (Simulink) and Enable Simulation Range Checking (Simulink)).
Optimization of the code that you generate from the model. This optimization can remove algorithmic code and affect the results of some simulation modes, such as software-in-the-loop (SIL) mode or external mode. For more information, see Optimize using the specified minimum and maximum values (Embedded Coder).
Programmatic Use
Block Parameter:
MeanOutMin |
Type: character vector |
Values: '[]' |
scalar |
Default: '[]' |
Mean data type Maximum — Maximum value of mean for range checking
[]
(default) | scalar
Specify the upper value of the mean range that Simulink checks.
Simulink uses the maximum value to perform:
Parameter range checking for some blocks (see Specify Minimum and Maximum Values for Block Parameters (Simulink)).
Simulation range checking (see Specify Signal Ranges (Simulink) and Enable Simulation Range Checking (Simulink)).
Optimization of the code that you generate from the model. This optimization can remove algorithmic code and affect the results of some simulation modes, such as software-in-the-loop (SIL) mode or external mode. For more information, see Optimize using the specified minimum and maximum values (Embedded Coder).
Programmatic Use
Block Parameter:
MeanOutMax |
Type: character vector |
Values: '[]' |
scalar |
Default: '[]' |
Variance data type — Data type of variance
Inherit: auto
(default) | double
| single
| half
| int8
| uint8
| int16
| uint16
| int32
| uint32
| int64
| uint64
| boolean
| fixdt(1,16,0)
| fixdt(1,16,2^0,0)
| <data type expression>
Specify the data type of the variance (moving variance of input observations). The
type can be inherited, specified directly, or expressed as a data type object such as
Simulink.NumericType
.
For more information about data types, see Control Data Types of Signals (Simulink).
Click the Show data type assistant button to display the Data Type Assistant, which helps you set the data type attributes. For more information, see Specify Data Types Using Data Type Assistant (Simulink).
Programmatic Use
Block Parameter:
VarianceDataTypeStr |
Type: character vector or string |
Values: "Inherit: auto"
| "double" | "single" |
"half" | "int8" |
"uint8" | "int16" |
"uint16" | "int32" |
"uint32" | "int64" |
"uint64" | "boolean" |
"fixdt(1,16,0)" | "fixdt(1,16,2^0,0)" |
"<data type expression>" |
Default: "Inherit: auto"
|
Variance data type Minimum — Minimum value of variance for range checking
[]
(default) | scalar
Specify the lower value of the variance range that Simulink checks.
Simulink uses the minimum value to perform:
Parameter range checking for some blocks (see Specify Minimum and Maximum Values for Block Parameters (Simulink)).
Simulation range checking (see Specify Signal Ranges (Simulink) and Enable Simulation Range Checking (Simulink)).
Optimization of the code that you generate from the model. This optimization can remove algorithmic code and affect the results of some simulation modes, such as software-in-the-loop (SIL) mode or external mode. For more information, see Optimize using the specified minimum and maximum values (Embedded Coder).
Programmatic Use
Block Parameter:
VarianceOutMin |
Type: character vector |
Values: '[]' |
scalar |
Default: '[]' |
Variance data type Maximum — Maximum value of variance for range checking
[]
(default) | scalar
Specify the upper value of the variance range that Simulink checks.
Simulink uses the maximum value to perform:
Parameter range checking for some blocks (see Specify Minimum and Maximum Values for Block Parameters (Simulink)).
Simulation range checking (see Specify Signal Ranges (Simulink) and Enable Simulation Range Checking (Simulink)).
Optimization of the code that you generate from the model. This optimization can remove algorithmic code and affect the results of some simulation modes, such as software-in-the-loop (SIL) mode or external mode. For more information, see Optimize using the specified minimum and maximum values (Embedded Coder).
Programmatic Use
Block Parameter:
VarianceOutMax |
Type: character vector |
Values: '[]' |
scalar |
Default: '[]' |
Weights sum data type — Data type of weights sum
Inherit: auto
(default) | double
| single
| half
| int8
| uint8
| int16
| uint16
| int32
| uint32
| int64
| uint64
| boolean
| fixdt(1,16,0)
| fixdt(1,16,2^0,0)
| <data type expression>
Specify the data type of the weights sum (moving sum of weighted input
observations). The type can be inherited, specified directly, or expressed as a data
type object such as Simulink.NumericType
.
For more information about data types, see Control Data Types of Signals (Simulink).
Click the Show data type assistant button to display the Data Type Assistant, which helps you set the data type attributes. For more information, see Specify Data Types Using Data Type Assistant (Simulink).
Programmatic Use
Block Parameter:
WeightsSumDataTypeStr |
Type: character vector or string |
Values: "Inherit: auto"
| "double" | "single" |
"half" | "int8" |
"uint8" | "int16" |
"uint16" | "int32" |
"uint32" | "int64" |
"uint64" | "boolean" |
"fixdt(1,16,0)" | "fixdt(1,16,2^0,0)" |
"<data type expression>" |
Default: "Inherit: auto"
|
Weights sum data type Minimum — Minimum value of weights sum for range checking
[]
(default) | scalar
Specify the lower value of the weights sum range that Simulink checks.
Simulink uses the minimum value to perform:
Parameter range checking for some blocks (see Specify Minimum and Maximum Values for Block Parameters (Simulink)).
Simulation range checking (see Specify Signal Ranges (Simulink) and Enable Simulation Range Checking (Simulink)).
Optimization of the code that you generate from the model. This optimization can remove algorithmic code and affect the results of some simulation modes, such as software-in-the-loop (SIL) mode or external mode. For more information, see Optimize using the specified minimum and maximum values (Embedded Coder).
Programmatic Use
Block Parameter:
WeightsSumOutMin |
Type: character vector |
Values: '[]' |
scalar |
Default: '[]' |
Weights sum data type Maximum — Maximum value of weights sum for range checking
[]
(default) | scalar
Specify the upper value of the weights sum range that Simulink checks.
Simulink uses the maximum value to perform:
Parameter range checking for some blocks (see Specify Minimum and Maximum Values for Block Parameters (Simulink)).
Simulation range checking (see Specify Signal Ranges (Simulink) and Enable Simulation Range Checking (Simulink)).
Optimization of the code that you generate from the model. This optimization can remove algorithmic code and affect the results of some simulation modes, such as software-in-the-loop (SIL) mode or external mode. For more information, see Optimize using the specified minimum and maximum values (Embedded Coder).
Programmatic Use
Block Parameter:
WeightsSumOutMax |
Type: character vector |
Values: '[]' |
scalar |
Default: '[]' |
Block Characteristics
Data Types |
|
Direct Feedthrough |
|
Multidimensional Signals |
|
Variable-Size Signals |
|
Zero-Crossing Detection |
|
Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.
Fixed-Point Conversion
Design and simulate fixed-point systems using Fixed-Point Designer™.
Version History
Introduced in R2024b
MATLAB Command
You clicked a link that corresponds to this MATLAB command:
Run the command by entering it in the MATLAB Command Window. Web browsers do not support MATLAB commands.
Select a Web Site
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
You can also select a web site from the following list:
How to Get Best Site Performance
Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.
Americas
- América Latina (Español)
- Canada (English)
- United States (English)
Europe
- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)
- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
