Tune Gaussian Mixture Models

This example shows how to determine the best Gaussian mixture model (GMM) fit by adjusting the number of components and the component covariance matrix structure.

Load Fisher's iris data set. Consider the petal measurements as predictors.

load fisheriris
X = meas(:,3:4);
[n,p] = size(X);
rng(1) % For reproducibility

figure
plot(X(:,1),X(:,2),'.','MarkerSize',15)
title('Fisher''s Iris Data Set')
xlabel('Petal length (cm)')
ylabel('Petal width (cm)')

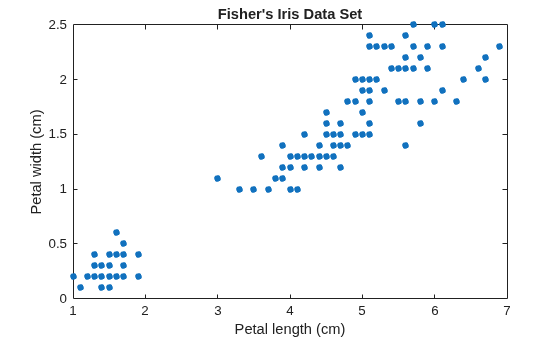

Figure contains an axes object. The axes object with title Fisher's Iris Data Set, xlabel Petal length (cm), ylabel Petal width (cm) contains a line object which displays its values using only markers.

Suppose k is the number of desired components or clusters, and Σ is the covariance structure for all components. Follow these steps to tune a GMM.

  1. Choose a (k,Σ) pair, and then fit a GMM using the chosen parameter specification and the entire data set.

  2. Estimate the AIC and BIC.

  3. Repeat steps 1 and 2 until you exhaust all (k,Σ) pairs of interest.

  4. Choose the fitted GMM that balances low AIC with simplicity.

For this example, choose a grid of values for k that include 2 and 3, and some surrounding numbers. Specify all available choices for covariance structure. If k is too high for the data set, then the estimated component covariances can be badly conditioned. Specify to use regularization to avoid badly conditioned covariance matrices. Increase the number of EM algorithm iterations to 10000.

k = 1:5;
nK = numel(k);
Sigma = {'diagonal','full'};
nSigma = numel(Sigma);
SharedCovariance = {true,false};
SCtext = {'true','false'};
nSC = numel(SharedCovariance);
RegularizationValue = 0.01;
options = statset('MaxIter',10000);

Fit the GMMs using all parameter combination. Compute the AIC and BIC for each fit. Track the terminal convergence status of each fit.

% Preallocation
gm = cell(nK,nSigma,nSC);
aic = zeros(nK,nSigma,nSC);
bic = zeros(nK,nSigma,nSC);
converged = false(nK,nSigma,nSC);

% Fit all models
for m = 1:nSC
    for j = 1:nSigma
        for i = 1:nK
            gm{i,j,m} = fitgmdist(X,k(i),...
                'CovarianceType',Sigma{j},...
                'SharedCovariance',SharedCovariance{m},...
                'RegularizationValue',RegularizationValue,...
                'Options',options);
            aic(i,j,m) = gm{i,j,m}.AIC;
            bic(i,j,m) = gm{i,j,m}.BIC;
            converged(i,j,m) = gm{i,j,m}.Converged;
        end
    end
end

allConverge = (sum(converged(:)) == nK*nSigma*nSC)
allConverge = logical
   1

gm is a cell array containing all of the fitted gmdistribution model objects. All of the fitting instances converged.

Plot separate bar charts to compare the AIC and BIC among all fits. Group the bars by k.

figure
bar(reshape(aic,nK,nSigma*nSC))
title('AIC For Various $k$ and $\Sigma$ Choices','Interpreter','latex')
xlabel('$k$','Interpreter','Latex')
ylabel('AIC')
legend({'Diagonal-shared','Full-shared','Diagonal-unshared',...
    'Full-unshared'})

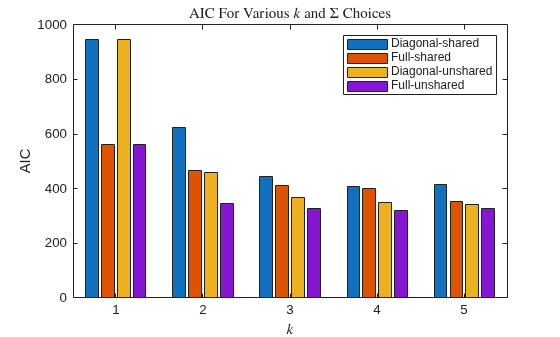

Figure contains an axes object. The axes object with title AIC For Various k and Sigma Choices, xlabel $k$, ylabel AIC contains 4 objects of type bar. These objects represent Diagonal-shared, Full-shared, Diagonal-unshared, Full-unshared.

figure
bar(reshape(bic,nK,nSigma*nSC))
title('BIC For Various $k$ and $\Sigma$ Choices','Interpreter','latex')
xlabel('$c$','Interpreter','Latex')
ylabel('BIC')
legend({'Diagonal-shared','Full-shared','Diagonal-unshared',...
    'Full-unshared'})

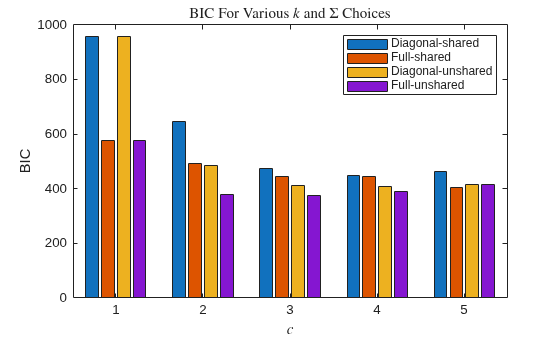

Figure contains an axes object. The axes object with title BIC For Various k and Sigma Choices, xlabel $c$, ylabel BIC contains 4 objects of type bar. These objects represent Diagonal-shared, Full-shared, Diagonal-unshared, Full-unshared.

According to the AIC and BIC values, the best model has 3 components and a full, unshared covariance matrix structure.

Cluster the training data using the best fitting model. Plot the clustered data and the component ellipses.

gmBest = gm{3,2,2};
clusterX = cluster(gmBest,X);
kGMM = gmBest.NumComponents;
d = 500;
x1 = linspace(min(X(:,1)) - 2,max(X(:,1)) + 2,d);
x2 = linspace(min(X(:,2)) - 2,max(X(:,2)) + 2,d);
[x1grid,x2grid] = meshgrid(x1,x2);
X0 = [x1grid(:) x2grid(:)];
mahalDist = mahal(gmBest,X0);
threshold = sqrt(chi2inv(0.99,2));

figure
h1 = gscatter(X(:,1),X(:,2),clusterX);
hold on
for j = 1:kGMM
    idx = mahalDist(:,j)<=threshold;
    Color = h1(j).Color*0.75 + -0.5*(h1(j).Color - 1);
    h2 = plot(X0(idx,1),X0(idx,2),'.','Color',Color,'MarkerSize',1);
    uistack(h2,'bottom')
end
plot(gmBest.mu(:,1),gmBest.mu(:,2),'kx','LineWidth',2,'MarkerSize',10)
title('Clustered Data and Component Structures')
xlabel('Petal length (cm)')
ylabel('Petal width (cm)')
legend(h1,'Cluster 1','Cluster 2','Cluster 3','Location','NorthWest')
hold off

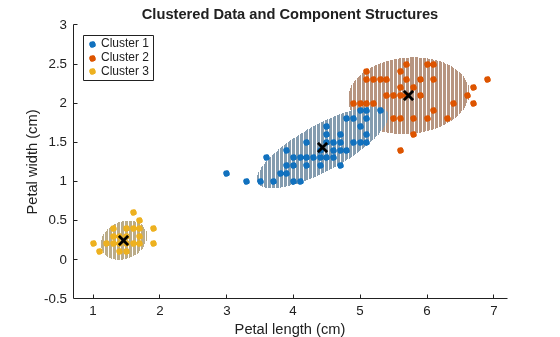

Figure contains an axes object. The axes object with title Clustered Data and Component Structures, xlabel Petal length (cm), ylabel Petal width (cm) contains 7 objects of type line. One or more of the lines displays its values using only markers These objects represent Cluster 1, Cluster 2, Cluster 3.

This data set includes labels. Determine how well gmBest clusters the data by comparing each prediction to the true labels.

species = categorical(species);
Y = zeros(n,1);
Y(species == 'versicolor') = 1;
Y(species == 'virginica') = 2;
Y(species == 'setosa') = 3;

miscluster = Y ~= clusterX;
clusterError = sum(miscluster)/n
clusterError =
0.0800

The best fitting GMM groups 8% of the observations into the wrong cluster.

cluster does not always preserve cluster order. That is, if you cluster several fitted gmdistribution models, cluster might assign different cluster labels for similar components.
