# upwlev

Single-level reconstruction of 1-D wavelet decomposition

## Syntax

```[NC,NL,cA] = upwlev(C,L,wname) [NC,NL,cA] = upwlev(C,L,Lo_R,Hi_R) ```

## Description

`upwlev` is a one-dimensional wavelet analysis function.

`[NC,NL,cA] = upwlev(C,L,wname)` performs the single-level reconstruction of the wavelet decomposition structure `[C,L]` giving the new one `[NC,NL]`, and extracts the last approximation coefficients vector `cA`.

`[C,L]` is a decomposition at level ```n = length(L)-2```, so `[NC,NL]` is the same decomposition at level `n`-1 and `cA` is the approximation coefficients vector at level `n`.

`wname` is a character vector or string scalar specifying the wavelet, `C` is the original wavelet decomposition vector, and `L` the corresponding bookkeeping vector (for detailed storage information, see `wavedec` ).

Instead of giving the wavelet name, you can give the filters.

For `[NC,NL,cA] = upwlev(C,L,Lo_R,Hi_R)`, `Lo_R` is the reconstruction low-pass filter and `Hi_R` is the reconstruction high-pass filter.

## Examples

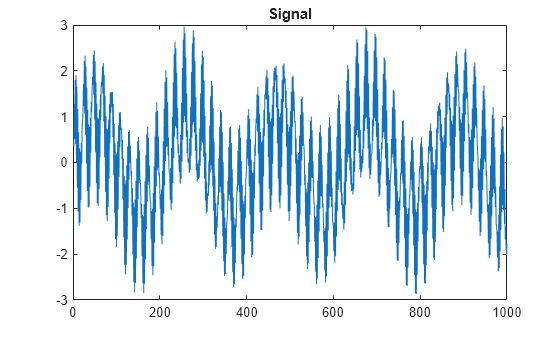

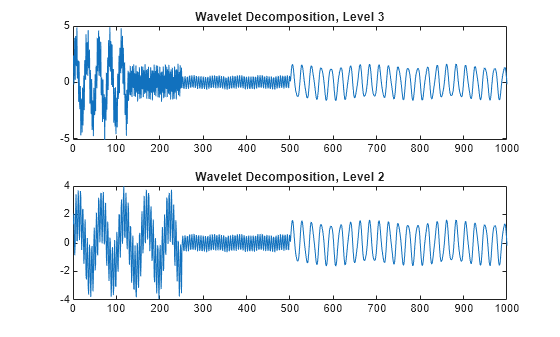

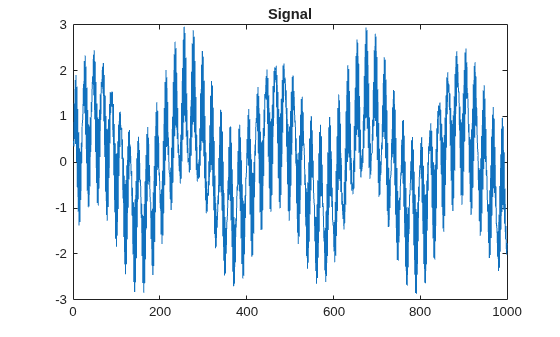

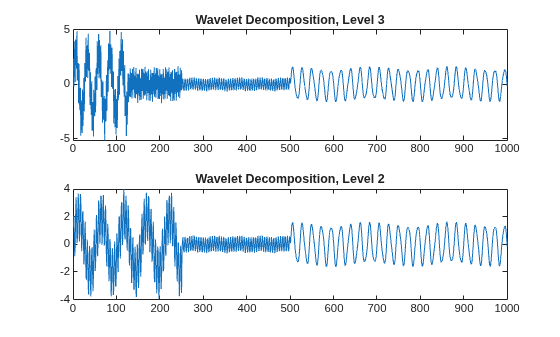

```% The current extension mode is zero-padding (see `dwtmode`). % Load original one-dimensional signal. load sumsin; s = sumsin; % Perform decomposition at level 3 of s using db1. [c,l] = wavedec(s,3,'db1'); subplot(311); plot(s); title('Original signal s.'); subplot(312); plot(c); title('Wavelet decomposition structure, level 3') xlabel(['Coefs for approx. at level 3 ' ... 'and for det. at levels 3, 2 and 1']) % One step reconstruction of the wavelet decomposition % structure at level 3 [c,l], so the new structure [nc,nl] % is the wavelet decomposition structure at level 2. [nc,nl] = upwlev(c,l,'db1'); subplot(313); plot(nc); title('Wavelet decomposition structure, level 2') xlabel(['Coefs for approx. at level 2 ' ... 'and for det. at levels 2 and 1']) % Editing some graphical properties, % the following figure is generated. ```
