Boolean unite operation on two shapes

## Description

example

add(shape1,shape2) unites the 2-D or 3-D shape1 and shape2 using the add operation retaining the individual shape boundaries and plots the resultant 2-D or 3-D shape. Adjust the Transparency property of the shapes to view the retained individual shape portion in the resultant shape. Alternatively, you can also use the '+' operator to add the two shapes together.

add(shape1,shape2,RetainShape=0) unites the 3-D shape1 and shape2 using the add operation by merging boundaries of both the shapes and plots the resultant 3-D shape.

example

c = add(shape1,shape2) unites the 2-D or 3-D shape1 and shape2 using the add operation while retaining the individual shape boundaries and returns a polygon object for the resultant 2-D shape or a custom 3-D object for the resultant 3-D shape. Adjust the Transparency property of the shapes to view the retained individual shape portion in the resultant shape. Alternatively, you can also use the '+' operator to add the two shapes together.

c = add(shape1,shape2,RetainShape=0) unites the 3-D shape1 and shape2 using the add operation by merging boundaries of both the shapes and returns a custom 3-D object for the resultant 3-D shape.

## Examples

collapse all

Create and view a default circle.

circle1 = antenna.Circle;

Create a circle with a radius of 1 m. The center of the circle is at [1 0].

Create a circle with a radius of 1m. The center of the circle is at [1 0].

Create a rectangle with a length of 2m and a width of 4m centered at the origin.

rect1 = antenna.Rectangle(Length=2,Width=2);

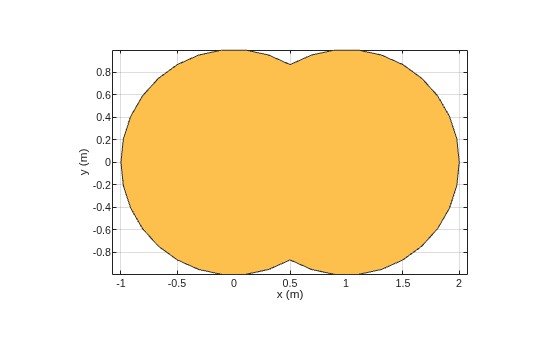

Add the two shapes together using the + function.

polygon1 = circle1+rect1
polygon1 =
Polygon with properties:

Name: 'mypolygon'
Vertices: [21x3 double]

show(polygon1)

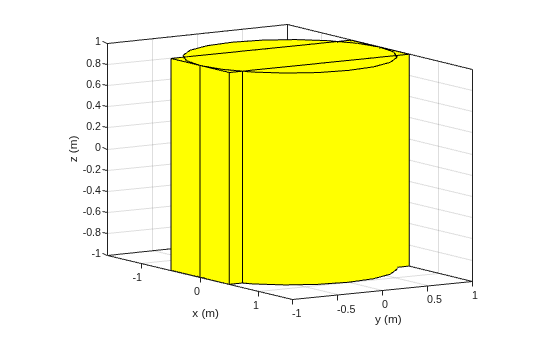

This example shows how to add two 3-D shapes and view the combined shape.

Create a box and a cylindrical shape.

b = shape.Box;
c = shape.Cylinder;
j =
Custom3D with properties:

Name: 'custom3D'
Vertices: [100x3 double]
Metal: 'PEC'
Dielectric: 'Air'
Color: 'Individual'
Transparency: 'Individual'
EdgeColor: 'Individual'

Alternatively, you can use '+' operator to add these shapes.

b + c;

## Input Arguments

collapse all

2-D and 3-D geometric shapes created using shape objects in Custom 2-D and 3-D Antenna.

Example: antenna.Rectangle,antenna.Circle

Example: shape.Box,shape.Custom3D

## Output Arguments

collapse all

Shape obtained after uniting two 2-D or 3-D shapes.

Example: antenna.Polygon

Example: shape.Polygon

Example: shape.Custom3D

## Version History

Introduced in R2017a
