charge

Charge distribution on antenna or array surface

collapse all in page

Syntax

charge(object,frequency)
c = charge(object,frequency)
[c,p] = charge(object,frequency)
charge(object,frequency,"dielectric")
c = charge(object,frequency,"dielectric")
c = charge(___,Name=Value)

Description

charge(object,frequency) calculates and plots the absolute value of the charge on the surface of an antenna or array at a specified frequency.

example

c = charge(object,frequency) returns a vector of charges in C/m on the surface of an antenna or array at a specified frequency.

example

[c,p] = charge(object,frequency) returns a vector of charges in C/m on the surface of an antenna or array at a specified frequency and the point at which the charge calculation was performed.

charge(object,frequency,"dielectric") calculates and plots the absolute value of charge on the dielectric face of the antenna or array at a specified frequency.

example

c = charge(object,frequency,"dielectric") returns the x, y, z components of the charge on the dielectric surface of an antenna or array at a specified frequency.

c = charge(___,Name=Value) calculates the charge on the surface of an antenna or array using one or more name-value arguments. Specify name-value arguments after the input arguments.

Examples

collapse all

Open Live Script

Calculate and plot the charge distribution on a bowtieTriangular antenna at 70 MHz frequency.

h = bowtieTriangular;
charge (h,70e6);

Figure contains an axes object. The axes object with title Charge distribution, xlabel x (m), ylabel y (m) contains 3 objects of type patch.

Open Live Script

Calculate charge distribution of linear array at 70 MHz frequency.

h = linearArray;
h.NumElements = 4;
C = charge(h,70e6);
Open Live Script

Create a microstrip patch antenna using 'FR4' as the dielectric substrate.

d = dielectric("FR4");
pm = patchMicrostrip(Length=75e-3, Width=37e-3, ...
         GroundPlaneLength=120e-3, GroundPlaneWidth=120e-3, ...
         Substrate=d)
pm =
  patchMicrostrip with properties:

               Length: 0.0750
                Width: 0.0370
               Height: 0.0060
            Substrate: [1×1 dielectric]
    GroundPlaneLength: 0.1200
     GroundPlaneWidth: 0.1200
    PatchCenterOffset: [0 0]
           FeedOffset: [-0.0187 0]
            Conductor: [1×1 metal]
                 Tilt: 0
             TiltAxis: [1 0 0]
                 Load: [1×1 lumpedElement]


show(pm)

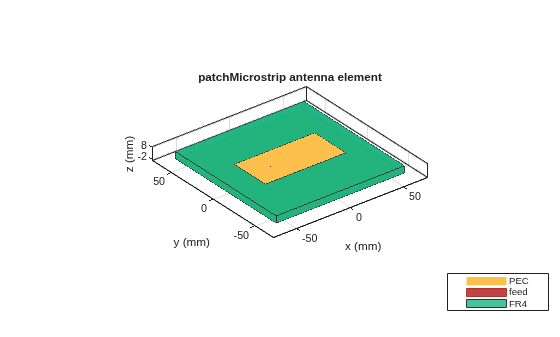

Figure contains an axes object. The axes object with title patchMicrostrip antenna element, xlabel x (mm), ylabel y (mm) contains 6 objects of type patch, surface. These objects represent PEC, feed, FR4.

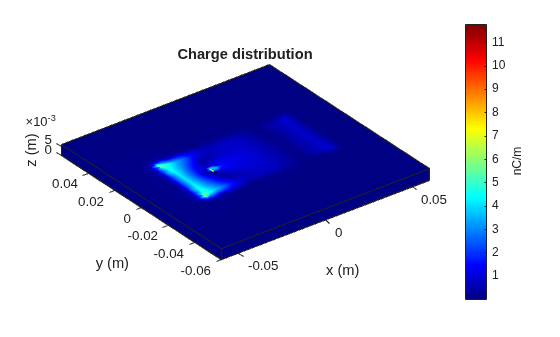

Plot the charge distribution on the antenna at a frequency of 1.67 GHz.

figure
charge(pm,1.67e9,"dielectric")

Figure contains an axes object. The axes object with title Charge distribution, xlabel x (m), ylabel y (m) contains 2 objects of type patch.

Open Live Script

Create a default pifa (planar inverted F antenna).

ant = pifa;

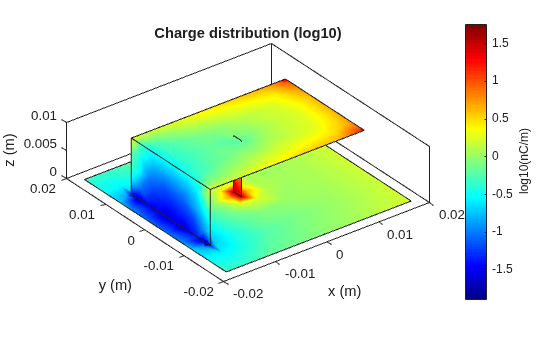

Visualize the charge distribution on the pifa antenna in log10 scale.

charge(ant,1.75e9,Scale="log10")

Figure contains an axes object. The axes object with title Charge distribution (log10), xlabel x (m), ylabel y (m) contains 3 objects of type patch.

Open Live Script

Create a default cylindrical dielectric resonator antenna. Plot the charge distribution of the antenna at 1GHz with the Slicer argument set to "on".

ant = draCylindrical(ResonatorRadius=0.01);
charge(ant,1e9,Slicer="on")

Figure contains an axes object and other objects of type uipanel. The axes object with title Charge distribution, xlabel x (m), ylabel y (m) contains 4 objects of type patch.

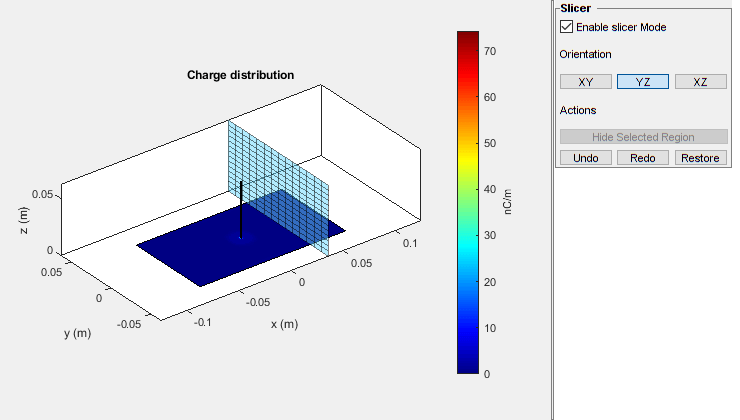

Select Enable slicer Mode. Then select a plane for the slice under Orientation.

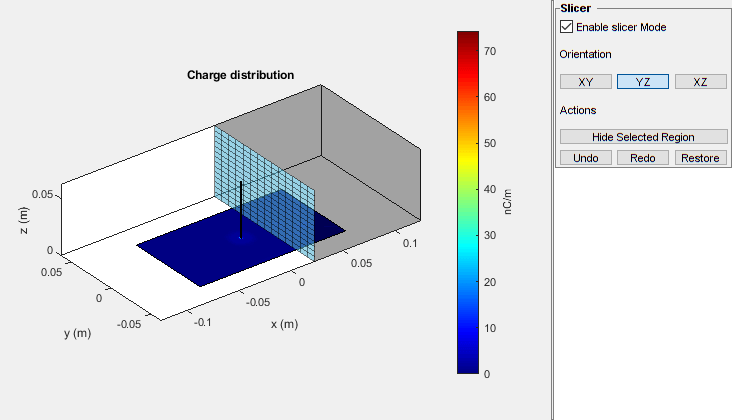

Click on the plot and select a region to hide.

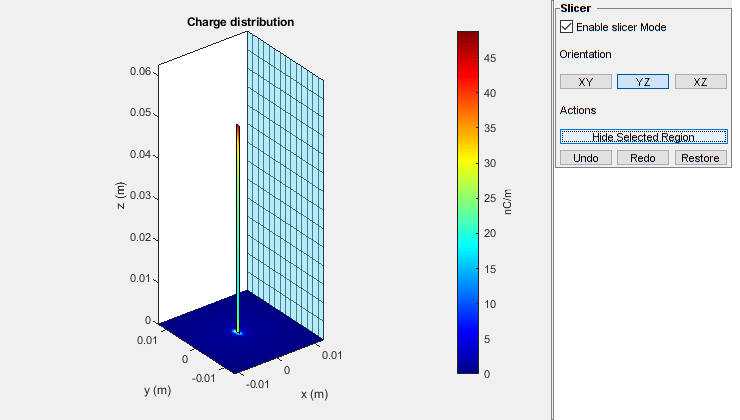

Click Hide Selected Region to view the desired slice.


Input Arguments

collapse all

Antenna or array to calculate the charge distribution, specified as one of these objects:

Example: dipole

Example: linearArray(Element=dipole)

Frequency used to calculate charge distribution, specified as a scalar in Hz.

Example: 70e6

Data Types: double

Name-Value Arguments

collapse all

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: Scale="log10"

Layer to plot the charge distribution, specified as either "metal" or "dielectric". Use this argument to choose between metal and dielectric layers and plot the charge distribution at the chosen layer.

Example: "dielectric"

Data Types: string

Scale of the charge distribution plot to visualize the charge distribution on the surface of the antenna or array, specified as a string or a logarithmic function. The default scale is "linear".

Example: "log10"

Data Types: string | function

Option to enable or disable plot interactivity, specified as "on" or "off", or as numeric or logical 1(true) or 0(false). Set this argument to 1 or "on" to open the plot with the slicer panel, and to slice and view the desired cross section of the plot along the xy-, yz-, and xz- planes. Set this argument to 0 or "off" to open the plot without the slicer panel.

Example: "on"

Data Types: string | logical

Output Arguments

collapse all

Complex charges, returned as a 1-by-n vector in C/m. This value is calculated for every triangle in the mesh or every dielectric tetrahedron face on the surface of an antenna or array.

Cartesian coordinates representing the center of each triangle in the mesh, returned as a 3-by-n real matrix.

Version History

Introduced in R2015a
