dielectricLens

Create dielectric lens

Since R2024a

expand all in page

    Description

    The default dielectricLens object creates a Teflon dielectric lens of radius 15mm. Use dielectricLens as an element in the planeWaveExcitation environment with SolverType property set to FMM for further analysis.

    Dielectric lenses are a type of lens antenna that uses the refraction of electromagnetic waves to modify the radiation pattern of a primary feed. They are often used in millimeter- and sub-millimeter-wave applications due to their compact size and flexible design. Dielectric lenses can have different shapes and refractive index profiles, depending on the desired output radiation pattern. They can be either homogeneous (uniform refractive index) or non-homogeneous (non-uniform refractive index). Some common examples of dielectric lenses are Luneburg lens, Maxwell's fish-eye lens, and delay lens.

    Dielectric lenses are made of materials with high dielectric constants, such as polystyrene, polyethylene, and plexiglass. They can be integrated with various types of feeds, such as horn antennas, microstrip antennas, and waveguide antennas. They are useful for applications such as imaging, broadband communications, and automotive radar.

    Creation

    Syntax

    d = dielectricLens
    d = dielectricLens(Name=Value)

    Description

    d = dielectricLens creates a hemispherical Teflon dielectric lens of radius 0.015 m.

    example

    d = dielectricLens(Name=Value) creates a hemispherical dielectric lens, with additional Properties specified by one or more name-value arguments. Name is the property name and Value is the corresponding value. You can specify several name-value pair arguments in any order as Name1=Value1, ..., NameN=ValueN. Properties that you do not specify retain their default values.

    Properties

    expand all

    Radius of the hemispherical dielectric lens, specified as a positive scalar in meters.

    Example: 1.25

    Data Types: double

    Type of dielectric material used as a substrate, specified as a dielectric material object. You can choose any material from the DielectricCatalog or use your own dielectric material. For more information, see dielectric. For more information on dielectric substrate meshing, see Meshing.

    Example: dielectric("FR4")

    Tilt angle of the antenna in degrees, specified as a scalar or vector. For more information, see Rotate Antennas and Arrays.

    Example: 90

    Example: Tilt=[90 90],TiltAxis=[0 1 0;0 1 1] tilts the antenna at 90 degrees about the two axes defined by the vectors.

    Data Types: double

    Tilt axis of the antenna, specified as one of these values:

    • Three-element vector of Cartesian coordinates in meters. In this case, each coordinate in the vector starts at the origin and lies along the specified points on the x-, y-, and z-axes.

    • Two points in space, specified as a 2-by-3 matrix corresponding to two three-element vectors of Cartesian coordinates. In this case, the antenna rotates around the line joining the two points.

    • "x", "y", or "z" to describe a rotation about the x-, y-, or z-axis, respectively.

    For more information, see Rotate Antennas and Arrays.

    Example: [0 1 0]

    Example: [0 0 0;0 1 0]

    Example: "Z"

    Data Types: double | string

    Object Functions

    showDisplay antenna, array structures, shapes, or platform
    meshMesh properties of metal, dielectric antenna, or array structure

    Examples

    collapse all

    Open Live Script

    This example shows how to visualize the mesh of a dielectric lens.

    Create Polystyrene Dielectric Lens

    Define a polystyrene dielectric substrate. Create a dielectric lens of radius 60mm and polystyrene substrate.

    sub = dielectric("Polystyrene");
dl = dielectricLens(Radius=0.06,Substrate=sub);

    Mesh Dielectric Lens

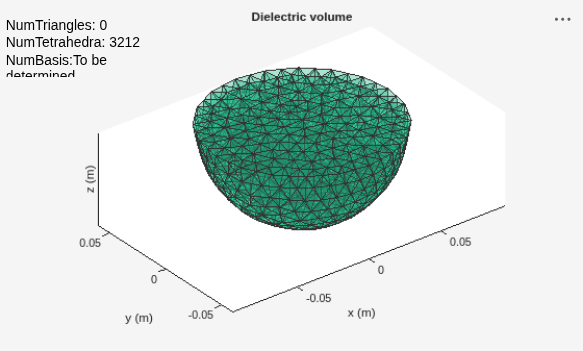

    Create a plane wave excitation environment and assign the dielectric lens as its element. Mesh the structure with a maximum edge length of 10mm.

    Visualize the mesh.

    pw = planeWaveExcitation(Element=dl,SolverType="FMM");
figure
mesh(pw,MaxEdgeLength=0.01)

    References

    [1] Fernandes, C.A., Lima, E.B., Costa, J.R. (2016). Dielectric Lens Antennas. In: Chen, Z., Liu, D., Nakano, H., Qing, X., Zwick, T. (eds) Handbook of Antenna Technologies. Springer, Singapore.

    [2] Santos, R. A., G. L. Fre, F. B. Mejia, and D. H. Spadoti. Dual Millimeter Wave Reconfigurable Dielectric Lens Antenna. In 2018 International Conference on Electromagnetics in Advanced Applications (ICEAA), 489–92. Cartagena des Indias: IEEE, 2018. https://doi.org/10.1109/ICEAA.2018.8520440.
