rxsite

Create RF receiver site

Description

Use the rxsite object to create a radio frequency receiver site.

A receiver consists of an RF circuit and an antenna, where the antenna intercepts radio waves and converts them to a current that is decoded by the RF circuit (e.g. demodulated) into a signal. Key characteristics of a receiver include its sensitivity and its antenna radiation pattern.

Creation

Description

example

rx = rxsite creates a radio frequency receiver site.

rx = rxsite(coordsys) creates a receiver site with coordinate system set to 'geographic' or 'cartesian'.

example

rx = rxsite(Name,Value) sets properties using one or more name-value pairs. For example, rx = rxsite('Name','RX Site') creates a receiver site with name RX Site. Enclose each property name in quotes.

Create a 1-by-N array of receiver sites by specifying a property value as an array of N columns. Other property values must be specified with either 1 or N columns. The Name, Latitude, and Longitude properties may be specified as either a row vector or column vector with N elements. The CoordinateSystem property must be a string scalar or a character vector.

Properties

expand all

Site name, specified as a character vector or as a row or column vector or as a string.

Example: 'Name','Site 3'

Example: rx.Name = 'Site 3'

Example: If you want to assign multiple values then - names = ["Fenway Park","Faneuil Hall","Bunker Hill Monument"]; rx = rxsite('Name',names)

Data Types: char | string

Coordinate system of the site location, specified as 'geographic' or 'cartesian'. If this property is 'geographic', the site location is defined using the properties Latitude, Longitude, and AntennaHeight. If this property is 'cartesian', the site location is defined using AntennaPosition.

Example: 'CoordinateSystem','cartesian'

Example: tx.CoordinateSystem = 'cartesian'

Site latitude coordinates, specified as a numeric scalar or a row or column vector in the range of range -90 to 90. Coordinates are defined using Earth ellipsoid model WGS-84. Latitude is the north/south angle.

Example: 'Latitude',45.098

Example: rx.Latitude = 45.098

Example: If you want to assign multiple values then - latitude = [42.3467,42.3598,42.3763]; rx = rxsite('Latitude',latitude)

Dependencies

To use this property, CoordinateSystem must be set to 'geographic'.

Site longitude coordinates, specified as a numeric scalar or a row or column vector. Coordinates are defined using Earth ellipsoid model WGS-84. Longitude is the east/west angle.

Example: 'Longitude',-68.890

Example: rx.Longitude = -68.890

Example: If you want to assign multiple values then - longitude = [-71.0972,-71.0545,-71.0611]; rx = rxsite('Longitude',longitude)

Dependencies

To use this property, CoordinateSystem must be set to 'geographic'.

Antenna element or array specified as one of these:

  • 'isotropic' to model an antenna that radiates uniformly in all directions.

  • An antenna element from the Antenna Catalog or array elements from the Array Catalog.

    Note

    When using antenna elements, please use the design function to design the antenna at the required receive frequency. Then add this antenna element to the receiver site.

  • If you have Communications Toolbox™, an arrayConfig (Communications Toolbox) object.

  • If you have Phased Array System Toolbox™, any antenna object in Antennas, Microphones, and Sonar Transducers (Phased Array System Toolbox) or any array object in Array Geometries and Analysis (Phased Array System Toolbox).

Example: 'Antenna',monopole

Example: rx.Antenna = monopole

Angle of antenna local Cartesian coordinate system X-axis, specified as a numeric scalar representing azimuth angle in degrees or a 2-by-1 vector representing both azimuth and elevation angles with each element unit in degrees.

The azimuth angle is measured counterclockwise to the antenna X-axis, either from the east ( for geographical sites) or from the global X-axis around the global Z-axis (for Cartesian sites).

The elevation angle is measured from the horizontal plane or X-Y plane to the antenna X-axis in the range -90 to 90 degrees.

Example: 'AntennaAngle',25

Example: tx.AntennaAngle = [25,-80]

Antenna height from the ground or building surface, specified as a non-negative numeric scalar in meters. Maximum value for this property is 6,371,000 m.

If the site coincides with the building, the height is measured from the top of the building to the center of the antenna. Otherwise,the height is measured from ground elevation to the center of the antenna.

Example: 'AntennaHeight',25

Example: rx.AntennaHeight = 15

Dependencies

To use this property, CoordinateSystem must be set to 'geographic'.

Data Types:

Position of the antenna center, specified as a 3-by-1 vector representing [x;y;z] Cartesian coordinates with each element in meters.

Example: 'AntennaPosition',[0;2;4]

Example: tx.AntennaPosition = [0;2;4]

Dependencies

To use this property, choose CoordinateSystem must be set to 'cartesian'.

Data Types:

System loss, specified as a non-negative numeric scalar or a row vector in dB.

System loss includes transmission line loss and any other miscellaneous system losses.

Example: 'SystemLoss',10

Example: rx.SystemLoss = 10

Data Types:

Minimum received power to detect the signal, specified as a numeric scalar or a row vector in dBm.

Example: 'ReceiverSensitivity',-80

Example: rx.ReceiverSensitivity = -80

Data Types: double

Object Functions

showShow site in Site Viewer
hideHide site from Site Viewer
distanceDistance between sites
angleAngle between sites
elevationElevation of site
locationCoordinates at distance and angle from site
sigstrengthReceived signal strength
losDisplay or compute line-of-sight (LOS) visibility status
linkDisplay or compute communication link status
patternDisplay antenna radiation pattern in Site Viewer

Examples

collapse all

Create and show the default receiver site.

rx = rxsite
rx =
  rxsite with properties:

                   Name: 'Site 2'
               Latitude: 42.3021
              Longitude: -71.3764
                Antenna: 'isotropic'
           AntennaAngle: 0
          AntennaHeight: 1
             SystemLoss: 0
    ReceiverSensitivity: -100

show(rx)

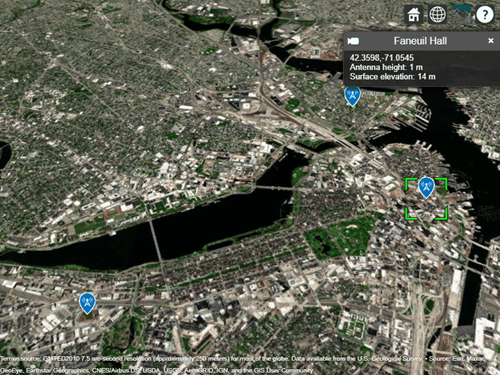

Create and show a 1-by-3 receiver site array using dipole antenna.

Define names and locations of the sites around Boston.

names = ["Fenway Park","Faneuil Hall","Bunker Hill Monument"];
lats = [42.3467,42.3598,42.3763];
lons = [-71.0972,-71.0545,-71.0611];

Define the sensitivity of the receivers.

 sens = -90;

Create and show receiver site array.

rxs = rxsite('Name', names,...
      'Antenna',dipole, 'Latitude',lats,...
       'Longitude',lons, ...
       'ReceiverSensitivity',sens);
show(rxs)

See Also

|

Introduced in R2017b
