# pattern

Display antenna radiation pattern in Site Viewer

## Syntax

``pattern(tx)``
``pattern(rx,frequency)``
``pattern(___,Name,Value)``

## Description

example

````pattern(tx)` displays the 3-D antenna radiation pattern for the transmitter site `txsite` in the current Site Viewer. Signal gain value (dBi) in a particular direction determines the color of the pattern.```

example

````pattern(rx,frequency)` displays the 3-D radiation pattern for the receiver site `rxsite` for the specified `frequency`.```

example

````pattern(___,Name,Value)` displays the 3-D radiation pattern with additional options specified by name-value pair arguments.```

## Examples

collapse all

Define and visualize the radiation pattern of a single transmitter site.

```tx = txsite; pattern(tx)```

Design a receiver site using a dipole antenna at a height of 30 meters.

```d = dipole; rx = rxsite("Name","Mathworks Lakeside", ... "Latitude",42.30321,"Longitude",-71.3764, ... "Antenna",d,"AntennaHeight",30);```

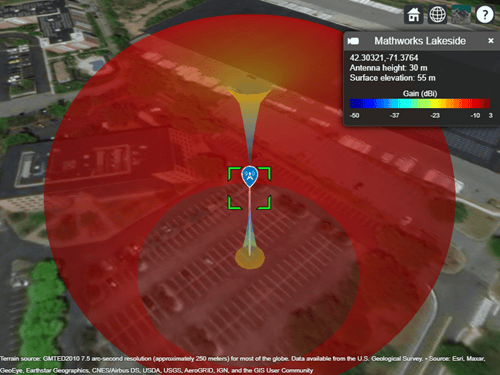

Visualize the pattern of the receiver site at 75 MHz.

`pattern(rx,75e6)`

Create a directional antenna.

```yagiAntenna = design(yagiUda,4.5e9); yagiAntenna.Tilt = 90; yagiAntenna.TiltAxis = 'y';```

Create transmitter and receiver sites at a frequency of 4.5 GHz. Use the Yagi antenna as the transmitter antenna. Design a dipole at 4.5 GHz and use this as the receiver antenna.

```fq = 4.5e9; tx = txsite('Name','MathWorks','Latitude',42.3001,'Longitude',-71.3503, ... 'Antenna',yagiAntenna,'AntennaAngle',90,'AntennaHeight',30, ... 'TransmitterFrequency',fq,'TransmitterPower',10); rx = rxsite('Antenna',design(dipole,fq));```

Position the receiver 200 meters from the transmitter.

```[lat,lon] = location(tx,200,90); rx.Latitude = lat; rx.Longitude = lon;```

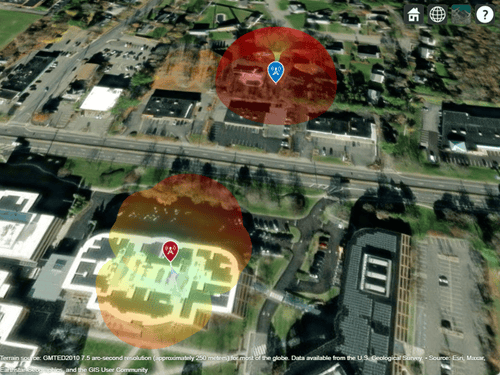

Display both transmitter and receiver patterns. Zoom out so you can see both of the patterns.

```pattern(tx,'Transparency',0.2) pattern(rx,fq)```

Import and view an STL file. The file models a small conference room with one table and four chairs.

`viewer = siteviewer("SceneModel","conferenceroom.stl");`

Design an inverted-F antenna mounted over a rectangular ground plane that resonates at 2.4 GHz. Create a transmitter site that uses the antenna. Specify the position using Cartesian coordinates in meters.

```ant = design(invertedF,2.4e9); ant.Tilt = 180; tx = txsite("cartesian", ... "AntennaPosition",[0; 0; 2.1], ... "Antenna",ant);```

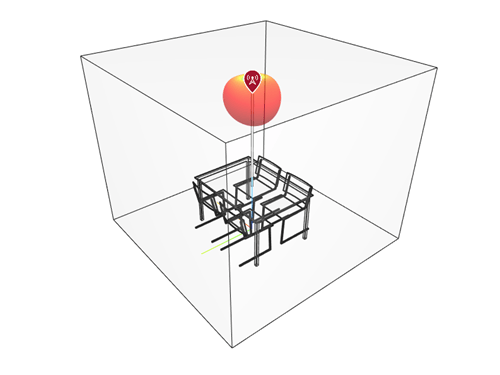

Visualize the pattern of the site. Specify the size of the pattern plot as `0.4` meters.

`pattern(tx,"Transparency",0.6,"Size",0.4)`

Pan by left-clicking, zoom by right-clicking or by using the scroll wheel, and rotate the visualization by clicking the middle button and dragging or by pressing Ctrl and left-clicking and dragging.

## Input Arguments

collapse all

Transmitter site, specified as a `txsite` object.

Receiver site, specified as a `rxsite` object.

Frequency to calculate radiation pattern, specified as a positive scalar.

### Name-Value Arguments

Specify optional pairs of arguments as `Name1=Value1,...,NameN=ValueN`, where `Name` is the argument name and `Value` is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose `Name` in quotes.

Example: `'Size',2`

Size of the pattern plot, specified as a numerical scalar in meters. This parameter represents the distance between the antenna position and the point on the plot with the highest gain.

The default value depends on the `CoordinateSystem` property of the `siteviewer` object. When `CoordinateSystem` is `'geographic'`, the default size is 50 meters. When `CoordinateSystem` is `'cartesian'`, the default size is approximately 1/6 of the scene model size.

Data Types: `double`

Transparency of the pattern plot, specified as a real number in the range of [0,1], where `0` is completely transparent and `1` is completely opaque.

Data Types: `double`

Colormap for coloring of the pattern plot, specified as a predefined colormap name or an M-by-3 array of RGB (red, blue, green) triplets that define M individual colors.

Data Types: `double`

Resolution of 3-D map, specified as `'low'`, `'medium'`, or `'high'`. This property controls the visual quality and the time taken to plot the pattern where the value of `'low'` corresponds to the fastest and the least detailed pattern.

Data Types: `double`

Map for visualization of surface data, specified as a `siteviewer` object.1

Data Types: `char` | `string`
