setAugmenterParams

Set parameters of augmentation algorithm

Since R2021a

Syntax

setAugmenterParams(aug,algorithmName,params)

setAugmenterParams(aug,algorithmName)

Description

setAugmenterParams(aug,algorithmName,params) sets parameters of the augmentation algorithm associated with the audioDataAugmenter object.

setAugmenterParams(aug,algorithmName) without the params argument restores the algorithmName parameters to their default values.

Examples

Set Augmenter Parameters

Modify the default parameters of the shiftPitch and stretchAudio augmentation algorithms.

Read in an audio signal and listen to it.

[audioIn,fs] = audioread('FemaleSpeech-16-8-mono-3secs.wav');
soundsc(audioIn,fs)

Create an audioDataAugmenter object that applies a pitch shift of 3 semitones and a time stretch with a SpeedupFactor of 1.5.

aug = audioDataAugmenter('AugmentationParameterSource','specify', ...
                         'ApplyPitchShift',true, ...
                         'SemitoneShift',3, ...
                         'ApplyTimeStretch',true, ...
                         'SpeedupFactor',1.5, ...
                         'ApplyVolumeControl',false, ...
                         'ApplyAddNoise',false, ...
                         'ApplyTimeShift',false)

aug =
  audioDataAugmenter with properties:

               AugmentationMode: 'sequential'
    AugmentationParameterSource: 'specify'
               ApplyTimeStretch: 1
                  SpeedupFactor: 1.5000
                ApplyPitchShift: 1
                  SemitoneShift: 3
             ApplyVolumeControl: 0
                  ApplyAddNoise: 0
                 ApplyTimeShift: 0

Call setAugmenterParams to set the LockPhase and PreserveFormants parameters of the shiftPitch augmentation algorithm to false. Set the LockPhase parameter of the stretchAudio augmentation algorithm to false. Set the CepstralOrder parameter of the shiftPitch algorithm to 30.

Augment the original signal and listen to the result. The resulting file has an audible distortion that sounds unnatural. View the parameters of the augmentation algorithms.

setAugmenterParams(aug,'shiftPitch','LockPhase',false,'PreserveFormants',false,'CepstralOrder',30);
setAugmenterParams(aug,'stretchAudio','LockPhase',false);
data = augment(aug,audioIn,fs);

pause(3)

augmentationPre = data.Audio{1};
soundsc(augmentationPre,fs)

data.AugmentationInfo(1)

ans = struct with fields:
    SpeedupFactor: 1.5000
    SemitoneShift: 3

augmenterParamsPre = getAugmenterParams(aug);
augmenterParamsPre.stretchAudio

ans = struct with fields:
    LockPhase: 0

augmenterParamsPre.shiftPitch

ans = struct with fields:
           LockPhase: 0
    PreserveFormants: 0
       CepstralOrder: 30

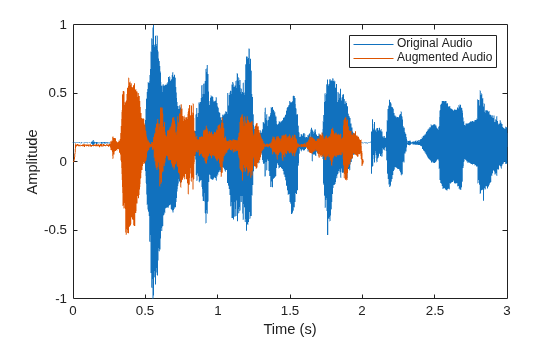

Plot the time-domain representation of the original and the augmented signals.

t = (0:(numel(audioIn)-1))/fs;
taug = (0:(numel(augmentationPre)-1))/fs;
plot(t,audioIn,taug,augmentationPre)
legend("Original Audio","Augmented Audio")
ylabel("Amplitude")
xlabel("Time (s)")

To partially compensate for the audible distortion and increase the fidelity of the augmentation algorithms, apply formant preservation to the shiftPitch algorithm, apply phase-locking to both algorithms, and change the cepstral order of the shiftPitch algorithm to 25. Listen to the processed audio.

setAugmenterParams(aug,'shiftPitch','LockPhase',true,'PreserveFormants',true,'CepstralOrder',25);
setAugmenterParams(aug,'stretchAudio','LockPhase',true);
data = augment(aug,audioIn,fs);

augmentationPost = data.Audio{1};
soundsc(augmentationPost,fs)

data.AugmentationInfo(1)

ans = struct with fields:
    SpeedupFactor: 1.5000
    SemitoneShift: 3

augmenterParamsPost = getAugmenterParams(aug);
augmenterParamsPost.stretchAudio

ans = struct with fields:
    LockPhase: 1

augmenterParamsPost.shiftPitch

ans = struct with fields:
           LockPhase: 1
    PreserveFormants: 1
       CepstralOrder: 25

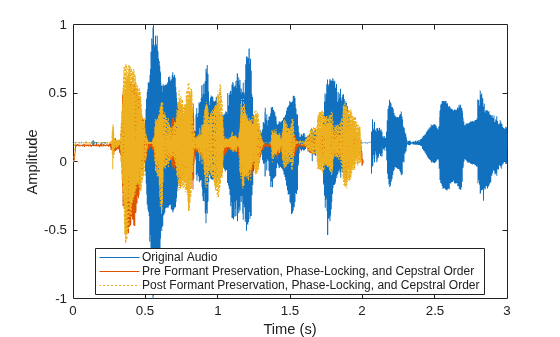

Plot the original audio as well as the augmented data before and after formant preservation, phase-locking, and cepstral order modification.

taug = (0:(numel(augmentationPost)-1))/fs;
plot(t,audioIn,taug,augmentationPre)
hold on
plot(taug,augmentationPost,'LineStyle',':')
legend("Original Audio","Pre Formant Preservation," + ...
    " Phase-Locking, and Cepstral Order", ...
    "Post Formant Preservation, Phase-Locking, and Cepstral Order")
ylabel("Amplitude")
xlabel("Time (s)")
legend('Location','best')

Return the augmentation algorithm parameters to their default values. Call getAugmenterParams to display the current parameter values for the audioAugmenter object.

setAugmenterParams(aug,'shiftPitch')
setAugmenterParams(aug,'stretchAudio')
augmenterParamsDefault = getAugmenterParams(aug);
augmenterParamsDefault.stretchAudio

ans = struct with fields:
    LockPhase: 0

augmenterParamsDefault.shiftPitch

ans = struct with fields:
           LockPhase: 0
    PreserveFormants: 0
       CepstralOrder: 30

Input Arguments

aug — Audio data augmenter

audioDataAugmenter object

Audio data augmenter, specified as an audioDataAugmenter object.

algorithmName — Algorithm name

'stretchAudio' | 'shiftPitch'

Algorithm name, specified as 'stretchAudio' or 'shiftPitch.

Note

Augmentation algorithms must be modified independently using separate calls to setAugmenterParams for each algorithm.

Data Types: char | string

params — Parameter used with augmentation algorithm

character vector | string | structure array

Parameter name, specified as a character vector, string, or structure array. Parameter values depend on algorithmName. Specify params as one of these:

• When you set algorithmName to 'stretchAudio', specify params as 'LockPhase' and true or false.

• When you set algorithmName to 'shiftPitch', specify params as one or all of these:

  • 'LockPhase' and true or false

  • 'PreserveFormants' and true or false

  • 'CepstralOrder' and a positive integer

Example: setAugmenterParams(aug,'shiftPitch','LockPhase',true,'PreserveFormants',false,'CepstralOrder',15) enables the LockPhase parameter, disables the PreserveFormants parameter, and sets a cepstral order of 15 for the shiftPitch augmentation algorithm.

Data Types: char | string | struct

Version History

Introduced in R2021a
