rnaplot
Draw secondary structure of RNA sequence
Syntax
Description
rnaplot(
draws the RNA secondary
structure specified by RNA2ndStruct
)RNA2ndStruct
, the secondary structure of an RNA
sequence represented by a string scalar or character vector specifying bracket notation or a
connectivity matrix.
returns ha
= rnaplot(RNA2ndStruct
)ha
, a handle to the figure axis.
[
also returns ha
,H
]
= rnaplot(RNA2ndStruct
)H
, a
structure of handles, which you can use to graph elements in a MATLAB® figure window.
___ = rnaplot(
specifies options using one or more name-value arguments in addition to the input arguments
in previous syntaxes. For example, to color by residue type, set
RNA2ndStruct
,Name=Value
)ColorBy
to "Residue"
.
Examples

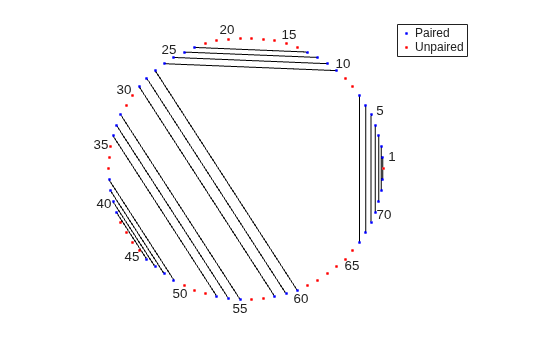

Plot Structure of RNA Sequence in Circle Format
Determine the minimum free-energy secondary structure of an RNA sequence and plot it in circle format.
seq = "GCGCCCGUAGCUCAAUUGGAUAGAGCGUUUGACUACGGAUCAAAAGGUUAGGGGUUCGACUCCUCUCGGGCGCG";
RNA2ndStructure = rnafold(seq);
rnaplot(RNA2ndStructure)
Plot Structure in Graph Format and Color by Pair Type
Plot the RNA sequence secondary structure in graph format and color the plot by pair type.
seq = "GCGCCCGUAGCUCAAUUGGAUAGAGCGUUUGACUACGGAUCAAAAGGUUAGGGGUUCGACUCCUCUCGGGCGCG"; RNA2ndStructure = rnafold(seq); rnaplot(RNA2ndStructure,Sequence=seq,Format="Graph",ColorBy="Pair")
Plot Structure in Mountain Format and add Title to Plot
Plot the RNA sequence secondary structure in mountain format and color the plot by residue type. Use the handle ha
to add a title to the plot.
seq = "GCGCCCGUAGCUCAAUUGGAUAGAGCGUUUGACUACGGAUCAAAAGGUUAGGGGUUCGACUCCUCUCGGGCGCG"; RNA2ndStructure = rnafold(seq); ha = rnaplot(RNA2ndStructure,Sequence=seq,Format="Mountain",ColorBy="Residue"); title(ha,"Bacillus halodurans, tRNA Arg")

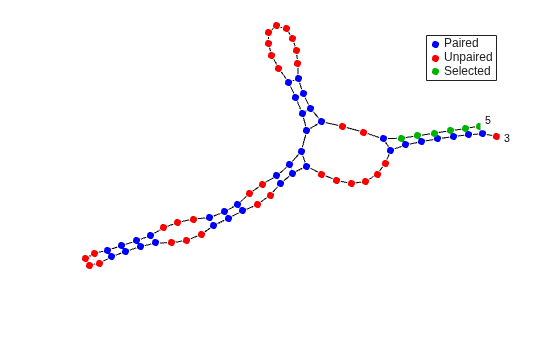

Plot Mutated Structure
Mutate the first six positions in an RNA sequence and observe the effect the mutation has on the secondary structure by highlighting the first six residues.
seq = "GCGCCCGUAGCUCAAUUGGAUAGAGCGUUUGACUACGGAUCAAAAGGUUAGGGGUUCGACUCCUCUCGGGCGCG"; seqMut = replaceBetween(seq,1,6,"AAAAAA"); RNA2ndStructure = rnafold(seq); RNA2ndStructureMut = rnafold(seqMut); rnaplot(RNA2ndStructure,Sequence=seq,Format="DotDiagram",Selection=1:6)
rnaplot(RNA2ndStructureMut,Sequence=seqMut,Format="DotDiagram",Selection=1:6)
Input Arguments
RNA2ndStruct
— Secondary structure of RNA sequence
string scalar | character vector | binary matrix
Secondary structure of RNA sequence, specified as a string scalar, character vector,
or binary matrix. Use bracket notation to specify RNA2ndStruct
as a
string scalar or character vector, and use a binary matrix to specify
RNA2ndStruct
as a connectivity matrix.
Tip
You can use the rnafold
function to create
RNA2ndStruct
.
Data Types: string
| char
| logical
| double
| single
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
Name-Value Arguments
Specify optional pairs of arguments as
Name1=Value1,...,NameN=ValueN
, where Name
is
the argument name and Value
is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.
Example: rnaplot(RNA2ndStructure,Selection="Unpaired")
Sequence
— RNA secondary structure sequence to plot
string scalar | character vector | structure containing Sequence
field
RNA secondary structure sequence to plot, specified as a string scalar, character
vector, or structure containing a Sequence
field. The information
in Sequuence
is used in the data tip displayed by clicking a base
in the plot of the RNA secondary structure RNA2ndStruct
.
Example: "GCGCCCGUAGCUCAAUUGGAUAGAGCGUUUGACUACGGAUCAAAAGGUUAGGGGUUCGACUCCUCUCGGGCGCG"
Data Types: string
| char
| struct
Format
— Plot format
"Circle"
(default) | "Diagram"
| "Dotdiagram"
| "Graph"
| "Mountain"
| "Tree"
Plot format, specified as "Circle"
,
"Diagram"
, "Dotdiagram"
,
"Graph"
, "Mountain"
, or
"Tree"
. The choices are described in this table.
Format | Description |
---|---|
"Circle" | Each base is represented by a dot on the circumference of a circle. Lines connect bases that pair with each other. |
"Diagram" | Each base is represented and identified by a letter. The backbone and hydrogen bonds between base pairs are represented by lines. Note If you specify |
"Dotdiagram" | Each base is represented and identified by a dot. The backbone and hydrogen bonds between base pairs are represented by lines. |
"Graph" | Bases are displayed in their sequence position along the abscissa (horizontal axis) of a graph. Semi-elliptical curves connect bases that pair with each other. The height of the lines is proportional to the distance between paired bases. |
"Mountain" | Each base is represented by a dot in a two-dimensional plot, where the base position is in the abscissa (horizontal axis) and the number of base pairs enclosing a given base is in the ordinate (vertical axis). |
"Tree" | Each base is represented by a node in a tree graph. Leaf nodes indicate unpaired bases, while each internal node indicates a base pair. The tree root is a fictitious node, not associated with any base in the secondary structure. Note If you specify |
Data Types: string
| char
Selection
— Residues to highlight in plot
numeric vector | string scalar | character vector
Residues to highlight in plot, specified as a numeric vector, a string scalar, or
a character vector. If you specify Selection
as a numeric vector,
then the rnaplot
function highlights the residues whose indices
appear as entries in Selection
. If you specify
Selection
as a string scalar or character vector, then the
rnaplot
function highlights the subset of residues described by
Selection
. In this case, Selection
must
have one of these values:
"Paired"
"Unpaired"
"AU"
(or"UA"
)"GC"
(or"CG"
)"GU"
(or"UG"
)
Note
If you specify Selection
as "AU"
,
"GC"
, or "GU"
(or "UA"
,
"CG"
, or "UG"
), then you must also specify a
value for Sequence
to provide the RNA sequence.
Data Types: double
| single
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
| string
| char
ColorBy
— Color scheme for plot
"State"
(default) | "Residue"
| "Pair"
Color scheme for plot, specified as "State"
,
"Residue"
, or "Pair"
. The choices are
described in this list.
"State"
— Color by pair state: paired bases and unpaired bases."Residue"
— Color by residue type: A, C, G, and U."Pair"
— Color by pair type: AU/UA, GC/CG, and GU/UG.
Note
If you specify ColorBy
as "Residue"
or
"Pair"
, then you must also specify a value for
Sequence
to provide the RNA sequence.
Data Types: string
| char
Output Arguments
ha
— Handle to axes
Axes
object
Handle to axes, returned as an Axes
object.
H
— Handles from plot
structure
Handles from plot, returned as a structure. Depending on the values you choose for
Selection
and ColorBy
,
H
can contain these fields:
Paired
— Handles to all paired residuesUnpaired
— Handles to all unpaired residuesA
— Handles to all A residuesC
— Handles to all C residuesG
— Handles to all G residuesU
— Handles to all U residuesAU
— Handles to all AU/UA pairsGC
— Handles to all GC/CG pairsGU
— Handles to all GU/UG pairsSelected
— Handles to all selected residues
Tip
Use the handles returned in H
to change properties of the
graph elements, such as color, marker size, and marker type.
Version History
Introduced in R2007b
