ofdmChannelResponse

Calculate OFDM channel response

Since R2023a

Syntax

hest = ofdmChannelResponse(pathgains,pathfilters,nfft,cplen)

hest = ofdmChannelResponse(pathgains,pathfilters,nfft,cplen,activesc)

hest = ofdmChannelResponse(pathgains,pathfilters,nfft,cplen,activesc,toffset)

Description

hest = ofdmChannelResponse(pathgains,pathfilters,nfft,cplen) returns the frequency response of a time-varying channel for OFDM signals with FFT length equal to nfft and cyclic prefix length equal to cplen. The channel is specified by pathgains and pathfilters. For more information, see OFDM Channel Response.

hest = ofdmChannelResponse(pathgains,pathfilters,nfft,cplen,activesc) returns the frequency response of the channel for OFDM subcarriers specified by the activesc vector.

hest = ofdmChannelResponse(pathgains,pathfilters,nfft,cplen,activesc,toffset) returns the frequency response of the channel for OFDM subcarriers specified by the activesc vector and the timing offset specified by toffset.

Examples

OFDM Equalization for MIMO Channel with Beamforming

Estimate the channel response for a beamformed OFDM signal with ${\mathit{N}}_{\mathrm{S}}$ parallel data streams filtered through an ${\mathit{N}}_{\mathrm{T}}$-by-${\mathit{N}}_{\mathrm{R}}$ MIMO channel. Use the channel response to apply OFDM equalization to the received OFDM-demodulated signal.

Define simulation variables.

rng(1);
numStreams = 2;  % Number of parallel data streams (Ns)
numTx = 4;       % Number of transmit antennas (Nt)
numRx = 3;       % Number of receive antennas (Nr)
bps = 6;         % Bits per QAM symbol (and OFDM data subcarrier)
nfft = 256;      % FFT length
cpLen = 16;      % Cyclic prefix length
numOFDMSym = 10; % Number of OFDM symbols
SNRdB = 40;      % Signal-to-noise ratio

Check that the number of data streams is no greater than either the number of transmit antennas or the number of receive antennas.

if numStreams > min(numTx,numRx)
    error('numStreams must be equal to or less than numTx and numRx.');
end

Configure OFDM subcarriers.

ofdmNullIdx = ...   % Guard bands and DC subcarrier
    [1:9 (nfft/2+1) (nfft-8+1:nfft)]';
numDataSC = ...     % Number of data subcarriers
    nfft-length(ofdmNullIdx);

Generate an array of data symbols consisting of ${\mathit{N}}_{\mathrm{S}}$ parallel data streams, QAM-modulate the symbols, and then OFDM-modulate the QAM-modulated symbols.

dataBits = randi([0,1],[numDataSC*bps numOFDMSym numStreams]);
M = 2^bps; % Modulation order
qamTx = qammod(dataBits,M, ...
    InputType="bit", ...
    UnitAveragePower=true);
ofdmOut = ofdmmod(qamTx,nfft,cpLen,ofdmNullIdx);

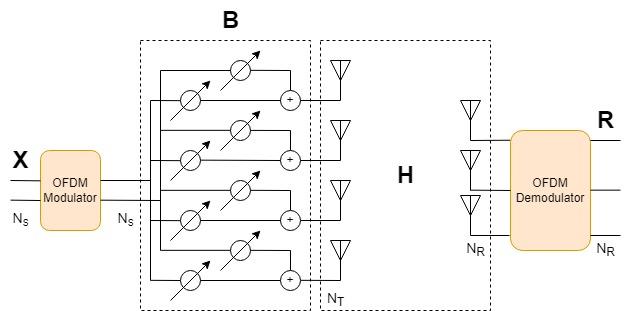

Beamforming expands the dimensionality of the transmit signal to improve link performance over multipath channels. The data streams are fed through a beamformer that focuses the transmit energy over an ${\mathit{N}}_{\mathrm{T}}$-by-1 transmit antenna array where the number of antennas ${\mathit{N}}_{\mathrm{T}}\ge {\mathit{N}}_{\mathrm{S}}$.

Form a beamformer matrix from steering vectors acting on each stream.

% Beamform the transmitted signal
fc = 1e9;
lambda = physconst('LightSpeed')/fc;
beamAngles = 15;
antIdx = (0:numTx-1);
antDelay = 2*pi*sin(2*pi*beamAngles*(0:numStreams-1).'/360)/lambda;
B = exp(1i*antIdx.*antDelay);  % Ns x Nt beamformer matrix
txOut = ofdmOut * B;

Filter the OFDM-modulated signal through a MIMO channel to get the channel estimates.

mimoChannel = comm.MIMOChannel( ...
    SampleRate=1e6, ...
    PathDelays=[0 3e-6 5e-6], ...
    AveragePathGains=[0 0.5 0.2], ...
    MaximumDopplerShift=0, ...
    SpatialCorrelationSpecification="None", ...
    NumTransmitAntennas=numTx, ...
    NumReceiveAntennas=numRx, ...
    PathGainsOutputPort=true);
[channelOut,pathGains] = mimoChannel(txOut);

In a practical system, the channel must be sounded to get the channel estimates. Instead of sounding, the ofdmChannelResponse function computes the exact channel estimates using the path gains and path filters that are available after you pass data through the MIMO channel System object. Use channel path gains returned by the MIMO channel object, and the path filters and timing offset returned by the info object function, to estimate the OFDM channel response. If ${\mathit{N}}_{\mathrm{T}}<{\mathit{N}}_{\mathrm{R}}$, the channel forms an over-determined system (there are more receive antennas than necessary to adequately decode the transmitted signals). Call ofdmChannelResponse with the pathGains from the MIMO channel function to get the best channel estimates.

mimoChannelInfo = info(mimoChannel);
pathFilters = mimoChannelInfo.ChannelFilterCoefficients;
toffset = mimoChannelInfo.ChannelFilterDelay;
hest = ofdmChannelResponse(pathGains,pathFilters,nfft,cpLen, ...
    setdiff(1:nfft,ofdmNullIdx),toffset); % Nsc x Nsym x Nt x Nr

[rxIn,nVar] = awgn(channelOut,SNRdB,"measured");

Before demodulating the OFDM signal, account for the timing offset and symbol offset, remove the initial samples, and then pad with zeros to keep the signal length unchanged.

zeropadding = zeros(toffset,numRx);
ofdmDemodIn = [rxIn(toffset+1:end,:); zeropadding];
symOffset = cpLen/2;

OFDM-demodulate and equalize the received signal.

rxSym = ofdmdemod(ofdmDemodIn,nfft,cpLen,symOffset,ofdmNullIdx);

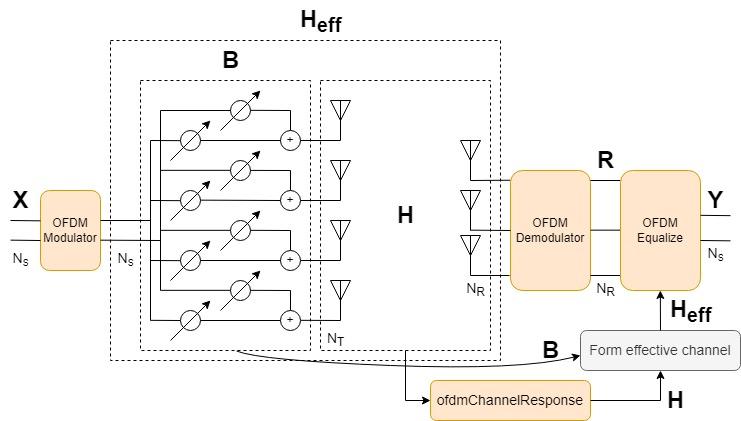

The effects of beamforming and the MIMO channel affect the received data streams. The effective channel (${\mathit{H}}_{\mathrm{eff}}$) is an ${\mathit{N}}_{\mathrm{S}}$-by-${\mathit{N}}_{\mathrm{R}}$ matrix defined as the product of the transmit beamformer and the estimated MIMO channel.

To use the OFDM channel response when equalizing the OFDM-demodulated signal, you must reshape the ${\mathit{N}}_{\mathit{SC}}$-by-${\mathit{N}}_{\mathrm{OFDMsym}}$-by-${\mathit{N}}_{\mathrm{T}}$-by-${\mathit{N}}_{\mathrm{R}}$ array to an ${\mathit{N}}_{\mathrm{QAMsym}}$-by-${\mathit{N}}_{\mathrm{T}}$-by-${\mathit{N}}_{\mathrm{R}}$ array. Form the effective channel using the beamformer matrix B and the reshaped channel estimates hest. Equalize the received OFDM signal using the calculated effective channel, the noise variance, and the MMSE algorithm.

hestReshaped = reshape(hest,[],numTx,numRx);

heff = zeros(numDataSC*numOFDMSym,numStreams,numRx);
for k = 1:numOFDMSym*numDataSC
    heff(k,:,:) = B * squeeze(hestReshaped(k,:,:));
end

eqSym = ofdmEqualize(rxSym,heff,nVar);

Show the received OFDM-demodulated symbols (rxSym) and the equalized OFDM-demodulated symbols (eqSym). The constellation of the OFDM-demodulated symbols before equalization does not resemble the QAM constellation. After equalization, the constellation points lay near the reference constellation.

figure(1);
scatterplot(rxSym(:));

figure(2);
scatterplot(eqSym(:));

Input Arguments

pathgains — Channel path gains

numeric array | dlarray object

Channel path gains, specified as an N_S-by-N_P-by-N_T-by-N_R numeric array, or a dlarray (Deep Learning Toolbox) object. For more information, see Array Support.

• N_S is the number of samples.

• N_P is the number of paths.

• N_T is the number of transmit antennas.

• N_R is the number of receive antennas.

The channel path gains follow the definition of channel path gains as calculated and output by the fading channel System objects. For example, see comm.MIMOChannel, comm.RayleighChannel, comm.RicianChannel, or comm.ChannelFilter. This function assumes that the path gains sample rate matches the OFDM sample rate.

Data Types: double | single
Complex Number Support: Yes

pathfilters — Channel path filter coefficients

numeric matrix

Channel path filter coefficients, specified as an N_P-by-N_H numeric matrix.

• N_P is the number of paths.

• N_H is the number of impulse response samples.

The coefficient matrix is used to convert path gains to channel filter tap gains for each sample and each pair of transmit and receive antennas. The channel path filter coefficients follow the definition of channel path filter coefficients as calculated by the info object function of the fading channel System objects.

Data Types: double | single

nfft — FFT length

positive integer

FFT length, specified as a positive, integer scalar. The FFT length must align with that of the OFDM-modulated signal.

Data Types: double | single

cplen — Cyclic prefix length of one OFDM symbol

nonnegative integer

Cyclic prefix length of one OFDM symbol, specified as a nonnegative, integer scalar with a value less than nfft.

Data Types: double | single

activesc — Number of active subcarriers

1:512 (default) | positive integer | column vector

Number of active subcarriers, specified as a positive, integer scalar or column vector of values in the range [1, nfft].

Data Types: double | single

toffset — Timing offset

0 (default) | nonnegative integer

Timing offset in samples, specified as a nonnegative, integer scalar. For more information, see OFDM Channel Response.

Data Types: double | single

Output Arguments

hest — Frequency response

numeric array | dlarray object

Frequency response, returned as an N_SC-by-N_Symbols-by-N_T-by-N_R numeric array, or a dlarray (Deep Learning Toolbox) object. If the input signal, pathgains, is a dlarray, then this output, hest, is also a dlarray.For more information, see Array Support.

• N_SC is the number of OFDM subcarriers and is equal to the:

  • Length of activesc when activesc is an input

  • Value of nfft when activesc is not provided as an input

• N_Symbols is the number of whole OFDM symbols contained in pathgains. Specifically, floor(N_S/(N_FFT + L_CP)).

  • N_S is the number of samples in pathgains

  • N_FFT is the value of nfft

  • L_CP is the value of cplen.

• N_T is the number of transmit antennas.

• N_R is the number of receive antennas.

More About

Array Support

The ofdmChannelResponse function supports input signals represented in a numeric array, dlarray (Deep Learning Toolbox), or gpuArray (Parallel Computing Toolbox).

The number of batch observations (N_B) is an optional dimension that can be added to this input for all supported data types.

• pathgains — The channel path gains can be an array of up to five dimensions, specified as an N_S-by-N_P-by-N_T-by-N_R-by-N_B array.

N_S is the number of samples, N_P is the number of paths, N_T is the number of transmit antennas,and N_R is the number of receive antennas.

For a list of Communications Toolbox™ features that support dlarray objects, see AI for Wireless.

Algorithms

OFDM Channel Response

The OFDM channel response algorithm uses an FFT to compute the channel estimates by using the path gains and path filter coefficients available after you pass data through a MIMO channel. Use channel path gains returned by the MIMO channel object, and the path filters and timing offset returned by the info object function, to estimate the OFDM channel response.

This figure shows one OFDM symbol in addition to the input channel impulse and the output channel impulse response. The algorithm ignores samples outside the OFDM symbol.

For a time-varying channel, such as most fading channels, the impulse response depends on the location of the impulse at the channel input.

Extended Capabilities

C/C++ Code Generation

Generate C and C++ code using MATLAB® Coder™.

Usage notes and limitations:

• If dynamic memory allocation is off, nfft and cplen must be compilation time constants. To enforce a static value, assign nfft and cplen by using coder.const (MATLAB Coder).

GPU Arrays

Accelerate code by running on a graphics processing unit (GPU) using Parallel Computing Toolbox™.

This function supports GPU array inputs. For more information, see Run MATLAB Functions on a GPU (Parallel Computing Toolbox).

Version History

Introduced in R2023a

R2024a: Add deep learning array support

The ofdmChannelResponse function adds support for dlarray (Deep Learning Toolbox) object processing for deep learning applications.

R2024a: Add GPU array support

The ofdmChannelResponse function adds support for gpuArray (Parallel Computing Toolbox) object processing to run code on a graphics processing unit (GPU).
