pskmod

Modulate signal using M-PSK method

Syntax

y = pskmod(x,M)

y = pskmod(x,M,phaseoffset)

y = pskmod(x,M,phaseoffset,symorder)

y = pskmod(x,M,Name=Value)

Description

y = pskmod(x,M) modulates the input signal x using the M-Ary phase shift keying (M-PSK) method. M specifies the modulation order.

y = pskmod(x,M,phaseoffset) specifies the phase offset of the M-PSK constellation.

y = pskmod(x,M,phaseoffset,symorder) specifies the symbol order of the M-PSK constellation.

y = pskmod(x,M,Name=Value) specifies options using name-value arguments.

Examples

Modulate PSK Signal

Modulate and plot the constellations of QPSK and 16-PSK signals.

QPSK

Set the modulation order to 4.

M = 4;

Generate random data symbols.

data = randi([0 M-1],1000,1);

Modulate the data symbols.

txSig = pskmod(data,M,pi/M);

Pass the signal through white noise and plot its constellation.

rxSig = awgn(txSig,20);

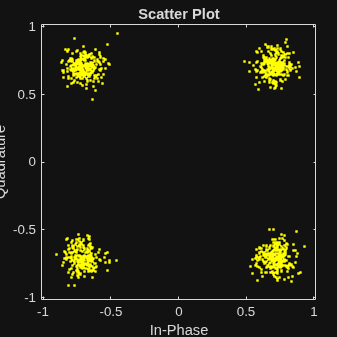

scatterplot(rxSig)

16-PSK

Change the modulation order from 4 to 16.

M = 16;

Generate random data symbols.

data = randi([0 M-1],1000,1);

Modulate the data symbols.

txSig = pskmod(data,M,pi/M);

Pass the signal through white noise and plot its constellation.

rxSig = awgn(txSig,20);

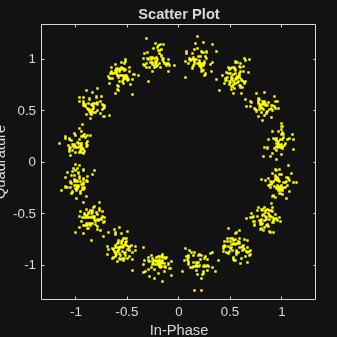

scatterplot(rxSig)

Modulate and Demodulate QPSK Signal in AWGN

Generate random symbols.

dataIn = randi([0 3],1000,1);

QPSK modulate the data.

txSig = pskmod(dataIn,4,pi/4);

Pass the signal through an AWGN channel.

rxSig = awgn(txSig,10);

Demodulate the received signal and compute the number of symbol errors.

dataOut = pskdemod(rxSig,4,pi/4);
numErrs = symerr(dataIn,dataOut)

numErrs = 3

PSK Symbol Mapping

Set the modulation order, then create a data sequence containing a complete set of constellation points.

M = 8;
data = (0:M-1);
phaseoffset = 0;

Visualize the plot constellations of 8-PSK symbol mapping for modulated and demodulated gray-coded and binary-coded data.

symgray = pskmod(data,M,phaseoffset,'gray',PlotConstellation=true, ...
          InputType='integer');

mapgray = pskdemod(symgray,M,phaseoffset,'gray',OutputType='integer');
symbin = pskmod(data,M,phaseoffset,'bin');
mapbin = pskdemod(symbin,M,phaseoffset,'bin',PlotConstellation=true, ...
         OutputType='bit');

Input Arguments

x — Input signal

scalar | vector | matrix

Input signal, specified as a scalar, vector, or matrix of positive integers. The elements of x must have binary or integer values in the range [0, M–1], where M is the modulation order.

Note

To process an input signal as binary elements, set the InputType name-value argument to 'bit'. For binary inputs, the number of rows must be an integer multiple of log₂(M). The function maps groups of log₂(M) bits onto a symbol, with the first bit representing the MSB and the last bit representing the LSB.

Data Types: double | single | int8 | int16 | int32 | uint8 | uint16 | uint32 | logical

M — Modulation order

integer value greater than 1

Modulation order, specified as an integer value greater than 1.

Data Types: double

phaseoffset — Phase offset

0 (default) | scalar

Phase offset of the PSK constellation in radians, specified as a scalar.

Data Types: double

symorder — Symbol order

'gray' (default) | 'bin' | vector

Symbol order, specified as 'gray', 'bin', or a vector. This argument specifies how the function assigns binary vectors to corresponding integers.

• 'gray' — Use a Gray-coded ordering.

• 'bin' — Use a binary-coded ordering.

• vector –– Use custom symbol ordering. The vector is of length M containing unique values in the range [0, M– 1]. The first element correlates to the constellation point corresponding to angle phaseoffset, with subsequent elements running counter-clockwise.

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Example: y = pskmod(x,M,phaseoffset,symorder,InputType='bit')

InputType — Input type

'integer' (default) | 'bit'

Input type, specified as either 'integer' or 'bit'.

• 'integer' –– Input signal consists of integers in the range [0, M–1].

• 'bit' –– Input signal consists of binary values and the number of rows must be an integer multiple of log₂(M).

OutputDataType — Output data type

'double' (default) | 'single'

Output data type, specified as either 'double' or 'single'.

PlotConstellation — Option to plot constellation

false or 0 (default) | true or 1

Option to plot constellation, specified as logical 0 (false) or 1 (true). To plot the PSK constellation, set 'PlotConstellation' to true.

Output Arguments

y — M-PSK modulated baseband signal

scalar | vector | matrix

M-PSK modulated baseband signal, returned as a scalar, vector or matrix of complex values. The columns of y represent independent channels. For integer inputs, the output y has the same dimensions as the input signal x. For bit inputs, the number of rows in y is the number of rows in x divided by log₂(M).

References

[1] Proakis, John G. Digital Communications. 4th ed. New York: McGraw Hill, 2001.

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.

Version History

Introduced before R2006a

R2022a: New enhancements to the function

You can now:

• Specify a binary input using the InputType argument.

• Specify custom symbol mapping using the symorder argument. The default now is 'gray' symbol mapping.

• Perform soft-decision demodulation by using the bit-wise log-likelihood or approximate log-likelihood algorithm

• Specify all built-in numeric data types using the OutputDataType argument.

• Visualize the reference constellation using the PlotConstellation argument.
