getSectorCrossover
Crossover frequencies for sector bound
Description
returns the frequencies at which the following matrix
M(ω) is singular:wc
= getSectorCrossover(H
,Q
)
When a frequency-domain sector plot exists, these frequencies are the frequencies
at which the relative sector index (R-index) for H
and
Q
equals 1. See About Sector Bounds and Sector Indices for details.
Examples
Find Sector Crossover Frequency
Find the crossover frequencies for the dynamic system and the sector defined by:
for various values of a and b.

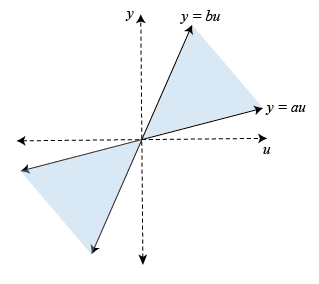

In U/Y space, this sector is the shaded region of the following diagram (for a, b > 0).
The Q
matrix for this sector is given by:
getSectorCrossover
finds the frequencies at which is singular, for . For instance, find these frequencies for the sector defined by Q
with a = 0.1 and b = 10.
G = tf([1 2],[1 1]); H = [G;1]; a = 0.1; b = 10; Q = [1 -(a+b)/2 ; -(a+b)/2 a*b]; w = getSectorCrossover(H,Q)
w = 0x1 empty double column vector
The empty result means that there are no such frequencies.
Now find the frequencies at which is singular for a narrower sector, with a = 0.5 and b = 1.5.
a2 = 0.5; b2 = 1.5; Q2 = [1 -(a2+b2)/2 ; -(a2+b2)/2 a2*b2]; w2 = getSectorCrossover(H,Q2)
w2 = 1.7321

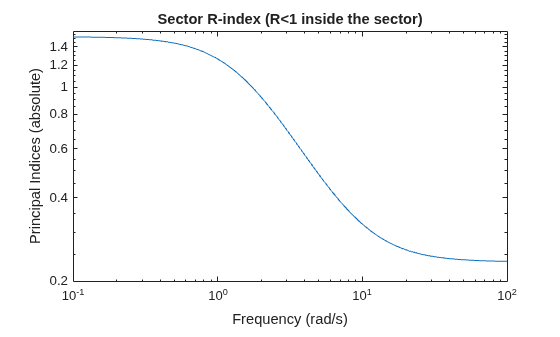

Here the resulting frequency is where the R-index for H
and Q2
is equal to 1, as shown in the sector plot.
sectorplot(H,Q2)
Thus, when a sector plot exists for a system H
and sector Q
, getSectorCrossover
finds the frequencies at which the R-index is 1.
Input Arguments
H
— Model to analyze
dynamic system model
Model to analyze against sector bounds, specified as a dynamic
system model such as a tf
,
ss
, or genss
model.
H
can be continuous or discrete. If
H
is a generalized model with tunable or uncertain
blocks, getSectorCrossover
analyzes the current,
nominal value of H
.
To get the frequencies at which the I/O trajectories (u,y) of a linear system G lie in a
particular sector, use H = [G;I]
, where I =
eyes(nu)
, and nu
is the number of inputs of
G
.
Q
— Sector geometry
matrix | LTI model
Sector geometry, specified as:
A matrix, for constant sector geometry.
Q
is a symmetric square matrix that isny
on a side, whereny
is the number of outputs ofH
.An LTI model, for frequency-dependent sector geometry.
Q
satisfies Q(s)’ = Q(–s). In other words, Q(s) evaluates to a Hermitian matrix at each frequency.
The matrix Q
must be indefinite to describe
a well-defined conic sector. An indefinite matrix has both positive
and negative eigenvalues.
For more information, see About Sector Bounds and Sector Indices.
Output Arguments
wc
— Sector crossover frequencies
vector | []
Sector crossover frequencies, returned as a vector. The frequencies are
expressed in rad/TimeUnit
, relative to the
TimeUnit
property of H
. If the
trajectories of H
never cross the boundary, wc
= []
.
Version History
Introduced in R2016a
