Generate Word-By-Word Text on FPGAs by Using Deep Learning HDL Toolbox

This example shows how to deploy a long short-term memory (LSTM) network to generate text word-by-word on an FPGA by using the Deep Learning HDL Toolbox™ Support Package for Xilinx FPGA and SoC. Use MATLAB® to retrieve the prediction results from the target device.

This example reads text from the Project Gutenberg website, parses the HTML code to extract the relevant text, then uses a custom mini-batch datastore, documentGenerationDatastore to input the documents to the network as mini-batches of sequence data. The datastore converts documents to sequences of numeric word indices. The deep learning network is an LSTM network that contains a word embedding layer.

To train a deep learning network for word-by-word text generation, train a sequence-to-sequence LSTM network to predict the next word in a sequence of words. To train the network to predict the next word, specify the responses as the input sequences shifted by one time step. This example uses the pretrained network from the Word-By-Word Text Generation Using Deep Learning example.

Prerequisites

  • Xilinx® Zynq® Ultrascale+™ ZCU102 SoC development kit

  • Deep Learning HDL Toolbox™ Support Package for Xilinx FPGA and SoC

  • Deep Learning Toolbox™

  • Deep Learning HDL Toolbox™

  • Text Analytics Toolbox™

Load Training Data

Load the training data. Read the HTML code from Alice's Adventures in Wonderland by Lewis Carroll from Project Gutenberg.

url = "https://www.gutenberg.org/files/11/11-h/11-h.htm";
code = webread(url);

Parse HTML Code

The HTML code contains the relevant text inside paragraph elements. Extract the relevant text by parsing the HTML code using htmlTree and then finding the elements with element name "p".

tree = htmlTree(code);
selector = "p";
subtrees = findElement(tree,selector);

Extract the text data from the HTML subtrees by using extractHTMLText and view the first 10 paragraphs.

textData = extractHTMLText(subtrees);
textData(1:10)
ans = 10×1 string
    "Alice was beginning to get very tired of sitting by her sister on the bank, and of having nothing to do: once or twice she had peeped into the book her sister was reading, but it had no pictures or conversations in it, “and what is the use of a book,” thought Alice “without pictures or conversations?”"
    "So she was considering in her own mind (as well as she could, for the hot day made her feel very sleepy and stupid), whether the pleasure of making a daisy-chain would be worth the trouble of getting up and picking the daisies, when suddenly a White Rabbit with pink eyes ran close by her."
    "There was nothing so very remarkable in that; nor did Alice think it so very much out of the way to hear the Rabbit say to itself, “Oh dear! Oh dear! I shall be late!” (when she thought it over afterwards, it occurred to her that she ought to have wondered at this, but at the time it all seemed quite natural); but when the Rabbit actually took a watch out of its waistcoat-pocket, and looked at it, and then hurried on, Alice started to her feet, for it flashed across her mind that she had never before seen a rabbit with either a waistcoat-pocket, or a watch to take out of it, and burning with curiosity, she ran across the field after it, and fortunately was just in time to see it pop down a large rabbit-hole under the hedge."
    "In another moment down went Alice after it, never once considering how in the world she was to get out again."
    "The rabbit-hole went straight on like a tunnel for some way, and then dipped suddenly down, so suddenly that Alice had not a moment to think about stopping herself before she found herself falling down a very deep well."
    "Either the well was very deep, or she fell very slowly, for she had plenty of time as she went down to look about her and to wonder what was going to happen next. First, she tried to look down and make out what she was coming to, but it was too dark to see anything; then she looked at the sides of the well, and noticed that they were filled with cupboards and book-shelves; here and there she saw maps and pictures hung upon pegs. She took down a jar from one of the shelves as she passed; it was labelled “ORANGE MARMALADE”, but to her great disappointment it was empty: she did not like to drop the jar for fear of killing somebody underneath, so managed to put it into one of the cupboards as she fell past it."
    "“Well!” thought Alice to herself, “after such a fall as this, I shall think nothing of tumbling down stairs! How brave they’ll all think me at home! Why, I wouldn’t say anything about it, even if I fell off the top of the house!” (Which was very likely true.)"
    "Down, down, down. Would the fall never come to an end? “I wonder how many miles I’ve fallen by this time?” she said aloud. “I must be getting somewhere near the centre of the earth. Let me see: that would be four thousand miles down, I think-” (for, you see, Alice had learnt several things of this sort in her lessons in the schoolroom, and though this was not a very good opportunity for showing off her knowledge, as there was no one to listen to her, still it was good practice to say it over) “-yes, that’s about the right distance-but then I wonder what Latitude or Longitude I’ve got to?” (Alice had no idea what Latitude was, or Longitude either, but thought they were nice grand words to say.)"
    "Presently she began again. “I wonder if I shall fall right through the earth! How funny it’ll seem to come out among the people that walk with their heads downward! The Antipathies, I think-” (she was rather glad there was no one listening, this time, as it didn’t sound at all the right word) “-but I shall have to ask them what the name of the country is, you know. Please, Ma’am, is this New Zealand or Australia?” (and she tried to curtsey as she spoke-fancy curtseying as you’re falling through the air! Do you think you could manage it?) “And what an ignorant little girl she’ll think me for asking! No, it’ll never do to ask: perhaps I shall see it written up somewhere.”"
    "Down, down, down. There was nothing else to do, so Alice soon began talking again. “Dinah’ll miss me very much to-night, I should think!” (Dinah was the cat.) “I hope they’ll remember her saucer of milk at tea-time. Dinah my dear! I wish you were down here with me! There are no mice in the air, I’m afraid, but you might catch a bat, and that’s very like a mouse, you know. But do cats eat bats, I wonder?” And here Alice began to get rather sleepy, and went on saying to herself, in a dreamy sort of way, “Do cats eat bats? Do cats eat bats?” and sometimes, “Do bats eat cats?” for, you see, as she couldn’t answer either question, it didn’t much matter which way she put it. She felt that she was dozing off, and had just begun to dream that she was walking hand in hand with Dinah, and saying to her very earnestly, “Now, Dinah, tell me the truth: did you ever eat a bat?” when suddenly, thump! thump! down she came upon a heap of sticks and dry leaves, and the fall was over."

Remove the empty paragraphs and view the first 10 remaining paragraphs.

textData(textData == "") = [];
textData(1:10)
ans = 10×1 string
    "Alice was beginning to get very tired of sitting by her sister on the bank, and of having nothing to do: once or twice she had peeped into the book her sister was reading, but it had no pictures or conversations in it, “and what is the use of a book,” thought Alice “without pictures or conversations?”"
    "So she was considering in her own mind (as well as she could, for the hot day made her feel very sleepy and stupid), whether the pleasure of making a daisy-chain would be worth the trouble of getting up and picking the daisies, when suddenly a White Rabbit with pink eyes ran close by her."
    "There was nothing so very remarkable in that; nor did Alice think it so very much out of the way to hear the Rabbit say to itself, “Oh dear! Oh dear! I shall be late!” (when she thought it over afterwards, it occurred to her that she ought to have wondered at this, but at the time it all seemed quite natural); but when the Rabbit actually took a watch out of its waistcoat-pocket, and looked at it, and then hurried on, Alice started to her feet, for it flashed across her mind that she had never before seen a rabbit with either a waistcoat-pocket, or a watch to take out of it, and burning with curiosity, she ran across the field after it, and fortunately was just in time to see it pop down a large rabbit-hole under the hedge."
    "In another moment down went Alice after it, never once considering how in the world she was to get out again."
    "The rabbit-hole went straight on like a tunnel for some way, and then dipped suddenly down, so suddenly that Alice had not a moment to think about stopping herself before she found herself falling down a very deep well."
    "Either the well was very deep, or she fell very slowly, for she had plenty of time as she went down to look about her and to wonder what was going to happen next. First, she tried to look down and make out what she was coming to, but it was too dark to see anything; then she looked at the sides of the well, and noticed that they were filled with cupboards and book-shelves; here and there she saw maps and pictures hung upon pegs. She took down a jar from one of the shelves as she passed; it was labelled “ORANGE MARMALADE”, but to her great disappointment it was empty: she did not like to drop the jar for fear of killing somebody underneath, so managed to put it into one of the cupboards as she fell past it."
    "“Well!” thought Alice to herself, “after such a fall as this, I shall think nothing of tumbling down stairs! How brave they’ll all think me at home! Why, I wouldn’t say anything about it, even if I fell off the top of the house!” (Which was very likely true.)"
    "Down, down, down. Would the fall never come to an end? “I wonder how many miles I’ve fallen by this time?” she said aloud. “I must be getting somewhere near the centre of the earth. Let me see: that would be four thousand miles down, I think-” (for, you see, Alice had learnt several things of this sort in her lessons in the schoolroom, and though this was not a very good opportunity for showing off her knowledge, as there was no one to listen to her, still it was good practice to say it over) “-yes, that’s about the right distance-but then I wonder what Latitude or Longitude I’ve got to?” (Alice had no idea what Latitude was, or Longitude either, but thought they were nice grand words to say.)"
    "Presently she began again. “I wonder if I shall fall right through the earth! How funny it’ll seem to come out among the people that walk with their heads downward! The Antipathies, I think-” (she was rather glad there was no one listening, this time, as it didn’t sound at all the right word) “-but I shall have to ask them what the name of the country is, you know. Please, Ma’am, is this New Zealand or Australia?” (and she tried to curtsey as she spoke-fancy curtseying as you’re falling through the air! Do you think you could manage it?) “And what an ignorant little girl she’ll think me for asking! No, it’ll never do to ask: perhaps I shall see it written up somewhere.”"
    "Down, down, down. There was nothing else to do, so Alice soon began talking again. “Dinah’ll miss me very much to-night, I should think!” (Dinah was the cat.) “I hope they’ll remember her saucer of milk at tea-time. Dinah my dear! I wish you were down here with me! There are no mice in the air, I’m afraid, but you might catch a bat, and that’s very like a mouse, you know. But do cats eat bats, I wonder?” And here Alice began to get rather sleepy, and went on saying to herself, in a dreamy sort of way, “Do cats eat bats? Do cats eat bats?” and sometimes, “Do bats eat cats?” for, you see, as she couldn’t answer either question, it didn’t much matter which way she put it. She felt that she was dozing off, and had just begun to dream that she was walking hand in hand with Dinah, and saying to her very earnestly, “Now, Dinah, tell me the truth: did you ever eat a bat?” when suddenly, thump! thump! down she came upon a heap of sticks and dry leaves, and the fall was over."

Visualize the text data in a word cloud.

figure
wordcloud(textData);
title("Alice's Adventures in Wonderland")

Prepare Data for Training

Create a datastore that contains the data for training by using the documentGenerationDatastore function. For the predictors, the function converts the documents into sequences of word indices by using a word encoding. The first word index for each document corresponds to a "start of text" token. The "start of text" token is given by the string "startOfText". For the responses, the datastore returns categorical sequences of the words shifted by one.

Tokenize the text data by using the tokenizedDocument function.

documents = tokenizedDocument(textData);

Create a document generation datastore using the tokenized documents.

ds = documentGenerationDatastore(documents);

To reduce the amount of padding added to the sequences, sort the documents in the datastore by sequence length.

ds = sort(ds);

Load the Pretrained Network

To load the LSTM network, enter:

if ~isfile('WordByWordTextgenerationModel.zip')
        url = 'https://ssd.mathworks.com/supportfiles/dlhdl/WordByWordTextGenerationModel.zip';
        websave('WordByWordTextGenerationModel.zip',url);
end
unzip('WordByWordTextGenerationModel.zip')
load WordByWordTextgenerationModel.mat

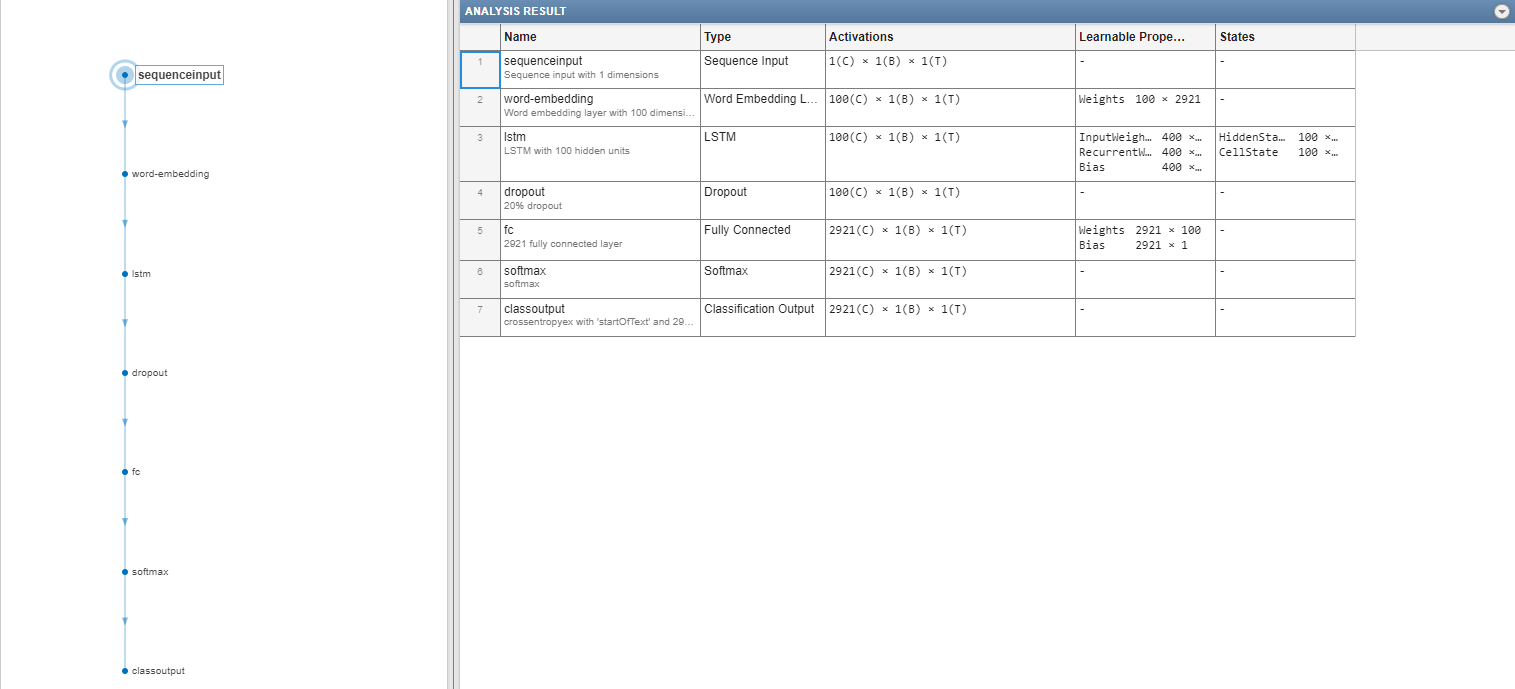

View the layers of the network by using the analyzeNetwork function. The function returns a graphical representation of the network and detailed parameter settings of the layers in the network.

analyzeNetwork(net)

Define FPGA Board Interface

Define the target FPGA board programming interface by using the dlhdl.Target object. Specify that the interface is for a Xilinx board with an Ethernet interface.

To create the target object, enter:

hTarget = dlhdl.Target('Xilinx','Interface','Ethernet');

To use the JTAG interface, install Xilinx™ Vivado™ Design Suite 2022.1. To set the Xilinx Vivado tool path, enter:

hdlsetuptoolpath('ToolName', 'Xilinx Vivado', 'ToolPath', 'C:\Xilinx\Vivado\2022.1\bin\vivado.bat');
hTarget = dlhdl.Target('Xilinx','Interface','JTAG');

Prepare Network for Deployment

Prepare the network for deployment by creating a dlhdl.Workflow object. Specify the network and the bitstream name. Ensure that the bitstream name matches the data type and the FPGA board. In this example, the target FPGA board is the Xilinx ZCU102 SOC board. The bitstream uses a single data type.

hW = dlhdl.Workflow('network', net, 'Bitstream', 'zcu102_lstm_single','Target',hTarget);

Tu run the example on the Xilinx ZC706 board, enter:

hW = dlhdl.Workflow('Network', snet, 'Bitstream', 'zc706_lstm_single','Target',hTarget);

Compile the LSTM Network

Run the compile method of the dlhdl.Workflow object to compile the network and generate the instructions, weights, and biases for deployment.

dn = compile(hW)
### Compiling network for Deep Learning FPGA prototyping ...
### Targeting FPGA bitstream zcu102_lstm_single.
### The network includes the following layers:
     1   'sequenceinput'    Sequence Input          Sequence input with 1 dimensions                                (SW Layer)
     2   'word-embedding'   Word Embedding Layer    Word embedding layer with 100 dimensions and 2920 unique words  (HW Layer)
     3   'lstm'             LSTM                    LSTM with 100 hidden units                                      (HW Layer)
     4   'fc'               Fully Connected         2921 fully connected layer                                      (HW Layer)
     5   'softmax'          Softmax                 softmax                                                         (SW Layer)
     6   'classoutput'      Classification Output   crossentropyex with 'startOfText' and 2920 other classes        (SW Layer)

### Notice: The layer 'sequenceinput' with type 'nnet.cnn.layer.ImageInputLayer' is implemented in software.
### Notice: The layer 'word-embedding' with type 'dnnfpga.layer.wordEmbeddingLayerDLP' is implemented in software.
### Notice: The layer 'softmax' with type 'nnet.cnn.layer.SoftmaxLayer' is implemented in software.
### Notice: The layer 'classoutput' with type 'nnet.cnn.layer.ClassificationOutputLayer' is implemented in software.
### Compiling layer group: lstm.wi ...
### Compiling layer group: lstm.wi ... complete.
### Compiling layer group: lstm.wo ...
### Compiling layer group: lstm.wo ... complete.
### Compiling layer group: lstm.wg ...
### Compiling layer group: lstm.wg ... complete.
### Compiling layer group: lstm.wf ...
### Compiling layer group: lstm.wf ... complete.
### Compiling layer group: fc ...
### Compiling layer group: fc ... complete.

### Allocating external memory buffers:

          offset_name          offset_address    allocated_space
    _______________________    ______________    ________________

    "InputDataOffset"           "0x00000000"     "4.0 MB"
    "OutputResultOffset"        "0x00400000"     "4.0 MB"
    "SchedulerDataOffset"       "0x00800000"     "4.0 MB"
    "SystemBufferOffset"        "0x00c00000"     "20.0 MB"
    "InstructionDataOffset"     "0x02000000"     "4.0 MB"
    "FCWeightDataOffset"        "0x02400000"     "4.0 MB"
    "EndOffset"                 "0x02800000"     "Total: 40.0 MB"

### Network compilation complete.
dn = struct with fields:
             weights: [1×1 struct]
        instructions: [1×1 struct]
           registers: [1×1 struct]
    syncInstructions: [1×1 struct]
        constantData: {}
             ddrInfo: [1×1 struct]

Program Bitstream onto FPGA and Download Network Weights

To deploy the network on the Xilinx ZCU102 SoC hardware, run the deploy function of the dlhdl.Workflow object. This function uses the output of the compile function to program the FPGA board by using the programming file and downloads the network weights and biases. The deploy function starts programming the FPGA device and displays progress messages, and the time it takes to deploy the network.

deploy(hW)
### FPGA bitstream programming has been skipped as the same bitstream is already loaded on the target FPGA.
### Resetting network state.
### Loading weights to FC Processor.
### FC Weights loaded. Current time is 09-May-2023 13:56:22

Generate New Text Using Hardware

Generate the first word of the text by sampling a word from a probability distribution according to first words of the text in the training data. Generate the remaining words by using the deployed LSTM network to predict the next time step using the current sequence of generated text. Keep generating words one-by-one until the network predicts the "end of text" word.

To make the first prediction using the network, input the index that represents the "start of text" token. Find the index by using the word2ind function with the word encoding used by the document datastore.

 enc = ds.Encoding;
 wordIndex = word2ind(enc,"startOfText");

For the remaining predictions, sample the next word according to the prediction scores of the network. The prediction scores represent the probability distribution of the next word. Sample the words from the vocabulary given by the class names of the output layer of the network.

vocabulary = string(net.Layers(end).Classes);

Make predictions word by word using the predictAndUpdateState function. For each prediction, input the index of the previous word. Stop predicting when the network predicts the end of text word or when the generated text is 200 characters long. To generate multiple pieces of text, reset the network state between generations by using the resetState function.

 generatedText = "";
 maxLength = 200;
 resetState(hW);
 while strlength(generatedText) < maxLength
     [wordScores,~] = predictAndUpdateState(hW,wordIndex,Profile='on');
     newWord = datasample(vocabulary,1,'Weights',wordScores);

     if newWord == "EndOfText"
         break
     end

     generatedText = generatedText + " " + newWord;
     wordIndex = word2ind(enc,newWord);
 end
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 1.


              Deep Learning Processor Profiler Performance Results

                   LastFrameLatency(cycles)   LastFrameLatency(seconds)       FramesNum      Total Latency     Frames/s
                         -------------             -------------              ---------        ---------       ---------
Network                     163311                  0.00074                       1             164795           1335.0
    memSeparator_0             164                  0.00000
    lstm.wi                   8902                  0.00004
    lstm.wo                   8801                  0.00004
    lstm.wg                   8872                  0.00004
    lstm.wf                   8942                  0.00004
    lstm.sigmoid_1             275                  0.00000
    lstm.sigmoid_3             217                  0.00000
    lstm.tanh_1                237                  0.00000
    lstm.sigmoid_2             227                  0.00000
    lstm.multiplication_2       257                  0.00000
    lstm.multiplication_1       267                  0.00000
    lstm.c_add                 251                  0.00000
    lstm.tanh_2                251                  0.00000
    lstm.multiplication_3       251                  0.00000
    fc                      125397                  0.00057
 * The clock frequency of the DL processor is: 220MHz


### Finished writing input activations.
### Running a sequence of length 1.


              Deep Learning Processor Profiler Performance Results

                   LastFrameLatency(cycles)   LastFrameLatency(seconds)       FramesNum      Total Latency     Frames/s
                         -------------             -------------              ---------        ---------       ---------
Network                     163109                  0.00074                       1             164600           1336.6
    memSeparator_0             171                  0.00000
    lstm.wi                   8903                  0.00004
    lstm.wo                   8872                  0.00004
    lstm.wg                   8782                  0.00004
    lstm.wf                   8942                  0.00004
    lstm.sigmoid_1             215                  0.00000
    lstm.sigmoid_3             217                  0.00000
    lstm.tanh_1                227                  0.00000
    lstm.sigmoid_2             227                  0.00000
    lstm.multiplication_2       267                  0.00000
    lstm.multiplication_1       307                  0.00000
    lstm.c_add                 261                  0.00000
    lstm.tanh_2                221                  0.00000
    lstm.multiplication_3       251                  0.00000
    fc                      125246                  0.00057
 * The clock frequency of the DL processor is: 220MHz


### Finished writing input activations.
### Running a sequence of length 1.


              Deep Learning Processor Profiler Performance Results

                   LastFrameLatency(cycles)   LastFrameLatency(seconds)       FramesNum      Total Latency     Frames/s
                         -------------             -------------              ---------        ---------       ---------
Network                     163108                  0.00074                       1             164574           1336.8
    memSeparator_0             166                  0.00000
    lstm.wi                   8923                  0.00004
    lstm.wo                   8871                  0.00004
    lstm.wg                   8882                  0.00004
    lstm.wf                   8812                  0.00004
    lstm.sigmoid_1             215                  0.00000
    lstm.sigmoid_3             217                  0.00000
    lstm.tanh_1                227                  0.00000
    lstm.sigmoid_2             227                  0.00000
    lstm.multiplication_2       267                  0.00000
    lstm.multiplication_1       267                  0.00000
    lstm.c_add                 331                  0.00000
    lstm.tanh_2                221                  0.00000
    lstm.multiplication_3       251                  0.00000
    fc                      125231                  0.00057
 * The clock frequency of the DL processor is: 220MHz


### Finished writing input activations.
### Running a sequence of length 1.


              Deep Learning Processor Profiler Performance Results

                   LastFrameLatency(cycles)   LastFrameLatency(seconds)       FramesNum      Total Latency     Frames/s
                         -------------             -------------              ---------        ---------       ---------
Network                     163391                  0.00074                       1             164878           1334.3
    memSeparator_0             170                  0.00000
    lstm.wi                   8863                  0.00004
    lstm.wo                   8882                  0.00004
    lstm.wg                   8892                  0.00004
    lstm.wf                   8962                  0.00004
    lstm.sigmoid_1             215                  0.00000
    lstm.sigmoid_3             217                  0.00000
    lstm.tanh_1                227                  0.00000
    lstm.sigmoid_2             217                  0.00000
    lstm.multiplication_2       257                  0.00000
    lstm.multiplication_1       267                  0.00000
    lstm.c_add                 301                  0.00000
    lstm.tanh_2                221                  0.00000
    lstm.multiplication_3       261                  0.00000
    fc                      125439                  0.00057
 * The clock frequency of the DL processor is: 220MHz


### Finished writing input activations.
### Running a sequence of length 1.


              Deep Learning Processor Profiler Performance Results

                   LastFrameLatency(cycles)   LastFrameLatency(seconds)       FramesNum      Total Latency     Frames/s
                         -------------             -------------              ---------        ---------       ---------
Network                     163251                  0.00074                       1             164742           1335.4
    memSeparator_0             172                  0.00000
    lstm.wi                   8903                  0.00004
    lstm.wo                   8812                  0.00004
    lstm.wg                   8882                  0.00004
    lstm.wf                   9002                  0.00004
    lstm.sigmoid_1             215                  0.00000
    lstm.sigmoid_3             217                  0.00000
    lstm.tanh_1                227                  0.00000
    lstm.sigmoid_2             227                  0.00000
    lstm.multiplication_2       257                  0.00000
    lstm.multiplication_1       317                  0.00000
    lstm.c_add                 251                  0.00000
    lstm.tanh_2                231                  0.00000
    lstm.multiplication_3       251                  0.00000
    fc                      125287                  0.00057
 * The clock frequency of the DL processor is: 220MHz


### Finished writing input activations.
### Running a sequence of length 1.


              Deep Learning Processor Profiler Performance Results

                   LastFrameLatency(cycles)   LastFrameLatency(seconds)       FramesNum      Total Latency     Frames/s
                         -------------             -------------              ---------        ---------       ---------
Network                     162910                  0.00074                       1             164391           1338.3
    memSeparator_0             172                  0.00000
    lstm.wi                   8773                  0.00004
    lstm.wo                   8882                  0.00004
    lstm.wg                   8882                  0.00004
    lstm.wf                   8812                  0.00004
    lstm.sigmoid_1             214                  0.00000
    lstm.sigmoid_3             217                  0.00000
    lstm.tanh_1                237                  0.00000
    lstm.sigmoid_2             257                  0.00000
    lstm.multiplication_2       257                  0.00000
    lstm.multiplication_1       267                  0.00000
    lstm.c_add                 251                  0.00000
    lstm.tanh_2                221                  0.00000
    lstm.multiplication_3       251                  0.00000
    fc                      125217                  0.00057
 * The clock frequency of the DL processor is: 220MHz


### Finished writing input activations.
### Running a sequence of length 1.


              Deep Learning Processor Profiler Performance Results

                   LastFrameLatency(cycles)   LastFrameLatency(seconds)       FramesNum      Total Latency     Frames/s
                         -------------             -------------              ---------        ---------       ---------
Network                     162865                  0.00074                       1             164310           1338.9
    memSeparator_0             167                  0.00000
    lstm.wi                   8733                  0.00004
    lstm.wo                   8882                  0.00004
    lstm.wg                   8882                  0.00004
    lstm.wf                   8821                  0.00004
    lstm.sigmoid_1             225                  0.00000
    lstm.sigmoid_3             217                  0.00000
    lstm.tanh_1                227                  0.00000
    lstm.sigmoid_2             287                  0.00000
    lstm.multiplication_2       257                  0.00000
    lstm.multiplication_1       267                  0.00000
    lstm.c_add                 251                  0.00000
    lstm.tanh_2                221                  0.00000
    lstm.multiplication_3       251                  0.00000
    fc                      125177                  0.00057
 * The clock frequency of the DL processor is: 220MHz


### Finished writing input activations.
### Running a sequence of length 1.


              Deep Learning Processor Profiler Performance Results

                   LastFrameLatency(cycles)   LastFrameLatency(seconds)       FramesNum      Total Latency     Frames/s
                         -------------             -------------              ---------        ---------       ---------
Network                     163440                  0.00074                       1             164984           1333.5
    memSeparator_0             174                  0.00000
    lstm.wi                   8893                  0.00004
    lstm.wo                   8882                  0.00004
    lstm.wg                   8892                  0.00004
    lstm.wf                   8962                  0.00004
    lstm.sigmoid_1             215                  0.00000
    lstm.sigmoid_3             217                  0.00000
    lstm.tanh_1                227                  0.00000
    lstm.sigmoid_2             227                  0.00000
    lstm.multiplication_2       267                  0.00000
    lstm.multiplication_1       257                  0.00000
    lstm.c_add                 291                  0.00000
    lstm.tanh_2                221                  0.00000
    lstm.multiplication_3       261                  0.00000
    fc                      125454                  0.00057
 * The clock frequency of the DL processor is: 220MHz


### Finished writing input activations.
### Running a sequence of length 1.


              Deep Learning Processor Profiler Performance Results

                   LastFrameLatency(cycles)   LastFrameLatency(seconds)       FramesNum      Total Latency     Frames/s
                         -------------             -------------              ---------        ---------       ---------
Network                     163350                  0.00074                       1             164829           1334.7
    memSeparator_0             173                  0.00000
    lstm.wi                   8943                  0.00004
    lstm.wo                   8802                  0.00004
    lstm.wg                   8882                  0.00004
    lstm.wf                   8922                  0.00004
    lstm.sigmoid_1             214                  0.00000
    lstm.sigmoid_3             217                  0.00000
    lstm.tanh_1                227                  0.00000
    lstm.sigmoid_2             227                  0.00000
    lstm.multiplication_2       257                  0.00000
    lstm.multiplication_1       267                  0.00000
    lstm.c_add                 251                  0.00000
    lstm.tanh_2                221                  0.00000
    lstm.multiplication_3       251                  0.00000
    fc                      125496                  0.00057
 * The clock frequency of the DL processor is: 220MHz


### Finished writing input activations.
### Running a sequence of length 1.


              Deep Learning Processor Profiler Performance Results

                   LastFrameLatency(cycles)   LastFrameLatency(seconds)       FramesNum      Total Latency     Frames/s
                         -------------             -------------              ---------        ---------       ---------
Network                     163044                  0.00074                       1             164526           1337.2
    memSeparator_0             173                  0.00000
    lstm.wi                   8863                  0.00004
    lstm.wo                   8872                  0.00004
    lstm.wg                   8882                  0.00004
    lstm.wf                   8801                  0.00004
    lstm.sigmoid_1             215                  0.00000
    lstm.sigmoid_3             207                  0.00000
    lstm.tanh_1                237                  0.00000
    lstm.sigmoid_2             227                  0.00000
    lstm.multiplication_2       267                  0.00000
    lstm.multiplication_1       267                  0.00000
    lstm.c_add                 331                  0.00000
    lstm.tanh_2                221                  0.00000
    lstm.multiplication_3       251                  0.00000
    fc                      125230                  0.00057
 * The clock frequency of the DL processor is: 220MHz


### Finished writing input activations.
### Running a sequence of length 1.


              Deep Learning Processor Profiler Performance Results

                   LastFrameLatency(cycles)   LastFrameLatency(seconds)       FramesNum      Total Latency     Frames/s
                         -------------             -------------              ---------        ---------       ---------
Network                     163204                  0.00074                       1             164680           1335.9
    memSeparator_0             170                  0.00000
    lstm.wi                   8903                  0.00004
    lstm.wo                   8872                  0.00004
    lstm.wg                   8812                  0.00004
    lstm.wf                   8942                  0.00004
    lstm.sigmoid_1             245                  0.00000
    lstm.sigmoid_3             217                  0.00000
    lstm.tanh_1                227                  0.00000
    lstm.sigmoid_2             217                  0.00000
    lstm.multiplication_2       257                  0.00000
    lstm.multiplication_1       267                  0.00000
    lstm.c_add                 321                  0.00000
    lstm.tanh_2                221                  0.00000
    lstm.multiplication_3       251                  0.00000
    fc                      125282                  0.00057
 * The clock frequency of the DL processor is: 220MHz


### Finished writing input activations.
### Running a sequence of length 1.


              Deep Learning Processor Profiler Performance Results

                   LastFrameLatency(cycles)   LastFrameLatency(seconds)       FramesNum      Total Latency     Frames/s
                         -------------             -------------              ---------        ---------       ---------
Network                     163486                  0.00074                       1             164962           1333.6
    memSeparator_0             242                  0.00000
    lstm.wi                   8803                  0.00004
    lstm.wo                   8882                  0.00004
    lstm.wg                   8872                  0.00004
    lstm.wf                   8942                  0.00004
    lstm.sigmoid_1             214                  0.00000
    lstm.sigmoid_3             257                  0.00000
    lstm.tanh_1                227                  0.00000
    lstm.sigmoid_2             227                  0.00000
    lstm.multiplication_2       267                  0.00000
    lstm.multiplication_1       267                  0.00000
    lstm.c_add                 261                  0.00000
    lstm.tanh_2                221                  0.00000
    lstm.multiplication_3       251                  0.00000
    fc                      125553                  0.00057
 * The clock frequency of the DL processor is: 220MHz


### Finished writing input activations.
### Running a sequence of length 1.


              Deep Learning Processor Profiler Performance Results

                   LastFrameLatency(cycles)   LastFrameLatency(seconds)       FramesNum      Total Latency     Frames/s
                         -------------             -------------              ---------        ---------       ---------
Network                     163013                  0.00074                       1             164486           1337.5
    memSeparator_0             175                  0.00000
    lstm.wi                   8873                  0.00004
    lstm.wo                   8882                  0.00004
    lstm.wg                   8882                  0.00004
    lstm.wf                   8812                  0.00004
    lstm.sigmoid_1             214                  0.00000
    lstm.sigmoid_3             217                  0.00000
    lstm.tanh_1                227                  0.00000
    lstm.sigmoid_2             227                  0.00000
    lstm.multiplication_2       257                  0.00000
    lstm.multiplication_1       267                  0.00000
    lstm.c_add                 251                  0.00000
    lstm.tanh_2                221                  0.00000
    lstm.multiplication_3       251                  0.00000
    fc                      125257                  0.00057
 * The clock frequency of the DL processor is: 220MHz


### Finished writing input activations.
### Running a sequence of length 1.


              Deep Learning Processor Profiler Performance Results

                   LastFrameLatency(cycles)   LastFrameLatency(seconds)       FramesNum      Total Latency     Frames/s
                         -------------             -------------              ---------        ---------       ---------
Network                     162934                  0.00074                       1             164475           1337.6
    memSeparator_0             169                  0.00000
    lstm.wi                   8743                  0.00004
    lstm.wo                   8871                  0.00004
    lstm.wg                   8882                  0.00004
    lstm.wf                   8812                  0.00004
    lstm.sigmoid_1             215                  0.00000
    lstm.sigmoid_3             217                  0.00000
    lstm.tanh_1                227                  0.00000
    lstm.sigmoid_2             227                  0.00000
    lstm.multiplication_2       257                  0.00000
    lstm.multiplication_1       267                  0.00000
    lstm.c_add                 331                  0.00000
    lstm.tanh_2                221                  0.00000
    lstm.multiplication_3       251                  0.00000
    fc                      125244                  0.00057
 * The clock frequency of the DL processor is: 220MHz


### Finished writing input activations.
### Running a sequence of length 1.


              Deep Learning Processor Profiler Performance Results

                   LastFrameLatency(cycles)   LastFrameLatency(seconds)       FramesNum      Total Latency     Frames/s
                         -------------             -------------              ---------        ---------       ---------
Network                     162929                  0.00074                       1             164459           1337.7
    memSeparator_0             165                  0.00000
    lstm.wi                   8753                  0.00004
    lstm.wo                   8882                  0.00004
    lstm.wg                   8882                  0.00004
    lstm.wf                   8792                  0.00004
    lstm.sigmoid_1             215                  0.00000
    lstm.sigmoid_3             217                  0.00000
    lstm.tanh_1                237                  0.00000
    lstm.sigmoid_2             217                  0.00000
    lstm.multiplication_2       257                  0.00000
    lstm.multiplication_1       267                  0.00000
    lstm.c_add                 311                  0.00000
    lstm.tanh_2                231                  0.00000
    lstm.multiplication_3       251                  0.00000
    fc                      125252                  0.00057
 * The clock frequency of the DL processor is: 220MHz


### Finished writing input activations.
### Running a sequence of length 1.


              Deep Learning Processor Profiler Performance Results

                   LastFrameLatency(cycles)   LastFrameLatency(seconds)       FramesNum      Total Latency     Frames/s
                         -------------             -------------              ---------        ---------       ---------
Network                     163236                  0.00074                       1             164723           1335.6
    memSeparator_0             176                  0.00000
    lstm.wi                   8903                  0.00004
    lstm.wo                   8882                  0.00004
    lstm.wg                   8832                  0.00004
    lstm.wf                   8932                  0.00004
    lstm.sigmoid_1             255                  0.00000
    lstm.sigmoid_3             217                  0.00000
    lstm.tanh_1                237                  0.00000
    lstm.sigmoid_2             217                  0.00000
    lstm.multiplication_2       267                  0.00000
    lstm.multiplication_1       267                  0.00000
    lstm.c_add                 301                  0.00000
    lstm.tanh_2                221                  0.00000
    lstm.multiplication_3       251                  0.00000
    fc                      125278                  0.00057
 * The clock frequency of the DL processor is: 220MHz


### Finished writing input activations.
### Running a sequence of length 1.


              Deep Learning Processor Profiler Performance Results

                   LastFrameLatency(cycles)   LastFrameLatency(seconds)       FramesNum      Total Latency     Frames/s
                         -------------             -------------              ---------        ---------       ---------
Network                     163339                  0.00074                       1             164852           1334.5
    memSeparator_0             165                  0.00000
    lstm.wi                   8803                  0.00004
    lstm.wo                   8881                  0.00004
    lstm.wg                   8892                  0.00004
    lstm.wf                   8952                  0.00004
    lstm.sigmoid_1             234                  0.00000
    lstm.sigmoid_3             217                  0.00000
    lstm.tanh_1                227                  0.00000
    lstm.sigmoid_2             217                  0.00000
    lstm.multiplication_2       257                  0.00000
    lstm.multiplication_1       267                  0.00000
    lstm.c_add                 291                  0.00000
    lstm.tanh_2                221                  0.00000
    lstm.multiplication_3       251                  0.00000
    fc                      125464                  0.00057
 * The clock frequency of the DL processor is: 220MHz


### Finished writing input activations.
### Running a sequence of length 1.


              Deep Learning Processor Profiler Performance Results

                   LastFrameLatency(cycles)   LastFrameLatency(seconds)       FramesNum      Total Latency     Frames/s
                         -------------             -------------              ---------        ---------       ---------
Network                     163040                  0.00074                       1             164484           1337.5
    memSeparator_0             170                  0.00000
    lstm.wi                   8903                  0.00004
    lstm.wo                   8882                  0.00004
    lstm.wg                   8882                  0.00004
    lstm.wf                   8822                  0.00004
    lstm.sigmoid_1             215                  0.00000
    lstm.sigmoid_3             217                  0.00000
    lstm.tanh_1                227                  0.00000
    lstm.sigmoid_2             257                  0.00000
    lstm.multiplication_2       257                  0.00000
    lstm.multiplication_1       267                  0.00000
    lstm.c_add                 251                  0.00000
    lstm.tanh_2                221                  0.00000
    lstm.multiplication_3       251                  0.00000
    fc                      125218                  0.00057
 * The clock frequency of the DL processor is: 220MHz


### Finished writing input activations.
### Running a sequence of length 1.


              Deep Learning Processor Profiler Performance Results

                   LastFrameLatency(cycles)   LastFrameLatency(seconds)       FramesNum      Total Latency     Frames/s
                         -------------             -------------              ---------        ---------       ---------
Network                     163270                  0.00074                       1             164753           1335.3
    memSeparator_0             170                  0.00000
    lstm.wi                   8933                  0.00004
    lstm.wo                   8882                  0.00004
    lstm.wg                   8832                  0.00004
    lstm.wf                   8971                  0.00004
    lstm.sigmoid_1             215                  0.00000
    lstm.sigmoid_3             207                  0.00000
    lstm.tanh_1                237                  0.00000
    lstm.sigmoid_2             227                  0.00000
    lstm.multiplication_2       267                  0.00000
    lstm.multiplication_1       267                  0.00000
    lstm.c_add                 251                  0.00000
    lstm.tanh_2                221                  0.00000
    lstm.multiplication_3       281                  0.00000
    fc                      125309                  0.00057
 * The clock frequency of the DL processor is: 220MHz


### Finished writing input activations.
### Running a sequence of length 1.


              Deep Learning Processor Profiler Performance Results

                   LastFrameLatency(cycles)   LastFrameLatency(seconds)       FramesNum      Total Latency     Frames/s
                         -------------             -------------              ---------        ---------       ---------
Network                     163036                  0.00074                       1             164479           1337.6
    memSeparator_0             166                  0.00000
    lstm.wi                   8913                  0.00004
    lstm.wo                   8882                  0.00004
    lstm.wg                   8872                  0.00004
    lstm.wf                   8822                  0.00004
    lstm.sigmoid_1             234                  0.00000
    lstm.sigmoid_3             217                  0.00000
    lstm.tanh_1                237                  0.00000
    lstm.sigmoid_2             247                  0.00000
    lstm.multiplication_2       267                  0.00000
    lstm.multiplication_1       257                  0.00000
    lstm.c_add                 251                  0.00000
    lstm.tanh_2                221                  0.00000
    lstm.multiplication_3       261                  0.00000
    fc                      125189                  0.00057
 * The clock frequency of the DL processor is: 220MHz


### Finished writing input activations.
### Running a sequence of length 1.


              Deep Learning Processor Profiler Performance Results

                   LastFrameLatency(cycles)   LastFrameLatency(seconds)       FramesNum      Total Latency     Frames/s
                         -------------             -------------              ---------        ---------       ---------
Network                     163199                  0.00074                       1             164688           1335.9
    memSeparator_0             171                  0.00000
    lstm.wi                   8903                  0.00004
    lstm.wo                   8921                  0.00004
    lstm.wg                   8831                  0.00004
    lstm.wf                   8942                  0.00004
    lstm.sigmoid_1             215                  0.00000
    lstm.sigmoid_3             217                  0.00000
    lstm.tanh_1                237                  0.00000
    lstm.sigmoid_2             227                  0.00000
    lstm.multiplication_2       257                  0.00000
    lstm.multiplication_1       267                  0.00000
    lstm.c_add                 251                  0.00000
    lstm.tanh_2                221                  0.00000
    lstm.multiplication_3       251                  0.00000
    fc                      125288                  0.00057
 * The clock frequency of the DL processor is: 220MHz


### Finished writing input activations.
### Running a sequence of length 1.


              Deep Learning Processor Profiler Performance Results

                   LastFrameLatency(cycles)   LastFrameLatency(seconds)       FramesNum      Total Latency     Frames/s
                         -------------             -------------              ---------        ---------       ---------
Network                     163089                  0.00074                       1             164531           1337.1
    memSeparator_0             172                  0.00000
    lstm.wi                   8933                  0.00004
    lstm.wo                   8892                  0.00004
    lstm.wg                   8882                  0.00004
    lstm.wf                   8822                  0.00004
    lstm.sigmoid_1             215                  0.00000
    lstm.sigmoid_3             217                  0.00000
    lstm.tanh_1                227                  0.00000
    lstm.sigmoid_2             257                  0.00000
    lstm.multiplication_2       257                  0.00000
    lstm.multiplication_1       267                  0.00000
    lstm.c_add                 251                  0.00000
    lstm.tanh_2                221                  0.00000
    lstm.multiplication_3       251                  0.00000
    fc                      125225                  0.00057
 * The clock frequency of the DL processor is: 220MHz


### Finished writing input activations.
### Running a sequence of length 1.


              Deep Learning Processor Profiler Performance Results

                   LastFrameLatency(cycles)   LastFrameLatency(seconds)       FramesNum      Total Latency     Frames/s
                         -------------             -------------              ---------        ---------       ---------
Network                     163213                  0.00074                       1             164668           1336.0
    memSeparator_0             167                  0.00000
    lstm.wi                   8903                  0.00004
    lstm.wo                   8872                  0.00004
    lstm.wg                   8822                  0.00004
    lstm.wf                   8932                  0.00004
    lstm.sigmoid_1             255                  0.00000
    lstm.sigmoid_3             207                  0.00000
    lstm.tanh_1                237                  0.00000
    lstm.sigmoid_2             207                  0.00000
    lstm.multiplication_2       267                  0.00000
    lstm.multiplication_1       257                  0.00000
    lstm.c_add                 251                  0.00000
    lstm.tanh_2                221                  0.00000
    lstm.multiplication_3       261                  0.00000
    fc                      125354                  0.00057
 * The clock frequency of the DL processor is: 220MHz


### Finished writing input activations.
### Running a sequence of length 1.


              Deep Learning Processor Profiler Performance Results

                   LastFrameLatency(cycles)   LastFrameLatency(seconds)       FramesNum      Total Latency     Frames/s
                         -------------             -------------              ---------        ---------       ---------
Network                     163016                  0.00074                       1             164485           1337.5
    memSeparator_0             168                  0.00000
    lstm.wi                   8883                  0.00004
    lstm.wo                   8881                  0.00004
    lstm.wg                   8892                  0.00004
    lstm.wf                   8812                  0.00004
    lstm.sigmoid_1             215                  0.00000
    lstm.sigmoid_3             217                  0.00000
    lstm.tanh_1                227                  0.00000
    lstm.sigmoid_2             227                  0.00000
    lstm.multiplication_2       257                  0.00000
    lstm.multiplication_1       267                  0.00000
    lstm.c_add                 251                  0.00000
    lstm.tanh_2                221                  0.00000
    lstm.multiplication_3       251                  0.00000
    fc                      125247                  0.00057
 * The clock frequency of the DL processor is: 220MHz


### Finished writing input activations.
### Running a sequence of length 1.


              Deep Learning Processor Profiler Performance Results

                   LastFrameLatency(cycles)   LastFrameLatency(seconds)       FramesNum      Total Latency     Frames/s
                         -------------             -------------              ---------        ---------       ---------
Network                     163464                  0.00074                       1             164952           1333.7
    memSeparator_0             176                  0.00000
    lstm.wi                   8923                  0.00004
    lstm.wo                   8882                  0.00004
    lstm.wg                   8882                  0.00004
    lstm.wf                   8952                  0.00004
    lstm.sigmoid_1             215                  0.00000
    lstm.sigmoid_3             207                  0.00000
    lstm.tanh_1                237                  0.00000
    lstm.sigmoid_2             207                  0.00000
    lstm.multiplication_2       267                  0.00000
    lstm.multiplication_1       257                  0.00000
    lstm.c_add                 311                  0.00000
    lstm.tanh_2                221                  0.00000
    lstm.multiplication_3       251                  0.00000
    fc                      125476                  0.00057
 * The clock frequency of the DL processor is: 220MHz


### Finished writing input activations.
### Running a sequence of length 1.


              Deep Learning Processor Profiler Performance Results

                   LastFrameLatency(cycles)   LastFrameLatency(seconds)       FramesNum      Total Latency     Frames/s
                         -------------             -------------              ---------        ---------       ---------
Network                     163403                  0.00074                       1             164885           1334.3
    memSeparator_0             171                  0.00000
    lstm.wi                   8863                  0.00004
    lstm.wo                   8882                  0.00004
    lstm.wg                   8882                  0.00004
    lstm.wf                   8952                  0.00004
    lstm.sigmoid_1             215                  0.00000
    lstm.sigmoid_3             207                  0.00000
    lstm.tanh_1                237                  0.00000
    lstm.sigmoid_2             207                  0.00000
    lstm.multiplication_2       267                  0.00000
    lstm.multiplication_1       257                  0.00000
    lstm.c_add                 311                  0.00000
    lstm.tanh_2                221                  0.00000
    lstm.multiplication_3       251                  0.00000
    fc                      125480                  0.00057
 * The clock frequency of the DL processor is: 220MHz


### Finished writing input activations.
### Running a sequence of length 1.


              Deep Learning Processor Profiler Performance Results

                   LastFrameLatency(cycles)   LastFrameLatency(seconds)       FramesNum      Total Latency     Frames/s
                         -------------             -------------              ---------        ---------       ---------
Network                     163126                  0.00074                       1             164680           1335.9
    memSeparator_0             172                  0.00000
    lstm.wi                   8903                  0.00004
    lstm.wo                   8881                  0.00004
    lstm.wg                   8792                  0.00004
    lstm.wf                   8941                  0.00004
    lstm.sigmoid_1             215                  0.00000
    lstm.sigmoid_3             217                  0.00000
    lstm.tanh_1                237                  0.00000
    lstm.sigmoid_2             207                  0.00000
    lstm.multiplication_2       267                  0.00000
    lstm.multiplication_1       317                  0.00000
    lstm.c_add                 251                  0.00000
    lstm.tanh_2                221                  0.00000
    lstm.multiplication_3       251                  0.00000
    fc                      125254                  0.00057
 * The clock frequency of the DL processor is: 220MHz


### Finished writing input activations.
### Running a sequence of length 1.


              Deep Learning Processor Profiler Performance Results

                   LastFrameLatency(cycles)   LastFrameLatency(seconds)       FramesNum      Total Latency     Frames/s
                         -------------             -------------              ---------        ---------       ---------
Network                     163158                  0.00074                       1             164617           1336.4
    memSeparator_0             171                  0.00000
    lstm.wi                   8903                  0.00004
    lstm.wo                   8881                  0.00004
    lstm.wg                   8832                  0.00004
    lstm.wf                   8932                  0.00004
    lstm.sigmoid_1             215                  0.00000
    lstm.sigmoid_3             207                  0.00000
    lstm.tanh_1                227                  0.00000
    lstm.sigmoid_2             227                  0.00000
    lstm.multiplication_2       267                  0.00000
    lstm.multiplication_1       327                  0.00000
    lstm.c_add                 251                  0.00000
    lstm.tanh_2                221                  0.00000
    lstm.multiplication_3       251                  0.00000
    fc                      125246                  0.00057
 * The clock frequency of the DL processor is: 220MHz


### Finished writing input activations.
### Running a sequence of length 1.


              Deep Learning Processor Profiler Performance Results

                   LastFrameLatency(cycles)   LastFrameLatency(seconds)       FramesNum      Total Latency     Frames/s
                         -------------             -------------              ---------        ---------       ---------
Network                     163443                  0.00074                       1             164917           1334.0
    memSeparator_0             166                  0.00000
    lstm.wi                   8893                  0.00004
    lstm.wo                   8881                  0.00004
    lstm.wg                   8952                  0.00004
    lstm.wf                   8942                  0.00004
    lstm.sigmoid_1             215                  0.00000
    lstm.sigmoid_3             217                  0.00000
    lstm.tanh_1                237                  0.00000
    lstm.sigmoid_2             207                  0.00000
    lstm.multiplication_2       327                  0.00000
    lstm.multiplication_1       267                  0.00000
    lstm.c_add                 251                  0.00000
    lstm.tanh_2                221                  0.00000
    lstm.multiplication_3       251                  0.00000
    fc                      125416                  0.00057
 * The clock frequency of the DL processor is: 220MHz


### Finished writing input activations.
### Running a sequence of length 1.


              Deep Learning Processor Profiler Performance Results

                   LastFrameLatency(cycles)   LastFrameLatency(seconds)       FramesNum      Total Latency     Frames/s
                         -------------             -------------              ---------        ---------       ---------
Network                     163386                  0.00074                       1             164859           1334.5
    memSeparator_0             168                  0.00000
    lstm.wi                   8783                  0.00004
    lstm.wo                   8882                  0.00004
    lstm.wg                   8882                  0.00004
    lstm.wf                   8942                  0.00004
    lstm.sigmoid_1             215                  0.00000
    lstm.sigmoid_3             237                  0.00000
    lstm.tanh_1                227                  0.00000
    lstm.sigmoid_2             227                  0.00000
    lstm.multiplication_2       267                  0.00000
    lstm.multiplication_1       257                  0.00000
    lstm.c_add                 251                  0.00000
    lstm.tanh_2                221                  0.00000
    lstm.multiplication_3       261                  0.00000
    fc                      125566                  0.00057
 * The clock frequency of the DL processor is: 220MHz


### Finished writing input activations.
### Running a sequence of length 1.


              Deep Learning Processor Profiler Performance Results

                   LastFrameLatency(cycles)   LastFrameLatency(seconds)       FramesNum      Total Latency     Frames/s
                         -------------             -------------              ---------        ---------       ---------
Network                     163527                  0.00074                       1             164985           1333.5
    memSeparator_0             173                  0.00000
    lstm.wi                   8923                  0.00004
    lstm.wo                   8882                  0.00004
    lstm.wg                   8882                  0.00004
    lstm.wf                   8942                  0.00004
    lstm.sigmoid_1             215                  0.00000
    lstm.sigmoid_3             237                  0.00000
    lstm.tanh_1                237                  0.00000
    lstm.sigmoid_2             217                  0.00000
    lstm.multiplication_2       267                  0.00000
    lstm.multiplication_1       267                  0.00000
    lstm.c_add                 251                  0.00000
    lstm.tanh_2                221                  0.00000
    lstm.multiplication_3       251                  0.00000
    fc                      125562                  0.00057
 * The clock frequency of the DL processor is: 220MHz


### Finished writing input activations.
### Running a sequence of length 1.


              Deep Learning Processor Profiler Performance Results

                   LastFrameLatency(cycles)   LastFrameLatency(seconds)       FramesNum      Total Latency     Frames/s
                         -------------             -------------              ---------        ---------       ---------
Network                     163252                  0.00074                       1             164758           1335.3
    memSeparator_0             167                  0.00000
    lstm.wi                   8903                  0.00004
    lstm.wo                   8812                  0.00004
    lstm.wg                   8871                  0.00004
    lstm.wf                   9011                  0.00004
    lstm.sigmoid_1             215                  0.00000
    lstm.sigmoid_3             217                  0.00000
    lstm.tanh_1                237                  0.00000
    lstm.sigmoid_2             217                  0.00000
    lstm.multiplication_2       257                  0.00000
    lstm.multiplication_1       327                  0.00000
    lstm.c_add                 261                  0.00000
    lstm.tanh_2                221                  0.00000
    lstm.multiplication_3       251                  0.00000
    fc                      125285                  0.00057
 * The clock frequency of the DL processor is: 220MHz


### Finished writing input activations.
### Running a sequence of length 1.


              Deep Learning Processor Profiler Performance Results

                   LastFrameLatency(cycles)   LastFrameLatency(seconds)       FramesNum      Total Latency     Frames/s
                         -------------             -------------              ---------        ---------       ---------
Network                     163375                  0.00074                       1             164851           1334.5
    memSeparator_0             172                  0.00000
    lstm.wi                   8753                  0.00004
    lstm.wo                   8882                  0.00004
    lstm.wg                   8882                  0.00004
    lstm.wf                   8932                  0.00004
    lstm.sigmoid_1             214                  0.00000
    lstm.sigmoid_3             257                  0.00000
    lstm.tanh_1                237                  0.00000
    lstm.sigmoid_2             237                  0.00000
    lstm.multiplication_2       267                  0.00000
    lstm.multiplication_1       257                  0.00000
    lstm.c_add                 251                  0.00000
    lstm.tanh_2                221                  0.00000
    lstm.multiplication_3       261                  0.00000
    fc                      125552                  0.00057
 * The clock frequency of the DL processor is: 220MHz


### Finished writing input activations.
### Running a sequence of length 1.


              Deep Learning Processor Profiler Performance Results

                   LastFrameLatency(cycles)   LastFrameLatency(seconds)       FramesNum      Total Latency     Frames/s
                         -------------             -------------              ---------        ---------       ---------
Network                     162911                  0.00074                       1             164357           1338.5
    memSeparator_0             162                  0.00000
    lstm.wi                   8743                  0.00004
    lstm.wo                   8872                  0.00004
    lstm.wg                   8871                  0.00004
    lstm.wf                   8811                  0.00004
    lstm.sigmoid_1             215 ...

The generation process introduces whitespace characters between each prediction, which means that some punctuation characters appear with unnecessary spaces before and after. Reconstruct the generated text by removing the spaces before and after the appropriate punctuation characters.

Remove the spaces that appear before the specified punctuation characters.

 punctuationCharacters = ["." "," "’" ")" ":" "?" "!"];
 generatedText = replace(generatedText," " + punctuationCharacters,punctuationCharacters);

Remove the spaces that appear after the specified punctuation characters.

 punctuationCharacters = ["(" "‘"];
 generatedText = replace(generatedText,punctuationCharacters + " ",punctuationCharacters)
generatedText =
" The Mock Turtle sighed deeply, and began watching running from him. “ Off with her head! ” Those whom she sentenced were taken into custody by the soldiers, who was ye ; not after waiting to ask."

See Also

| | | | | |

Related Topics
