dsphdl.FIRFilter
Finite impulse response filter
Description
The dsphdl.FIRFilter
System object™ models finiteimpulse response filter architectures optimized for HDL code
generation. The object accepts scalar or vector input, and provides an option for programmable
coefficients. It provides a hardwarefriendly interface with input and output control signals.
To provide a cycleaccurate simulation of the generated HDL code, the object models
architectural latency including pipeline registers and resource sharing.
The object provides three filter structures. The direct form systolic architecture provides a fully parallel implementation that makes efficient use of Intel^{®} and Xilinx^{®} DSP blocks. The direct form transposed architecture is a fully parallel implementation and is suitable for FPGA and ASIC applications. The partly serial systolic architecture provides a configurable serial implementation that makes efficient use of FPGA DSP blocks. For a filter implementation that matches multipliers, pipeline registers, and preadders to the DSP configuration of your FPGA vendor, specify your target device when you generate HDL code.
All three filter structures remove multipliers for zerovalued coefficients, such as in halfband filters and Hilbert transforms. When you use scalar input data, all filter structures share multipliers for symmetric and antisymmetric coefficients. Framebased filters do not implement symmetry optimization.
The latency between valid input data and the corresponding valid output data depends on the filter structure, serialization options, the number of coefficients, and whether the coefficient values provide optimization opportunities.
To filter input data with an HDLoptimized FIR filter:
Create the
dsphdl.FIRFilter
object and set its properties.Call the object with arguments, as if it were a function.
To learn more about how System objects work, see What Are System Objects?
Creation
Syntax
Description
creates an
HDLoptimized discrete FIR filter System object, firFilt
= dsphdl.FIRFilterfirFilt
, with default properties.
sets
properties using one or more namevalue pairs. Enclose each property name in single
quotes.firFilt
= dsphdl.FIRFilter(___,Name,Value
)
For example:
Numerator = firpm(10,[0,0.1,0.5,1],[1,1,0,0]); fir = dsphdl.FIRFilter(Numerator,'FilterStructure','Direct form transposed'); ... [dataOut,validOut] = fir(dataIn,validIn);
Properties
Unless otherwise indicated, properties are nontunable, which means you cannot change their
values after calling the object. Objects lock when you call them, and the
release
function unlocks them.
If a property is tunable, you can change its value at any time.
For more information on changing property values, see System Design in MATLAB Using System Objects.
Main
NumeratorSource
— Source of filter coefficients
'Property'
(default)  'Input port (Parallel interface)'
You can enter constant filter coefficients as a property or provide timevarying filter coefficients using an input argument.
Setting this property to 'Input port (Parallel interface)'
enables the coeff
argument, and the
NumeratorPrototype
property. Specify a prototype to enable the
object to optimize the filter implementation according to the values of your
coefficients. To use 'Input port (Parallel interface)'
, set the
FilterStructure
property to 'Direct form
systolic'
or 'Direct form transposed'
.
When you use programmable coefficients with framebased input, the object does not optimize the filter for coefficient symmetry. Also, the output after a change of coefficient values may not exactly match the output in the scalar case. This difference is because the subfilter calculations are done at different times relative to the input coefficient values, compared with the scalar implementation.
Numerator
— Discrete FIR filter coefficients
[0.5 0.5]
(default)  real or complex vector
Discrete FIR filter coefficients, specified as a vector of real or complex values.
You can also specify the vector as a workspace variable, or as a call to a filter
design function. When the input data type is a floatingpoint type, the object casts
the coefficients to the same data type as the input. When the input data type is an
integer type or a fixedpoint type, you can modify the coefficient data type by using
the CoefficientsDataType
property.
Example: dsphdl.FIRFIlter('Numerator',firpm(30,[0 0.1 0.2 0.5]*2,[1 1 0
0]))
defines coefficients using a linearphase filter design
function.
Dependencies
To enable this property, set NumeratorSource
to
'Property'
.
Data Types: single
 double
 int8
 int16
 int32
 uint8
 uint16
 uint32
NumeratorPrototype
— Prototype filter coefficients
[]
(default)  real or complex vector
Prototype filter coefficients, specified as a vector of real or complex values.
The prototype specifies a sample coefficient vector that is representative of the
symmetry and zerovalue locations of the expected input coefficients. If all of your
input coefficient vectors have the same symmetry and zerovalue coefficient locations,
set NumeratorPrototype
to one of those vectors. If your
coefficients are unknown or not expected to share symmetry or zerovalue locations,
set NumeratorPrototype
to []
. The object uses
the prototype to optimize the filter by sharing multipliers for symmetric or
antisymmetric coefficients and by removing multipliers for zerovalue
coefficients.
When you use framebased input data, the block does not optimize the filter for coefficient symmetry. The block still uses the Coefficients prototype to remove multipliers for zerovalued coefficients. At the coeff input port, specify a vector that is the same size as the prototype.
When you use scalar input data, coefficient optimizations affect the expected size
of the coeff
input argument. Provide only the nonduplicate
coefficients as the argument. For example, if you set the
NumeratorPrototype
property to a symmetric 14tap filter, the
object shares one multiplier between each pair of duplicate coefficients, so the
object expects a vector of 7 values for the coeff
argument. You
must still provide zeros in the input coeff
vector for the
nonduplicate zerovalue coefficients.
Dependencies
To enable this property, set NumeratorSource
to
'Input port (Parallel interface)'
.
Data Types: single
 double
 int8
 int16
 int32
 uint8
 uint16
 uint32
FilterStructure
— HDL filter architecture
'Direct form systolic'
(default)  'Direct form transposed'
 'Partly serial systolic'
HDL filter architecture, specified as one of these structures:
'Direct form systolic'
— This architecture provides a fully parallel filter implementation that makes efficient use of Intel and Xilinx DSP blocks. For architecture details, see Fully Parallel Systolic Architecture.'Direct form transposed'
— This architecture is a fully parallel implementation that is suitable for FPGA and ASIC applications. For architecture details, see Fully Parallel Transposed Architecture.'Partly serial systolic'
— This architecture provides a serial filter implementation and options for tradeoffs between throughput and resource utilization. It makes efficient use of Intel and Xilinx DSP blocks. The object implements a serial Lcoefficient filter with M multipliers and requires input samples that are at least N cycles apart, such that L = N×M. You can specify either M or N. For this implementation, the object provides an output signal,ready
, that indicates when the object is ready for new input data. For architecture and performance details, see Partly Serial Systolic Architecture (1 < N < L) and Fully Serial Systolic Architecture (N ≥ L). You cannot use framebased input with the partly serial architecture.
All implementations remove multipliers for zerovalued coefficients. When you use scalar input data, all implementations share multipliers for symmetric and antisymmetric coefficients. Framebased filters do not implement symmetry optimization.
SerializationOption
— Rule to define serial implementation
'Minimum number of cycles between valid input
samples'
(default)  'Maximum number of multipliers'
Specify the rule that the object uses to serialize the filter as one of:
'Minimum number of cycles between valid input samples'
– Specify a requirement for input data timing by using theNumCycles
property.'Maximum number of multipliers'
– Specify a requirement for resource usage by using theNumberOfMultipliers
property.
For a filter with L coefficients, the object implements a serial filter with not more than M multipliers and requires input samples that are at least N cycles apart, such that L = N×M. The object might remove additional multipliers when it applies coefficient optimizations, so the actual M or N values of the filter implementation can be lower than the value that you specified.
Dependencies
To enable this property, set FilterStructure
to
'Partly serial systolic'
.
NumCycles
— Serialization requirement for input timing
2
(default)  positive integer
Serialization requirement for input timing, specified as a positive integer. This
property represents N, the minimum number of cycles between valid
input samples. In this case, the object calculates M =
L/N. To implement a fullyserial architecture,
set NumCycles
to a value greater than the filter length,
L, or to Inf
.
The object might remove multipliers when it applies coefficient optimizations, so the actual M and N values of the filter can be lower than the value you specified.
Dependencies
To enable this property, set FilterStructure
to
'Partly serial systolic'
and set
SerializationOption
to 'Minimum number of cycles
between valid input samples'
.
NumberOfMultipliers
— Serialization requirement for resource usage
2
(default)  positive integer
Serialization requirement for resource usage, specified as a positive integer.
This property represents M, the maximum number of multipliers in
the filter implementation. In this case, the object calculates N =
L/M. If the input data is complex, the object
allocates floor(M/2)
multipliers for the real
part of the filter and floor(M/2)
multipliers
for the imaginary part of the filter. To implement a fullyserial architecture, set
NumberOfMultipliers
to 1
for real input with
real coefficients, 2
for complex input and real coefficients or
real coefficients with complex input, or 3
for complex input and
complex coefficients.
The object might remove multipliers when it applies coefficient optimizations, so the actual M and N values of the filter can be lower than the value you specified.
Dependencies
To enable this property, set the FilterStructure
to
'Partly serial systolic'
, and set
SerializationOption
to 'Maximum number of
multipliers'
.
Data Types
Rounding
— Rounding method for typecasting the output
'Floor'
(default)  'Ceiling'
 'Convergent'
 'Nearest'
 'Round'
 'Zero'
Rounding method for typecasting the output, specified as
'Floor'
, 'Ceiling'
,
'Convergent'
, 'Nearest'
,
'Round'
, or 'Zero'
. The rounding method is
used when casting the output to the data type specified by the
OutputDataType
property. When the input data type is floating
point, the object ignores the RoundingMethod
property. For more
details, see Rounding Modes.
OverflowAction
— Overflow handling for typecasting the output
'Wrap'
(default)  'Saturate'
Overflow handling for typecasting the output, specified as
'Wrap'
or 'Saturate'
. Overflow handling is
used when casting the output to the data type specified by the
OutputDataType
property. When the input data type is floating
point, the object ignores the OverflowAction
property. For more
details, see Overflow Handling.
CoefficientsDataType
— Data type of discrete FIR filter coefficients
'Same word length as input'
(default)  numerictype
object
Data type of discrete FIR filter coefficients, specified as 'Same word
length as input'
or a numerictype
object. To specify a numerictype
object,
call numerictype(s,w,f)
, where:
s
is1
for signed and0
for unsigned.w
is the word length in bits.f
is the number of fractional bits.
The object typecasts the filter coefficients of the discrete FIR
filter to the specified data type. The quantization rounds to the nearest
representable value and saturates on overflow. When the input data type is floating
point, the object ignores the Coefficients
property.
Dependencies
To enable this property, set NumeratorSource
to
'Property'
.
OutputDataType
— Data type of discrete FIR filter output
'Full precision'
(default)  'Same word length as input'
 numerictype
object
Data type of discrete FIR filter output, specified as 'Same word length
as input'
, 'Full precision'
, or a numerictype
object. To specify a numerictype
object,
call numerictype(s,w,f)
, where:
s
is1
for signed and0
for unsigned.w
is the word length in bits.f
is the number of fractional bits.
The object typecasts the output of the discrete FIR filter to the
specified data type. The quantization uses the settings of the
RoundingMethod
and OverflowAction
properties. When the input data type is floating point, the object ignores the
OutputDataType
property.
The object increases the word length for full precision inside each filter tap and casts the final output to the specified type. The maximum final internal data type (WF) depends on the input data type (WI), the coefficient data type (WC), and the number of coefficients (L) and is given by
WF = WI + WC +
ceil(log2(L))
.
When you specify a fixed set of coefficients, usually the actual fullprecision internal word length is smaller than WF because the values of the coefficients limit the potential growth. When you use programmable coefficients, the object cannot calculate the dynamic range, and the internal data type is always WF.
Control Arguments
ResetInputPort
— Option to enable reset input
argument
false
(default)  true
Option to enable reset input argument,
specified as true
or
false
. When you set this
property to true
, the object
expects a value for the reset
input argument. The reset signal implements a
local synchronous reset of the data path
registers.
For more reset considerations, see the Reset Signal section on the Hardware Control Signals page.
HDLGlobalReset
— Option to connect data path registers to generated HDL global reset signal
false
(default)  true
Option to connect data path registers to
generated HDL global reset signal, specified as
true
or
false
. Set this property to
true
to connect the generated
HDL global reset signal to the data path
registers. This property does not change the
arguments of the object or modify simulation
behavior in MATLAB^{®}. When you set this property to
false
, the generated HDL global
reset clears only the control path registers. The
generated HDL global reset can be synchronous or
asynchronous depending on your HDL code generation
settings.
For more reset considerations, see the Reset Signal section on the Hardware Control Signals page.
Usage
Syntax
Description
[
returns dataOut
,validOut
,ready
]
= firFilt(dataIn
,validIn
)ready
set to true
when the object is ready
to accept new input data on the next call.
The object returns the ready
argument only when you set the
FilterStructure
property to 'Partly serial
systolic'
. For example:
firFilt = dsphdl.FIRFilter(Numerator,... 'FilterStructure','Partly serial systolic',... 'SerializationOption','Minimum number of cycles between valid input samples',... 'NumCycles',8) ... for k=1:length(dataIn) [dataOut,validOut,ready] = firFilt(dataIn(k),validIn(k));
[
filters data using the coefficients, dataOut
,validOut
]
= firFilt(dataIn
,validIn
,coeff
)coeff
. The object expects the
coeff
argument only when you set the
NumeratorSource
property to 'Input port (Parallel
interface)'
. For example:
firFilt = dsphdl.FIRFilter(NumeratorSource,'Input Port (Parallel interface)') ... for k=1:length(dataIn) Numerator = myGetNumerator(); %calculate coefficients [dataOut,validOut] = firFilt(dataIn(k),validIn(k),Numerator);
[
filters data when dataOut
,validOut
]
= firFilt(dataIn
,validIn
,reset
)reset
is false
. When
reset
is true
, the object resets the filter
registers. The object expects the reset
argument only when you set
the ResetInputPort
property to true
. For example:
firFilt = dsphdl.FIRFilter(Numerator,'ResetInputPort',true) ... % reset the filter firFilt(0,false,true); for k=1:length(dataIn) [dataOut,validOut] = firFilt(dataIn(k),validIn(k),false);
For more reset considerations, see the Reset Signal section on the Hardware Control Signals page.
Input Arguments
dataIn
— Input data
scalar or column vector of real or complex values
Input data, specified as a scalar or column vector of real or complex values. When the input data type is an integer type or fixedpoint type, the object uses fixedpoint arithmetic for internal calculations.
double
and single
data
types are supported for simulation, but not for HDL code generation.
Data Types: fi
 single
 double
 int8
 int16
 int32
 uint8
 uint16
 uint32
Complex Number Support: Yes
validIn
— Indicates valid input data
scalar
Control signal that indicates if the input data is valid. When
validIn
is 1
(true
), the
object captures the values from the dataIn
argument. When
validIn
is 0
(false
), the
object ignores the values from the dataIn
argument.
Data Types: logical
coeff
— Filter coefficients
real or complex vector
Filter coefficients, specified as a vector of real or complex values. You can
change the input coefficients at any time. When you use scalar input data, the size of
the vector depends on the size and symmetry of the sample coefficients specified in
the NumeratorPrototype
property. The prototype specifies a sample
coefficient vector that is representative of the symmetry and zerovalue locations of
the expected input coefficients. The object uses the prototype to optimize the filter
by sharing multipliers for symmetric or antisymmetric coefficients, and removing
multipliers for zerovalue coefficients. Therefore, provide only the nonduplicate
coefficients in the argument. For example, if you set the
NumeratorPrototype
property to a symmetric 14tap filter, the
object expects a vector of 7 values for the coeff
argument. You
must still provide zeros in the input coeff
vector for the
nonduplicate zerovalue coefficients.
When you use framebased input data, the object does not optimize the filter for
coefficient symmetry. The object still uses the
NumeratorPrototype
property to remove multipliers for
zerovalued coefficients. Specify an input coeff
vector that is
the same size as the prototype.
double
and single
data
types are supported for simulation, but not for HDL code generation.
Dependencies
To enable this argument, set the NumeratorSource
property
to 'Input port (Parallel interface)'
.
Data Types: fi
 single
 double
 int8
 int16
 int32
 uint8
 uint16
 uint32
reset
— Clears internal states
logical scalar
Control signal that clears internal states. When reset
is
1
(true
), the object stops the current
calculation and clears internal states. When the reset
is
0
(false
) and the input
valid
is 1
(true
), the
block captures data for processing.
For more reset considerations, see the Reset Signal section on the Hardware Control Signals page.
Dependencies
To enable this argument, set the ResetInputPort
property to
true
.
Data Types: logical
Output Arguments
dataOut
— Filtered output data
scalar or column vector of real or complex values
Filtered output data, returned as a scalar or column vector of real or complex values. The dimensions of the output data match the dimensions of the input data. When the input data is floating point, the output data inherits the data type of the input data. When the input data is an integer type or fixedpoint type, the OutputDataType property determines the output data type.
Data Types: fi
 single
 double
 int8
 int16
 int32
 uint8
 uint16
 uint32
Complex Number Support: Yes
validOut
— Indicates valid output data
scalar
Control signal that indicates if the output data is valid. When
validOut
is 1
(true
), the
object returns valid data from the dataOut
argument. When
validOut
is 0
(false
),
values from the dataOut
argument are not valid.
Data Types: logical
ready
— Indicates object is ready for new input data
scalar
Control signal that indicates that the object is ready for new input data sample
on the next cycle. When ready
is 1
(true
), you can specify the data
and valid
inputs for the next time step. When
ready
is 0
(false
), the object ignores any input data in the next time step.
When using the partly serial architecture, the object processes one sample at a
time. If your design waits for the object to return ready
set to
0
(false
) before deasserting
validIn
, then one extra input data value arrives at the object.
The object stores this extra data while processing the current data, and then does not
set ready
to 1
(true
) until
the extra input is processed.
Dependencies
To enable this argument, set the FilterStructure
property
to 'Partly serial systolic'
.
Data Types: logical
Object Functions
To use an object function, specify the
System object as the first input argument. For
example, to release system resources of a System object named obj
, use
this syntax:
release(obj)
Specific to dsphdl.FIRFilter
getLatency  Latency of FIR filter
Examples
Create HDL FIR Filter System Object with Default Settings
Create an HDL FIR filter System object with default settings.
firFilt = dsphdl.FIRFilter;
Create an input signal of random noise, and allocate memory for outputs.
L = 100; dataIn = randn(L,1); dataOut = zeros(L,1); validOut = false(L,1);
Call the object on the input signal, asserting that the input data is always valid. The object processes one data sample at a time.
for k=1:L [dataOut(k),validOut(k)] = firFilt(dataIn(k),true); end
Implement a PartlySerial Streaming FIR Filter
This example shows how to configure the dsphdl.FIRFilter
System object™ as a partlyserial 31tap lowpass filter.
Design the filter coefficients. Then create an HDL FIR filter System object. Set the FilterStructure
to 'Partly serial systolic'
. By default, the SerializationOption
property is 'Minimum number of cycles between valid input samples'
, and so you must specify the serialization rule using the NumCycles
property. To share each multiplier between 10 coefficients, set the NumCycles
to 10.
numerator = firpm(30,[0 0.1 0.2 0.5]*2,[1 1 0 0]); numCycles = 10; firFilt = dsphdl.FIRFilter('Numerator',numerator, ... 'FilterStructure','Partly serial systolic','NumCycles',numCycles);
This serial filter implementation requires 10 time steps to calculate each output. Create input signals dataIn
and validIn
such that new data is applied only every NumCycles
time steps.
L = 16;
x = fi(randn(L,1),1,16);
dataIn = zeros(L*numCycles,1,'like',x);
dataIn(1:numCycles:end) = x;
validIn = false(L*numCycles,1);
validIn(1:numCycles:end) = true;

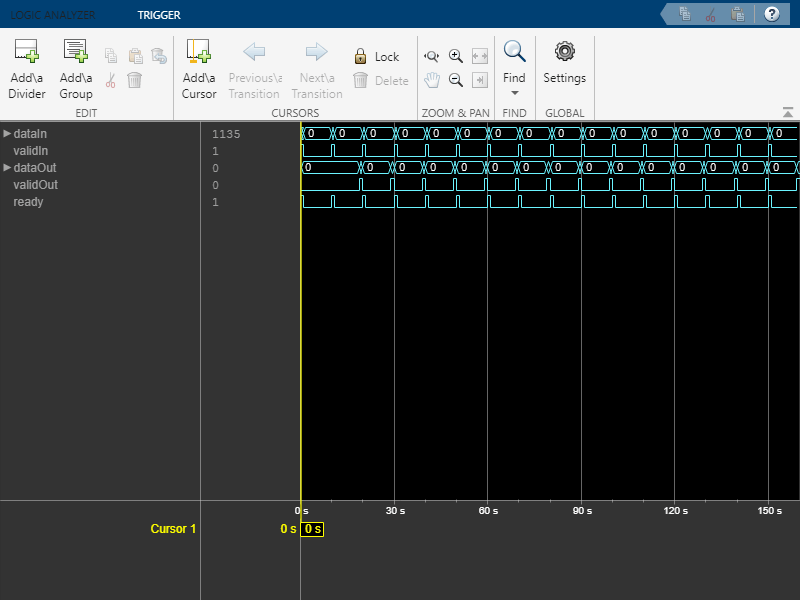

Create a LogicAnalyzer
object to view the inputs and output signals.
la = dsp.LogicAnalyzer('NumInputPorts',5, ... 'SampleTime',1,'TimeSpan',length(dataIn)); tags = getDisplayChannelTags(la); modifyDisplayChannel(la,tags{1},'Name','dataIn'); modifyDisplayChannel(la,tags{2},'Name','validIn'); modifyDisplayChannel(la,tags{3},'Name','dataOut'); modifyDisplayChannel(la,tags{4},'Name','validOut'); modifyDisplayChannel(la,tags{5},'Name','ready');
Call the filter System object on the input signals, and view the results in the Logic Analyzer. The object models HDL pipeline registers and resource sharing, so the waveform shows an initial delay before the object returns valid output samples.
for k=1:length(dataIn) [dataOut,validOut,ready] = firFilt(dataIn(k),validIn(k)); la(dataIn(k),validIn(k),dataOut,validOut,ready) end
Create HDL FIR Filter System Object for HDL Code Generation
To generate HDL code from a System object™, create a function that contains and calls the object.
Create Function
Write a function that creates and calls an 11tap HDL FIR filter System object. You can generate HDL code from this function.
function [dataOut,validOut] = HDLFIR11Tap(dataIn, validIn) %HDLFIR11Tap % Process one sample of data by using the dsphdl.FIRFilter System % object. % dataIn is a fixedpoint scalar value. % You can generate HDL code from this function. persistent fir if isempty(fir) Numerator = firpm(10,[0 0.1 0.5 1],[1 1 0 0]); fir = dsphdl.FIRFilter('Numerator',Numerator); end [dataOut,validOut] = fir(dataIn,validIn); end
Create Test Bench for Function
Clear the workspace, create an input signal of random noise, and allocate memory for outputs.
clear variables clear HDLFIR11Tap L = 200; dataIn = fi(randn(L,1),1,16); validIn = ones(L,1,'logical'); dataOut = fi(zeros(L,1),1,16); validOut = false(L,1);
Call the function on the input signal.
for k = 1:L [dataOut(k),validOut(k)] = HDLFIR11Tap(dataIn(k), validIn(k)); end

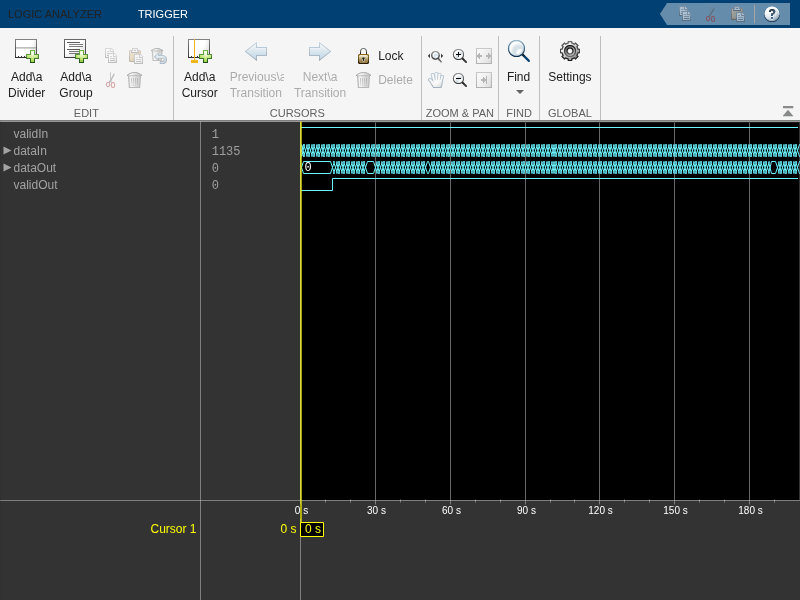

Plot the signals with the Logic Analyzer.
la = dsp.LogicAnalyzer('NumInputPorts',4,'SampleTime',1,'TimeSpan',L); tags = getDisplayChannelTags(la); modifyDisplayChannel(la,tags{1},'Name','validIn'); modifyDisplayChannel(la,tags{2},'Name','dataIn'); modifyDisplayChannel(la,tags{3},'Name','dataOut'); modifyDisplayChannel(la,tags{4},'Name','validOut'); la(validIn,dataIn,dataOut,validOut)
Explore Latency of FIR Object
The latency of the dsphdl.FIRFilter
System object™ varies with filter structure, serialization options, input vector size, and whether the coefficient values provide optimization opportunities. Use the getLatency
function to find the latency of a particular configuration. The latency is the number of cycles between the first valid input and the first valid output.
Create a dsphdl.FIRFilter
System object™ and request the latency. The default architecture is fully parallel systolic. The default data type for the coefficients is 'Same word length as input'
. Therefore, when you call the getLatency
object function, you must specify an input data type. The object casts the coefficient values to the input data type, and then checks for symmetric coefficients. This Numerator
has 31 symmetric coefficients, so the object optimizes for the shared coefficients, and implements 16 multipliers.
Numerator = firpm(30,[0 0.1 0.2 0.5]*2,[1 1 0 0]); Input_type = numerictype(1,16,15); % object uses only the word length for coefficient type cast hdlfir = dsphdl.FIRFilter('Numerator',Numerator); L_sysp = getLatency(hdlfir,Input_type)
L_sysp = 23
For the same fully parallel filter with vector input, the latency is lower. Call getLatency
with an input vector size of four to check the latency for that case. The empty arguments are placeholders for when you use programmable coefficients or complex input data.
L_syspv = getLatency(hdlfir,Input_type,[],[],4)
L_syspv = 17
Check the latency for a partly serial systolic implementation of the same filter. By default, the SerializationOption
property is 'Minimum number of cycles between valid input samples'
, and so you must specify the serialization rule using the NumCycles
property. To share each multiplier between 8 coefficients, set the NumCycles
to 8. The object then optimizes based on the coefficient symmetry, so there are 16 unique coefficients shared 8 times each over 2 multipliers. This serial filter implementation requires input samples that are valid every 8 cycles.
hdlfir = dsphdl.FIRFilter('Numerator',Numerator,'FilterStructure','Partly serial systolic','NumCycles',8); L_syss = getLatency(hdlfir,Input_type)
L_syss = 19
Check the latency of a nonsymmetric fully parallel systolic filter. The Numerator
has 31 coefficients.
Numerator = sinc(0.4*[30:0]);
hdlfir = dsphdl.FIRFilter('Numerator',Numerator);
L_sysp = getLatency(hdlfir,Input_type)
L_sysp = 37
Check the latency of the same nonsymmetric filter implemented as a partly serial systolic filter. In this case, specify the SerializationOption
by the number of multipliers. The object implements a filter that has 2 multipliers and requires 8 cycles between input samples.
hdlfir = dsphdl.FIRFilter('Numerator',Numerator,'FilterStructure','Partly serial systolic',... 'SerializationOption','Maximum number of multipliers','NumberOfMultipliers',2); L_syss = getLatency(hdlfir,Input_type)
L_syss = 37
Check the latency of a fully parallel transposed architecture. The latency for this filter structure with scalar input is always 6 cycles.
hdlfir = dsphdl.FIRFilter('Numerator',Numerator,'FilterStructure','Direct form transposed'); L_trans = getLatency(hdlfir,Input_type)
L_trans = 6
The latency of the transposed filter increases with input vector size.
L_transv4 = getLatency(hdlfir,Input_type,[],[],4)
L_transv4 = 9
L_transv8 = getLatency(hdlfir,Input_type,[],[],16)
L_transv8 = 11
Algorithms
This System object implements the algorithms described on the Discrete FIR Filter block reference page.
Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.
This System object supports C/C++ code generation for accelerating MATLAB simulations, and for DPI component generation.
HDL Code Generation
Generate Verilog and VHDL code for FPGA and ASIC designs using HDL Coder™.
double
and single
data
types are supported for simulation, but not for HDL code generation.
To generate HDL code from predefined System objects, see HDL Code Generation from Viterbi Decoder System Object (HDL Coder).
Version History
Introduced in R2017aR2022a: Moved to DSP HDL Toolbox from DSP System Toolbox
Before R2022a, this System object was named dsp.HDLFIRFilter
and was part of the DSP System Toolbox™ product.
R2022a: Highthroughput interface
This object supports highthroughput data. You can apply input data as an Nby1 vector, where N can be up to 64 values. You cannot use framebased input with the partly serial architecture.
R2022a: Input coefficients must be a row vector
When you use programmable coefficients with this object, you must supply the
coefficients as a row vector (1byN matrix). Before R2022a, the object
accepted a onedimensional array (for example, ones(5)
), a column vector
(Mby1 matrix), or a row vector of coefficients.
R2022a: RAMbased partly serial architecture
This object uses a RAMbased partly serial architecture, which uses fewer resources than
the former registerbased architecture. Uninitialized RAM locations can result in
X
values at the start of your HDL simulation. You can avoid
X
values by having your test initialize the RAM.
R2019b: Complex coefficients
The object supports complexvalued coefficients. If both coefficients and input data are complex, the object implements each filter tap with three multipliers. If either data or coefficients are complex but not both, the object uses two multipliers for each filter tap. You can use complex coefficients with all architectures and with programmable coefficients.
R2019a: Programmable coefficients
The object provides the option to specify coefficients using an input argument when you
set the FilterStructure
to 'Direct form systolic'
.
You cannot use programmable coefficients with transposed or partly serial systolic
architectures.
R2019a: Optimize symmetric coefficients
The object provides optimization of symmetric and antisymmetric coefficients. This optimization reduces the number of multipliers and makes efficient use of FPGA DSP resources.
In R2018b, the object performed these optimizations only for fully parallel architectures.
R2019a: Optional reset port
The object provides an optional reset argument for any architecture, including a serial
systolic architecture with resource sharing. The reset
argument
provides a local synchronous reset of the data path registers.
In R2018b, the object supported the reset
argument only for fully
parallel architectures.
R2019a: Changes to serial filter parameters
Before R2019a, you specified the serial implementation by setting a requirement for input timing. Starting in R2019a, you can specify the serialization requirement based on either input timing or resource usage.
For a filter with L coefficients, the object implements a serial filter with not more than M multipliers and requires input samples that are at least N cycles apart, such that L = N×M.
Serial Filter Requirement  Configuration Before R2019a  Configuration in R2019a

Specify a serialization rule based on input timing, that is, N cycles.


Specify a serialization rule based on resource usage, that is, M multipliers.  Serialization by resource usage is not supported before R2019a. However, you can calculate N based on your multiplier requirement.


R2018b: Transposed architecture
The object provides an option to select a direct form transposed architecture.
R2018b: Changes to parallel filter architecture
The
validIn
argument is mandatory. TheValidInPort
property is no longer available.The
ready
argument is enabled when you setSharingFactor
totrue
and disabled when you setSharing
tofalse
. TheReadyPort
property is no longer available.When you set the
FilterStructure
property to'Direct form systolic'
withSharing
set tofalse
, the object implements an improved fully parallel architecture compared to previous releases. This architecture may have different latency than previous versions. Use thevalidOut
signal to align with parallel delay paths. When using this architecture, the default global HDL reset now clears only the control path registers. Previous releases connected the global HDL reset to the data path registers and the control path registers. This change improves hardware performance and lowers the resources used. To implement the same fully parallel architecture as previous releases, setSharing
tofalse
and setSharingFactor
to1
.When you set the
FilterStructure
property to'Direct form systolic'
, setSharingFactor
totrue
, and use anySharingFactor
, the implemented filter has the same latency and uses the same hardware resources as in previous releases. The reset behavior for this architecture is also the same as previous releases.
Open Example
You have a modified version of this example. Do you want to open this example with your edits?
MATLAB Command
You clicked a link that corresponds to this MATLAB command:
Run the command by entering it in the MATLAB Command Window. Web browsers do not support MATLAB commands.
Select a Web Site
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
You can also select a web site from the following list:
How to Get Best Site Performance
Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.
Americas
 América Latina (Español)
 Canada (English)
 United States (English)
Europe
 Belgium (English)
 Denmark (English)
 Deutschland (Deutsch)
 España (Español)
 Finland (English)
 France (Français)
 Ireland (English)
 Italia (Italiano)
 Luxembourg (English)
 Netherlands (English)
 Norway (English)
 Österreich (Deutsch)
 Portugal (English)
 Sweden (English)
 Switzerland
 United Kingdom (English)
