Monte Carlo simulation of state-space models

`[`

simulates
one sample path of observations (`Y`

,`X`

] =
simulate(`Mdl`

,`numObs`

)`Y`

) and states
(`X`

) from a fully specified, state-space model (`Mdl`

).
The software simulates `numObs`

observations and
states per sample path.

`[`

returns
simulated responses and states with additional options specified by
one or more `Y`

,`X`

] =
simulate(`Mdl`

,`numObs`

,`Name,Value`

)`Name,Value`

pair arguments.

For example, specify the number of paths or model parameter values.

`Mdl`

— Standard state-space model`ssm`

model objectStandard state-space model, specified as an`ssm`

model
object returned by `ssm`

or `estimate`

. A
standard state-space model has finite initial state covariance matrix
elements. That is, `Mdl`

cannot be a `dssm`

model object.

If `Mdl`

is not fully specified (that is, `Mdl`

contains
unknown parameters), then specify values for the unknown parameters
using the `'`

`Params`

`'`

`Name,Value`

pair
argument. Otherwise, the software throws an error.

`numObs`

— Number of periods per path to simulatepositive integer

Number of periods per path to generate variants, specified as a positive integer.

If `Mdl`

is a time-varying model, then
the length of the cell vector corresponding to the coefficient matrices
must be at least `numObs`

.

If `numObs`

is fewer than the number of periods
that `Mdl`

can support, then the software only uses
the matrices in the first `numObs`

cells of the cell
vectors corresponding to the coefficient matrices.

**Data Types: **`double`

Specify optional
comma-separated pairs of `Name,Value`

arguments. `Name`

is
the argument name and `Value`

is the corresponding value.
`Name`

must appear inside quotes. You can specify several name and value
pair arguments in any order as
`Name1,Value1,...,NameN,ValueN`

.

`'NumPaths'`

— Number of sample paths to generate variants`1`

(default) | positive integerNumber of sample paths to generate variants, specified as the
comma-separated pair consisting of `'NumPaths'`

and
a positive integer.

**Example: **`'NumPaths',1000`

**Data Types: **`double`

`'Params'`

— Values for unknown parametersnumeric vector

Values for unknown parameters in the state-space model, specified
as the column-separated pair consisting of `'Params'`

and
a numeric vector.

The elements of `Params`

correspond to the
unknown parameters in the state-space model matrices `A`

, `B`

, `C`

,
and `D`

, and, optionally, the initial state mean `Mean0`

and
covariance matrix `Cov0`

.

If you created

`Mdl`

explicitly (that is, by specifying the matrices without a parameter-to-matrix mapping function), then the software maps the elements of`Params`

to`NaN`

s in the state-space model matrices and initial state values. The software searches for`NaN`

s column-wise following the order`A`

,`B`

,`C`

,`D`

,`Mean0`

, and`Cov0`

.If you created

`Mdl`

implicitly (that is, by specifying the matrices with a parameter-to-matrix mapping function), then you must set initial parameter values for the state-space model matrices, initial state values, and state types within the parameter-to-matrix mapping function.

If `Mdl`

contains unknown parameters,
then you must specify their values. Otherwise, the software ignores
the value of `Params`

.

**Data Types: **`double`

`Y`

— Simulated observationsmatrix | cell matrix of numeric vectors

Simulated observations, returned as a matrix or cell matrix of numeric vectors.

If `Mdl`

is a time-invariant model with
respect to the observations, then `Y`

is a `numObs`

-by-*n*-by-`numPaths`

array.
That is, each row corresponds to a period, each column corresponds
to an observation in the model, and each page corresponds to a sample
path. The last row corresponds to the latest simulated observations.

If `Mdl`

is a time-varying model with
respect to the observations, then `Y`

is a `numObs`

-by-`numPaths`

cell
matrix of vectors. `Y{t,j}`

contains a vector of
length *n _{t}* of simulated observations
for period

`Y`

contains the latest set of simulated
observations.**Data Types: **`cell`

| `double`

`X`

— Simulated statesnumeric matrix | cell matrix of numeric vectors

Simulated states, returned as a numeric matrix or cell matrix of vectors.

If `Mdl`

is a time-invariant model with respect
to the states, then `X`

is a `numObs`

-by-*m*-by-`numPaths`

array.
That is, each row corresponds to a period, each column corresponds
to a state in the model, and each page corresponds to a sample path.
The last row corresponds to the latest simulated states.

If `Mdl`

is a time-varying model with respect
to the states, then `X`

is a `numObs`

-by-`numPaths`

cell
matrix of vectors. `X{t,j}`

contains a vector of
length *m _{t}* of simulated states
for period

`X`

contains the latest set of simulated
states.`U`

— Simulated state disturbancesmatrix | cell matrix of numeric vectors

Simulated state disturbances, returned as a matrix or cell matrix of vectors.

If `Mdl`

is a time-invariant model with respect
to the state disturbances, then `U`

is a `numObs`

-by-*h*-by-`numPaths`

array.
That is, each row corresponds to a period, each column corresponds
to a state disturbance in the model, and each page corresponds to
a sample path. The last row corresponds to the latest simulated state
disturbances.

If `Mdl`

is a time-varying model with respect
to the state disturbances, then `U`

is a `numObs`

-by-`numPaths`

cell
matrix of vectors. `U{t,j}`

contains a vector of
length *h _{t}* of simulated state
disturbances for period

`U`

contains the latest set of simulated
state disturbances.**Data Types: **`cell`

| `double`

`E`

— Simulated observation innovationsmatrix | cell matrix of numeric vectors

Simulated observation innovations, returned as a matrix or cell matrix of numeric vectors.

If `Mdl`

is a time-invariant model with respect
to the observation innovations, then `E`

is a `numObs`

-by-*h*-by-`numPaths`

array.
That is, each row corresponds to a period, each column corresponds
to an observation innovation in the model, and each page corresponds
to a sample path. The last row corresponds to the latest simulated
observation innovations.

If `Mdl`

is a time-varying model with respect
to the observation innovations, then `E`

is a `numObs`

-by-`numPaths`

cell
matrix of vectors. `E{t,j}`

contains a vector of
length *h _{t}* of simulated observation
innovations for period

`E`

contains the latest set of simulated
observations.**Data Types: **`cell`

| `double`

Suppose that a latent process is an AR(1) model. Subsequently, the state equation is

$${x}_{t}=0.5{x}_{t-1}+{u}_{t},$$

where $${u}_{t}$$ is Gaussian with mean 0 and standard deviation 1.

Generate a random series of 100 observations from $${x}_{t}$$, assuming that the series starts at 1.5.

T = 100; ARMdl = arima('AR',0.5,'Constant',0,'Variance',1); x0 = 1.5; rng(1); % For reproducibility x = simulate(ARMdl,T,'Y0',x0);

Suppose further that the latent process is subject to additive measurement error. Subsequently, the observation equation is

$${y}_{t}={x}_{t}+{\epsilon}_{t},$$

where $${\epsilon}_{t}$$ is Gaussian with mean 0 and standard deviation 0.75. Together, the latent process and observation equations compose a state-space model.

Use the random latent state process (`x`

) and the observation equation to generate observations.

y = x + 0.75*randn(T,1);

Specify the four coefficient matrices.

A = 0.5; B = 1; C = 1; D = 0.75;

Specify the state-space model using the coefficient matrices.

Mdl = ssm(A,B,C,D)

Mdl = State-space model type: ssm State vector length: 1 Observation vector length: 1 State disturbance vector length: 1 Observation innovation vector length: 1 Sample size supported by model: Unlimited State variables: x1, x2,... State disturbances: u1, u2,... Observation series: y1, y2,... Observation innovations: e1, e2,... State equation: x1(t) = (0.50)x1(t-1) + u1(t) Observation equation: y1(t) = x1(t) + (0.75)e1(t) Initial state distribution: Initial state means x1 0 Initial state covariance matrix x1 x1 1.33 State types x1 Stationary

`Mdl`

is an `ssm`

model. Verify that the model is correctly specified using the display in the Command Window. The software infers that the state process is stationary. Subsequently, the software sets the initial state mean and covariance to the mean and variance of the stationary distribution of an AR(1) model.

Simulate one path each of states and observations. Specify that the paths span 100 periods.

[simY,simX] = simulate(Mdl,100);

`simY`

is a 100-by-1 vector of simulated responses. `simX`

is a 100-by-1 vector of simulated states.

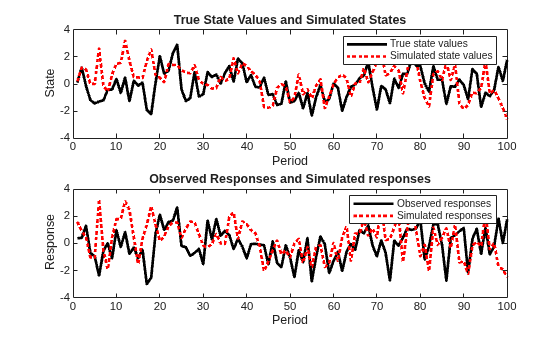

Plot the true state values with the simulated states. Also, plot the observed responses with the simulated responses.

figure subplot(2,1,1) plot(1:T,x,'-k',1:T,simX,':r','LineWidth',2) title({'True State Values and Simulated States'}) xlabel('Period') ylabel('State') legend({'True state values','Simulated state values'}) subplot(2,1,2) plot(1:T,y,'-k',1:T,simY,':r','LineWidth',2) title({'Observed Responses and Simulated responses'}) xlabel('Period') ylabel('Response') legend({'Observed responses','Simulated responses'})

By default, `simulate`

simulates one path for each state and observation in the state-space model. To conduct a Monte Carlo study, specify to simulate a large number of paths.

To generate variates from a state-space model, specify values for all unknown parameters.

Explicitly create this state-space model.

$$\begin{array}{c}{x}_{t}=\varphi {x}_{t-1}+{\sigma}_{1}{u}_{t}\\ {y}_{t}={x}_{t}+{\sigma}_{2}{\epsilon}_{t}\end{array}$$

where $${u}_{t}$$ and $${\epsilon}_{t}$$ are independent Gaussian random variables with mean 0 and variance 1. Suppose that the initial state mean and variance are 1, and that the state is a stationary process.

A = NaN; B = NaN; C = 1; D = NaN; mean0 = 1; cov0 = 1; stateType = 0; Mdl = ssm(A,B,C,D,'Mean0',mean0,'Cov0',cov0,'StateType',stateType);

Simulate 100 responses from `Mdl`

. Specify that the autoregressive coefficient is 0.75, the state disturbance standard deviation is 0.5, and the observation innovation standard deviation is 0.25.

params = [0.75 0.5 0.25]; y = simulate(Mdl,100,'Params',params); figure; plot(y); title 'Simulated Responses'; xlabel 'Period';

The software searches for `NaN`

values column-wise following the order A, B, C, D, Mean0, and Cov0. The order of the elements in `params`

should correspond to this search.

Suppose that the relationship between the change in the unemployment rate ($${x}_{1,t}$$) and the nominal gross national product (nGNP) growth rate ($${x}_{3,t}$$) can be expressed in the following, state-space model form.

$$\left[\begin{array}{c}{x}_{1,t}\\ {x}_{2,t}\\ {x}_{3,t}\\ {x}_{4,t}\end{array}\right]=\left[\begin{array}{cccc}{\varphi}_{1}& {\theta}_{1}& {\gamma}_{1}& 0\\ 0& 0& 0& 0\\ {\gamma}_{2}& 0& {\varphi}_{2}& {\theta}_{2}\\ 0& 0& 0& 0\end{array}\right]\left[\begin{array}{c}{x}_{1,t-1}\\ {x}_{2,t-1}\\ {x}_{3,t-1}\\ {x}_{4,t-1}\end{array}\right]+\left[\begin{array}{cc}1& 0\\ 1& 0\\ 0& 1\\ 0& 1\end{array}\right]\left[\begin{array}{c}{u}_{1,t}\\ {u}_{2,t}\end{array}\right]$$

$$\left[\begin{array}{c}{y}_{1,t}\\ {y}_{2,t}\end{array}\right]=\left[\begin{array}{cccc}1& 0& 0& 0\\ 0& 0& 1& 0\end{array}\right]\left[\begin{array}{c}{x}_{1,t}\\ {x}_{2,t}\\ {x}_{3,t}\\ {x}_{4,t}\end{array}\right]+\left[\begin{array}{cc}{\sigma}_{1}& 0\\ 0& {\sigma}_{2}\end{array}\right]\left[\begin{array}{c}{\epsilon}_{1,t}\\ {\epsilon}_{2,t}\end{array}\right],$$

where:

$${x}_{1,t}$$ is the change in the unemployment rate at time

*t*.$${x}_{2,t}$$ is a dummy state for the MA(1) effect on $${x}_{1,t}$$.

$${x}_{3,t}$$ is the nGNP growth rate at time

*t*.$${x}_{4,t}$$ is a dummy state for the MA(1) effect on $${x}_{3,t}$$.

$${y}_{1,t}$$ is the observed change in the unemployment rate.

$${y}_{2,t}$$ is the observed nGNP growth rate.

$${u}_{1,t}$$ and $${u}_{2,t}$$ are Gaussian series of state disturbances having mean 0 and standard deviation 1.

$${\epsilon}_{1,t}$$ is the Gaussian series of observation innovations having mean 0 and standard deviation $${\sigma}_{1}$$.

$${\epsilon}_{2,t}$$ is the Gaussian series of observation innovations having mean 0 and standard deviation $${\sigma}_{2}$$.

Load the Nelson-Plosser data set, which contains the unemployment rate and nGNP series, among other things.

`load Data_NelsonPlosser`

Preprocess the data by taking the natural logarithm of the nGNP series, and the first difference of each. Also, remove the starting `NaN`

values from each series.

isNaN = any(ismissing(DataTable),2); % Flag periods containing NaNs gnpn = DataTable.GNPN(~isNaN); u = DataTable.UR(~isNaN); T = size(gnpn,1); % Sample size y = zeros(T-1,2); % Preallocate y(:,1) = diff(u); y(:,2) = diff(log(gnpn));

This example proceeds using series without `NaN`

values. However, using the Kalman filter framework, the software can accommodate series containing missing values.

To determine how well the model forecasts observations, remove the last 10 observations for comparison.

numPeriods = 10; % Forecast horizon isY = y(1:end-numPeriods,:); % In-sample observations oosY = y(end-numPeriods+1:end,:); % Out-of-sample observations

Specify the coefficient matrices.

A = [NaN NaN NaN 0; 0 0 0 0; NaN 0 NaN NaN; 0 0 0 0]; B = [1 0;1 0 ; 0 1; 0 1]; C = [1 0 0 0; 0 0 1 0]; D = [NaN 0; 0 NaN];

Specify the state-space model using `ssm`

. Verify that the model specification is consistent with the state-space model.

Mdl = ssm(A,B,C,D)

Mdl = State-space model type: ssm State vector length: 4 Observation vector length: 2 State disturbance vector length: 2 Observation innovation vector length: 2 Sample size supported by model: Unlimited Unknown parameters for estimation: 8 State variables: x1, x2,... State disturbances: u1, u2,... Observation series: y1, y2,... Observation innovations: e1, e2,... Unknown parameters: c1, c2,... State equations: x1(t) = (c1)x1(t-1) + (c3)x2(t-1) + (c4)x3(t-1) + u1(t) x2(t) = u1(t) x3(t) = (c2)x1(t-1) + (c5)x3(t-1) + (c6)x4(t-1) + u2(t) x4(t) = u2(t) Observation equations: y1(t) = x1(t) + (c7)e1(t) y2(t) = x3(t) + (c8)e2(t) Initial state distribution: Initial state means are not specified. Initial state covariance matrix is not specified. State types are not specified.

Estimate the model parameters, and use a random set of initial parameter values for optimization. Restrict the estimate of $${\sigma}_{1}$$ and $${\sigma}_{2}$$ to all positive, real numbers using the `'lb'`

name-value pair argument. For numerical stability, specify the Hessian when the software computes the parameter covariance matrix, using the `'CovMethod'`

name-value pair argument.

rng(1); params0 = rand(8,1); [EstMdl,estParams] = estimate(Mdl,isY,params0,... 'lb',[-Inf -Inf -Inf -Inf -Inf -Inf 0 0],'CovMethod','hessian');

Method: Maximum likelihood (fmincon) Sample size: 51 Logarithmic likelihood: -170.92 Akaike info criterion: 357.84 Bayesian info criterion: 373.295 | Coeff Std Err t Stat Prob ---------------------------------------------------- c(1) | 0.06750 0.16548 0.40791 0.68334 c(2) | -0.01372 0.05887 -0.23302 0.81575 c(3) | 2.71200 0.27045 10.02772 0 c(4) | 0.83816 2.84586 0.29452 0.76836 c(5) | 0.06273 2.83471 0.02213 0.98234 c(6) | 0.05197 2.56873 0.02023 0.98386 c(7) | 0.00609 2.40759 0.00253 0.99798 c(8) | 0.00035 0.13942 0.00253 0.99798 | | Final State Std Dev t Stat Prob x(1) | -0.00000 0.00609 -0.00075 0.99941 x(2) | 0.12237 0.92954 0.13164 0.89527 x(3) | 0.04049 0.00035 114.80618 0 x(4) | 0.01183 0.00036 32.42504 0

`EstMdl`

is an `ssm`

model, and you can access its properties using dot notation.

Filter the estimated, state-space model, and extract the filtered states and their variances from the final period.

[~,~,Output] = filter(EstMdl,isY);

Modify the estimated, state-space model so that the initial state means and covariances are the filtered states and their covariances of the final period. This sets up simulation over the forecast horizon.

EstMdl1 = EstMdl; EstMdl1.Mean0 = Output(end).FilteredStates; EstMdl1.Cov0 = Output(end).FilteredStatesCov;

Simulate `5e5`

paths of observations from the fitted, state-space model `EstMdl`

. Specify to simulate observations for each period.

```
numPaths = 5e5;
SimY = simulate(EstMdl1,10,'NumPaths',numPaths);
```

`SimY`

is a `10`

-by- `2`

-by- `numPaths`

array containing the simulated observations. The rows of `SimY`

correspond to periods, the columns correspond to an observation in the model, and the pages correspond to paths.

Estimate the forecasted observations and their 95% confidence intervals in the forecast horizon.

MCFY = mean(SimY,3); CIFY = quantile(SimY,[0.025 0.975],3);

Estimate the theoretical forecast bands.

[Y,YMSE] = forecast(EstMdl,10,isY); Lb = Y - sqrt(YMSE)*1.96; Ub = Y + sqrt(YMSE)*1.96;

Plot the forecasted observations with their true values and the forecast intervals.

figure h = plot(dates(end-numPeriods-9:end),[isY(end-9:end,1);oosY(:,1)],'-k',... dates(end-numPeriods+1:end),MCFY(end-numPeriods+1:end,1),'.-r',... dates(end-numPeriods+1:end),CIFY(end-numPeriods+1:end,1,1),'-b',... dates(end-numPeriods+1:end),CIFY(end-numPeriods+1:end,1,2),'-b',... dates(end-numPeriods+1:end),Y(:,1),':c',... dates(end-numPeriods+1:end),Lb(:,1),':m',... dates(end-numPeriods+1:end),Ub(:,1),':m',... 'LineWidth',3); xlabel('Period') ylabel('Change in the unemployment rate') legend(h([1,2,4:6]),{'Observations','MC forecasts',... '95% forecast intervals','Theoretical forecasts',... '95% theoretical intervals'},'Location','Best') title('Observed and Forecasted Changes in the Unemployment Rate')

figure h = plot(dates(end-numPeriods-9:end),[isY(end-9:end,2);oosY(:,2)],'-k',... dates(end-numPeriods+1:end),MCFY(end-numPeriods+1:end,2),'.-r',... dates(end-numPeriods+1:end),CIFY(end-numPeriods+1:end,2,1),'-b',... dates(end-numPeriods+1:end),CIFY(end-numPeriods+1:end,2,2),'-b',... dates(end-numPeriods+1:end),Y(:,2),':c',... dates(end-numPeriods+1:end),Lb(:,2),':m',... dates(end-numPeriods+1:end),Ub(:,2),':m',... 'LineWidth',3); xlabel('Period') ylabel('nGNP growth rate') legend(h([1,2,4:6]),{'Observations','MC forecasts',... '95% MC intervals','Theoretical forecasts','95% theoretical intervals'},... 'Location','Best') title('Observed and Forecasted nGNP Growth Rates')

Simulate states from their joint conditional posterior distribution
given the responses by using `simsmooth`

.

[1] Durbin J., and S. J. Koopman. *Time Series
Analysis by State Space Methods*. 2nd ed. Oxford: Oxford
University Press, 2012.

A modified version of this example exists on your system. Do you want to open this version instead?

You clicked a link that corresponds to this MATLAB command:

Run the command by entering it in the MATLAB Command Window. Web browsers do not support MATLAB commands.

Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .

Select web siteYou can also select a web site from the following list:

Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.

- América Latina (Español)
- Canada (English)
- United States (English)

- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)

- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
