# movavg

Moving average of a financial time series

## Syntax

## Description

computes the moving average (MA) of a financial time series.`ma`

= movavg(`Data`

,`type`

,`windowSize`

)

adds an optional argument for `ma`

= movavg(___,`initialPoints`

)`initialPoints`

.

## Examples

### Calculate the Moving Average for a Data Series

Load the file `SimulatedStock.mat`

and compute the moving average using simulated closing price data.

load SimulatedStock.mat type = 'linear'; windowSize = 14; ma = movavg(TMW_CLOSE,type,windowSize)

`ma = `*1000×1*
100.2500
100.3433
100.8700
100.4916
99.9937
99.3603
98.8769
98.6364
98.4348
97.8491
⋮

### Calculate the Leading and Lagging Moving Averages for a Data Series

Load the file `SimulatedStock.mat`

and compute the moving average using simulated closing price data.

load SimulatedStock.mat type = 'linear'; mashort_term=movavg(TMW_CLOSE,type,20) % Short-term moving average

`mashort_term = `*1000×1*
100.2500
100.3423
100.8574
100.4943
100.0198
99.4230
98.9728
98.7509
98.5688
98.0554
⋮

`malong_term=movavg(TMW_CLOSE,type,3) % Long-term moving average`

`malong_term = `*1000×1*
100.2500
100.3580
101.0900
100.4300
99.3183
97.8217
97.0833
97.1950
97.4133
96.1133
⋮

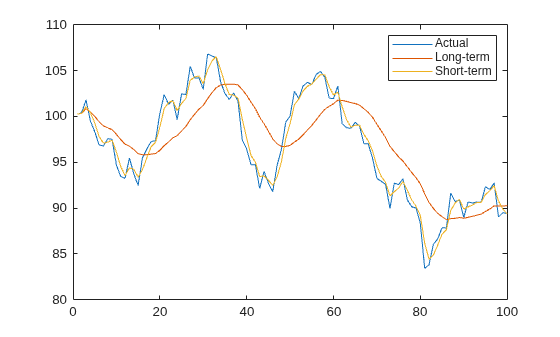

Plot the long-term and short-term moving averages.

plot(TMW_CLOSE(1:100)) hold on plot(malong_term(1:100)) plot(mashort_term(1:100)) hold off legend('Actual','Long-term','Short-term')

## Input Arguments

`Data`

— Data for a financial series

matrix | table | timetable

Data for a financial series, specified as a column-oriented matrix, table, or timetable. Timetables and tables must contain variables with only a numeric type.

**Data Types: **`double`

| `table`

| `timetable`

`type`

— Type of moving average to compute

character vector with value of `'simple'`

,
`'square-root'`

, `'linear'`

,
`'square'`

, `'exponential'`

,
`'triangular'`

, `'modified'`

, or
`'custom'`

| string with value of `"simple"`

,
`"square-root"`

, `"linear"`

,
`"square"`

, `"exponential"`

,
`"triangular"`

, `"modified"`

, or
`"custom"`

Type of moving average to compute, specified as a character vector or string with an associated value.

**Data Types: **`char`

| `string`

`windowSize`

— Number of observations of the input series to include in moving average

positive integer

Number of observations of the input series to include in moving average,
specified as a scalar positive integer. The observations include
(`windowSize`

- 1) previous data points and the current
data point.

**Note**

The `windowSize`

argument applies only to moving
averages whose `type`

is
`'simple'`

, `'square-root'`

,
`'linear'`

, `'square'`

,
`'exponential'`

,
`'triangular'`

, or
`'modified'`

.

**Data Types: **`double`

`weights`

— Custom weights used to compute moving average

vector

Custom weights used to compute the moving average, specified as a vector.

**Note**

The length of weights (*N*) determines the size
of the moving average window (`windowSize`

). The
`weights`

argument applies only to a
`'custom'`

`type`

of moving average.

To compute moving average with custom weights, the weights
(`w`

) are first normalized such that they sum to
one:

`W(i) = w(i)/sum(w), for i = 1,2,...,N`

The normalized weights (`W`

) are then used to form the
*N*-point weighted moving average
(*y*) of the input Data (*x*):

```
y(t) = W(1)*x(t) + W(2)*x(t-1) + ... +
W(N)*x(t-N)
```

The initial moving average values within the window size are then adjusted
according to the method specified in the name-value pair argument
`initialPoints`

.

**Data Types: **`double`

`initialPoints`

— Indicates how moving average is calculated at initial points

`'shrink'`

(default) | character vector with values of `'shrink'`

,
`'fill'`

, or `'zero'`

| string with values of `"shrink"`

,
`"fill"`

, or `"zero"`

(Optional) Indicates how the moving average is calculated at initial points (before there is enough data to fill the window), specified as a character vector or string using one of the following values:

`'shrink'`

- Initializes the moving average such that the initial points include only observed data`'zero'`

- Initializes the initial points with`0`

`'fill'`

- Fills initial points with`NaN`

s

**Note**

The `initialPoints`

argument applies to all
`type`

specifications except for the
`'exponential'`

and `'modified'`

options.

**Data Types: **`char`

| `string`

## Output Arguments

`ma`

— Moving average series

matrix | table | timetable

Moving average series, returned with the same number of rows
(`M`

) and the same type (matrix, table, or timetable)
as the input `Data`

.

## References

[1] Achelis, S. B. *Technical Analysis from A to Z.* Second
Edition. McGraw-Hill, 1995, pp. 184–192.

## Version History

**Introduced before R2006a**

### R2023a: `fints`

support removed for `Data`

input argument

`fints`

object support for the `Data`

input
argument is removed.

### R2018a: `Lead`

and `Lag`

input arguments not supported

The syntax for `movavg`

has changed. There is no longer support
for the input arguments `Lead`

and `Lag`

, only a
single `windowSize`

is supported, and there is only one output
argument (`ma`

). If you want to compute the leading and lagging
moving averages, you need to run `movavg`

twice and adjust the
`windowSize`

.
