NonSquare Jacobi SVD HDL Optimized
Libraries:
FixedPoint Designer HDL Support /
Matrices and Linear Algebra /
Matrix Factorizations
Description
Use the NonSquare Jacobi SVD HDL Optimized block to perform singular value
decomposition (SVD) on nonsquare matrices using QR decomposition and the twosided Jacobi
algorithm. This block consists of a Real PartialSystolic QR
Decomposition or Complex PartialSystolic
QR Decomposition block, depending on your configuration, and a Square Jacobi SVD HDL
Optimized. Given a matrix A with more rows than columns, the
NonSquare Jacobi SVD HDL Optimized block uses QR decomposition to preprocess
the input, then uses the twosided Jacobi method to produce a vector s of
nonnegative elements and unitary matrices U and V such
that A =
U*diag(s)*V'
.
Note
For square matrices, use the Square Jacobi SVD HDL Optimized block.

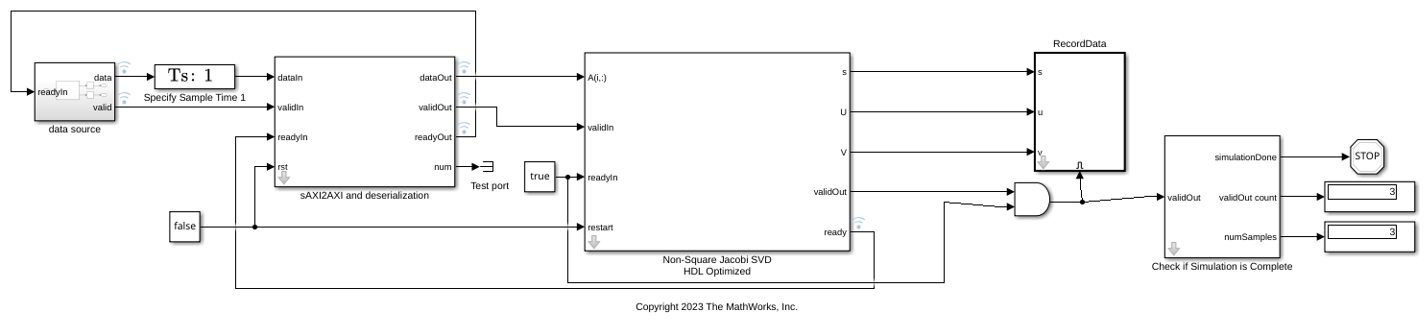

Examples
How to Use NonSquare Jacobi SVD HDL Optimized Block
This example shows how to use the NonSquare Jacobi SVD HDL Optimized block to compute the singular value decomposition (SVD) of nonsquare matrices.
NonSquare TwoSided Jacobi SVD
The NonSquare Jacobi HDL Optimized block uses the QR decomposition and twosided Jacobi algorithm to perform singular value decomposition. Given an input matrix A
with more rows than columns, the block first uses QR decomposition to preprocess the input, then uses the twosided Jacobi method to perform singular value decomposition. Because the Jacobi algorithm can perform such computations in parallel, it is suitable for FPGA and ASIC applications. For more information, see NonSquare Jacobi SVD HDL Optimized.
Define Simulation Parameters
Specify the dimension of the sample matrices, the number of input sample matrices, and the number of iterations of the Jacobi algorithm.
m = 16; n = 8; rankA = 7; numSamples = 3; nIterations = 10;
Generate Input A
Matrices
Use the specified simulation parameters to generate the input matrix A
.
rng('default');
The NonSquare Jacobi SVD HDL Optimized block supports both real and complex inputs. Set the complexity of the input in the block mask accordingly.
complexity = "real"; A = zeros(m,n,numSamples); for k = 1:numSamples switch complexity case 'complex' A(:,:,k) = fixed.example.complexRandomLowRankMatrix(m,n,rankA); case 'real' A(:,:,k) = fixed.example.realRandomLowRankMatrix(m,n,rankA); otherwise error("Complexity must be either 'real' or 'complex'") end end
Select FixedPoint Data Types
Define the desired word length.
wordLength = 25;
Use the upper bound on the singular values to define fixedpoint types that will never overflow. First, use the fixed.singularValueUpperBound
function to determine the upper bound on the singular values.
svdUpperBound = fixed.singularValueUpperBound(m,n,max(abs(A(:))));
Define the integer length based on the value of the upper bound, with one additional bit for the sign, another additional bit for intermediate CORDIC growth, and one more bit for intermediate growth to compute the Jacobi rotations.
additionalBitGrowth = 3; integerLength = ceil(log2(svdUpperBound)) + additionalBitGrowth;
Compute the fraction length based on the integer length and the desired word length.
fractionLength = wordLength  integerLength;
Define the signed fixedpoint data type to be 'Fixed'
or 'ScaledDouble'
. You can also define the type to be 'double'
or 'single'
.
dataType = 'Fixed'; T.A = fi([],1,wordLength,fractionLength,'DataType',dataType); disp(T.A)
[] DataTypeMode: Fixedpoint: binary point scaling Signedness: Signed WordLength: 25 FractionLength: 18
Cast the matrix A
to the signed fixedpoint type.
A = cast(A,'like',T.A);
Configure Model Workspace and Run Simulation
model = 'NonSquareJacobiSVDModel';
load_system(model);

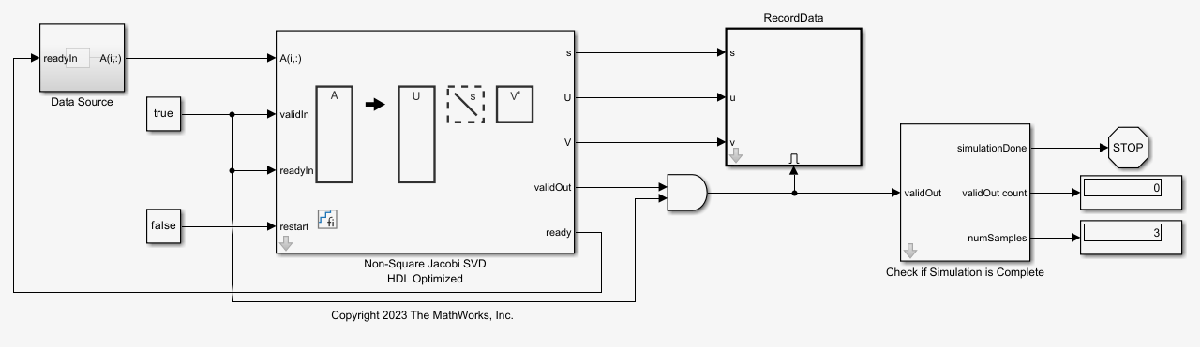

open_system(model);
Set the parameter for real or complex either using set_param, or from the dialog.
set_param('NonSquareJacobiSVDModel/NonSquare Jacobi SVD HDL Optimized','complexity',complexity);
Set the variables in the model workspace.
fixed.example.setModelWorkspace(model,'A',A,'m',m,'n',n,... 'nIterations',nIterations,'numSamples',numSamples); out = sim(model);
Verify Output Solutions
Verify the output solutions. In these steps, "identical" means within roundoff error.
Verify that
U*diag(s)*V'
is identical toA
.relativeErrorUSV
represents the relative error betweenU*diag(s)*V'
andA
.Verify that the singular values
s
are identical to the floatingpoint SVD solution.relativeErrorS
represents the relative error betweens
and the singular values calculated by the MATLAB®svd
function.Verify that
U
andV
are unitary matrices.relativeErrorUU
represents the relative error betweenU'*U
and the identity matrix.relativeErrorVV
represents the relative error betweenV'*V
and the identity matrix.
for i = 1:numSamples disp(['Sample #',num2str(i),':']); a = A(:,:,i); U = out.U(:,:,i); V = out.V(:,:,i); s = out.s(:,:,i); % Verify U*diag(s)*V' if norm(double(a)) > 1 relativeErrorUSV = norm(double(U*diag(s)*V')double(a))/norm(double(a)); else relativeErrorUSV = norm(double(U*diag(s)*V')double(a)); end relativeErrorUSV % Verify s s_expected = svd(double(a)); normS = norm(s_expected); relativeErrorS = norm(double(s)  s_expected); if normS > 1 relativeErrorS = relativeErrorS/normS; end relativeErrorS % Verify U'*U % U'*U will only be unitary up to the rank of A U = double(U); UU = U(:,1:rankA)'*U(:,1:rankA); relativeErrorUU = norm(UU  eye(size(UU))) % Verify V'*V V = double(V); VV = V'*V; relativeErrorVV = norm(VV  eye(size(VV))) disp(''); end
Sample #1:
relativeErrorUSV = 3.3926e04
relativeErrorS = 2.1179e04
relativeErrorUU = 5.0430e05
relativeErrorVV = 5.5371e05

Sample #2:
relativeErrorUSV = 4.3802e04
relativeErrorS = 1.7309e04
relativeErrorUU = 5.7033e05
relativeErrorVV = 4.5943e05

Sample #3:
relativeErrorUSV = 6.3651e04
relativeErrorS = 2.8201e04
relativeErrorUU = 7.3726e05
relativeErrorVV = 7.0250e05

Limitations
To optimize HDL efficiency, if the input matrix A is not full rank, then the output U matrix is orthonormal up to the rank of A. $$A=U*diag(s)*V\text{'}$$ is still valid. V is always orthonormal regardless of the rank of A.
For example, if $$A=\left[\begin{array}{ccc}1& 1& 1\\ 2& 2& 2\\ 3& 3& 3\\ 0.5& 2& 4\end{array}\right]$$, then A has rank 2 and $$U\text{'}\ast U=\left[\begin{array}{ccc}1& 0& 0\\ 0& 1& 0\\ 0& 0& 0.8940\end{array}\right]$$.
If the input matrix is full rank, then $$U\text{'}*U=I$$, where I = eye(n).
Ports
Input
A(i,:) — Rows of matrix A
vector
Row of matrix A, specified as a vector. A is a mbyn matrix where m > 2, n ≥ 2, and m > n.
If A is a fixedpoint data type, A must be signed and use binarypoint scaling. Slopebias representation is not supported for fixedpoint data types.
Tips
The output U matrix is orthonormal up to the rank of input matrix A. For more information, see Limitations.
Data Types: single
 double
 fixed point
Complex Number Support: Yes
validIn — Whether input is valid
scalar
Whether input is valid, specified as a Boolean scalar. This control signal
indicates when the data from the A
input port is valid. When this
value is 1
(true
) and the value at
ready
is 1
(true
), the
block captures the values at the A
input port. When this value is
0
(false
), the block ignores the input
samples.
Tips
After sending a true
validIn
signal, a delay may occur before the
ready
signal is false
. To ensure all data is
processed, you must wait until the ready
signal is
false
before sending another true
validIn
signal.
Data Types: Boolean
readyIn — Whether downstream block is ready
scalar
Whether downstream block is ready, specified as a Boolean
scalar. This control signal monitors the ready
port of the
downstream block. When the readyIn
value is 1
(true
), and the value at validOut
is
1
(true
), the block outputs data to the
downstream block. When the readyIn
value is 0
(false
), the downstream block is not ready to accept data. The
NonSquare Jacobi SVD HDL Optimized block pauses on the output stage
and the ready
signal remains 0
(false
) until the readyIn
signal is
high.
Data Types: Boolean
restart — Whether to clear internal states
scalar
Whether to clear internal states, specified as a Boolean scalar. When this value
is 1 (true
), the block stops the current calculation and clears all
internal states. When this value is 0 (false
) and the
validIn
value is 1 (true
), the block begins a
new subframe.
Data Types: Boolean
Output
s — Singular values
column vector
Singular values, returned as a column vector of length n
. The
Singular Values are nonnegative and returned in descending
order such that s(1) >= s(2) >= ... >= s(n)
. Singular values are
returned with the same data type as the input matrix A
.
Data Types: single
 double
 fixed point
U — Left singular vectors
unitary n
byn
matrix
Left singular vectors, returned as a unitary
n
byn
matrix.
For fixedpoint and scaleddouble inputs, U
is returned as a
signed fixedpoint or scaleddouble fi
with the same word length as
A
and fraction length equal to two less than the word length.
One of these integer bits is used for the sign. The other integer bit allows
+1
to be represented exactly.
For floatingpoint input, U
has the same data type as
A
.
Tips
The output U matrix is orthonormal up to the rank of input matrix A. For more information, see Limitations.
Dependencies
To enable this port, set the Select
outputs parameter to UsV
or
Us
.
Data Types: single
 double
 fixed point
V — Right singular vectors
unitary n
byn
matrix
Right singular vectors, returned as a unitary
n
byn
matrix.
For fixedpoint and scaleddouble inputs, V
is returned as a
signed fixedpoint or scaleddouble fi
with the same word length as
A
and fraction length equal to two less than the word length.
One of these integer bits is used for the sign. The other integer bit allows
+1
to be represented exactly.
For floatingpoint input, V
has the same data type as
A
.
Dependencies
To enable this port, set the Select outputs parameter to
UsV
or sV
.
Data Types: single
 double
 fixed point
validOut — Whether output data is valid
Boolean
scalar
Whether the output data is valid, returned as a Boolean scalar. This control
signal indicates when the data at the output ports U
,
S
, and V
are valid. When this value is
1
(true
), the output data is valid. When this
value is 0
(false
), the output data is not
valid. Transfer of data to the downstream block occurs only when both the
validOut
and readyIn
signals are high.
Data Types: Boolean
ready — Whether block is ready
Boolean
scalar
Whether the block is ready, returned as a Boolean scalar. This control signal
indicates when the block is ready for new input data. When this value is
1
(true
) and the validIn
value is 1
(true
), the block accepts input data
in the next time step. When this value is 0
(false
), the block ignores input data in the next time
step.
Tips
After sending a true
validIn
signal, there may be some delay before the
ready
signal is false
. To ensure all data is
processed, you must wait until the ready
signal is
false
before sending another true
validIn
signal.
Data Types: Boolean
Parameters

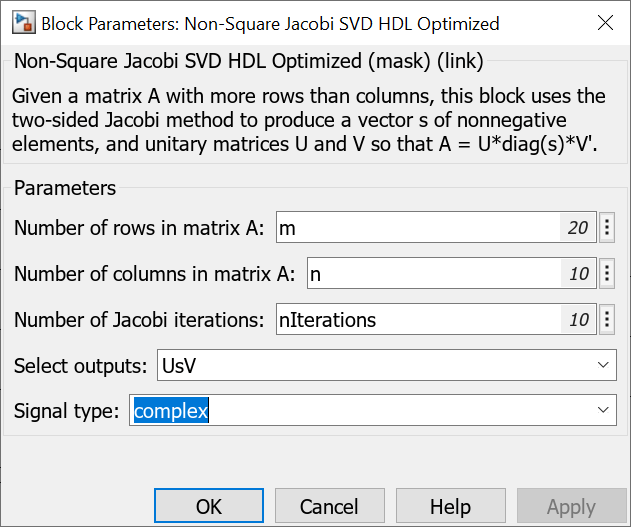

To edit block parameters interactively, use the Property Inspector. From the Simulink^{®} Toolstrip, on the Simulation tab, in the Prepare gallery, select Property Inspector.
Number of rows in matrix A — Number of rows in mbyn matrix A
8
(default)  integervalued scalar where m > 2
and m >
n
Number of rows in mbyn matrix A, specified as an integervalued scalar where m > 2 and m > n.
Programmatic Use
To set the block parameter value programmatically, use
the set_param
function.
To get the block parameter value
programmatically, use the get_param
function.
Parameter:  m
Values:  8 (default)  integervalued scalar where m > 2 and m >
n
Data Types:  char  string
Number of columns in matrix A — Number of columns in mbyn matrix A
4
(default)  integervalued scalar where n ≥ 2
and m >
n
Number of columns in mbyn matrix A, specified as an integervalued scalar where n ≥ 2 and m > n.
Programmatic Use
To set the block parameter value programmatically, use
the set_param
function.
To get the block parameter value
programmatically, use the get_param
function.
Parameter:  n
Values:  4 (default)  integervalued scalar where n ≥ 2 and m >
n
Data Types:  char  string
Number of Jacobi iterations — Number of iterations of Jacobi algorithm
10
(default)  positive integer
Number of iterations of the Jacobi algorithm, specified as a positive integer.
Tips
Most sources indicate that 10 iterations is sufficient for the Jacobi algorithm to converge [7][8][9][10].
When the input is an mby2 matrix, the SVD has a closedform solution and does not require iterative computation. In this case, set the Number of Jacobi iterations to
1
to minimize utilization and latency.
Programmatic Use
To set the block parameter value programmatically, use
the set_param
function.
To get the block parameter value
programmatically, use the get_param
function.
Parameter:  nIterations
Values:  10 (default)  positive integer
Data Types:  char  string
Select outputs — Block outputs
UsV
(default)  Us
 sV
 s
Block outputs, specified as UsV
,
Us
, sV
, or
s
.
Tips
This parameter determines the number of outputs on the block.
Programmatic Use
To set the block parameter value programmatically, use
the set_param
function.
To get the block parameter value
programmatically, use the get_param
function.
Parameter:  outputOption
Values:  UsV (default)  Us  sV  s
Data Types:  char  string
Signal type — Complexity of input matrix A
real
(default)  complex
Complexity of the input matrix A, specified as
real
, or complex
.
Tips
This parameter determines whether the NonSquare Jacobi HDL Optimized block uses a Real PartialSystolic QR Decomposition block or a Complex PartialSystolic QR Decomposition block to preprocess the input.
Programmatic Use
To set the block parameter value programmatically, use
the set_param
function.
To get the block parameter value
programmatically, use the get_param
function.
Parameter:  complexity
Values:  real (default)  complex
Data Types:  char  string
Algorithms
Jacobi Singular Value Decomposition
The NonSquare Jacobi SVD HDL Optimized block uses QR decomposition and a twosided Jacobi algorithm for singular value decomposition (SVD) [2][3][4]. Compared to the sequential GolubKahanReinsch algorithm for SVD [5], the Jacobi algorithm has inherent parallelism and performs better for FPGA and ASIC applications [6]. The Jacobi method is an iterative algorithm. Use the Number of Jacobi iterations parameter to set the number of iterations necessary for convergence. Most sources indicate that 10 iterations is sufficient for the Jacobi algorithm to converge [7][8][9][10].
AMBA AXI Handshake Process
This block uses the AMBA AXI handshake protocol on both the input and the output side
[1]. The
valid/ready
handshake process is used to transfer data and control
information. This twoway control mechanism allows both the manager and subordinate to
control the rate at which information moves between manager and subordinate.
On the input side, the validIn
signal indicates when the upstream
data is available. The ready
signal indicates that the block can accept
the data. Transfer of data from the upstream block occurs only when both the
validIn
and ready
signals are high.
On the output side, the validOut
signal indicates the solution data
is available. The readyIn
signal indicates when the downstream block can
accept data. Transfer of data to the downstream block occurs only when both the
validOut
and readyIn
signals are high.
When the readyIn
signal is low, the block pauses on the output stage
and the ready
signal remains low. This configuration allows a stall from
the downstream block to backpropagate to the upstream block.
To use the NonSquare Jacobi SVD HDL Optimized block in feedforward
fashion without back pressure from the downstream block, feed a constant Boolean
'true'
to the readyIn
port.
Block Timing
The NonSquare Jacobi SVD HDL Optimized block accepts the matrix A row by row. After accepting m rows, the block outputs U, s, and V.
For example, assume that validIn
asserts before
ready
, meaning that the upstream data source is faster than the
NonSquare Jacobi SVD HDL Optimized block. Additionally, assume that
readyIn
is always asserted, meaning that the downstream consumer of the
data is faster than the Square Jacobi SVD HDL Optimized.
In the figure:
A1r1
is the first row of the first A matrix,s1
is the first s vector, and so on.validIn
toready
— From a successful row input to the block being ready to accept the next row.Last row
validIn
tovalidOut
— From the last row input to the block starting to output the solution.
The latency of the NonSquare Jacobi SVD HDL Optimized block depends on
the size (m
, n
), complexity, and word length
(wl
) of the input matrix A, the number of iterations
(nIterations
) of the twosided Jacobi algorithm, and whether the output
U
is selected, as summarized in the tables.
If the data type of A is fixed point, then
wl
is the word length.If the data type of A is double precision, then
wl
is53
.If the data type of A is single precision, then
wl
is24
.
Signal type (  Select outputs (  validIn to ready

 UsV or Us
max([wl+7,ceil(((wl*2+31)*(n1+rem(n,2))*nIterations+2+nextpow2(n)*(nextpow2(n)+1)/2+3+2)/m),ceil((m*n+1)/m)])
 sV or s
max([wl+7,ceil(((wl*2+31)*(n1+rem(n,2))*nIterations+2+nextpow2(n)*(nextpow2(n)+1)/2+3+2)/m)])
 UsV or Us
max([wl+9,ceil(((wl*6+48)*(n1+rem(n,2))*nIterations+2+nextpow2(n)*(nextpow2(n)+1)/2+3+2)/m),ceil((m*n+1)/m)])
 sV or s
max([wl+9,ceil(((wl*6+48)*(n1+rem(n,2))*nIterations+2+nextpow2(n)*(nextpow2(n)+1)/2+3+2)/m])
Signal type (  Select outputs (  Last row validIn to validOut

 UsV or Us
((wl+6)*n)+6+2+(wl*2+31)*(n1+rem(n,2))*nIterations+2+nextpow2(n)*(nextpow2(n)+1)/2+3+m*n+1
 sV or s
((wl+6)*n)+6+2+(wl*2+31)*(n1+rem(n,2))*nIterations+2+nextpow2(n)*(nextpow2(n)+1)/2+3
 UsV or Us
((wl+7.5)*2*n)+6+2+(wl*6+48)*(n1+rem(n,2))*nIterations+2+nextpow2(n)*(nextpow2(n)+1)/2+3+m*n+1
 sV or s
((wl+7.5)*2*n)+6+2+(wl*6+48)*(n1+rem(n,2))*nIterations+2+nextpow2(n)*(nextpow2(n)+1)/2+3
Hardware Resource Utilization
This block supports HDL code generation using the Simulink HDL Workflow Advisor. For an example, see HDL Code Generation and FPGA Synthesis from Simulink Model (HDL Coder) and Implement Digital Downconverter for FPGA (DSP HDL Toolbox).
This example data was generated by synthesizing the block on a Xilinx^{®} Zynq^{®} UltraScale+™ RFSoC ZCU111 evaluation board. The synthesis tool was Vivado^{®} v2022.1 (win64).
The following parameters were used for synthesis.
Block parameters:
n = 8
nIterations = 10
Input data type:
sfix16_En12
Target frequency: 100 MHz
The following tables show the post placeandroute resource utilization results and timing summary, respectively.
Resource  Usage  Available  Utilization

CLB LUTs  1.0238e+05  425280  24.07
CLB Registers  82768  850560  9.73
DSPs  72  4272  1.69
Block RAM Tile  0  1080  0
URAM  0  80  0
Value

Requirement  10 ns (100 MHz)
Data Path Delay  8.739 ns
Slack  1.243 ns
Clock Frequency  114.19 MHz
The following parameters were used for synthesis.
Block parameters:
n = 8
nIterations = 10
Input data type:
sfix16_En12
Target frequency: 100 MHz
These tables show the post placeandroute resource utilization results and timing summary, respectively.
Resource  Usage  Available  Utilization

CLB LUTs  2.8337e+05  425280  66.63
CLB Registers  2.2146e+05  850560  26.04
DSPs  368  4272  8.61
Block RAM Tile  0  1080  0
URAM  0  80  0
Value

Requirement  10 ns (100 MHz)
Data Path Delay  9.481 ns
Slack  0.499 ns
Clock Frequency  105.25 MHz
References
[1] Arm Developer. "AMBA AXI and ACE Protocol Specification Version E." https://developer.arm.com/documentation/ihi0022/e/AMBAAXI3andAXI4ProtocolSpecification/SingleInterfaceRequirements/Basicreadandwritetransactions/Handshakeprocess.
[2] Jacobi, Carl G. J., "Über ein leichtes Verfahren die in der Theorie der Säcularstörungen vorkommenden Gleichungen numerisch aufzulösen." Journal fur die reine und angewandte Mathematik 30 (1846): 51–94.
[3] Forsythe, George E. and Peter Henrici. "The Cyclic Jacobi Method for Computing the Principal Values of a Complex Matrix." Transactions of the American Mathematical Society 94, no. 1 (January 1960): 123.
[4] Shiri, Aidin and Ghader Khosroshahi. "An FPGA Implementation of Singular Value Decomposition", ICEE 2019: 27th Iranian Conference on Electrical Engineering, Yazd, Iran, April 30–May 2, 2019, 41622, IEEE.
[5] Golub, Gene H. and Charles F. Van Loan. Matrix Computations, 4th ed. Baltimore, MD: Johns Hopkins University Press, 2013.
[6] Athi, Mrudula V., Seyed R. Zekavat, and Alan A. Struthers. "RealTime Signal Processing of Massive Sensor Arrays via a Parallel Fast Converging SVD Algorithm: Latency, Throughput, and Resource Analysis." IEEE Sensors Journal 16, no. 18 (January 2016): 251926. https://doi.org/10.1109/JSEN.2016.2517040.
[7] Brent, Richard P., Franklin T. Luk, and Charles Van Loan. "Computation of the Singular Value Decomposition Using MeshConnected Processors." Journal of VLSI and Computer Systems 1, 3 (1985): 242–70.
[8] Hemkumar, Nariankadu D. A Systolic VLSI Architecture for Complex SVD. Master’s thesis, Rice University, 1991.
[9] Duryea, R. A. Finite Precision Arithmetic in Singular Value Decomposition Architectures. Ph.D. thesis, Cornell University, 1987.
[10] Cavallaro, Joseph R. and Franklin T. Luk. 1987. "CORDIC Arithmetic for an SVD Processor." 1987 IEEE 8th Symposium on Computer Arithmetic (ARITH), Como, Italy, May 1821, 1987, 11320. IEEE. https://doi.org/10.1109/ARITH.1987.6158686.
Extended Capabilities
HDL Code Generation
Generate VHDL, Verilog and SystemVerilog code for FPGA and ASIC designs using HDL Coder™.
Note
When generating code for large matrices set the configuration parameter
HDL Code Generation > Global Settings > Ports tab
Check for DUT pin count exceeding I/O Threshold to
Warning
or None
. To learn more about this setting,
see Check for DUT pin count exceeding I/O Threshold (HDL Coder).
HDL Coder™ provides additional configuration options that affect HDL implementation and synthesized logic.
This block has one default HDL architecture.
General

ConstrainedOutputPipeline  Number of registers to place at
the outputs by moving existing delays within your design. Distributed
pipelining does not redistribute these registers. The default is

InputPipeline  Number of input pipeline stages
to insert in the generated code. Distributed pipelining and constrained
output pipelining can move these registers. The default is

OutputPipeline  Number of output pipeline stages
to insert in the generated code. Distributed pipelining and constrained
output pipelining can move these registers. The default is

Supports fixedpoint data types only. Fixedpoint data types must use signed binarypoint scaling. Slope and bias scaling and unsigned fixedpoint types are not supported.
Version History
Introduced in R2023b
MATLAB Command
You clicked a link that corresponds to this MATLAB command:
Run the command by entering it in the MATLAB Command Window. Web browsers do not support MATLAB commands.
Select a Web Site
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
You can also select a web site from the following list:
How to Get Best Site Performance
Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.
Americas
 América Latina (Español)
 Canada (English)
 United States (English)
Europe
 Belgium (English)
 Denmark (English)
 Deutschland (Deutsch)
 España (Español)
 Finland (English)
 France (Français)
 Ireland (English)
 Italia (Italiano)
 Luxembourg (English)
 Netherlands (English)
 Norway (English)
 Österreich (Deutsch)
 Portugal (English)
 Sweden (English)
 Switzerland
 United Kingdom (English)
