# Replace Piecewise-Constant Resistor with Switched Linear Components

This example shows how to convert a Simscape™ model that has a `Piecewise-Constant Resistor`

(nonlinear component) into a switched linear model, making it compatible with Simscape Hardware-in-the-Loop (HIL) workflow.

### Introduction

Simscape HIL workflow supports conversion of Simscape models to functionally equivalent Simulink® models that are compatible for HDL code generation. In this example, the model uses a `Piecewise-Constant Resistor`

that is event based. Events are not supported by the Simscape HIL workflow. You can convert such Simscape models to a switched linear model and make it compatible for HDL code generation. For more information, see Generate HDL Code for Simscape Models.

Open the Simscape model from the MATLAB® command prompt.

NonlinearModel = 'sschdlexVariableResistorExample'; open_system(NonlinearModel) set_param(NonlinearModel, 'SimulationCommand', 'update');

Open the Simscape subsystem.

```
open_system([NonlinearModel,'/Simscape Subsystem'])
```

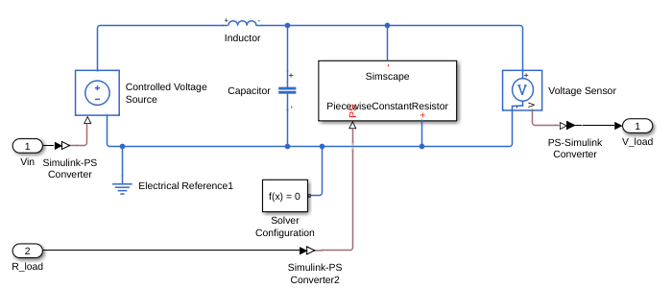

This model is an RLC circuit with a `Piecewise-Constant Resistor`

acting as a "Load" resistance. For the `Piecewise-Constant Resistor`

, the relationship between voltage and current is , where is the numerical value presented at the physical signal port .

To ensure a positive value for the resistance, any value below `1e-6`

is replaced by `1e-6`

. This resistor is piecewise-constant because the resistance only changes when the input value differs from the current resistance value by more than the set tolerance. Thus, a continuously changing input is converted to a discrete set of resistances.

In this model, the signal going into the `Piecewise-Constant Resistor`

is a step function that changes from 2 to 3 at `t = 0.1`

thus changing the load resistance from 2 Ω to 3 Ω.

Open the Simscape HDL Workflow Advisor using `sschdladvisor`

function.

sschdladvisor(NonlinearModel)

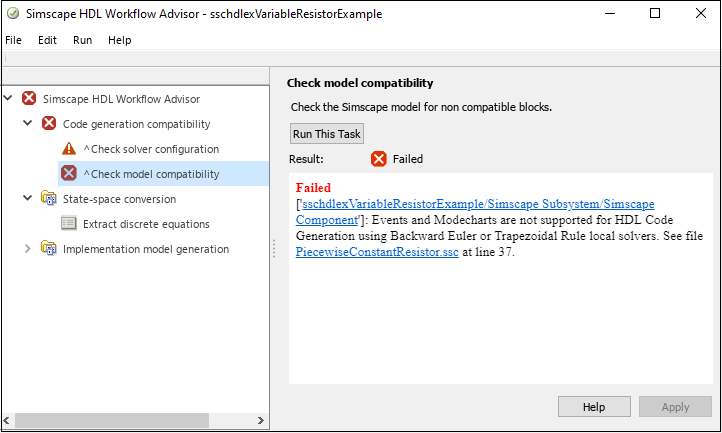

In the Simscape HDL Workflow Advisor, right-click the **Code generation compatibility** > **Check model compatibility** task and select **Run to Selected Task**. This task fails because of the presence of the `Piecewise-Constant Resistor`

.

### Replace Piecewise-Constant Resistor with Switches and Constant Resistors

To convert this model to an equivalent switched linear model, replace the Piecewise-Constant Resistor with a set of switches and resistors for each desired value. Open the switched linear version of the model.

SwitchedLinearModel = 'sschdlexVariableResistorSwitchedLinearExample'; open_system(SwitchedLinearModel) set_param(SwitchedLinearModel, 'SimulationCommand', 'update');

Instead of a `Piecewise-Constant Resistor`

, the model uses a resistor and a switch for each desired resistance. In particular, it uses a resistance of 2 Ω and the other with a resistance of 3 Ω. By closing and opening the switches at `t = 0.1`

, the model changes the load resistance from 2 Ω to 3 Ω.

```
open_system([SwitchedLinearModel,'/Simscape Subsystem'])
```

**Controlling the Switches**

Open the control signals for the switches.

```
open_system([SwitchedLinearModel,'/Input'])
```

The input signal `V_switch`

contains two step functions, one that opens the switch in series with the 2 Ω resistor at `t = 0.1`

and one that closes the switch in series with the 3 Ω resistor at the same time.

### Generate HDL Implementation Model

Use the default **Solver Configuration** settings for the switched linear model:

Solver type:

`Backward Euler`

Sample time:

`1e-3`

In the model window, you can view the model statistics. Select the **Debug** tab and click **Simscape > Statistics Viewer**. This opens the Simscape Statistics window for `sschdlexVariableResistorExample`

model.

Open the Simscape HDL Workflow Advisor for the switched linear model.

sschdladvisor(SwitchedLinearModel)

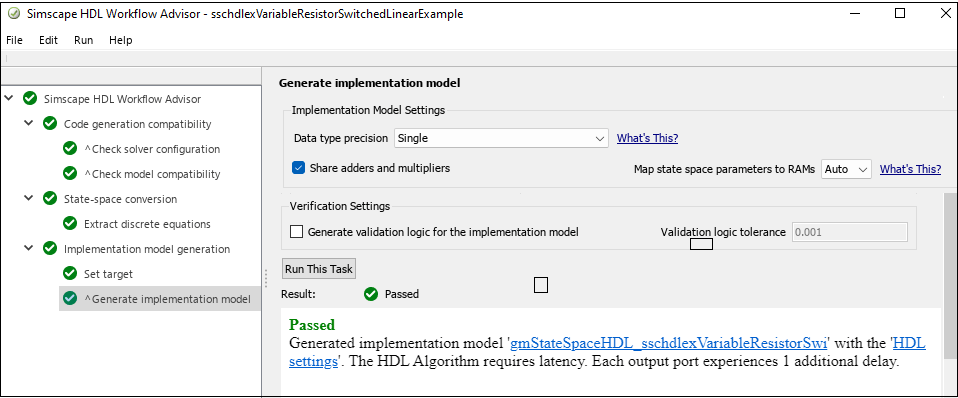

To generate the HDL implementation model, right-click the **Implementation model generation** > **Generate implementation model** task, and then select **Run to Selected Task**.

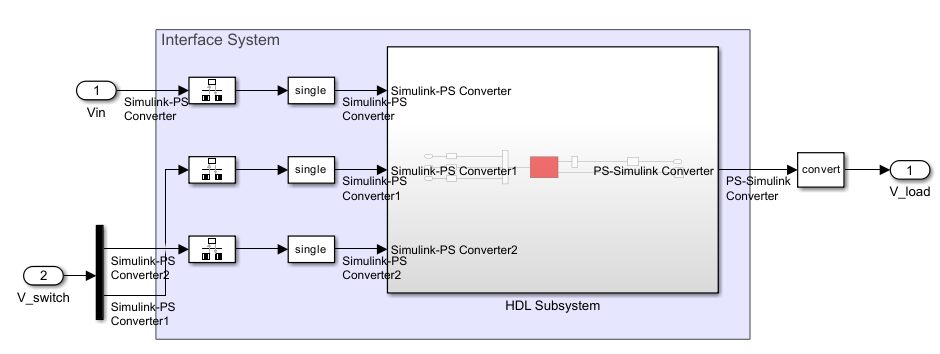

After the last task passes, it creates a link to the HDL implementation model `gmStateSpaceHDL_sschdlexVariableResistorSwi`

.

Click on this link to open the generated implementation model.

In the right pane, the **Extract discrete equations** task output displays the number of states, inputs, outputs, modes, differential variables, and state-space representation for the Simscape network.

### Generate HDL Code

To set up model parameters for HDL code generation, run the `hdlsetup`

function.

```
hdlsetup('gmStateSpaceHDL_sschdlexVariableResistorSwi')
```

Save the parameters for the HDL implementation model.

```
hdlsaveparams('gmStateSpaceHDL_sschdlexVariableResistorSwi')
```

Enable generation of the resource utilization report.

hdlset_param('gmStateSpaceHDL_sschdlexVariableResistorSwi', 'ResourceReport', 'on') hdlset_param('gmStateSpaceHDL_sschdlexVariableResistorSwi', 'MaskParameterAsGeneric', 'off');

Generate HDL code for the implementation model.

```
makehdl('gmStateSpaceHDL_sschdlexVariableResistorSwi/Simscape Subsystem/HDL Subsystem');
```

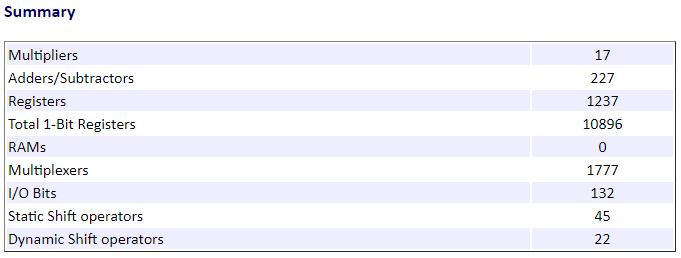

When you generate code, HDL Coder creates a code generation report. The resource utilization report in the **High-level Resource Report** indicates the number of adders, multipliers, and registers that might be consumed on the target FPGA device.

By changing the `Piecewise-Constant Resistor`

to resistors that switch on and off, you change the model to a form that is compatible with the Simscape to HDL workflow.
