# ar

Estimate parameters of AR model or ARI model for scalar time series

## Syntax

``sys = ar(y,n)``
``````sys = ar(y,n,approach,window)``````
``sys = ar(y,n,___,Name,Value)``
``sys = ar(y,n,___,opt)``
``````[sys,refl] = ar(y,n,approach,___)``````

## Description

example

````sys = ar(y,n)` estimates the parameters of an AR `idpoly` model `sys` of order `n` using a least-squares method. The model properties include covariances (parameter uncertainties) and estimation goodness of fit.```

example

``````sys = ar(y,n,approach,window)``` uses the algorithm specified by `approach` and the prewindowing and postwindowing specification in `window`. To specify `window` while accepting the default value for `approach`, use `[]` in the third position of the syntax.```

example

````sys = ar(y,n,___,Name,Value)` specifies additional options using one or more name-value pair arguments. For instance, using the name-value pair argument `'IntegrateNoise',1` estimates an ARI model, which is useful for systems with nonstationary disturbances. Specify `Name,Value` after any of the input argument combinations in the previous syntaxes.```

example

````sys = ar(y,n,___,opt)` specifies estimation options using the option set `opt`.```

example

``````[sys,refl] = ar(y,n,approach,___)``` returns an AR model along with the reflection coefficients `refl` when `approach` is the lattice-based method `'burg'` or `'gl'`.```

## Examples

collapse all

Estimate an AR model and compare its response with the measured output.

Load the data, which contains the time series `z9` with noise.

`load iddata9 z9`

Estimate a fourth-order AR model.

`sys = ar(z9,4)`
```sys = Discrete-time AR model: A(z)y(t) = e(t) A(z) = 1 - 0.8369 z^-1 - 0.4744 z^-2 - 0.06621 z^-3 + 0.4857 z^-4 Sample time: 0.0039062 seconds Parameterization: Polynomial orders: na=4 Number of free coefficients: 4 Use "polydata", "getpvec", "getcov" for parameters and their uncertainties. Status: Estimated using AR ('fb/now') on time domain data "z9". Fit to estimation data: 79.38% FPE: 0.5189, MSE: 0.5108 ```

The output displays the polynomial containing the estimated parameters alongside other estimation details. Under `Status`, `Fit to estimation data` shows that the estimated model has 1-step-ahead prediction accuracy above 75%.

You can find additional information about the estimation results by exploring the estimation report, `sys.Report`. For instance, you can retrieve the parameter covariance.

`covar = sys.Report.Parameters.FreeParCovariance`
```covar = 4×4 0.0015 -0.0015 -0.0005 0.0007 -0.0015 0.0027 -0.0008 -0.0004 -0.0005 -0.0008 0.0028 -0.0015 0.0007 -0.0004 -0.0015 0.0014 ```

Given a sinusoidal signal with noise, compare the spectral estimates of Burg's method with those found using the forward-backward approach.

Generate an output signal and convert it into an `iddata` object.

```y = sin([1:300]') + 0.5*randn(300,1); y = iddata(y);```

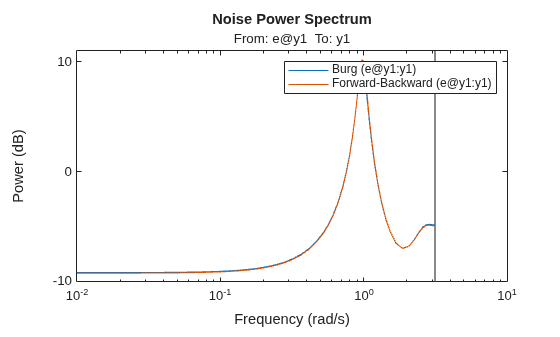

Estimate fourth-order AR models using Burg's method and using the default forward-backward approach. Plot the model spectra together.

```sys_b = ar(y,4,'burg'); sys_fb = ar(y,4); spectrum(sys_b,sys_fb) legend('Burg','Forward-Backward')``` The two responses match closely throughout most of the frequency range.

Estimate an ARI model, which includes an integrator in the noise source.

Load the data, which contains the time series `z9` with noise.

`load iddata9 z9`

Integrate the output signal.

`y = cumsum(z9.y);`

Estimate an AR model with `'IntegrateNoise'` set to `true`. Use the least-squares method `'ls'`. Because `y` is a vector and not an `iddata` object, specify `Ts`.

```Ts = z9.Ts; sys = ar(y,4,'ls','Ts',Ts,'IntegrateNoise',true);```

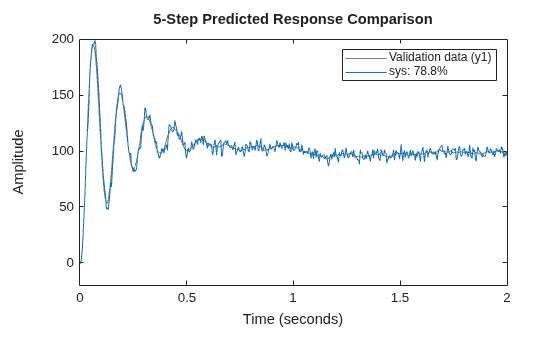

Predict the model output using 5-step prediction and compare the result with the integrated output signal `y`.

`compare(y,sys,5)` Modify the default options for the `AR` function.

Load the data, which contains a time series `z9` with noise.

`load iddata9 z9`

Modify the default options so that the function uses the `'ls'` approach and does not estimate covariance.

`opt = arOptions('Approach','ls','EstimateCovariance',false)`
```opt = Option set for the ar command: Approach: 'ls' Window: 'now' DataOffset: 0 EstimateCovariance: 0 MaxSize: 250000 Description of options ```

Estimate a fourth-order AR model using the updated options.

`sys = ar(z9,4,opt);`

Retrieve reflection coefficients and loss functions when using Burg's method.

Lattice-based approaches such, as Burg's method `'burg'` and geometric lattice `'gl'`, compute reflection coefficients and corresponding loss function values as part of the estimation process. Use a second output argument to retrieve these values.

Generate an output signal and convert it into an `iddata` object.

```y = sin([1:300]') + 0.5*randn(300,1); y = iddata(y);```

Estimate a fourth-order AR model using Burg's method and include an output argument for the reflection coefficients.

```[sys,refl] = ar(y,4,'burg'); refl```
```refl = 2×5 0 -0.3562 0.4430 0.5528 0.2385 0.8494 0.7416 0.5960 0.4139 0.3904 ```

## Input Arguments

collapse all

Time-series data, specified as one of the following:

• An `iddata` object that contains a single output channel and an empty input channel.

• A double column vector containing output-channel data. When you specify `y` as a vector, you must also specify the sample time `Ts`.

Model order, specified as a positive integer. The value of `n` determines the number of A parameters in the AR model.

Example: `ar(idy,2)` computes a second-order AR model from the single-channel `iddata` object `idy`

Algorithm for computing the AR model, specified as one of the following values:

• `'burg'`: Burg's lattice-based method. Solves the lattice filter equations using the harmonic mean of forward and backward squared prediction errors.

• `'fb'`: (Default) Forward-backward approach. Minimizes the sum of a least-squares criterion for a forward model, and the analogous criterion for a time-reversed model.

• `'gl'`: Geometric lattice approach. Similar to Burg's method, but uses the geometric mean instead of the harmonic mean during minimization.

• `'ls'`: Least-squares approach. Minimizes the standard sum of squared forward-prediction errors.

• `'yw'`: Yule-Walker approach. Solves the Yule-Walker equations, formed from sample covariances.

All of these algorithms are variants of the least-squares method. For more information, see Algorithms .

Example: `ar(idy,2,'ls')` computes an AR model using the least-squares approach

Prewindowing and postwindowing outside the measured time interval (past and future values), specified as one of the following values:

• `'now'`: No windowing. This value is the default except when you set `approach` to `'yw'`. Only measured data is used to form regression vectors. The summation in the criteria starts at the sample index equal to `n+1`.

• `'pow'`: Postwindowing. Missing end values are replaced with zeros and the summation is extended to time `N+n` (`N` is the number of observations).

• `'ppw'`: Prewindowing and postwindowing. The software uses this value whenever you select the Yule-Walker approach `'yw'`, regardless of your `window` specification.

• `'prw'`: Prewindowing. Missing past values are replaced with zeros so that the summation in the criteria can start at time equal to zero.

Example: `ar(idy,2,'yw','ppw')` computes an AR model using the Yule-Walker approach with prewindowing and postwindowing.

Estimation options for AR model identification, specified as an `arOptions` option set. `opt` specifies the following options:

• Estimation approach

• Data windowing technique

• Data offset

• Maximum number of elements in a segment of data

For more information, see `arOptions`. For an example, see Modify Default Options.

### Name-Value Pair Arguments

Specify optional comma-separated pairs of `Name,Value` arguments. `Name` is the argument name and `Value` is the corresponding value. `Name` must appear inside quotes. You can specify several name and value pair arguments in any order as `Name1,Value1,...,NameN,ValueN`.

Example: `'IntegrateNoise',true` adds an integrator in the noise source

Sample time, specified as the comma-separated pair consisting of `'Ts'` and the sample time in seconds. If `y` is a double vector, then you must specify `'Ts'`.

Example: `ar(y_signal,2,'Ts',0.08)` computes a second-order AR model with sample time of 0.08 seconds

Noise-channel integration option for estimating ARI models, specified as the comma-separated pair consisting of `'IntegrateNoise'` and a logical. Noise integration is useful in cases where the disturbance is nonstationary.

When using `'IntegrateNoise'`, you must also integrate the output-channel data. For an example, see ARI Model.

## Output Arguments

collapse all

AR or ARI model that fits the given estimation data, returned as a discrete-time `idpoly` model object. This model is created using the specified model orders, delays, and estimation options.

Information about the estimation results and options used is stored in the `Report` property of the model. `Report` has the following fields.

Report FieldDescription
`Status`

Summary of the model status, which indicates whether the model was created by construction or obtained by estimation.

`Method`

Estimation command used.

`Fit`

Quantitative assessment of the estimation, returned as a structure. See Loss Function and Model Quality Metrics for more information on these quality metrics. The structure has the following fields:

FieldDescription
`FitPercent`

Normalized root mean squared error (NRMSE) measure of how well the response of the model fits the estimation data, expressed as the percentage `fit` = 100(1-NRMSE).

`LossFcn`

Value of the loss function when the estimation completes.

`MSE`

Mean squared error (MSE) measure of how well the response of the model fits the estimation data.

`FPE`

Final prediction error for the model.

`AIC`

Raw Akaike Information Criteria (AIC) measure of model quality.

`AICc`

Small sample-size corrected AIC.

`nAIC`

Normalized AIC.

`BIC`

Bayesian Information Criteria (BIC).

`Parameters`

Estimated values of model parameters.

`OptionsUsed`

Option set used for estimation. If no custom options were configured, this is a set of default options. See `arOptions` for more information.

`RandState`

State of the random number stream at the start of estimation. Empty, `[]`, if randomization was not used during estimation. For more information, see `rng`.

`DataUsed`

Attributes of the data used for estimation, returned as a structure with the following fields:

FieldDescription
`Name`

Name of the data set.

`Type`

Data type.

`Length`

Number of data samples.

`Ts`

Sample time.

`InterSample`

Input intersample behavior, returned as one of the following values:

• `'zoh'` — Zero-order hold maintains a piecewise-constant input signal between samples.

• `'foh'` — First-order hold maintains a piecewise-linear input signal between samples.

• `'bl'` — Band-limited behavior specifies that the continuous-time input signal has zero power above the Nyquist frequency.

`InputOffset`

Offset removed from time-domain input data during estimation. For nonlinear models, it is `[]`.

`OutputOffset`

Offset removed from time-domain output data during estimation. For nonlinear models, it is `[]`.

For more information on using `Report`, see Estimation Report.

Reflection coefficients and loss functions, returned as a 2-by-2 array. For the two lattice-based approaches `'burg'` and `'gl'`, `refl` stores the reflection coefficients in the first row and the corresponding loss function values in the second row. The first column of `refl` is the zeroth-order model, and the `(2,1)` element of `refl` is the norm of the time series itself. For an example, see Retrieve Reflection Coefficients for Burg's Method.

collapse all

### AR (Autoregressive) Model

The AR model structure has no input, and is given by the following equation:

`$A\left(q\right)y\left(t\right)=e\left(t\right)$`

This model structure accommodates estimation for scalar time-series data, which have no input channel. The structure is a special case of the ARX structure.

### ARI (Autoregressive Integrated) Model

The ARI model is an AR model with an integrator in the noise channel. The ARI model structure is given by the following equation:

`$A\left(q\right)y\left(t\right)=\frac{1}{1-{q}^{-1}}e\left(t\right)$`

## Algorithms

AR and ARI model parameters are estimated using variants of the least-squares method. The following table summarizes the common names for methods with a specific combination of `approach` and `window` argument values.

MethodApproach and Windowing
Modified covariance method(Default) Forward-backward approach with no windowing
Correlation methodYule-Walker approach with prewindowing and postwindowing
Covariance methodLeast squares approach with no windowing. `arx` uses this routine

 Marple, S. L., Jr. Chapter 8. Digital Spectral Analysis with Applications. Englewood Cliffs, NJ: Prentice Hall, 1987.
