nlhwPlot
Plot input and output nonlinearity, and linear responses of Hammerstein-Wiener model
Since R2023a
Syntax
Description
nlhwPlot(
plots the input and output
nonlinearity, and linear responses of a Hammerstein-Wiener model on a Hammerstein-Wiener
plot. The plot shows the responses of the input and output
nonlinearity, and linear blocks that represent the model.model
)
nlhwPlot(model1,...,modelN)
generates the plot for multiple
models.
nlhwPlot(model1,LineSpec1...,modelN,LineSpecN)
specifies the line style
for each model. You do not need to specify the line style for all models.
nlhwPlot(___,
specifies plot
properties using additional options specified by one or more
Name,Value
)Name,Value
pair arguments. This syntax can include any
of the input argument combinations in the previous syntaxes.
Examples
Plot Input and Output Nonlinearity and Linear Response of a Hammerstein-Wiener Model
Estimate a Hammerstein-Wiener Model and plot responses of its input and output nonlinearity and linear blocks.

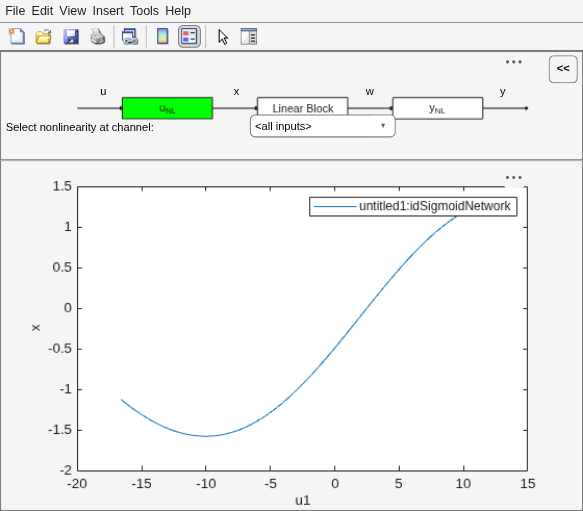

load iddata3 model1 = nlhw(z3,[4 2 1],idSigmoidNetwork(2),idGaussianProcess('Matern32')); nlhwPlot(model1)
Explore the various plots in the plot window by clicking one of the three blocks that represent the model:
uNL - Input nonlinearity, representing the static nonlinearity at the input (
model.InputNonlinearity
) to the Linear Block.Linear Block - Step, impulse,Bode and pole-zero plots of the embedded linear model (
model.LinearModel
). By default, a step plot is displayed.yNL - Output nonlinearity, representing the static nonlinearity at the output (
model.OutputNonlinearity
) of the Linear Block.
Specify Line Style for Multiple Hammerstein-Weiner Models
load iddata3 model1 = nlhw(z3,[4 2 1],idSigmoidNetwork(2),idGaussianProcess('Matern32'))
model1 = Hammerstein-Wiener model with 1 output and 1 input Linear transfer function corresponding to the orders nb = 4, nf = 2, nk = 1 Input nonlinearity: Sigmoid network with 2 units Output nonlinearity: Gaussian process function using a Matern32 kernel Sample time: 1 seconds Status: Estimated using NLHW on time domain data "z3". Fit to estimation data: 74.69% FPE: 1.732, MSE: 1.546
model2 = nlhw(z3, [4 2 1],[],'idSigmoidNetwork'); nlhwPlot(model1,'b-',model2,'g')
Specify Number of Samples, Time Samples, and Range of Input Nonlinearity

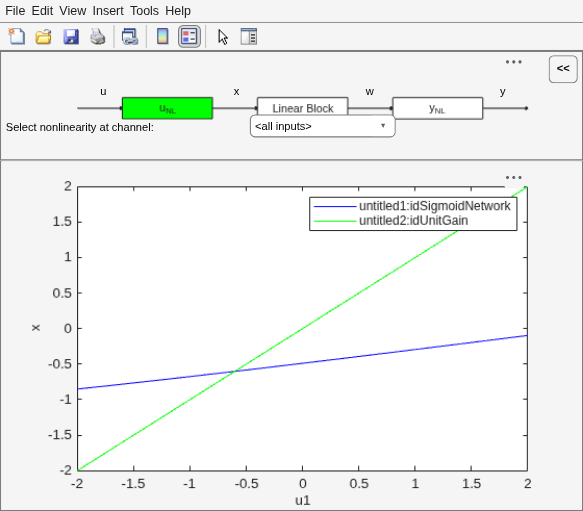

load iddata3 model1 = nlhw(z3,[4 2 1],idSigmoidNetwork(2),idGaussianProcess('Matern32')); model2 = nlhw(z3, [4 2 1],[],'idSigmoidNetwork'); nlhwPlot(model1,'b-',model2,'g','NumberOfSamples',50,'time',10,'InputRange',[-2 2]);
Specify Time Samples, Frequency, and Range of Output Nonlinearity

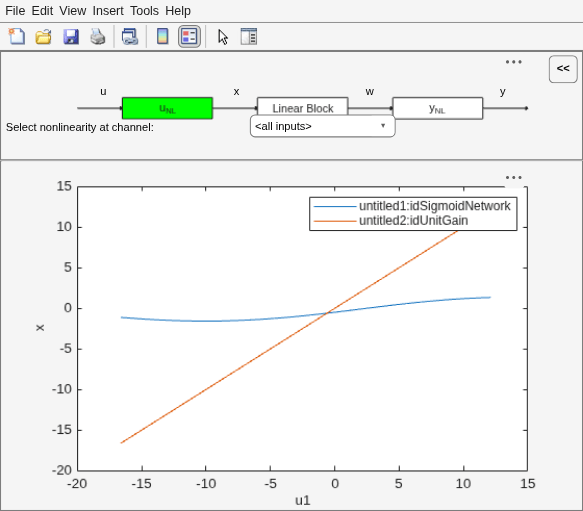

load iddata3 model1 = nlhw(z3,[4 2 1],idSigmoidNetwork(2),idGaussianProcess('Matern32')); model2 = nlhw(z3, [4 2 1],[],'idSigmoidNetwork'); nlhwPlot(model1,model2,'time',1:500,'freq',{0.01,100},'OutputRange',[0 1000]);
Input Arguments
LineSpec
— Line style, marker symbol, and color
character vector
Line style, marker symbol, and color, specified as a character
vector. LineSpec
takes values such as 'b'
, 'b+:'
.
For more information, see the plot
reference
page in the MATLAB® documentation.
Data Types: char
Name-Value Arguments
Specify optional pairs of arguments as
Name1=Value1,...,NameN=ValueN
, where Name
is
the argument name and Value
is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.
Before R2021a, use commas to separate each name and value, and enclose
Name
in quotes.
Example: nlhwPlot(model,'NumberofSamples',10)
specifies to use 10 data
points for the input regressors.
NumberOfSamples
— Number of data points to use for input regressors
100 (default) | positive integer
Number of data points to use for the input regressors when evaluating the nonlinearities at individual input or output channels, specified as a positive integer. This property does not affect the plots of the linear block.
Data Types: double
InputRange
— Minimum and maximum regressor values for evaluating input nonlinearities
range of regressor values used during each
model's estimation. (default) | positive integer | vector
Minimum and maximum regressor values to use when evaluating
the nonlinearities at each input channel, specified as positive integers
or [min max]
vector, where minimum value is less
than the maximum value.
You can use 'uRange'
as a shortcut name for
this property.
Data Types: double
OutputRange
— Minimum and maximum regressor values for evaluating output nonlinearities
range of regressor values used during each
model's estimation (default) | positive integer | vector
Minimum and maximum regressor values to use when evaluating
the nonlinearities at each output channel, specified as positive integers
or [min max]
vector, where minimum value is less
than the maximum value.
You can use 'yRange'
as a shortcut name for
this property.
Data Types: double
Time
— Time samples to compute transient responses of the linear block
each model's dynamics determine the time samples
used (default) | positive scalar | vector
The time samples at which the transient responses (step and
impulse) of the linear block of the idnlhw
model
must be computed, specified as one of the following values:
Positive scalar — Denotes end time for transient responses of all models. For example, 10.
Vector of time instants — A double vector of uniformly sampled values denotes the time samples at which the transient response must be computed. For example, [0:0.1:10].
This property takes the same values as the step
command
on the model.
Frequency
— Frequencies at which to compute the Bode response
automatically chosen inside the Nyquist frequency
range (default) | [min max] range of positive scalars | vector of positive integers
Frequencies at which to compute the Bode response, specified as one of the following values:
[Wmin Wmax]
range — Frequency interval betweenWmin
andWmax
(in unitsrad/(model.TimeUnit)
) covered using logarithmically placed points.Vector of non-negative frequency values — Allows computation of bode response at those frequencies.
By default, the response is computed at some automatically chosen
frequencies inside the Nyquist frequency range. Frequencies above
Nyquist frequency (pi/model.Ts
) are ignored.
This property takes the same values as the bode
command
on the model.
More About
What is a Hammerstein-Wiener Plot?
A Hammerstein-Wiener plot displays the static input and output nonlinearities and linear responses of a Hammerstein-Wiener model.
Examining a Hammerstein-Wiener plot can help you determine whether you have selected a complicated nonlinearity for modeling your system. For example, suppose you use a piecewise-linear input nonlinearity to estimate your model, but the plot indicates saturation behavior. You can estimate a new model using the simpler saturation nonlinearity instead. For multivariable systems, you can use the Hammerstein-Wiener plot to determine whether to exclude nonlinearities for specific channels. If the nonlinearity for a specific input or output channel does not exhibit strong nonlinear behavior, you can estimate a new model after setting the nonlinearity at that channel to unit gain.
You can generate these plots in the System Identification app and at the command line. In the plot window, you can view the nonlinearities and linear responses by clicking one of the three blocks that represent the model:
uNL (input nonlinearity)— Click this block to view the static nonlinearity at the input to the
Linear Block
. The plot displaysevaluate(M.InputNonlinearity,u)
whereM
is the Hammerstein-Wiener model, andu
is the input to the input nonlinearity block. For information about the blocks, see Structure of Hammerstein-Wiener Models.Linear Block
— Click this block to view the Step, impulse, Bode, and pole-zero response plots of the embedded linear model (M.LinearModel
). By default, a step plot of the linear model is displayed.yNL (output nonlinearity) — Click this block to view the static nonlinearity at the output of the
Linear Block
. The plot displaysevaluate(M.OutputNonlinearity,x)
, wherex
is the output of the linear block.
To learn more about how to configure the linear and nonlinear blocks plots, see Configuring a Hammerstein-Wiener Plot.
Version History
Introduced in R2023aR2023a: nlhwPlot
Replaces idnlhw/plot
nlhwPlot
replaces the functionality of the idnlhw/plot
method of
idnlhw
. Other than the function name, there are no
functionality changes.
