nlssest

Estimate nonlinear state-space model using measured time-domain system data

Since R2022b

Syntax

nssEstimated = nlssest(U,Y,nss)

nssEstimated = nlssest(Data,nss)

nssEstimated = nlssest(___,Options)

nssEstimated = nlssest(___,Name=Value)

Description

nssEstimated = nlssest(U,Y,nss) uses measured input and output data sets U and Y, and default training options, to train the state and output networks of the idNeuralStateSpace object nss. It returns the idNeuralStateSpace object nssEstimated with trained state and the output networks.

nssEstimated = nlssest(Data,nss) uses measured input and output data stored in Data, and the default training options, to train the state and output networks of nss.

nssEstimated = nlssest(___,Options) specifies custom training options, which use either the Adam algorithm or SGDM algorithm to train the networks.

nssEstimated = nlssest(___,Name=Value) specifies name-value pair arguments after any of the input argument in the previous syntax. Use name-value pair arguments to specify whether you want to use the last experiment for validation, and the frequency for the validation plots.

Examples

Estimate Neural State-Space System

This example shows how to estimate a neural-state space model with one input and one state equal to the output. First, you collect identification and validation data by simulating a linear system, then use the collected data to estimate and validate a neural state-space system, and finally compare the estimated system to the original linear system used to produce the data.

Define Linear Model for Data Collection

Define a linear time-invariant discrete-time model that can be easily simulated to collect data. For this example, use a low-pass filter with a bandwidth of about 1 rad/sec, discretized with a sample time of 0.1 sec.

Ts = 0.1;
sys = ss(c2d(tf(1,[1 1]),Ts));

The identification of a neural state-space system requires you to have measurement of the system states. Therefore, transform the state-space coordinates so that the output is equal to the state.

sys.b = sys.b*sys.c;
sys.c = 1;

Generate Data Set for Identification

Fix the random generator seed for reproducibility.

rng(0);

Run 1000 simulations each starting at a different initial state and lasting 1 second. Each experiment must use identical time points.

N = 1000;
U = cell(N,1);
Y = cell(N,1);

for i=1:N

    % Each experiment uses random initial state and input sequence
    t = (0:Ts:1)';
    u = 0.5*randn(size(t));
    x0 = 0.5*randn(1,1);

    % Obtain state measurements over t
    x = lsim(sys,u,t,x0);

    % Each experiment in the data set is a timetable
    U{i} = array2timetable(u,RowTimes=seconds(t));
    Y{i} = array2timetable(x,RowTimes=seconds(t));

end

Generate Data Set for Validation

Run one simulation to collect data that will be used to visually inspect training result during the identification progress. The validation data set can have different time points. For this example, simulate the trained model for 10 seconds.

% Use random initial state and input sequence
t = (0:Ts:10)';
u = 0.5*randn(size(t));
x0 = 0.5*randn(1,1);

% Obtain state measurements over t
x = lsim(sys,u,t,x0);

% Append the validation experiment (also a timetable) as the last entry in the data set
U{end+1} = array2timetable(u,RowTimes=seconds(t));
Y{end+1} = array2timetable(x,RowTimes=seconds(t));

Create a Neural State-Space Object

Create time-invariant discrete-time neural state-space object with one state identical to the output, one input, and sample time Ts.

nss = idNeuralStateSpace(1,NumInputs=1,Ts=Ts);

Configure State Network

Define the neural network that approximates the state function as having no hidden layer (because the output layer, which is a fully connected layer, should be sufficient to approximate the linear function: $x[k+1]=\mathit{Ax}\left[k\right]+\mathit{Bu}\left[k\right]$).

Use createMLPNetwork to create the network and dot notation to assign it to the StateNetwork property of nss.

nss.StateNetwork = createMLPNetwork(nss,'state', ...
    LayerSizes=zeros(0,1), ...
    WeightsInitializer="glorot", ...
    BiasInitializer="zeros");

Display the number of network parameters.

summary(nss.StateNetwork)

   Initialized: true

   Number of learnables: 3

   Inputs:
      1   'x[k]'   1 features
      2   'u[k]'   1 features

Specify the training options for the state network. Use the Adam algorithm, specify the maximum number of epochs as 300 (an epoch is the full pass of the training algorithm over the entire training set), and let the algorithm use the entire set of 1000 experiment data as a batch set to calculate the gradient at each iteration.

opt = nssTrainingOptions('adam');
opt.MaxEpochs = 300;
opt.MiniBatchSize = N;

Also specify the InputInterSample option to hold the input constant between two sampling interval. Finally, specify the learning rate.

opt.InputInterSample = "zoh";
opt.LearnRate = 0.01;

Estimate the Neural State-Space System

Use nlssest to train the state network of nss, using the identification data set and the predefined set of optimization options.

nss = nlssest(U,Y,nss,opt,'UseLastExperimentForValidation',true);

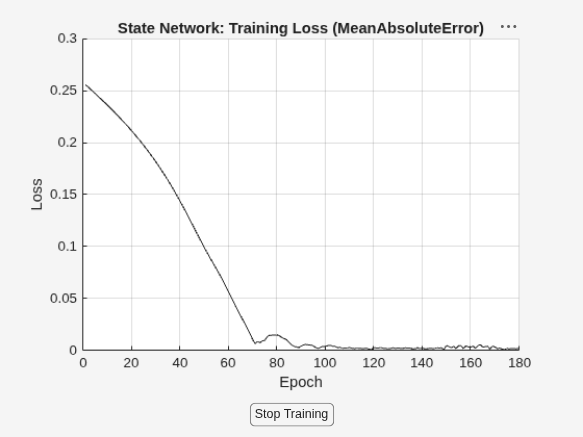

Training in progress (completed epoch/max epochs):        0/     300       1/     300       2/     300       3/     300       4/     300       5/     300       6/     300       7/     300       8/     300       9/     300      10/     300      11/     300      12/     300      13/     300      14/     300      15/     300      16/     300      17/     300      18/     300      19/     300      20/     300      21/     300      22/     300      23/     300      24/     300      25/     300      26/     300      27/     300      28/     300      29/     300      30/     300      31/     300      32/     300      33/     300      34/     300      35/     300      36/     300      37/     300      38/     300      39/     300      40/     300      41/     300      42/     300      43/     300      44/     300      45/     300      46/     300      47/     300      48/     300      49/     300      50/     300      51/     300      52/     300      53/     300      54/     300      55/     300      56/     300      57/     300      58/     300      59/     300      60/     300      61/     300      62/     300      63/     300      64/     300      65/     300      66/     300      67/     300      68/     300      69/     300      70/     300      71/     300      72/     300      73/     300      74/     300      75/     300      76/     300      77/     300      78/     300      79/     300      80/     300      81/     300      82/     300      83/     300      84/     300      85/     300      86/     300      87/     300      88/     300      89/     300      90/     300      91/     300      92/     300      93/     300      94/     300      95/     300      96/     300      97/     300      98/     300      99/     300     100/     300     101/     300     102/     300     103/     300     104/     300     105/     300     106/     300     107/     300     108/     300     109/     300     110/     300     111/     300     112/     300     113/     300     114/     300     115/     300     116/     300     117/     300     118/     300     119/     300     120/     300     121/     300     122/     300     123/     300     124/     300     125/     300     126/     300     127/     300     128/     300     129/     300     130/     300     131/     300     132/     300     133/     300     134/     300     135/     300     136/     300     137/     300     138/     300     139/     300     140/     300     141/     300     142/     300     143/     300     144/     300     145/     300     146/     300     147/     300     148/     300     149/     300     150/     300     151/     300     152/     300     153/     300     154/     300     155/     300     156/     300     157/     300     158/     300     159/     300     160/     300     161/     300     162/     300     163/     300     164/     300     165/     300     166/     300     167/     300     168/     300     169/     300     170/     300     171/     300     172/     300     173/     300     174/     300     175/     300     176/     300     177/     300     178/     300     179/     300     180/     300     181/     300     182/     300     183/     300     184/     300     185/     300     186/     300     187/     300     188/     300     189/     300     190/     300     191/     300     192/     300     193/     300     194/     300     195/     300     196/     300     197/     300     198/     300     199/     300     200/     300     201/     300     202/     300     203/     300     204/     300     205/     300     206/     300     207/     300     208/     300     209/     300     210/     300     211/     300     212/     300     213/     300     214/     300     215/     300     216/     300     217/     300     218/     300     219/     300     220/     300     221/     300     222/     300     223/     300     224/     300     225/     300     226/     300     227/     300     228/     300     229/     300     230/     300     231/     300     232/     300     233/     300     234/     300     235/     300     236/     300     237/     300     238/     300     239/     300     240/     300     241/     300     242/     300     243/     300     244/     300     245/     300     246/     300     247/     300     248/     300     249/     300     250/     300     251/     300     252/     300     253/     300     254/     300     255/     300     256/     300     257/     300     258/     300     259/     300     260/     300     261/     300     262/     300     263/     300     264/     300     265/     300     266/     300     267/     300     268/     300     269/     300     270/     300     271/     300     272/     300     273/     300     274/     300     275/     300     276/     300     277/     300     278/     300     279/     300     280/     300     281/     300     282/     300     283/     300     284/     300     285/     300     286/     300     287/     300     288/     300     289/     300     290/     300     291/     300     292/     300     293/     300     294/     300     295/     300     296/     300     297/     300     298/     300     299/     300

     300/     300

Generating estimation report...done.

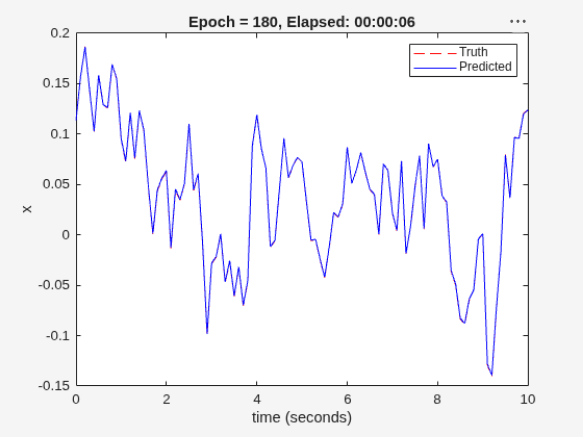

The validation plot shows that the resulting system is able to reproduce well the validation data.

Compare the Estimated System to the Original Linear System

Define a random input and initial condition.

x0 = 0.3*randn(1,1);
u0 = 0.3*randn(1,1);

Calculate the next state according to the linear system equation.

sys.a*x0 + sys.b*u0

ans = 0.4173

Evaluate nss at the point defined by x0 and u0.

evaluate(nss,x0,u0)

ans = 0.4176

The value of the next state calculated by evaluating nss is close to the one calculated by evaluating the linear system equation.

Display the linear system.

sys

sys =

  A =
           x1
   x1  0.9048

  B =
            u1
   x1  0.09516

  C =
       x1
   y1   1

  D =
       u1
   y1   0

Sample time: 0.1 seconds
Discrete-time state-space model.

Linearize nss around zero

linearize(nss,0,0)

ans =

  A =
           x1
   x1  0.9053

  B =
            u1
   x1  0.09488

  C =
       x1
   y1   1

  D =
       u1
   y1   0

Sample time: 0.1 seconds
Discrete-time state-space model.

The linearized system matrices are close to the ones of the original system.

Perform an Extra Validation Check

Create input time series and a random initial state.

t = (0:Ts:10)';
u = 0.5*randn(size(t));
x0 = 0.5*randn(1,1);

Simulate both the linear and neural state-space system with the same input data, from the same initial state.

% Simulate original system from x0
ylin = lsim(sys,u,t,x0);

% Simulate neural state-space system from x0
simOpt = simOptions('InitialCondition',x0);
yn = sim(nss,array2timetable(u,RowTimes=seconds(t)),simOpt);

Note that you can also use the following code to simulate nss.

x = zeros(size(t)); x(1)=x0;
for k = 1:length(t)-1, x(k+1) = evaluate(nss,x(k),u(k)); end

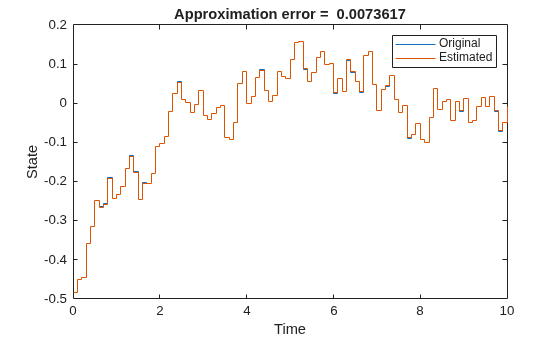

Plot the outputs of both systems, also display the norm of the difference in the plot title.

stairs(t,[ylin yn.Variables]);
xlabel("Time"); ylabel("State");
legend("Original","Estimated");
title(['Approximation error =  ' num2str(norm(ylin-yn.Variables)) ])

The two outputs are similar, confirming that the identified system is a good approximation of the original one.

Estimate Nonlinear Autonomous Neural State-Space System

This example shows how to estimate a nonlinear neural-state space model with no inputs and a two-dimensional continuous state equal to the output. First, you collect identification and validation data by simulating a Van Der Pol system, then use the collected data to estimate and validate a neural state-space system, and finally compare the estimated system to the original system used to produce the data.

Define Model for Data Collection

Define a time-invariant continuous-time autonomous model that can be easily simulated to collect data. For this example, use an unforced Van Der Pol system, which is an oscillator with nonlinear damping that exhibits a limit cycle.

Specify the state equation using an anonymous function, using a damping coefficient of 1.

dx = @(x) [x(2); 1*(1-x(1)^2)*x(2)-x(1)];

Generate Data Set for Identification

Fix the random generator seed for reproducibility.

rng(0);

Run 1000 simulations each starting at a different initial state and lasting 2 seconds. Each experiment must use identical time points.

N = 1000;
t = (0:0.1:2)';
Y = cell(1,N);

for i=1:N

    % Create random initial state within [-2,2]
    x0 = 4*rand(2,1)-2;

    % Obtain state measurements over t (solve using ode45)
    [~, x] = ode45(@(t,x) dx(x),t,x0);

    % Each experiment in the data set is a timetable
    Y{i} = array2timetable(x,RowTimes=seconds(t));

end

Generate Data Set for Validation

Run one simulation to collect data that will be used to visually inspect training result during the identification progress. The validation data set can have different time points. For this example, use the trained model to predict VDP behavior for 10 seconds.

% Create random initial state within [-2,2]
t = (0:0.1:10)';
x0 = 4*rand(2,1)-2;

% Obtain state measurements over t (solve using ode45)
[~, x] = ode45(@(t,x) dx(x),t,x0);

% Append the validation experiment (also a timetable) as the last entry in the data set
Y{end+1} = array2timetable(x,RowTimes=seconds(t));

Create a Neural State-Space Object

Create time-invariant continuous-time neural state-space object with a two-element state vector identical to the output, and no input.

nss = idNeuralStateSpace(2);

Configure State Network

Define the neural network that approximates the state function as having two hidden layers with 8 neurons each, and hyperbolic tangent activation function.

Use createMLPNetwork to create the network and dot notation to assign it to the StateNetwork property of nss.

nss.StateNetwork = createMLPNetwork(nss,'state', ...
    LayerSizes=[12 12], ...
    Activations="tanh", ...
    WeightsInitializer="glorot", ...
    BiasInitializer="zeros");

Display the number of network parameters.

summary(nss.StateNetwork)

   Initialized: true

   Number of learnables: 218

   Inputs:
      1   'x'   2 features

Specify the training options for the state network. Use the Adam algorithm, specify the maximum number of epochs as 400 (an epoch is the full pass of the training algorithm over the entire training set), and let the algorithm use the entire set of 1000 experiments as a batch set to calculate the gradient at each iteration.

opt = nssTrainingOptions('adam');
opt.MaxEpochs = 400;
opt.MiniBatchSize = N;

Also specify the leaning rate.

opt.LearnRate = 0.005;

Estimate the Neural State-Space System

Use nlssest to train the state network of nss, using the identification data set and the predefined set of optimization options.

nss = nlssest([],Y,nss,opt,'UseLastExperimentForValidation',true);

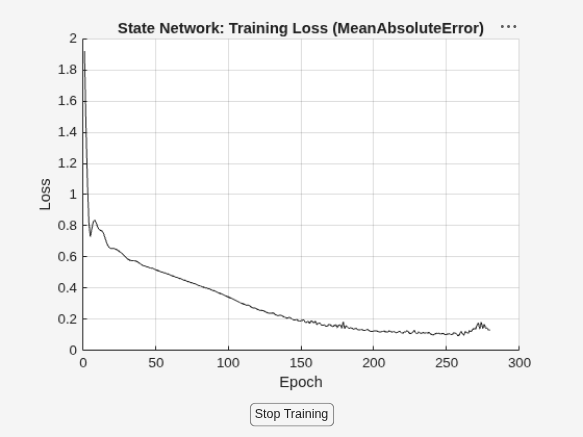

Training in progress (completed epoch/max epochs):        0/     400       1/     400       2/     400       3/     400       4/     400       5/     400       6/     400       7/     400       8/     400       9/     400      10/     400      11/     400      12/     400      13/     400      14/     400      15/     400      16/     400      17/     400      18/     400      19/     400      20/     400      21/     400      22/     400      23/     400      24/     400      25/     400      26/     400      27/     400      28/     400      29/     400      30/     400      31/     400      32/     400      33/     400      34/     400      35/     400      36/     400      37/     400      38/     400      39/     400      40/     400      41/     400      42/     400      43/     400      44/     400      45/     400      46/     400      47/     400      48/     400      49/     400      50/     400      51/     400      52/     400      53/     400      54/     400      55/     400      56/     400      57/     400      58/     400      59/     400      60/     400      61/     400      62/     400      63/     400      64/     400      65/     400      66/     400      67/     400      68/     400      69/     400      70/     400      71/     400      72/     400      73/     400      74/     400      75/     400      76/     400      77/     400      78/     400      79/     400      80/     400      81/     400      82/     400      83/     400      84/     400      85/     400      86/     400      87/     400      88/     400      89/     400      90/     400      91/     400      92/     400      93/     400      94/     400      95/     400      96/     400      97/     400      98/     400      99/     400     100/     400     101/     400     102/     400     103/     400     104/     400     105/     400     106/     400     107/     400     108/     400     109/     400     110/     400     111/     400     112/     400     113/     400     114/     400     115/     400     116/     400     117/     400     118/     400     119/     400     120/     400     121/     400     122/     400     123/     400     124/     400     125/     400     126/     400     127/     400     128/     400     129/     400     130/     400     131/     400     132/     400     133/     400     134/     400     135/     400     136/     400     137/     400     138/     400     139/     400     140/     400     141/     400     142/     400     143/     400     144/     400     145/     400     146/     400     147/     400     148/     400     149/     400     150/     400     151/     400     152/     400     153/     400     154/     400     155/     400     156/     400     157/     400     158/     400     159/     400     160/     400     161/     400     162/     400     163/     400     164/     400     165/     400     166/     400     167/     400     168/     400     169/     400     170/     400     171/     400     172/     400     173/     400     174/     400     175/     400     176/     400     177/     400     178/     400     179/     400     180/     400     181/     400     182/     400     183/     400     184/     400     185/     400     186/     400     187/     400     188/     400     189/     400     190/     400     191/     400     192/     400     193/     400     194/     400     195/     400     196/     400     197/     400     198/     400     199/     400     200/     400     201/     400     202/     400     203/     400     204/     400     205/     400     206/     400     207/     400     208/     400     209/     400     210/     400     211/     400     212/     400     213/     400     214/     400     215/     400     216/     400     217/     400     218/     400     219/     400     220/     400     221/     400     222/     400     223/     400     224/     400     225/     400     226/     400     227/     400     228/     400     229/     400     230/     400     231/     400     232/     400     233/     400     234/     400     235/     400     236/     400     237/     400     238/     400     239/     400     240/     400     241/     400     242/     400     243/     400     244/     400     245/     400     246/     400     247/     400     248/     400     249/     400     250/     400     251/     400     252/     400     253/     400     254/     400     255/     400     256/     400     257/     400     258/     400     259/     400     260/     400     261/     400     262/     400     263/     400     264/     400     265/     400     266/     400     267/     400     268/     400     269/     400     270/     400     271/     400     272/     400     273/     400     274/     400     275/     400     276/     400     277/     400     278/     400     279/     400     280/     400     281/     400     282/     400     283/     400     284/     400     285/     400     286/     400     287/     400     288/     400     289/     400     290/     400     291/     400     292/     400     293/     400     294/     400     295/     400     296/     400     297/     400     298/     400     299/     400     300/     400     301/     400     302/     400     303/     400     304/     400     305/     400     306/     400     307/     400     308/     400     309/     400     310/     400     311/     400     312/     400     313/     400     314/     400     315/     400     316/     400     317/     400     318/     400     319/     400     320/     400     321/     400     322/     400     323/     400     324/     400     325/     400     326/     400     327/     400     328/     400     329/     400     330/     400     331/     400     332/     400     333/     400     334/     400     335/     400     336/     400     337/     400     338/     400     339/     400     340/     400     341/     400     342/     400     343/     400     344/     400     345/     400     346/     400     347/     400     348/     400     349/     400     350/     400     351/     400     352/     400     353/     400     354/     400     355/     400     356/     400     357/     400     358/     400     359/     400     360/     400     361/     400     362/     400     363/     400     364/     400     365/     400     366/     400     367/     400     368/     400     369/     400     370/     400     371/     400     372/     400     373/     400     374/     400     375/     400     376/     400     377/     400     378/     400     379/     400     380/     400     381/     400     382/     400     383/     400     384/     400     385/     400     386/     400     387/     400     388/     400     389/     400     390/     400     391/     400     392/     400     393/     400     394/     400     395/     400     396/     400     397/     400     398/     400     399/     400

     400/     400

Generating estimation report...done.

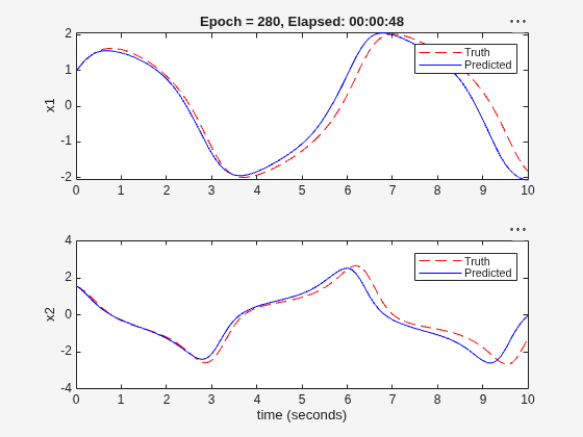

The validation plot shows that the resulting system is able to reproduce well the validation data.

Compare the Estimated System to the Original Linear System

Define a random initial condition.

x0 = 0.3*randn(2,1);

Calculate the state derivative according to the original system equation.

dx(x0)

ans = 2×1

    0.3111
    0.3243

Evaluate nss at x0.

evaluate(nss,x0)

ans = 2×1

    0.3161
    0.3017

The value of the state derivative calculated by evaluating nss is close to the one calculated by evaluating the original system equation.

You can linearize nss around an operating point, and apply linear control analysis and synthesis methods on the resulting linear time-invariant state-space system.

sys = linearize(nss,x0)

sys =

  A =
            x1       x2
   x1  0.03365    1.121
   x2  -0.9697     1.05

  B =
     Empty matrix: 2-by-0

  C =
       x1  x2
   y1   1   0
   y2   0   1

  D =
     Empty matrix: 2-by-0

Continuous-time state-space model.

Simulate the neural state-space system

Create a time sequence and a random initial state.

t = (0:0.1:10)';
x0 = 0.3*randn(2,1);

Simulate both the original and neural state-space system with the same input data, from the same initial state.

% Simulate original system from x0
[~, x] = ode45(@(t,x) dx(x),t,x0);

% Simulate neural state-space system from x0
simOpt = simOptions('InitialCondition',x0,'OutputTimes',t);
xn = sim(nss,zeros(length(t),0),simOpt);

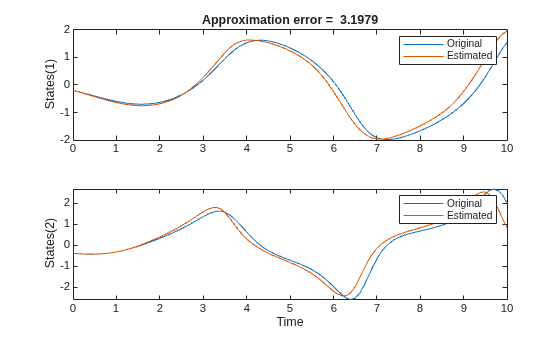

Plot the outputs of both systems, also display the norm of the difference in the plot title.

figure;
subplot(2,1,1)
plot(t,x(:,1),t,xn(:,1));
ylabel("States(1)");
legend("Original","Estimated");
title(['Approximation error =  ' num2str(norm(x-xn)) ])
subplot(2,1,2)
plot(t,x(:,2),t,xn(:,2));
xlabel("Time"); ylabel("States(2)");
legend("Original","Estimated");

The two outputs are similar, confirming that the identified system is a good approximation of the original one.

Input Arguments

U — Input data

timetable object | matrix | cell array of timetable objects or matrices | []

Input data. Specify U as:

• A timetable containing a variable for each input. The variable names of the timetable must match the input names of nss, and its row times must be duration objects. This timetable represents a single experiment. For more information, see timetable and duration.

• A double matrix with one column for each input signal and one row for each time step. Use this option only if the system is discrete-time (that is nss.Ts is greater than zero). This matrix represents a single experiment.

• A cell array of N experiments composed of timetables or double matrices. All the experiments must contain the same time points. In other words the time vector corresponding to all the observations must match.

• An empty array, [], if nss has no inputs (that is size(nss,2) is zero).

Y — Output data

timetable object | matrix | cell array of timetable objects or matrices | []

Output data. Specify Y as:

• A timetable containing a variable for each output. The variable names of the timetable must match the output names of nss, and its row times must be duration objects. This timetable represents a single experiment. For more information, see timetable and duration.

• A double matrix with one column for each output signal and one row for each time step. Use this option only if the system is discrete-time (that is nss.Ts is greater than zero). This matrix represents a single experiment.

• A cell array of N experiments composed of timetables or double matrices. All the experiments must contain the same time points. In other words the time vector corresponding to all the observations must match.

Note

The first n_x channels in Y must be state measurements (here, n_x is the number of states specified in nss).

Data — Input and output data

timetable object | iddata object

Input and output data, specified as a timetable or iddata object. This argument allows you to specify the training data using a single input argument rather than separate U and Y arguments. Specify Data as one of the following:

• An iddata object. If you have multiple experiments, create a multi-experiment iddata object. Use this option if all the input and output variables in an experiment share the time vector. For more information, see merge (iddata).

• A timetable. The timetable must contain a variable for each of the input and output variables in nss. In the multi-experiment case, use a cell array of timetables. All the timetables in the cell array must use the same time vector.

nss — Neural state-space system

idNeuralStateSpace object

Neural state-space system, specified as an idNeuralStateSpace object.

Options — Training options

nssTrainingADAM object (default) | nssTrainingSGDM object

Training options, specified as an nssTrainingADAM or nssTrainingSGDM object. Create the training options set object options using the nssTrainingOptions command. If nss contains a non-state output network (that is, if nss.OutputNetwork contains two networks), you can pick different training options for the state transition function network, nss.StateNetwork, and the nontrivial output function nss.OutputNetwork(2). Note that nss.OutputNetwork(1) does not contain any learnable parameters because is always fixed to the identity function returning all the states as outputs.

Example: myNrlSS

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: UseLastExperimentForValidation = true

UseLastExperimentForValidation — Option to use the last experiment for validation

false (default) | true

Option to use the last experiment for validation, specified as one of the following:

• true — The last experiment is not used for training, but only to display a validation plot after a number of epochs specified by ValidationFrequency. This allows you to monitor the estimation performance during the training process. The last experiment can have a different duration than all the other experiments

• false — All experiments are used for training, and no validation plot is displayed.

Example: false

ValidationFrequency — Validation Frequency

10 (default) | positive integer

Validation frequency, specified as a positive integer. This is the number of epochs after which the validation plot is updated with a new comparison (new predicted output against measured outputs).

Example: ValidationFrequency=20

Output Arguments

nssEstimated — Estimated neural state-space system

idNeuralStateSpace object

Estimated neural state-space system, returned as an idNeuralStateSpace object.

Version History

Introduced in R2022b
