# bwlookup

Nonlinear filtering using lookup tables

## Syntax

## Description

performs a 2-by-2 or 3-by-3 nonlinear neighborhood filtering operation on binary image
`A`

= bwlookup(`BW`

,`lut`

)`BW`

. The neighborhood processing determines an integer index value
used to access values in lookup table `lut`

. The fetched
`lut`

value becomes the pixel value in output image
`A`

at the targeted position.

## Examples

### Perform Erosion Along Edges of Binary Image

Construct a lookup table `lut`

such that the filtering operation places a `1`

at the targeted pixel location in the input image only when all four pixels in the 2-by-2 neighborhood of BW are set to `1`

.

lutfun = @(x)(sum(x(:))==4); lut = makelut(lutfun,2);

Load a binary image.

`BW1 = imread("text.png");`

Perform 2-by-2 neighborhood processing with 16-element vector `lut`

.

BW2 = bwlookup(BW1,lut);

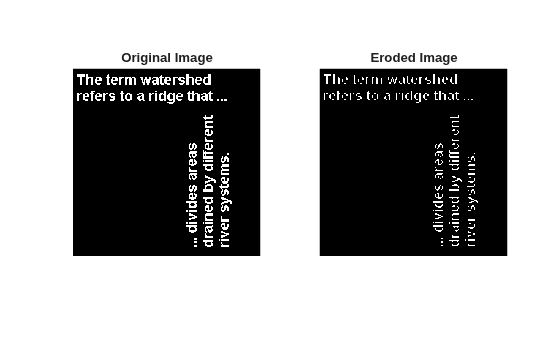

Display the original and eroded image.

h1 = subplot(1,2,1); imshow(BW1); title("Original Image") h2 = subplot(1,2,2); imshow(BW2); title("Eroded Image")

Zoom in to see the effects of erosion on the text.

set(h1,Ylim=[1 64],Xlim=[1 64]); set(h2,Ylim=[1 64],Xlim=[1 64]);

## Input Arguments

`BW`

— Binary image

2-D logical matrix | 2-D numeric matrix

Binary image to be transformed by the nonlinear neighborhood filtering operation,
specified as a 2-D logical matrix or 2-D numeric matrix. For numeric input,
any nonzero pixels are considered to be `1`

(`true`

).

`lut`

— Lookup table of output pixel values

16-element vector | 512-element vector

Lookup table of output pixel values, specified as a 16- or 512-element vector. The size of
`lut`

determines which of the two neighborhood operations is
performed. You can use the `makelut`

function to create a lookup
table.

If

`lut`

contains 16 data elements, then the neighborhood matrix is 2-by-2.If

`lut`

contains 512 data elements, then the neighborhood matrix is 3-by-3.

## Output Arguments

## Algorithms

The `bwlookup`

function performs these steps to determine the value of
each pixel in the processed image `A`

:

Locate the pixel neighborhood in input image

`BW`

based on the coordinates of the target pixel in`A`

. The function zero-pads border pixels of image`BW`

when the neighborhood extends past the edge of`BW`

.Calculate an index,

`idx`

, based on the binary pixel pattern of the neighborhood.Set the target pixel in

`A`

as the value of the lookup table at the index`idx`

, in other words, the value of`lut(idx)`

.

For an example that demonstrates each step of the algorithm, see Look up Value of Sample Pixel.

### 2-by-2 Neighborhood Lookup

For 2-by-2 neighborhoods, there are four pixels in each neighborhood. Each binary pixel
has two possible states, therefore the total number of permutations is
2^{4} and the length of the lookup table `lut`

is 16.

To find the value of the target output pixel at (row, column) coordinate
(*r*,*c*), `bwlookup`

uses the 2-by-2
pixel neighborhood in the input binary image `BW`

whose top left pixel is
at coordinate (*r*,*c*). The index `idx`

into the lookup table is the weighted sum of the four pixels in the neighborhood, plus
1.

### 3-by-3 Neighborhood Lookup

For 3-by-3 neighborhoods, there are nine pixels in each neighborhood. Each binary pixel
has two possible states, therefore the total number of permutations is
2^{9} and the length of the lookup table `lut`

is 256.

To find the value of the target output pixel at (row, column) coordinate
(*r*,*c*), `bwlookup`

uses the 3-by-3
pixel neighborhood in the input binary image `BW`

centered on coordinate
(*r*,*c*). The index `idx`

into the
lookup table is the weighted sum of the nine pixels in the neighborhood, plus 1.

### Look up Value of Sample Pixel

This example shows how to determine the index into a lookup table for a target pixel based on the 2-by-2 neighborhood of the pixel.

Create a random 16-element lookup table. Set the random seed so that the results are reproducible.

```
rng("default")
lut = randperm(16)
```

`lut = `*1×16*
6 3 16 11 7 14 8 5 15 1 2 4 13 9 10 12

Create a small sample binary image.

BW = checkerboard(2,1,1)>0.5

`BW = `*4x4 logical array*
0 0 1 1
0 0 1 1
1 1 0 0
1 1 0 0

Assume for this example that the targeted pixel location is location BW(2,1). Find the 2-by-2 neighborhood of the target pixel.

targetRow = 2; targetColumn = 1; neighborhood = BW(targetRow:targetRow+1,targetColumn:targetColumn+1)

`neighborhood = `*2x2 logical array*
0 0
1 1

Calculate the index into the lookup table.

```
idx = 1 + 1*neighborhood(1,1) + 2*neighborhood(2,1) ...
+ 4*neighborhood(1,2) + 8*neighborhood(2,2)
```

idx = 11

Alternatively, you can represent the neighborhood as a binary string and convert the string to an index using the `bin2dec`

function. Create the string by listing the values of the neighborhood in the order (2,2), (2,1), (1,2), (1,1). In other words, the value of `neighborhood(2,2)`

contributes to the most significant bit, which comes first in the string. The value of `neighborhood(1,1)`

contributes to the least significant bit, which comes last in the string.

```
binStr = "1 0 1 0";
idx = 1 + bin2dec(binStr)
```

idx = 11

Calculate the value of the target pixel by finding the value of the lookup table at the index `idx`

.

targetPixelValue = lut(idx)

targetPixelValue = 2

The above calculation predicts that output image A should contain the value 2 at the target position A(2,1). Confirm the prediction by performing the 2-by-2 nonlinear neighborhood filtering operation on the original binary image `BW`

.

A = bwlookup(BW,lut)

`A = `*4×4*
6 13 12 11
2 8 14 3
12 11 6 6
14 3 6 6

## Extended Capabilities

### C/C++ Code Generation

Generate C and C++ code using MATLAB® Coder™.

Usage notes and limitations:

`bwlookup`

supports the generation of C code (requires MATLAB^{®}Coder™). Note that if you choose the generic`MATLAB Host Computer`

target platform,`bwlookup`

generates code that uses a precompiled, platform-specific shared library. Use of a shared library preserves performance optimizations but limits the target platforms for which code can be generated. For more information, see Types of Code Generation Support in Image Processing Toolbox.When generating code, specify an input image of class

`logical`

.

### GPU Code Generation

Generate CUDA® code for NVIDIA® GPUs using GPU Coder™.

Usage notes and limitations:

When generating code, specify an input image of class

`logical`

.

### Thread-Based Environment

Run code in the background using MATLAB® `backgroundPool`

or accelerate code with Parallel Computing Toolbox™ `ThreadPool`

.

This function fully supports thread-based environments. For more information, see Run MATLAB Functions in Thread-Based Environment.

### GPU Arrays

Accelerate code by running on a graphics processing unit (GPU) using Parallel Computing Toolbox™.

This function fully supports GPU arrays. For more information, see Image Processing on a GPU.

## Version History

**Introduced in R2012b**

### R2022b: Support for thread-based environments

`bwlookup`

now supports thread-based
environments.
