colorcloud

Display 3-D color gamut as point cloud in specified color space

Syntax

colorcloud(rgb)

colorcloud(rgb,colorspace)

colorcloud(___,Name,Value)

hPanel = colorcloud(___)

Description

colorcloud(rgb) displays the full color gamut of the color image rgb as a point cloud. By default, colorcloud uses the RGB color space.

colorcloud(rgb,colorspace) displays the full color gamut of the color image rgb as a point cloud in the color space specified by colorspace.

colorcloud(___,Name,Value) displays the full color gamut using name-value pairs to control aspects of the visualization.

hPanel = colorcloud(___) returns the uipanel object created by colorcloud.

Examples

View 3D Color Gamut of RGB Image in HSV Color Space

Read in RGB image

RGB = imread('peppers.png');

View color gamut

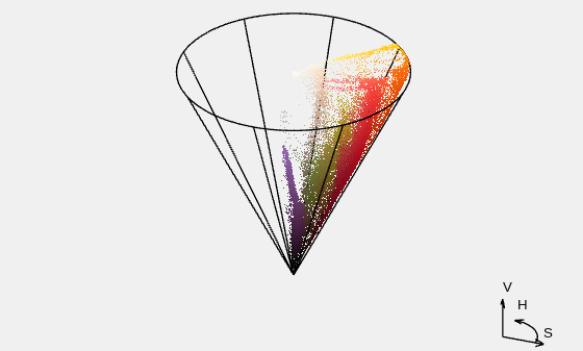

colorcloud(RGB,'hsv');

Input Arguments

rgb — Color image

m-by-n-by-3 numeric array

Color image, specified as an m-by-n-by-3 numeric array.

Data Types: single | double | uint8 | uint16

colorspace — Color space name

'rgb' (default) | 'hsv' | 'ycbcr' | 'lab'

Color space name, specified as one of these values:

Value	Description
'hsv'	Color gamut in HSV color space
'lab'	Color gamut in CIE 1976 L*a*b* color space
'rgb'	Color gamut in RGB color space
'ycbcr'	Color gamut in YCbCr color space

Data Types: char | string

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Example: 'BackgroundColor','w'

Parent — Parent of object created by colorcloud

new figure (default)

Parent of the object created by colorcloud, specified as a figure or uipanel object. If you do not specify a valid object, then the colorcloud function creates a new figure window.

BackgroundColor — Background color

[0.94 0.94 0.94] (default) | RGB triplet | color name | short color name

Background color to the color cloud, specified as an RGB triplet, a color name, or a short color name.

You can specify any color using an RGB triplet. An RGB triplet is a 3-element row vector whose elements specify the intensities of the red, green, and blue components of the color. The intensities must be in the range [0, 1].

You can specify some common colors by name as a string scalar or character vector. This table lists the named color options and the equivalent RGB triplets.

Color Name	Short Name	RGB Triplet	Appearance
"red"	"r"	[1 0 0]
"green"	"g"	[0 1 0]
"blue"	"b"	[0 0 1]
"cyan"	"c"	[0 1 1]
"magenta"	"m"	[1 0 1]
"yellow"	"y"	[1 1 0]
"black"	"k"	[0 0 0]
"white"	"w"	[1 1 1]

Here are the RGB triplets for the default colors that MATLAB^® uses in many types of plots.

RGB Triplet	Appearance
[0 0.4470 0.7410]
[0.8500 0.3250 0.0980]
[0.9290 0.6940 0.1250]
[0.4940 0.1840 0.5560]
[0.4660 0.6740 0.1880]
[0.3010 0.7450 0.9330]
[0.6350 0.0780 0.1840]

Example: 'BackgroundColor','r'

Example: 'BackgroundColor','green'

Example: 'BackgroundColor',[0 0.4470 0.7410]

WireFrameColor — Color of wire frame

'black' (default) | 'none' | RGB triplet | color name | short color name

Color of the wire frame, specified as an RGB triplet, a color name, a short color name, or 'none'. If you specify the value 'none', then colorcloud deletes the wire frame.

You can specify any color using an RGB triplet. An RGB triplet is a 3-element row vector whose elements specify the intensities of the red, green, and blue components of the color. The intensities must be in the range [0, 1].

You can specify some common colors by name as a string scalar or character vector. This table lists the named color options and the equivalent RGB triplets.

Color Name	Short Name	RGB Triplet	Appearance
"red"	"r"	[1 0 0]
"green"	"g"	[0 1 0]
"blue"	"b"	[0 0 1]
"cyan"	"c"	[0 1 1]
"magenta"	"m"	[1 0 1]
"yellow"	"y"	[1 1 0]
"black"	"k"	[0 0 0]
"white"	"w"	[1 1 1]

Here are the RGB triplets for the default colors that MATLAB uses in many types of plots.

RGB Triplet	Appearance
[0 0.4470 0.7410]
[0.8500 0.3250 0.0980]
[0.9290 0.6940 0.1250]
[0.4940 0.1840 0.5560]
[0.4660 0.6740 0.1880]
[0.3010 0.7450 0.9330]
[0.6350 0.0780 0.1840]

Example: 'WireFrameColor','r'

Example: 'WireFrameColor','green'

Example: 'WireFrameColor',[0.8500 0.3250 0.0980]

OrientationAxesColor — Color of orientation axes and labels

'black' (default) | 'none' | RGB triplet | color name | short color name

Color of the orientation axes and labels, specified as an RGB triplet, a color name, a short color name, or 'none'. If you specify the value 'none', then colorcloud deletes the labels.

You can specify any color using an RGB triplet. An RGB triplet is a 3-element row vector whose elements specify the intensities of the red, green, and blue components of the color. The intensities must be in the range [0, 1].

You can specify some common colors by name as a string scalar or character vector. This table lists the named color options and the equivalent RGB triplets.

Color Name	Short Name	RGB Triplet	Appearance
"red"	"r"	[1 0 0]
"green"	"g"	[0 1 0]
"blue"	"b"	[0 0 1]
"cyan"	"c"	[0 1 1]
"magenta"	"m"	[1 0 1]
"yellow"	"y"	[1 1 0]
"black"	"k"	[0 0 0]
"white"	"w"	[1 1 1]

Here are the RGB triplets for the default colors that MATLAB uses in many types of plots.

RGB Triplet	Appearance
[0 0.4470 0.7410]
[0.8500 0.3250 0.0980]
[0.9290 0.6940 0.1250]
[0.4940 0.1840 0.5560]
[0.4660 0.6740 0.1880]
[0.3010 0.7450 0.9330]
[0.6350 0.0780 0.1840]

Example: 'OrientationAxesColor','r'

Example: 'OrientationAxesColor','green'

Example: 'OrientationAxesColor',[0.9290 0.6940 0.1250]

Output Arguments

hPanel — Color gamut point cloud

uipanel object

Color gamut point cloud, returned as a uipanel object.
