imwarp

Apply geometric transformation to image

Description

example

B = imwarp(A,tform) transforms the numeric, logical, or categorical image A according to the geometric transformation tform. The function returns the transformed image in B.

B = imwarp(A,D) transforms image A according to the displacement field D.

[B,RB] = imwarp(A,RA,tform) transforms a spatially referenced image specified by the image data A and its associated spatial referencing object RA. The outputs are a spatially referenced image specified by the image data B and its associated spatial referencing object RB.

[___] = imwarp(___,interp) specifies the type of interpolation to use.

example

[___] = imwarp(___,Name,Value) specifies name-value arguments to control various aspects of the geometric transformation.

Tip

If the input transformation tform does not define a forward transform, then use the OutputView name-value argument to accelerate the transformation.

Examples

collapse all

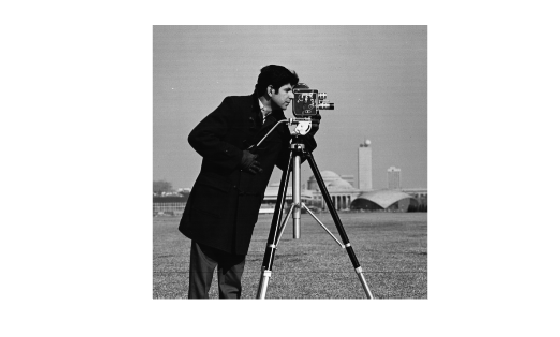

Read and display a grayscale image.

I = imread('cameraman.tif');
imshow(I)

Figure contains an axes object. The axes object contains an object of type image.

Create a 2-D affine transformation.

A = [1 0.5 0; 0 1 0; 0 0 1];
tform = affinetform2d(A);

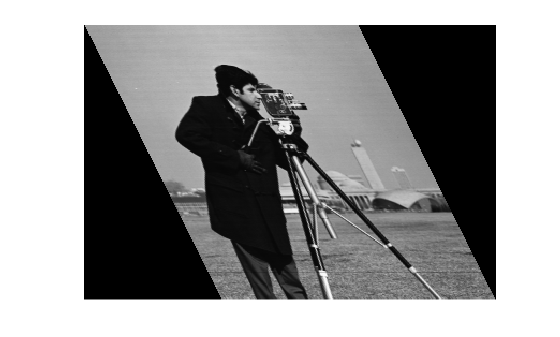

Apply the transformation to the image.

J = imwarp(I,tform);
imshow(J)

Figure contains an axes object. The axes object contains an object of type image.

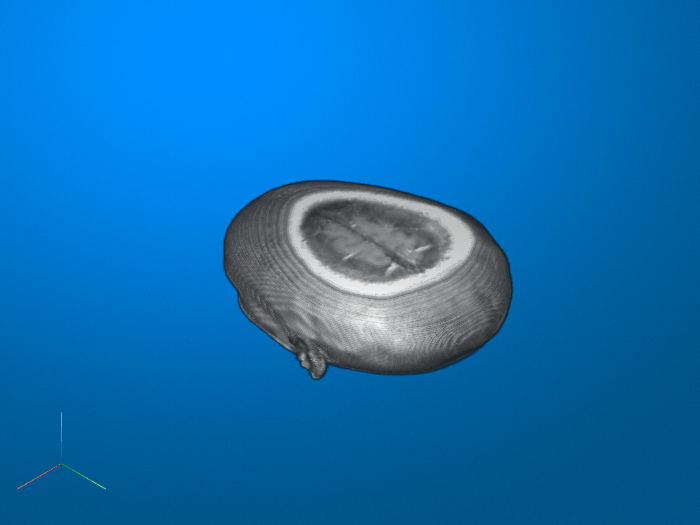

Load and display a 3-D MRI volumetric image.

load("mri");
mriVolume = squeeze(D);
volshow(mriVolume);

Create a 3-D rigid transformation object that rotates the image around the y-axis.

theta = [0 22.5 0];
transl = [0 0 0];
tform = rigidtform3d(theta,transl);

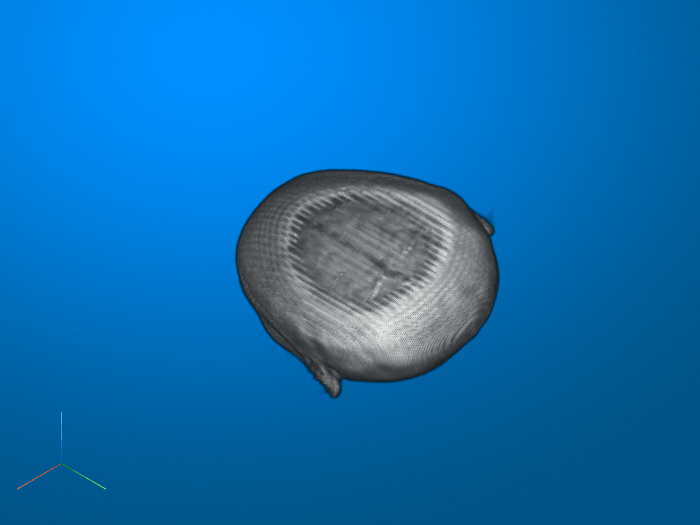

Apply the transformation to the image and display the result.

mriVolumeRotated = imwarp(mriVolume,tform);
volshow(mriVolumeRotated);

Read and display an image. To see the spatial extents of the image, make the axes visible.

A = imread("kobi.png");
A = imresize(A,0.25);
iptsetpref("ImshowAxesVisible","on")
imshow(A)

Figure contains an axes object. The axes object contains an object of type image.

Create a 2-D affine transformation. This example creates a randomized transformation that consists of scale by a factor in the range [1.2, 2.4], rotation by an angle in the range [-45, 45] degrees, and horizontal translation by a distance in the range [100, 200] pixels.

tform = randomAffine2d("Scale",[1.2,2.4],"XTranslation",[100 200],"Rotation",[-45,45]);

Create three different output views for the image and transformation.

centerOutput = affineOutputView(size(A),tform,"BoundsStyle","CenterOutput");
followOutput = affineOutputView(size(A),tform,"BoundsStyle","FollowOutput");
sameAsInput = affineOutputView(size(A),tform,"BoundsStyle","SameAsInput");

Apply the transformation to the input image using each of the different output view styles.

BCenterOutput = imwarp(A,tform,"OutputView",centerOutput);
BFollowOutput = imwarp(A,tform,"OutputView",followOutput);
BSameAsInput = imwarp(A,tform,"OutputView",sameAsInput);

Display the resulting images.

imshow(BCenterOutput)
title("CenterOutput Bounds Style");

Figure contains an axes object. The axes object with title CenterOutput Bounds Style contains an object of type image.

imshow(BFollowOutput)
title("FollowOutput Bounds Style");

Figure contains an axes object. The axes object with title FollowOutput Bounds Style contains an object of type image.

imshow(BSameAsInput)
title("SameAsInput Bounds Style");

Figure contains an axes object. The axes object with title SameAsInput Bounds Style contains an object of type image.

iptsetpref("ImshowAxesVisible","off")

Input Arguments

collapse all

Image to be transformed, specified as a numeric, logical, or categorical array of any dimension.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | logical | categorical

Geometric transformation, specified as a geometric transformation object listed in the table.

Geometric Transformation ObjectDescription
2-D Linear Geometric Transformations
transltform2dTranslation transformation
rigidtform2dRigid transformation: translation and rotation
simtform2dSimilarity transformation: translation, rotation, and isotropic scaling
affinetform2dAffine transformation: translation, rotation, anisotropic scaling, reflection, and shearing
projtform2dProjective transformation
3-D Linear Geometric Transformations
transltform3dTranslation transformation
rigidtform3dRigid transformation: translation and rotation
simtform3dSimilarity transformation: translation, rotation, and isotropic scaling
affinetform3dAffine transformation: translation, rotation, anisotropic scaling, reflection, and shearing
Nonlinear Geometric Transformations
geometricTransform2d2-D geometric transformation
geometricTransform3d3-D geometric transformation
PolynomialTransformation2DLocal weighted mean transformation
PiecewiseLinearTransformation2DPiecewise linear transformation
LocalWeightedMeanTransformation2DLocal weighted mean transformation
  • If tform is 2-D and A has more than two dimensions, such as for an RGB image, then imwarp applies the same 2-D transformation to all 2-D planes along the higher dimensions.

  • If tform is 3-D, then A must be a 3-D image volume.

Note

You can also specify tform as an object of type rigid2d, rigid3d, affine2d, affine3d, or projective2d. However, these objects are not recommended. For more information, see Compatibility Considerations.

Displacement field, specified as numeric array. The displacement field defines the grid size and location of the output image. Displacement values are in units of pixels. imwarp assumes that D is referenced to the default intrinsic coordinate system. To estimate the displacement field, use imregdemons.

  • If A is a 2-D grayscale image of size m-by-n, then specify the displacement field as an m-by-n-by-2 array. D(:,:,1) contains displacements along the x-axis. imwarp adds these values to column and row locations in D to produce remapped locations in A. Similarly, D(:,:,2) contains displacements along the y-axis.

  • If A is a 2-D RGB or multispectral image of size m-by-n-by-c and you specify D as an m-by-n-by-2 array, then imwarp operates on each 2-D color channel independently. D(:,:,1) contains displacements along the x-axis for all of the color channels. Similarly, D(:,:,2) contains displacements along the y-axis.

  • If A is a 3-D grayscale image of size m-by-n-by-p, then specify the displacement field array as an m-by-n-by-p-by-3 array. D(:,:,:,1) contains displacements along the x-axis. imwarp adds these values to column, row, and depth locations in D to produce remapped locations in A. Similarly, D(:,:,:,2) and D(:,:,:,3) contain displacements along the y- and z-axis.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

Spatial referencing information of the image to be transformed, specified as an imref2d object for a 2-D transformation or an imref3d object for a 3-D transformation.

Type of interpolation used, specified as one of these values.

Interpolation MethodDescription
"nearest"

Nearest-neighbor interpolation. The output pixel is assigned the value of the pixel that the point falls within. No other pixels are considered.

Nearest-neighbor interpolation is the only method supported for categorical images and it is the default method for images of this type.

"linear"Linear interpolation. This is the default interpolation method for numeric and logical images.
"cubic"Cubic interpolation

Data Types: char | string

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: B = imwarp(A,tform,FillValues=255) uses a fill value of 255

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Example: B = imwarp(A,tform,"FillValues",255) uses a fill value of 255

Size and location of output image in the world coordinate system, specified as an imref2d or imref3d spatial referencing object. The object has properties that define the size of the output image and the location of the output image in the world coordinate system.

You can create an output view by using the affineOutputView function. To replicate the default output view calculated by imwarp, use the default bounds style ("CenterOutput") of affineOutputView.

You cannot specify OutputView when you specify an input displacement field D.

Fill values used for output pixels outside the input image, specified as one of the values in the table. imwarp uses fill values for output pixels when the corresponding inverse transformed location in the input image is completely outside the input image boundaries.

The default fill value of numeric and logical images is 0. The default fill value of categorical images is missing, which corresponds to the <undefined> category.

Image Type

Transformation Dimensionality

Format of Fill Values

2-D grayscale or logical image2-D
  • Numeric scalar

2-D color image or 2-D multispectral image2-D
  • Numeric scalar

  • c-element numeric vector specifying a fill value for each of the c channels. The number of channels, c, is 3 for color images.

Series of p 2-D images2-D

  • Numeric scalar

  • c-by-p numeric matrix. The number of channels, c, is 1 for grayscale images and 3 for color images.

N-D image2-D
  • Numeric scalar

  • Numeric array whose size matches dimensions 3-to-N of the input image A. For example, if A is 200-by-200-by-10-by-3, then FillValues can be a 10-by-3 array.

3-D grayscale or logical image3-D
  • Numeric scalar

Categorical image2-D or 3-D
  • Valid category in the image, specified as a string scalar or character vector.

  • missing, which corresponds to the <undefined> category. For more information, see missing.

Example: 255 fills a uint8 image with white pixels

Example: 1 fills a double image with white pixels

Example: [0 1 0] fills a double color image with green pixels

Example: [0 1 0; 0 1 1]', for a series of two double color images, fills the first image with green pixels and the second image with cyan pixels

Example: "vehicle" fills a categorical image with the "vehicle" category

Pad image to create smooth edges, specified as true or false. When set to true, imwarp create a smoother edge in the output image by padding the input image with values specified by FillValues. When set to false, imwarp does not pad the image. Choosing false (not padding) the input image can result in a sharper edge in the output image. This sharper edge can be useful to minimize seam distortions when registering two images side by side.

Output Arguments

collapse all

Transformed image, returned as a numeric, logical, or categorical array of the same data type as the input image A.

Spatial referencing information of the transformed image, returned as an imref2d or imref3d spatial referencing object.

Algorithms

imwarp determines the value of pixels in the output image by mapping locations in the output image to the corresponding locations in the input image (an inverse mapping). When the center of a pixel in the output image does not map to the center of a pixel in the input image, imwarp interpolates within the input image to calculate the output pixel value.

The figure illustrates a translation transformation of a checkerboard image, in which each square is 10-by-10 pixels. By convention, the axes in input space are labeled u and v and the axes in output space are labeled x and y. Using the inverse transformation, the pixel with (x,y) coordinates (25,35) in the output coordinate space is mapped to the (u,v) coordinates (5,5) in the input coordinate space.

Checkerboard image in input coordinate space and translated checkerboard image in output coordinate space

imwarp performs the mapping using world coordinates. For more information, see Image Coordinate Systems.

Extended Capabilities

Version History

Introduced in R2013a
