# makeresampler

Create resampling structure

## Syntax

``R = makeresampler(interpolant,padMethod)``
``R = makeresampler(Name,Value)``

## Description

example

````R = makeresampler(interpolant,padMethod)` creates a separable resampler structure for use with `tformarray`. The `interpolant` argument specifies the interpolating kernel that the separable resampler uses. The `padMethod` argument controls how the resampler interpolates or assigns values to output elements that map close to or outside the edge of the input array.```
````R = makeresampler(Name,Value)` creates a user-written resampler using name-value arguments.```

## Examples

collapse all

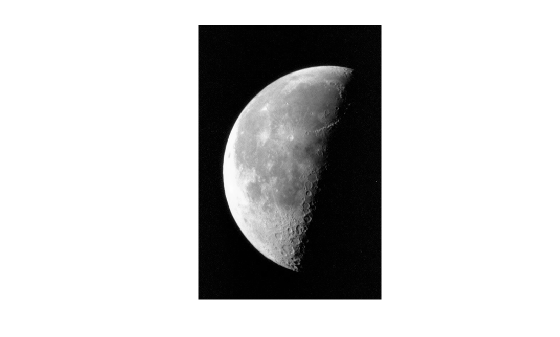

Read an image into the workspace and display it.

```A = imread('moon.tif'); imshow(A)``` Create a separable resampler.

`resamp = makeresampler({'nearest','cubic'},'fill');`

Create a spatial transformation structure (TFORM) that defines an affine transformation.

`stretch = maketform('affine',[1 0; 0 1.3; 0 0]);`

Apply the transformation, specifying the custom resampler.

`B = imtransform(A,stretch,resamp);`

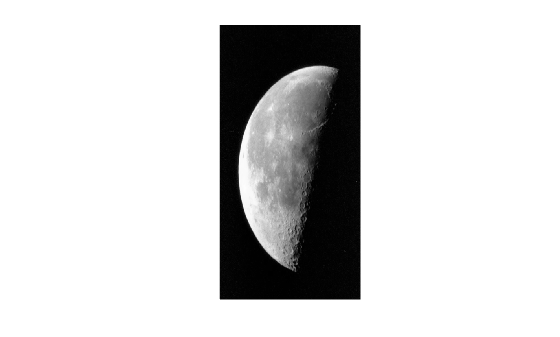

Display the transformed image.

`imshow(B)` ## Input Arguments

collapse all

Interpolation kernel, specified as `"nearest"`, `"linear"`, `"cubic"`, or a cell array. These kernels perform nearest-neighbor, bilinear, bicubic, and custom interpolation, respectively.

Define a custom interpolation kernel as a two-element cell array in either of these forms:

FormDescription

```{half_width, positive_half}```

`half_width` is a positive scalar designating the half width of a symmetric interpolating kernel. `positive_half` is a vector of values regularly sampling the kernel on the closed interval ```[0 positive_half]```.

```{half_width, interp_fcn}```

`interp_fcn` is a function handle that returns interpolating kernel values, given an array of input values in the interval ```[0 positive_half]```.

You can define the interpolation method independently along each transform dimension by specifying a cell array whose number of elements is equal to the number of transform dimensions. Each element of the cell array must be one of the prior types of interpolant kernels. For example, consider this value of `interpolant` for a 3-D interpolation kernel:

`{"nearest","linear",{2 KERNEL_TABLE}}`

In this example, the resampler uses nearest-neighbor interpolation along the first transform dimension, linear interpolation along the second dimension, and custom table-based interpolation along the third.

Data Types: `char` | `string` | `cell`

Pad method used to assign values to output elements that map outside the input array, specified as one of the these values.

Description

`"bound"`

Assign values from the fill value array to points that map outside the input array. Repeat border elements of the array for points that map inside the array (same as `"replicate"`). When `interpolant` is `"nearest"`, this pad method produces the same results as `"fill"`. `"bound"` is like `"fill"`, but avoids mixing fill values and input image values.

`"circular"`

Pad array with circular repetition of elements within the dimension. Same as `padarray`.

`"fill"`

Generate an output array with smooth-looking edges (except when using nearest-neighbor interpolation). For output points that map near the edge of the input array (either inside or outside), it combines input image and fill values. When `interpolant` is `"nearest"`, this pad method produces the same results as `"bound"`.

`"replicate"`

Pad array by repeating border elements of array. Same as `padarray`.

`"symmetric"`

Pad array with mirror reflections of itself. Same as `padarray`.

For `"fill"`, `"replicate"`, `"circular"`, or `"symmetric"`, the resampling performed by `tformarray` occurs in two logical steps:

1. Pad the array `A` infinitely to fill the entire input transform space.

2. Evaluate the convolution of the padded `A` with the resampling kernel at the output points specified by the geometric map.

Each nontransform dimension is handled separately. The padding is virtual (accomplished by remapping array subscripts) for performance and memory efficiency. If you implement a custom resampler, you can implement these behaviors.

Data Types: `char` | `string`

### Name-Value Arguments

Specify optional pairs of arguments as `Name1=Value1,...,NameN=ValueN`, where `Name` is the argument name and `Value` is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose `Name` in quotes.

Example: `"Type","separable"` creates a separable resampler

Resampler type, specified as one of the following values.

TypeDescription
`"separable"`Create a separable resampler. If you specify this value, the only other arguments that you can specify are `Interpolant` and `PadMethod`. The result is equivalent to using the `makeresampler(interpolant,padMethod)` syntax.
`"custom"`Create a customer resampler. If you specify this value, you must specify the `NDims` and `ResampleFcn` arguments and, optionally, the `CustomData` argument.

Data Types: `char` | `string`

See the `padMethod` argument for more information.

Data Types: `char` | `string`

See the `interpolant` argument for more information.

Data Types: `char` | `string` | `cell`

Dimensionality custom resampler can handle, specified as a positive integer. Use a value of `Inf` to indicate that the custom resampler can handle any dimension. If `"Type"` is `"custom"`, you must specify `NDims`.

Data Types: `single` | `double` | `int8` | `int16` | `int32` | `int64` | `uint8` | `uint16` | `uint32` | `uint64` | `logical`

Function that performs the resampling, specified as a function handle. You call this function with the following interface:

`B = resample_fcn(A,M,TDIMS_A,TDIMS_B,FSIZE_A,FSIZE_B,F,R)`

For more information about the input arguments to this function, see the help for `tformarray`. The argument `M` is an array that maps the transform subscript space of `B` to the transform subscript space of `A`. If `A` has `N` transform dimensions `(N = length(TDIMS_A))` and `B` has `P` transform dimensions `(P = length(TDIMS_B))`, then ```ndims(M) = P + 1```, if `N > 1` and `P` if ```N == 1```, and `size(M,P + 1) = N`.

The first `P` dimensions of `M` correspond to the output transform space, permuted according to the order in which the output transform dimensions are listed in `TDIMS_B`. (In general `TDIMS_A` and `TDIMS_B` need not be sorted in ascending order, although some resamplers can impose such a limitation.) Thus, the first `P` elements of `size(M)` determine the sizes of the transform dimensions of `B`. The input transform coordinates to which each point is mapped are arrayed across the final dimension of `M`, following the order given in `TDIMS_A`. `M` must be `double`. `FSIZE_A` and `FSIZE_B` are the full sizes of `A` and `B`, padded with `1`'s as necessary to be consistent with `TDIMS_A`, `TDIMS_B`, and `size(A)`.

Data Types: `function_handle`

User-defined data, specified using a string scalar, character vector, or numeric array.

Data Types: `single` | `double` | `int8` | `int16` | `int32` | `int64` | `uint8` | `uint16` | `uint32` | `uint64` | `logical` | `char` | `string`

## Output Arguments

collapse all

Resampler, returned as a structure.

## Version History

Introduced before R2006a
