ssim

Structural similarity (SSIM) index for measuring image quality

Description

ssimval = ssim(A,ref) calculates the structural similarity (SSIM) index for grayscale image or volume A using ref as the reference image or volume.

example

[ssimval,ssimmap] = ssim(A,ref) also returns the local SSIM value for each pixel or voxel in A.

___ = ssim(A,ref,Name,Value) calculates the SSIM, using name-value pairs to control aspects of the computation.

Examples

collapse all

Read an image into the workspace. Create another version of the image, applying a blurring filter.

ref = imread('pout.tif');
H = fspecial('Gaussian',[11 11],1.5);
A = imfilter(ref,H,'replicate');

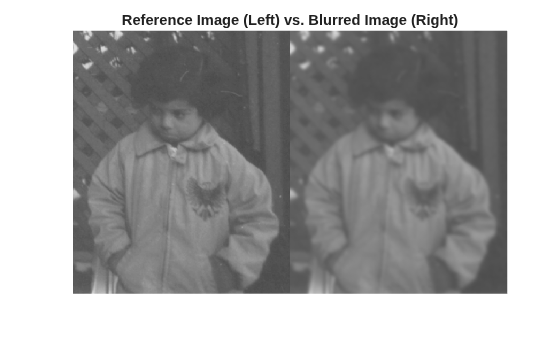

Display both images as a montage. The images differ most along sharp high-contrast regions, such as the edges of the trellis.

montage({ref,A})
title('Reference Image (Left) vs. Blurred Image (Right)')

Calculate the global SSIM value for the image and local SSIM values for each pixel.

[ssimval,ssimmap] = ssim(A,ref);

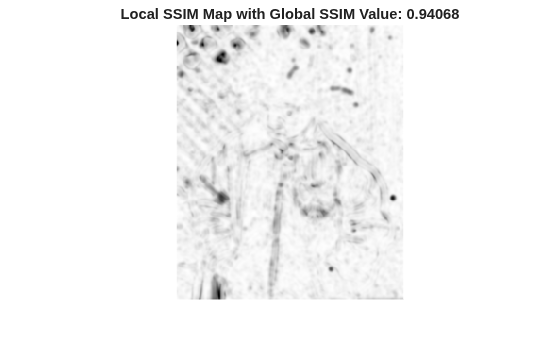

Display the local SSIM map. Include the global SSIM value in the figure title. Small values of local SSIM appear as dark pixels in the local SSIM map. Regions with small local SSIM value correspond to areas where the blurred image noticeably differs from the reference image. Large values of local SSIM value appear as bright pixels. Regions with large local SSIM correspond to uniform regions of the reference image, where blurring has less of an impact on the image.

imshow(ssimmap,[])
title(['Local SSIM Map with Global SSIM Value: ',num2str(ssimval)])

Input Arguments

collapse all

Image whose quality is to be measured, specified as a 2-D grayscale image or 3-D grayscale volume.

Data Types: single | double | int16 | uint8 | uint16

Reference image against which quality is measured, specified as a 2-D grayscale image or 3-D grayscale volume of the same size and data type as A

Data Types: single | double | int16 | uint8 | uint16

Name-Value Pair Arguments

Specify optional comma-separated pairs of Name,Value arguments. Name is the argument name and Value is the corresponding value. Name must appear inside quotes. You can specify several name and value pair arguments in any order as Name1,Value1,...,NameN,ValueN.

Example: ssim(A,ref,'DynamicRange',100)

Dynamic range of the input image, specified as a positive scalar. The default value of DynamicRange depends on the data type of image A, and is calculated as diff(getrangefromclass(A)). For example, the default dynamic range is 255 for images of data type uint8, and the default is 1 for images of data type double or single with pixel values in the range [0, 1].

Data Types: single | double | int8 | int16 | int32 | uint8 | uint16 | uint32

Exponents for the luminance, contrast, and structural terms, specified as a 3-element vector of nonnegative numbers of the form [alpha beta gamma].

Data Types: single | double | int8 | int16 | int32 | uint8 | uint16 | uint32

Standard deviation of isotropic Gaussian function, specified as a positive number. This value is used for weighting the neighborhood pixels around a pixel for estimating local statistics. This weighting is used to avoid blocking artifacts in estimating local statistics.

Data Types: single | double | int8 | int16 | int32 | uint8 | uint16 | uint32

Regularization constants for the luminance, contrast, and structural terms, specified as a 3-element vector of nonnegative numbers of the form [c1 c2 c3]. The ssim function uses these regularization constants to avoid instability for image regions where the local mean or standard deviation is close to zero. Therefore, small non-zero values should be used for these constants.

By default,

  • C1 = (0.01*L).^2, where L is the specified DynamicRange value.

  • C2 = (0.03*L).^2, where L is the specified DynamicRange value.

  • C3 = C2/2

Data Types: single | double | int8 | int16 | int32 | uint8 | uint16 | uint32

Output Arguments

collapse all

SSIM index, returned as a numeric scalar. ssimval is of data type double except when A is of data type single, in which case ssimval is of data type single.

The value of ssimval is typically in the range [0, 1]. The value 1 indicates the highest quality and occurs when A and ref are equivalent. Smaller values correspond to poorer quality. For some combinations of inputs and name-value pair arguments, ssimval can be negative.

Local values of SSIM index, returned as a numeric array of nonnegative numbers of the same size as the input image, A. ssimmap is of data type double except when A is of data type single, in which case ssimmap is of data type single.

More About

collapse all

Structural Similarity Index

An image quality metric that assesses the visual impact of three characteristics of an image: luminance, contrast and structure.

Algorithms

The SSIM Index quality assessment index is based on the computation of three terms, namely the luminance term, the contrast term and the structural term. The overall index is a multiplicative combination of the three terms.

SSIM(x,y)=[l(x,y)]α[c(x,y)]β[s(x,y)]γ

where

l(x,y)=2μxμy+C1μx2+μy2+C1,c(x,y)=2σxσy+C2σx2+σy2+C2,s(x,y)=σxy+C3σxσy+C3

where μx, μy, σxy, and σxy are the local means, standard deviations, and cross-covariance for images x, y. If α = β = γ = 1 (the default for Exponents), and C3 = C2/2 (default selection of C3) the index simplifies to:

SSIM(x,y)=(2μxμy+C1)(2σxy+C2)(μx2+μy2+C1)(σx2+σy2+C2)

When you specify a noninteger value for 'Exponents', the ssim function prevents complex valued outputs by clamping the intermediate luminance, contrast, and structural terms to the range [0, inf].

References

[1] Zhou, W., A. C. Bovik, H. R. Sheikh, and E. P. Simoncelli. "Image Qualifty Assessment: From Error Visibility to Structural Similarity." IEEE Transactions on Image Processing. Vol. 13, Issue 4, April 2004, pp. 600–612.

Introduced in R2014a
