geocrop

Crop geographic raster

Since R2020a

Syntax

``[B,RB] = geocrop(A,RA,latlim,lonlim)``

Description

example

````[B,RB] = geocrop(A,RA,latlim,lonlim)` crops the raster specified by `A` and raster reference `RA` and returns the cropped raster `B` and raster reference `RB`. The returned raster is cropped to geographic limits in degrees close to those specified by `latlim` and `lonlim`.To clip vector data represented by a point, line, or polygon shape in geographic coordinates, use the `geoclip` function instead.```

Examples

collapse all

Crop a geographic raster and display the cropped raster on a map.

First, load elevation raster data and a geographic cells reference object for the Korean peninsula. Then, crop the raster to the limits specified by `latlim` and `lonlim`.

```load korea5c latlim = [34.25 38.72]; lonlim = [125.85 129.92]; [B,RB] = geocrop(korea5c,korea5cR,latlim,lonlim);```

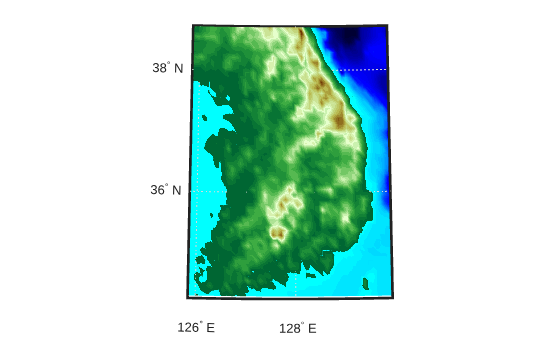

Display the cropped raster as a surface on a map. Apply a colormap appropriate for elevation data using the `demcmap` function.

```worldmap(latlim,lonlim) geoshow(B,RB,'DisplayType','surface') demcmap(B)```

Shift the longitude limits of a raster with limits that span 360 degrees using the `geocrop` function. Then, display the shifted data as a surface on a map.

First, load elevation raster data for the world and a geographic cells reference object. Then, shift the longitude limits of the raster from [0, 360] to [-180, 180].

```load topo60c latlim = topo60cR.LatitudeLimits; [B,RB] = geocrop(topo60c,topo60cR,latlim,[-180 180]);```

Compare the rasters by querying their `LongitudeLimits` properties.

`topo60cR.LongitudeLimits`
```ans = 1×2 0 360 ```
`RB.LongitudeLimits`
```ans = 1×2 -180 180 ```

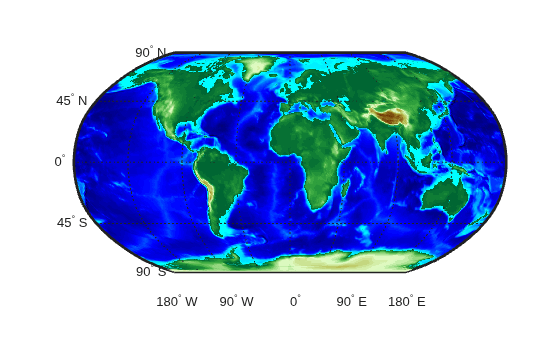

Display the shifted data as a surface on a map. Move the meridian labels to the bottom of the map using the `mlabel` function. Specify meridian labels to display using the `MLabelLocation` property. Then, apply a colormap appropriate for topographic data using the `demcmap` function. Note that the shifted longitude limits appear at the edges of the map.

```worldmap(RB.LatitudeLimits,RB.LongitudeLimits) geoshow(B,RB,'DisplayType','surface') mlabel('south') setm(gca,'MLabelLocation',-180:90:180) demcmap(B)```

Input Arguments

collapse all

Geographic raster, specified as an M-by-N or M-by-N-by-P numeric or logical array.

Latitude limits, specified as a two-element numeric vector of the form `[slat nlat]`, where `slat` is the southernmost limit in degrees and `nlat` is the northernmost limit in degrees.

Longitude limits, specified as a two-element numeric vector of the form `[wlon elon]`, where `wlon` is the westernmost limit in degrees and `elon` is the easternmost limit in degrees.

Output Arguments

collapse all

Cropped geographic raster, returned as a numeric or logical array. The data type and size of `B` matches the data type and size of `A`.

If the limits specified by `latlim` and `lonlim` do not intersect the raster specified by `A` and `RA`, then `B` is empty.

Raster reference for `B`, returned as a `GeographicCellsReference` object or `GeographicPostingsReference` object. The object type of `RB` matches the object type of `RA`.

The exact latitude and longitude limits of `RB` do not match the limits specified by `latlim` and `lonlim`, unless they coincide with a cell boundary or posting location. Otherwise, the limits of `RB` are slightly larger than `latlim` and `lonlim`.

If the limits specified by `latlim` and `lonlim` do not intersect the raster specified by `A` and `RA`, then `RB` is empty.

Version History

Introduced in R2020a
