geoplot

Plot points, lines, and polygons in geographic axes

    Description

    Mapping Toolbox™ extends the functionality of the geoplot (MATLAB®) function. It adds support for displaying points, lines, and polygons with coordinates in any supported geographic or projected coordinate reference system (CRS). If you do not have Mapping Toolbox installed, then see geoplot.

    Table and Shape Data

    example

    geoplot(GT) plots the point, line, or polygon shape objects within the Shape variable of the geospatial table GT.

    example

    geoplot(shape) plots the point, line, or polygon shape objects in shape on a geographic axes.

    example

    geoplot(___,LineSpec) sets the style, marker symbol, and color for the plotted shapes. You can use the LineSpec argument with either of the GT or shape arguments.

    Numeric Data

    geoplot(lat,lon) plots a line with vertices at the latitudes and longitudes in lat and lon, respectively.

    example

    geoplot(lat,lon,LineSpec) sets the style, marker symbol, and color for the line.

    geoplot(lat1,lon1,...,latN,lonN) plots multiple pairs of latitude and longitude coordinates on the same set of geographic axes.

    geoplot(lat1,lon1,LineSpec1,...,latN,lonN,LineSpecN) assigns specific line styles, markers, and colors to each latitude-longitude pair.

    Additional Options

    example

    geoplot(___,Name=Value) specifies options for the plot using one or more name-value arguments.

    example

    geoplot(gx,___) plots in the geographic axes specified by gx instead of the current axes.

    example

    h = geoplot(___) returns a Point, Line, or Polygon object. The type of object depends on the type of input. Use h to modify the properties of the plot object.

    Examples

    collapse all

    Import a shapefile containing road data for Concord, MA, into the workspace as a geospatial table. The table represents roads using line shapes in projected coordinates.

    GT = readgeotable("concord_roads.shp");
    GT.Shape
    ans=609×1 object
      16×1 maplineshape array with properties:

                    NumParts: [16×1 double]
                    Geometry: "line"
        CoordinateSystemType: "planar"
                ProjectedCRS: [1×1 projcrs]
          ⋮

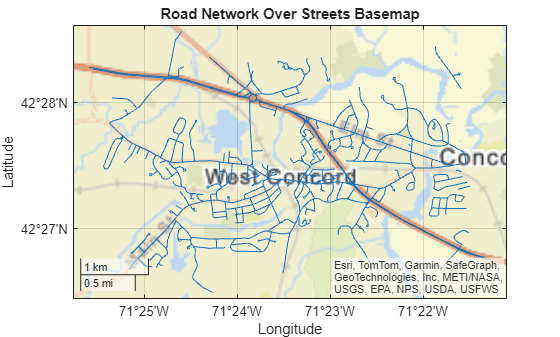

    Display the line shapes by passing the table to the geoplot function.

    figure
    geoplot(GT)

    Change the basemap and add a title.

    geobasemap streets
    title("Road Network Over Streets Basemap")

    One way to plot data from a geospatial table and customize the colors is to set the ColorVariable property. You can set this property by using a name-value argument when you call the geoplot function, or you can set it on the plot object later.

    Read a shapefile containing tsunami (tidal wave) events into the workspace as a geospatial table. The table represents the tsunami events using point shapes in geographic coordinates.

    GT = readgeotable("tsunamis.shp",CoordinateSystemType="geographic");

    Create a subtable containing events for a region surrounding Southeast Asia.

    bbox = geopolyshape([-25 35 35 -25 -25],[90 90 170 170 90]);
    inpoly = isinterior(bbox,GT.Shape);
    GT2 = GT(inpoly,:);

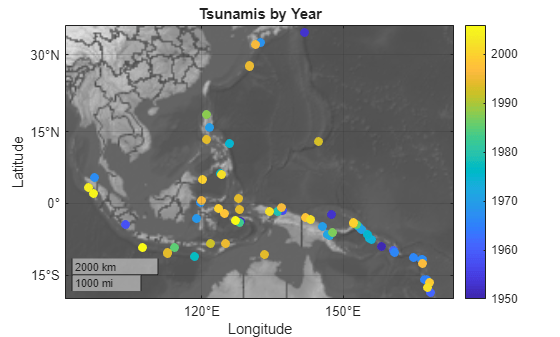

    Display the point shapes within the table. Vary the marker colors by specifying the ColorVariable name-value argument as a table variable. Return the Point object as h, so you can change the ColorVariable property later.

    figure
    h = geoplot(GT2,ColorVariable="Year",MarkerSize=20);

    Change the basemap, add a colorbar, and add a title.

    geobasemap grayterrain
    colorbar
    title("Tsunamis by Year")

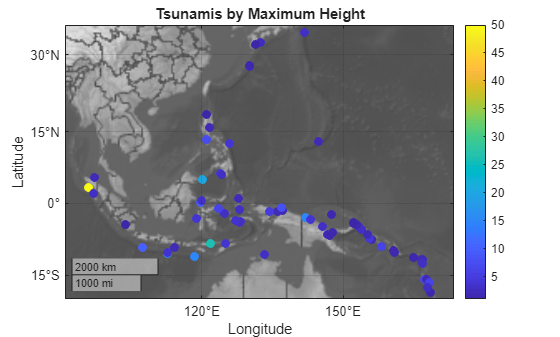

    Change the marker colors again by setting the ColorVariable property to a different table variable.

    h.ColorVariable = "Max_Height";
    title("Tsunamis by Maximum Height")

    Read a shapefile containing world cities into the workspace as a geospatial table. The table represents the cities using point shapes in geographic coordinates.

    GT = readgeotable("worldcities.shp");
    shape = GT.Shape
    shape =
      318×1 geopointshape array with properties:

                   NumPoints: [318×1 double]
                    Latitude: [318×1 double]
                   Longitude: [318×1 double]
                    Geometry: "point"
        CoordinateSystemType: "geographic"
               GeographicCRS: [1×1 geocrs]



    Clip the shapes to a region containing part of Europe.

    clipped = geoclip(shape,[30 60],[-20 35]);

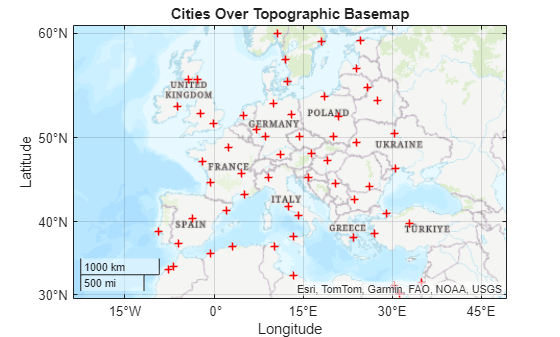

    Display the shapes using red plus sign markers over a topographic basemap.

    figure
    geoplot(clipped,"r+")
    geobasemap topographic
    title("Cities Over Topographic Basemap")

    Read hydrography data into the workspace as a geospatial table. The table represents the data using polygon shapes in projected coordinates. Extract the polygon shape for a pond.

    GT = readgeotable("concord_hydro_area.shp");
    shape = GT.Shape(14)
    shape =
      mappolyshape with properties:

                  NumRegions: 1
                    NumHoles: 3
                    Geometry: "polygon"
        CoordinateSystemType: "planar"
                ProjectedCRS: [1×1 projcrs]



    To plot shapes in projected coordinates using the geoplot function, the ProjectedCRS property of the shape must not be empty. View the contents of the ProjectedCRS property.

    shape.ProjectedCRS
    ans =
      projcrs with properties:

                        Name: "NAD83 / Massachusetts Mainland"
               GeographicCRS: [1×1 geocrs]
            ProjectionMethod: "Lambert Conic Conformal (2SP)"
                  LengthUnit: "meter"
        ProjectionParameters: [1×1 map.crs.ProjectionParameters]



    Display the polygon shape. Then, change the basemap and add a title.

    figure
    geoplot(shape)
    geobasemap streets
    title("Pond Over Streets Basemap")

    Read a shapefile of US states into the workspace as a geospatial table. The table represents the states using polygon shapes in geographic coordinates.

    GT = readgeotable("usastatehi.shp");
    shape = GT.Shape;

    Clip the shapes to a region containing the conterminous US.

    clipped = geoclip(shape,[17 56],[-127 -65]);

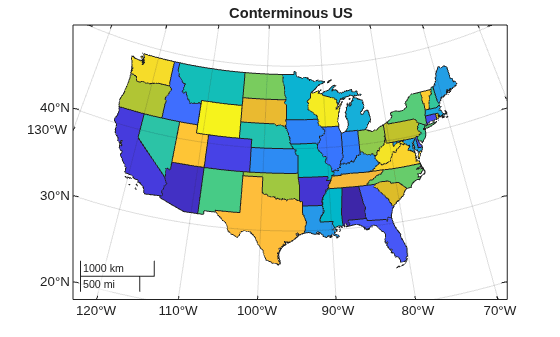

    Display the shapes. Vary the colors by using the ColorData name-value argument.

    figure
    c = 1:length(clipped);
    geoplot(clipped,ColorData=c)

    Change the basemap and add a title.

    geobasemap grayland
    title("Conterminous US")

    Load a MAT file containing the coordinates of global coastlines into the workspace. The variables within the MAT file, coastlat and coastlon, specify numeric latitude and longitude coordinates, respectively. Display the coordinates using a blue line over a topographic basemap.

    load coastlines
    figure
    geoplot(coastlat,coastlon,"b")
    geobasemap topographic

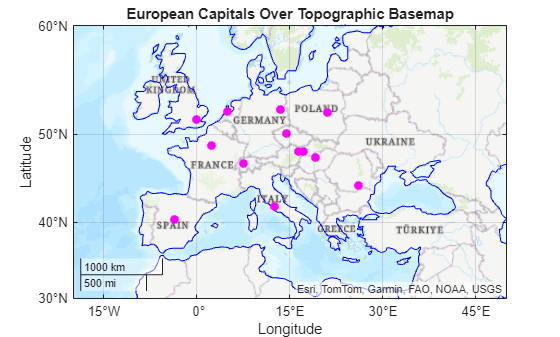

    Read the geographic coordinates of European capitals into the workspace. Display the capitals using magenta circle markers on the same map.

    [lat,lon] = readvars("european_capitals.txt");
    hold on
    geoplot(lat,lon,"om",MarkerFaceColor="m")
    title("European Capitals Over Topographic Basemap")

    Center the map over Europe by changing its limits.

    geolimits([30 60],[-13 43])

    Import several shapefiles into the workspace as geospatial tables.

    • landareas.shp contains world land areas. The table represents the areas using polygon shapes in geographic coordinates (geopolyshape objects).

    • worldrivers.shp contains world rivers. The table represents the rivers using line shapes in geographic coordinates (geolineshape objects).

    • worldcities.shp contains world cities. The table represents the cities using point shapes in geographic coordinates (geopointshape objects).

    land = readgeotable("landareas.shp");
    rivers = readgeotable("worldrivers.shp");
    cities = readgeotable("worldcities.shp");

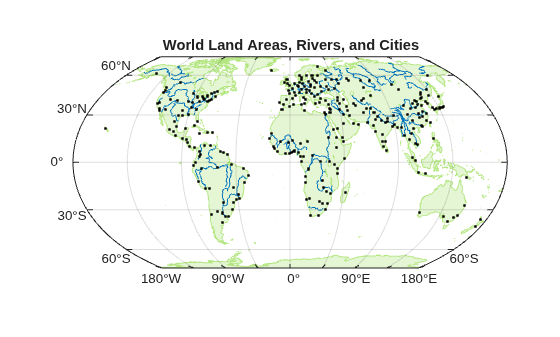

    Display each set of shapes using separate calls to the geoplot function. Different shapes support different name-value arguments.

    • Display the land areas using green polygons.

    • Display the rivers using blue lines.

    • Display the cities using black points.

    figure
    geoplot(land,FaceColor=[0.7 0.9 0.5],EdgeColor=[0.7 0.9 0.5])
    hold on
    geoplot(rivers,Color=[0 0.4470 0.7410])
    geoplot(cities,"k")

    Remove the basemap and add a title. Then, zoom in by changing the geographic limits.

    geobasemap none
    title("World Land Areas, Rivers, and Cities")
    geolimits([-72 85],[-180 180])

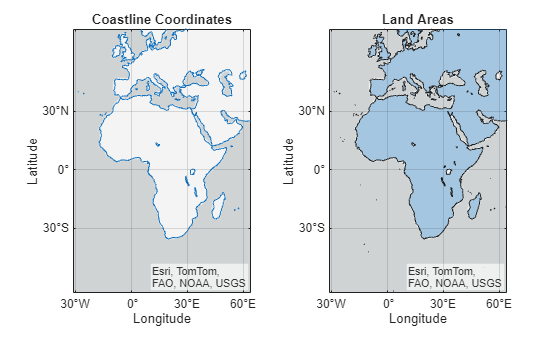

    Create multiple geographic axes in a single figure by using a tiled chart layout.

    Create a 1-by-2 tiled chart layout.

    t = tiledlayout(1,2);

    Load a MAT file containing the coordinates of global coastlines into the workspace. The variables within the MAT file, coastlat and coastlon, specify numeric latitude and longitude coordinates, respectively.

    load coastlines

    Place a geographic axes in the first tile. Plot the coordinates as a line on the axes.

    gx1 = geoaxes(t);
    geoplot(gx1,coastlat,coastlon)
    title(gx1,"Coastline Coordinates")

    Read a shapefile containing world land areas into the workspace as a geospatial table. The table represents the land areas using polygon shapes in geographic coordinates.

    GT = readgeotable("landareas.shp");

    Place a new geographic axes in the second tile. Plot the land areas as a polygon on the new axes.

    gx2 = geoaxes(t);
    gx2.Layout.Tile = 2;
    geoplot(gx2,GT)
    title(gx2,"Land Areas")

    Zoom both axes to a region containing Africa.

    latlim = [-55 60];
    lonlim = [-21 53];
    geolimits(gx1,latlim,lonlim)
    geolimits(gx2,latlim,lonlim)

    Import several shapefiles into the workspace as geospatial tables.

    • landareas.shp contains world land areas. The table represents the areas using polygon shapes in geographic coordinates (geopolyshape objects).

    • worldrivers.shp contains world rivers. The table represents the rivers using line shapes in geographic coordinates (geolineshape objects).

    • worldcities.shp contains world cities. The table represents the cities using point shapes in geographic coordinates (geopointshape objects).

    land = readgeotable("landareas.shp");
    rivers = readgeotable("worldrivers.shp");
    cities = readgeotable("worldcities.shp");

    Display each set of shapes by using separate calls to the geoplot function.

    • Display the land areas and return the polygon in h1. The polygon in h1 represents multiple polygon shapes in land.

    • Display the rivers and return the line in h2. The line in h2 represents multiple line shapes in rivers.

    • Display the cities and return the point in h3. The point in h3 represents multiple point shapes in cities.

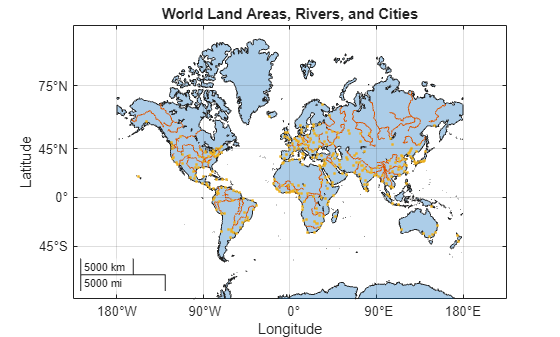

    figure
    h1 = geoplot(land);
    hold on
    h2 = geoplot(rivers);
    h3 = geoplot(cities);

    Change the geographic limits of the map, add a title, and remove the basemap.

    geolimits([-72 85],[-180 180])
    title("World Land Areas, Rivers, and Cities")
    geobasemap none

    Update properties of the polygon, point, and line objects. Each object supports different properties.

    • Change the fill and outline colors of the polygons to green.

    • Change the color of the lines to blue.

    • Change the color of the markers to black.

    h1.FaceColor = [0.7 0.9 0.5];
    h1.EdgeColor = [0.7 0.9 0.5];
    h2.Color = [0 0.4470 0.7410];
    h3.MarkerEdgeColor = "k";

    Input Arguments

    collapse all

    Geospatial table. A geospatial table is a table or timetable object with a Shape variable that contains point, line, or polygon shapes. For more information about geospatial tables, see Create Geospatial Tables.

    The Shape variable of the table must contain only one type of shape. The ProjectedCRS property of mappointshape, maplineshape, and mappolyshape objects within the Shape variable must not be empty.

    The geoplot function can display shapes with coordinates in any supported geographic or projected CRS. The function displays the shape data into a Web Mercator map projection.

    Point, line, or polygon shapes, specified as one of these options:

    • A vector of geopointshape objects — Point shapes in geographic coordinates

    • A vector of geolineshape objects — Line shapes in geographic coordinates

    • A vector of geopolyshape objects — Polygon shapes in geographic coordinates

    • A vector of mappointshape objects — Point shapes in projected coordinates

    • A vector of maplineshape objects — Line shapes in projected coordinates

    • A vector of mappolyshape objects — Polygon shapes in projected coordinates

    You can also specify this argument as a scalar point, line, or polygon shape.

    The ProjectedCRS property of mappointshape, maplineshape, and mappolyshape objects must not be empty.

    The geoplot function can display shapes with coordinates in any supported geographic or projected CRS. The function displays the shape data into a Web Mercator map projection.

    Latitude coordinates in degrees, specified as a finite vector of real numbers. The vector can contain NaN values.

    The geoplot function assumes numeric coordinates are referenced to the WGS84 coordinate reference system. To plot points or lines with coordinates in a different CRS, use the coordinates to create a geopointshape or geolineshape object and set its GeographicCRS property. Then, pass the object you created to the geoplot function.

    lat must be the same size as lon.

    Example: [43.0327 38.8921 44.0435]

    Data Types: single | double

    Longitude coordinates in degrees, specified as a finite vector of real numbers. The vector can contain NaN values.

    The geoplot function assumes numeric coordinates are referenced to the WGS84 coordinate reference system. To plot points or lines with coordinates in a different CRS, use the coordinates to create a geopointshape or geolineshape object and set its GeographicCRS property. Then, pass the object you created to the geoplot function.

    lon must be the same size as lat.

    Example: [-107.5556 -77.0269 -72.5565]

    Data Types: single | double

    Line style, marker, and color, specified as a character vector or string scalar containing symbols. You can specify the symbols in any order. Different types of input support different characteristics (line, marker style, and color).

    Type of InputSupported CharacteristicsExample
    GT or shape contains geopointshape or mappointshape objects

    Marker and color

    'ro' specifies red circle markers
    GT or shape contains geolineshape or maplineshape objects

    Line style and color

    'r--' specifies red dashed lines
    GT or shape contains geopolyshape or mappolyshape objects

    Line style and color

    'r--' specifies red dashed lines
    lat and lon contain numeric data

    Line style, marker, and color

    '--or' specifies red dashed lines with circle markers

    You do not need to specify all supported characteristics. For example, if you plot a line from numeric data and specify only the marker, then the plot shows only the marker and no line.

    Line StyleDescriptionResulting Line
    '-'Solid line

    Sample of solid line

    '--'Dashed line

    Sample of dashed line

    ':'Dotted line

    Sample of dotted line

    '-.'Dash-dotted line

    Sample of dash-dotted line, with alternating dashes and dots

    MarkerDescriptionResulting Marker
    'o'Circle

    Sample of circle marker

    '+'Plus sign

    Sample of plus sign marker

    '*'Asterisk

    Sample of asterisk marker

    '.'Point

    Sample of point marker

    'x'Cross

    Sample of cross marker

    '_'Horizontal line

    Sample of horizontal line marker

    '|'Vertical line

    Sample of vertical line marker

    's'Square

    Sample of square marker

    'd'Diamond

    Sample of diamond line marker

    '^'Upward-pointing triangle

    Sample of upward-pointing triangle marker

    'v'Downward-pointing triangle

    Sample of downward-pointing triangle marker

    '>'Right-pointing triangle

    Sample of right-pointing triangle marker

    '<'Left-pointing triangle

    Sample of left-pointing triangle marker

    'p'Pentagram

    Sample of pentagram marker

    'h'Hexagram

    Sample of hexagram marker

    Color NameShort NameRGB TripletAppearance
    'red''r'[1 0 0]

    Sample of the color red

    'green''g'[0 1 0]

    Sample of the color green

    'blue''b'[0 0 1]

    Sample of the color blue

    'cyan' 'c'[0 1 1]

    Sample of the color cyan

    'magenta''m'[1 0 1]

    Sample of the color magenta

    'yellow''y'[1 1 0]

    Sample of the color yellow

    'black''k'[0 0 0]

    Sample of the color black

    'white''w'[1 1 1]

    Sample of the color white

    Target geographic axes, specified as a GeographicAxes object.1 You can modify the appearance and behavior of a GeographicAxes object by setting its properties. For a list of properties, see GeographicAxes Properties.

    Name-Value Arguments

    Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

    Example: geoplot(47,-122,Marker="*",Color="m") displays a magenta star marker at the specified latitude and longitude.

    Specify properties for the plot by using name-value arguments. The supported name-value arguments depend on the type of input.

    Type of Input Supported Name-Value Arguments
    GT or shape contains geopointshape or mappointshape objectsSee Point Properties
    GT or shape contains geolineshape or maplineshape objectsSee Line Properties
    GT or shape contains geopolyshape or mappolyshape objectsSee Polygon Properties
    lat and lon contain numeric dataSee Line Properties

    Output Arguments

    collapse all

    Plot object. The value of h depends on the type of input you pass to the geoplot function.

    Type of Input Value of h
    GT or shape contains geopointshape or mappointshape objectsA geographic Point object. A Point object can represent multiple geopointshape or mappointshape objects.
    GT or shape contains geolineshape or maplineshape objectsA geographic chart Line object. A Line object can represent multiple geolineshape or maplineshape objects.
    GT or shape contains geopolyshape or mappolyshape objectsA geographic Polygon object. A Polygon object can represent multiple geopolyshape or mappolyshape objects.
    lat and lon contain numeric data

    A column vector of chart Line objects. Each object corresponds to a vector of latitude-longitude pairs.

    Version History

    Introduced in R2022a

    1 Alignment of boundaries and region labels are a presentation of the feature provided by the data vendors and do not imply endorsement by MathWorks®.
