This page contains two examples of solving nonstiff ordinary differential equations using
ode45. MATLAB® has three solvers for nonstiff ODEs.
For most nonstiff problems,
ode45 performs best. However,
ode23 is recommended for problems that permit a slightly cruder error tolerance or in the presence of moderate stiffness. Likewise,
ode113 can be more efficient than
ode45 for problems with stringent error tolerances.
If the nonstiff solvers take a long time to solve the problem or consistently fail the integration, then the problem might be stiff. See Solve Stiff ODEs for more information.
The van der Pol equation is a second order ODE
where is a scalar parameter. Rewrite this equation as a system of first-order ODEs by making the substitution . The resulting system of first-order ODEs is
The system of ODEs must be coded into a function file that the ODE solver can use. The general functional signature of an ODE function is
dydt = odefun(t,y)
That is, the function must accept both
y as inputs, even if it does not use
t for any computations.
The function file
vdp1.m codes the van der Pol equation using . The variables and are represented by
y(2), and the two-element column vector
dydt contains the expressions for and .
function dydt = vdp1(t,y) %VDP1 Evaluate the van der Pol ODEs for mu = 1 % % See also ODE113, ODE23, ODE45. % Jacek Kierzenka and Lawrence F. Shampine % Copyright 1984-2014 The MathWorks, Inc. dydt = [y(2); (1-y(1)^2)*y(2)-y(1)];
Solve the ODE using the
ode45 function on the time interval
[0 20] with initial values
[2 0]. The output is a column vector of time points
t and a solution array
y. Each row in
y corresponds to a time returned in the corresponding row of
t. The first column of
y corresponds to , and the second column to .
[t,y] = ode45(@vdp1,[0 20],[2; 0]);

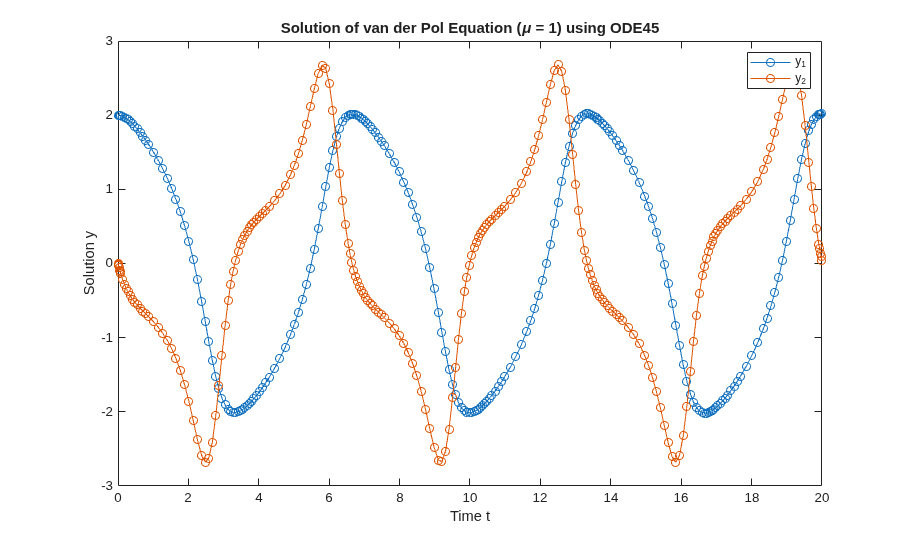

Plot the solutions for and against
plot(t,y(:,1),'-o',t,y(:,2),'-o') title('Solution of van der Pol Equation (\mu = 1) using ODE45'); xlabel('Time t'); ylabel('Solution y'); legend('y_1','y_2')
vdpode function solves the same problem, but it accepts a user-specified value for . The van der Pol equations become stiff as increases. For example, with the value you need to use a stiff solver such as
ode15s to solve the system.
The Euler equations for a rigid body without external forces are a standard test problem for ODE solvers intended for nonstiff problems.
The equations are
The function file
rigidode defines and solves this first-order system of equations over the time interval
[0 12], using the vector of initial conditions
[0; 1; 1] corresponding to the initial values of , , and . The local function
f(t,y) encodes the system of equations.
ode45 with no output arguments, so the solver uses the default output function
odeplot to automatically plot the solution points after each step.
function rigidode %RIGIDODE Euler equations of a rigid body without external forces. % A standard test problem for non-stiff solvers proposed by Krogh. The % analytical solutions are Jacobian elliptic functions, accessible in % MATLAB. The interval here is about 1.5 periods; it is that for which % solutions are plotted on p. 243 of Shampine and Gordon. % % L. F. Shampine and M. K. Gordon, Computer Solution of Ordinary % Differential Equations, W.H. Freeman & Co., 1975. % % See also ODE45, ODE23, ODE113, FUNCTION_HANDLE. % Mark W. Reichelt and Lawrence F. Shampine, 3-23-94, 4-19-94 % Copyright 1984-2014 The MathWorks, Inc. tspan = [0 12]; y0 = [0; 1; 1]; % solve the problem using ODE45 figure; ode45(@f,tspan,y0); % -------------------------------------------------------------------------- function dydt = f(t,y) dydt = [ y(2)*y(3) -y(1)*y(3) -0.51*y(1)*y(2) ];

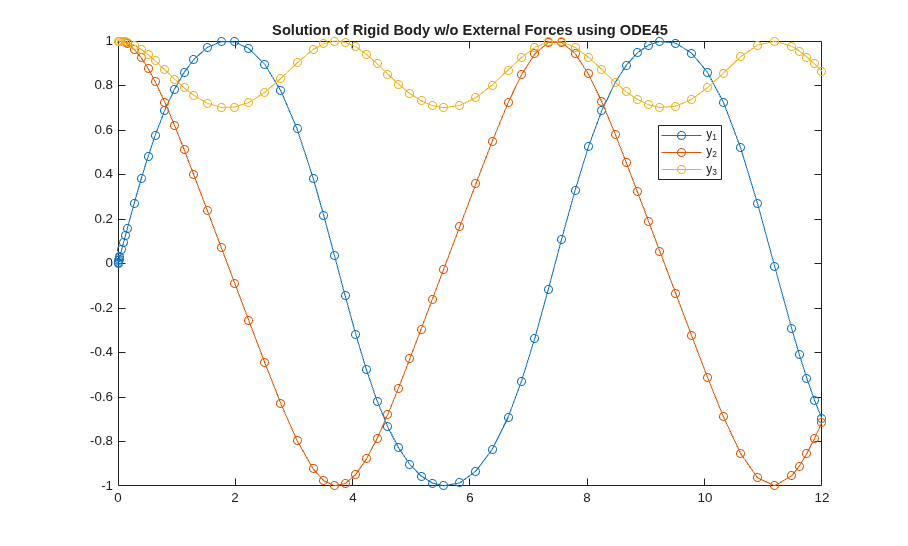

Solve the nonstiff Euler equations by calling the
rigidode title('Solution of Rigid Body w/o External Forces using ODE45') legend('y_1','y_2','y_3','Location','Best')
