# camdolly

Move camera position and target

## Syntax

```camdolly(dx,dy,dz) camdolly(dx,dy,dz,'targetmode') camdolly(dx,dy,dz,targetmode,coordsys) camdolly(ax,...) ```

## Description

`camdolly(dx,dy,dz)` moves the camera position and the camera target by the specified amounts `dx`, `dy`, and `dz`.

`camdolly(dx,dy,dz,'targetmode') ` uses the `targetmode` argument to determine how the camera moves:

• `'movetarget'` (default) — Move both the camera and the target.

• `'fixtarget'` — Move only the camera.

`camdolly(dx,dy,dz,targetmode,coordsys)` uses the `coordsys` argument to determine how MATLAB® interprets `dx`, `dy`, and `dz`:

• `'camera'` (default) — Move in the coordinate system of the camera. `dx` moves left/right, `dy` moves down/up, and `dz` moves along the viewing axis. MATLAB normalizes the units to the scene.

For example, setting `dx` to 1 moves the camera to the right, which pushes the scene to the left edge of the box formed by the axes position rectangle. A negative value moves the scene in the other direction. Setting `dz` to 0.5 moves the camera to a position halfway between the camera position and the camera target.

• `'pixels'` — Interpret `dx` and `dy` as pixel offsets. This option ignores `dz`.

• `'data'` — Interpret `dx`, `dy`, and `dz` as offsets in axes data coordinates.

`camdolly(ax,...)` operates on the axes identified by the first argument, `ax`. When you do not specify an axes object, `camdolly` operates on the current axes.

`camdolly` sets the axes `CameraPosition` and `CameraTarget` properties, which in turn sets the `CameraPositionMode` and `CameraTargetMode` properties to `manual`.

## Examples

collapse all

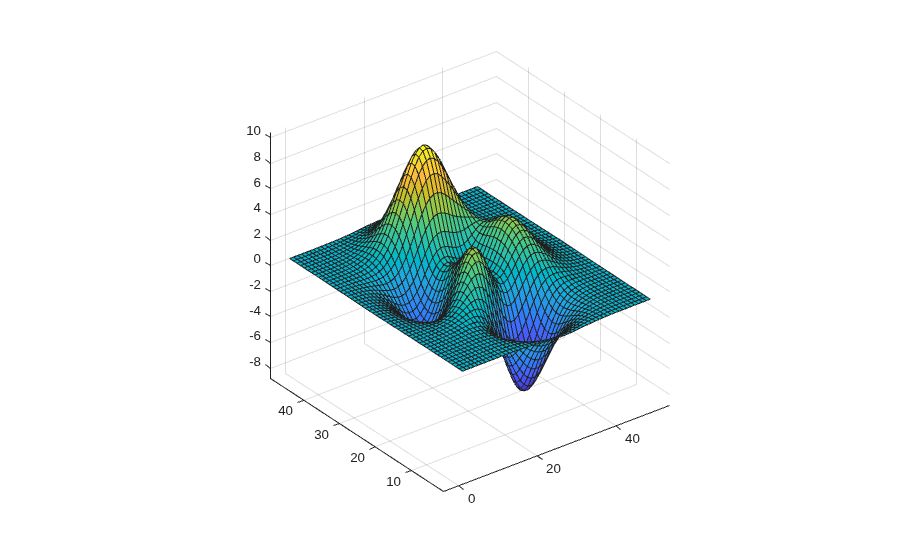

Move the camera along the x-axis and y-axis in a series of steps.

```surf(peaks) axis vis3d t = 0:pi/20:4*pi; dx = sin(t)./40; dy = cos(t)./40; for i = 1:length(t) camdolly(dx(i),dy(i),0) drawnow end ```

## Version History

Introduced before R2006a
