Retain current plot when adding new plots
hold on retains plots in the current axes
so that new plots added to the axes do not delete existing plots.
New plots use the next colors and line styles based on the
of the axes. MATLAB® adjusts axes limits, tick marks, and tick
labels to display the full range of data. If axes do not exist, then
hold command creates them.
hold off sets the hold state to off so
that new plots added to the axes clear existing plots and reset all
axes properties. The next plot added to the axes uses the first color
and line style based on the
of the axes. This option is the default behavior.
hold all is the same as
This syntax will be removed in a future release. Use
hold toggles the hold state between on
Add Line Plot to Existing Axes
Create a line plot. Use
hold on to add a second line plot without deleting the existing line plot. The new plot uses the next color and line style based on the
LineStyleOrder properties of the axes. Then reset the hold state to off.
x = linspace(-pi,pi); y1 = sin(x); plot(x,y1) hold on y2 = cos(x); plot(x,y2) hold off
When the hold state is off, new plots delete existing plots. New plots start from the beginning of the color order and line style order.
y3 = sin(2*x); plot(x,y3)
Specify Hold State for Specific Axes
Starting in R2019b, you can display a tiling of plots using the
nexttile functions. Call the

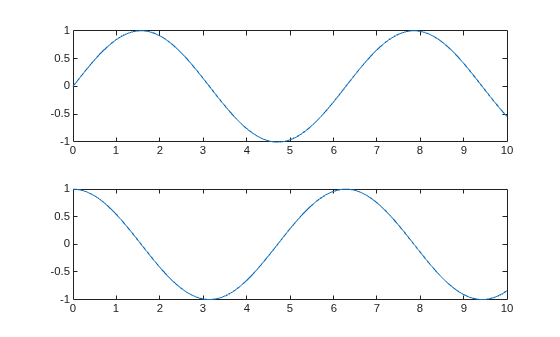

tiledlayout function to create a 2-by-1 tiled chart layout. Call the
nexttile function to create the axes objects
ax2. Plot a sine wave plot in each axes.
x = linspace(0,10); y1 = sin(x); y2 = cos(x); tiledlayout(2,1) % Top plot ax1 = nexttile; plot(ax1,x,y1) % Bottom plot ax2 = nexttile; plot(ax2,x,y2)
Add a second sine wave to the top axes.
hold(ax1,'on') y3 = sin(2*x); plot(ax1,x,y3) hold(ax1,'off')
Set the Hold State for Multiple Axes
Create a 1-by-2 tiled chart layout. Call the
nexttile function to create two axes objects and plot into the axes.
t = tiledlayout(1,2); ax1 = nexttile; ax2 = nexttile; plot(ax1,[0 1 0 1]) scatter(ax2,rand(1,10),rand(1,10),'filled')
hold state for both of the axes to
'on'. Then display additional data in each plot.
hold([ax1 ax2],'on') plot(ax1,[.5 .2 .5 .2]) scatter(ax2,rand(1,10),rand(1,10),'filled')
ax — Target axes
axes | array of axes
Target axes, specified as one of the following:
Any type of axes object: an
An array of axes objects that belong to the same class. To determine the class, use the
If you do not specify the axes, then
hold sets the hold state for
the current axes.
isholdfunction to test the hold state.
hold function sets these properties:
Introduced before R2006a
