# ucryGate

Uniformly controlled y-axis rotation gate

Since R2023b

Installation Required: This functionality requires MATLAB Support Package for Quantum Computing.

## Syntax

``cg = ucryGate(controlQubits,targetQubit,theta)``
``cg = ucryGate(controlQubits,targetQubit,theta,RotationThreshold=thresh)``

## Description

example

````cg = ucryGate(controlQubits,targetQubit,theta)` applies a y-axis rotation gate of angle `theta` to a single target qubit for each computational basis state of the control qubits.```

example

````cg = ucryGate(controlQubits,targetQubit,theta,RotationThreshold=thresh)` also removes single-qubit rotation gates that have an angle magnitude less than the rotation threshold.```

## Examples

collapse all

Create a uniformly controlled y-axis rotation gate that acts on a control qubit with index 1 and a target qubit with index 2 using rotation angles `pi/2` and `pi`.

`cg = ucryGate(1,2,[pi/2 pi])`
```cg = CompositeGate with properties: Name: "ucry" ControlQubits: [1×0 double] TargetQubits: [1 2] Gates: [4×1 quantum.gate.SimpleGate] ```

Get the matrix representation of the gate.

`M = getMatrix(cg)`
```M = 4×4 0.7071 -0.7071 0 0 0.7071 0.7071 0 0 0 0 0.0000 -1.0000 0 0 1.0000 0.0000 ```

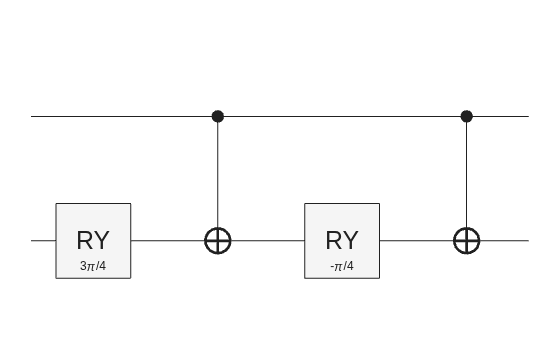

Plot the returned UCRY gate to show its internal gates.

`plot(cg)`

Create a uniformly controlled y-axis rotation gate that acts on three control qubits with indices 1, 2, and 3 and a target qubit with index 4 using eight rotation angles.

```theta = rand(8,1); cg1 = ucryGate(1:3,4,theta)```
```cg1 = CompositeGate with properties: Name: "ucry" ControlQubits: [1×0 double] TargetQubits: [1 2 3 4] Gates: [16×1 quantum.gate.SimpleGate] ```

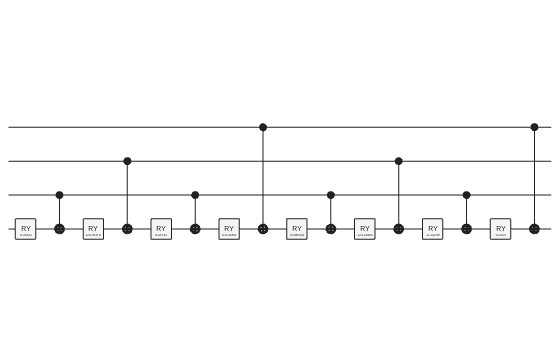

Plot the UCRY gate.

`plot(cg1)`

Now create the same gate, but specify a rotation threshold of 0.1.

`cg2 = ucryGate(1:3,4,theta,RotationThreshold=0.1)`
```cg2 = CompositeGate with properties: Name: "ucry" ControlQubits: [1×0 double] TargetQubits: [1 2 3 4] Gates: [9×1 quantum.gate.SimpleGate] ```

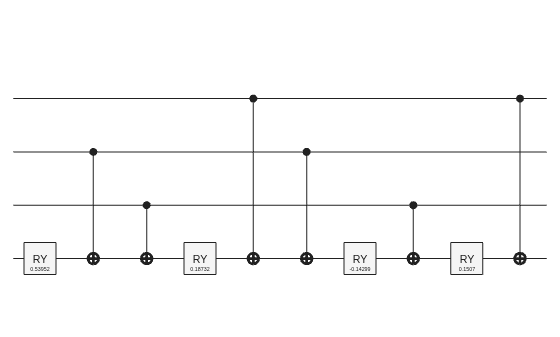

Plot the UCRY gate. The specified rotation threshold removes multiple gates from the final composite gate.

`plot(cg2)`

## Input Arguments

collapse all

Control qubits of the gate, specified as a positive integer scalar index or vector of qubit indices.

Example: `2`

Example: `6:8`

Target qubit of the gate, specified as a positive integer scalar index.

Example: `1`

Rotation angles, specified as a real scalar if the number of control qubits is 0 or real vector of length ${2}^{n}$, where n is the number of control qubits.

Example: `pi`

Example: `(1:4)*pi/2`

Rotation threshold, specified as one of these values:

• positive real number

• `"auto"` — Set the threshold to the default value of `2*pi*eps`.

• `"none"` — Do not remove gates.

The `ucryGate` function removes single-qubit rotation gates that have an angle magnitude less than this rotation threshold.

## Output Arguments

collapse all

UCRY gate, returned as a `CompositeGate` object or a `SimpleGate` object.

• If the number of control qubits is greater than 0, then the `ucryGate` function returns `cg` as a `CompositeGate` object that consists of several internal gates.

• If no control qubits are specified, then the `ucryGate` function returns `cg` as the RY gate (`ryGate`).

collapse all

### Matrix Representation of Uniformly Controlled y-Axis Rotation Gate

The matrix representation of a uniformly controlled y-axis rotation gate has a block diagonal structure made from the 2-by-2 RY gate matrices of the input rotation angles. For example, when the UCRY gate is applied to control qubit 1 and target qubit 2 with a rotation angle vector of $\left[\begin{array}{cc}{\theta }_{1}& {\theta }_{2}\end{array}\right]$, the matrix representation is

`$\left[\begin{array}{cccc}\mathrm{cos}\left(\frac{{\theta }_{1}}{2}\right)& -\mathrm{sin}\left(\frac{{\theta }_{1}}{2}\right)& 0& 0\\ \mathrm{sin}\left(\frac{{\theta }_{1}}{2}\right)& \mathrm{cos}\left(\frac{{\theta }_{1}}{2}\right)& 0& 0\\ 0& 0& \mathrm{cos}\left(\frac{{\theta }_{2}}{2}\right)& -\mathrm{sin}\left(\frac{{\theta }_{2}}{2}\right)\\ 0& 0& \mathrm{sin}\left(\frac{{\theta }_{2}}{2}\right)& \mathrm{cos}\left(\frac{{\theta }_{2}}{2}\right)\end{array}\right].$`

## References

[1] Möttönen, Mikko, Juha J. Vartiainen, Ville Bergholm, and Martti M. Salomaa. "Quantum Circuits for General Multiqubit Gates." Physical Review Letters 93, no. 13 (September 20, 2004): 130502. https://doi.org/10.1103/PhysRevLett.93.130502.

[2] Camps, Daan, and Roel Van Beeumen. "FABLE: Fast Approximate Quantum Circuits for Block-Encodings." In 2022 IEEE International Conference on Quantum Computing and Engineering (QCE), 104–113. Broomfield, CO, USA: IEEE, 2022. https://doi.org/10.1109/QCE53715.2022.00029.

## Version History

Introduced in R2023b
