Lowpass Resampler
R2026bConvert signal from one sample time to another
Libraries:
Mixed-Signal Blockset /
Utilities
Description
The Lowpass Resampler block converts either a fixed-step discrete or a variable-step discrete sample time at its input to a different sample time at its output. To calculate the output sample values, the block uses a lowpass filtering interpolation algorithm. The algorithm minimizes frequency aliasing at the output with respect to an output rise/fall time.
If the output rise/fall time is inherited from a fixed-step discrete input, the cutoff frequency is the Nyquist rate of the input. Otherwise, the cutoff frequency is the Nyquist rate associated with a sample interval obtained by scaling the specified 20%−80% output rise/fall time to a value for 0%−100% rise/fall time.

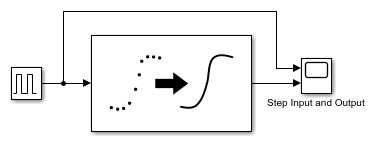

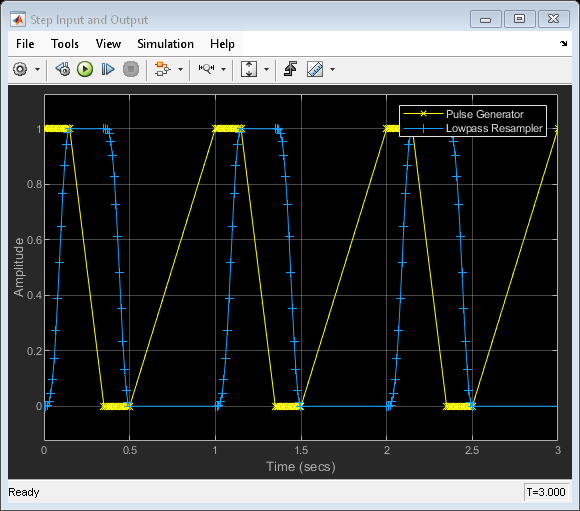

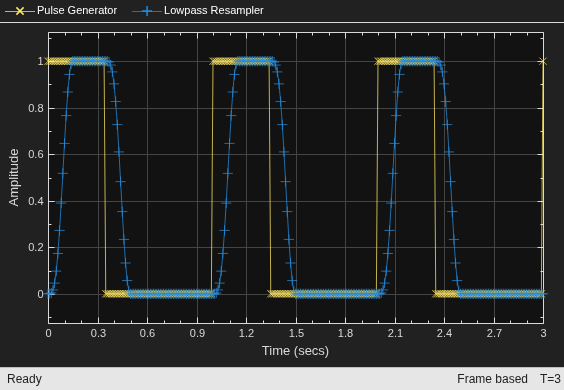

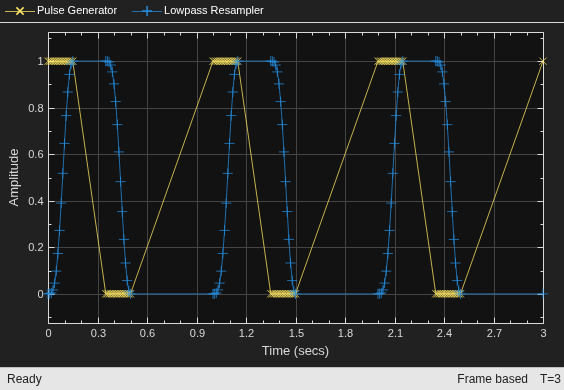

Examples
Ports
Input
Output
Parameters
Programmatic Use: Add Block
To add the block programmatically, use the add_block function with one of these library block paths as the source.
"msbUtilities/Lowpass Resampler"
Example: add_block("msbUtilities/Lowpass Resampler","myModel/myBlock",MakeNameUnique="on")
