Battery Module Cooling Analysis and Reduced-Order Thermal Model

This example shows how to perform a battery cooling analysis determine the effect of a cooling system. In addition, this example generates a reduced-order model (ROM) for the battery module. You can use the resulting ROM in a system-level model in Simscape™.

Battery Module Geometry

Define the key geometric parameters of a prismatic battery cell.

cellWidth = 150/1000;
cellThickness = 15/1000;
tabThickness = 10/1000;
tabWidth = 15/1000;
cellHeight = 100/1000;
tabHeight = 5/1000;
connectorHeight = 3/1000;

Define the number of cells in the battery module.

numCellsInModule = 20;

Create the geometry of the battery module by using the supporting function createBatteryModuleGeometry, which is provided in a supporting file.

[geomModule,volumeIDs,boundaryIDs,volume,area,ReferencePoint] = ...
    createBatteryModuleGeometry(numCellsInModule, ...
                                cellWidth, ...
                                cellThickness, ...
                                tabThickness, ...
                                tabWidth, ...
                                cellHeight, ...
                                tabHeight, ...
                                connectorHeight);

Plot the geometry.

pdegplot(geomModule)

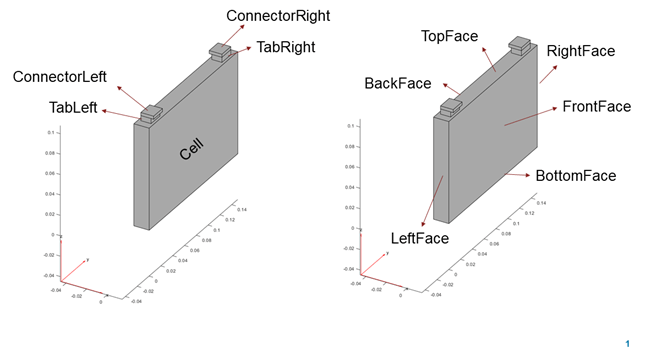

The createBatteryModuleGeometry function returns geometric IDs required for assigning material properties and boundary conditions as two structure arrays, volumeIDs and boundaryIDs. Each structure array is organized by cell. The volumeIDs structure array contains five volume regions for each cell: the cell body, two tabs, and two connectors. The boundaryIDs structure array contains face IDs for the six faces of the cell body.

Transient Thermal Analysis

Create an femodel object for transient thermal analysis, and include the battery module geometry into the model.

model = femodel(AnalysisType="thermalTransient", ...
                Geometry=geomModule);

Generate and plot the mesh.

model = generateMesh(model);
pdemesh(model)

Collect IDs for assigning material properties and boundary conditions.

cellIDs = [volumeIDs.Cell];
tabIDs = [volumeIDs.TabLeft,volumeIDs.TabRight];
connectorIDs = [volumeIDs.ConnectorLeft,volumeIDs.ConnectorRight];
bottomPlateFaces = [boundaryIDs.BottomFace];

Specify the thermal conductivity of the battery, in W/(K*m).

cellThermalCond.inPlane = 80;
cellThermalCond.throughPlane = 2;
tabThermalCond = 386;
connectorThermalCond = 400;

Specify the mass densities of the battery components, in kg/m³.

density.Cell = 780;
density.TabLeft = 2700;
density.TabRight = 2700;
density.ConnectorLeft = 540;
density.ConnectorRight = 540;

Specify the specific heat values of the battery components, in J/(kg*K).

spHeat.Cell = 785;
spHeat.TabLeft = 890;
spHeat.TabRight = 890;
spHeat.ConnectorLeft = 840;
spHeat.ConnectorRight = 840;

Assign the material properties of the cell body, tabs, and connectors.

model.MaterialProperties(cellIDs) = ...
    materialProperties(ThermalConductivity= ...
                        [cellThermalCond.throughPlane
                         cellThermalCond.inPlane
                         cellThermalCond.inPlane], ...
                        MassDensity=density.Cell, ...
                        SpecificHeat=spHeat.Cell);
model.MaterialProperties(tabIDs) = ...
    materialProperties(ThermalConductivity=tabThermalCond, ...
                       MassDensity=density.TabLeft, ...
                       SpecificHeat=spHeat.TabLeft);
model.MaterialProperties(connectorIDs) = ...
    materialProperties(ThermalConductivity=connectorThermalCond, ...
                       MassDensity=density.ConnectorLeft, ...
                       SpecificHeat=spHeat.ConnectorLeft);

Define the ambient temperature, in K.

Tambient = 293;

First, simulate the module with only natural convection cooling applied at the front and back faces of the module.

model.FaceLoad([boundaryIDs(1).FrontFace, ...
                boundaryIDs(end).BackFace]) = ...
                faceLoad(ConvectionCoefficient=15, ...
                AmbientTemperature=Tambient);

Apply nominal heat generation. Assume that the heat generation during normal operation is 15 W.

nominalHeatGen = 15/volume(1).Cell;
model.CellLoad(cellIDs) = cellLoad(Heat=nominalHeatGen);

For a faulty cell, specify a higher heat generation value, for example, 25 W.

faultCellHeatGen = 25/volume(10).Cell;
model.CellLoad(volumeIDs(10).Cell) = cellLoad(Heat=faultCellHeatGen);

Specify the initial conditions, and solve the problem for 2 hours of operation.

model.CellIC = cellIC(Temperature=Tambient);
R  = solve(model,0:60:7200);

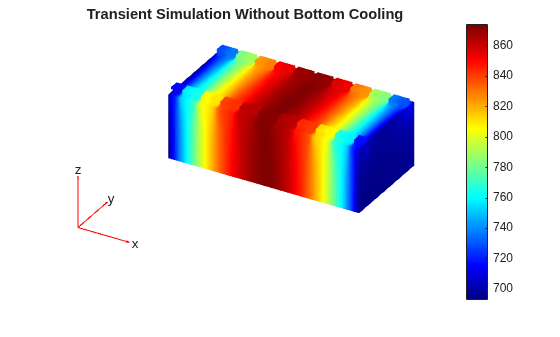

Plot the temperature at the end of the simulation.

pdeplot3D(R.Mesh,ColorMapData=R.Temperature(:,end))
title("Transient Simulation Without Bottom Cooling")

Include the cooling effect on the bottom faces of the module, and solve the problem again.

model.FaceLoad(bottomPlateFaces) = ...
    faceLoad(ConvectionCoefficient=100,AmbientTemperature=Tambient);
R  = solve(model,0:60:7200);

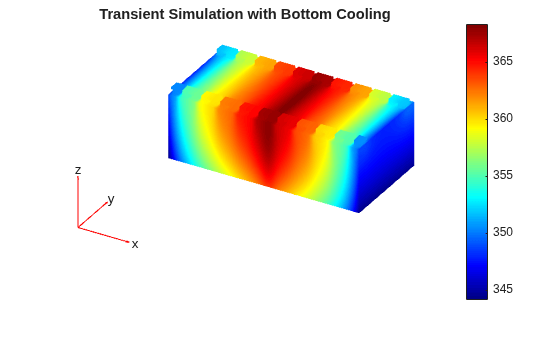

Plot the temperature at the end of the simulation with bottom cooling.

figure
pdeplot3D(R.Mesh,ColorMapData=R.Temperature(:,end))
title("Transient Simulation with Bottom Cooling")

Modal Analysis and Reduced-Order Model

Switch the analysis type to thermal modal.

model.AnalysisType = "thermalModal";

Solve for modes of the thermal model in the specified decay range.

Rm = solve(model,DecayRange=[-Inf,5e-2]);

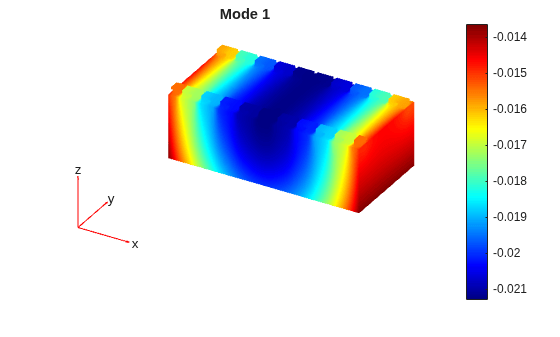

Plot the mode shape for the first mode.

figure
pdeplot3D(Rm.Mesh,ColorMapData=Rm.ModeShapes(:,1))
title("Mode 1")

Use the modal results to reduce the model.

rom = reduce(model,ModalResults=Rm);

The output rom contains a smaller-sized system to use in Simscape system-level modeling. In addition to the ROM, defining a control loop requires other data to couple the ROM with Simscape elements. The following sections create all the relevant data and populate a pde_rom structure array with it.

Generate Load Vector

The Simscape Battery™ loop computes the heat generation loads and boundary loss. To apply these loads and losses on the ROM, use unit load vectors and scale them by using scaling factors calculated from the Simscape Battery libraries. These full-length scaled load vectors with a size equal to the finite-element model degrees of freedom (DoFs) are projected to reduce load to the ROM space by using the transformation matrix available in the ROM. The reduced load vector drives the ROM dynamics.

Generate load matrices corresponding to heat generation by using the sscv_unitHeatLoadBatteryROM and sscv_unitBCBatteryROM helper functions. The helper functions use assembleFEMatrices to get each source load matrix.

heatGenUnit_cells = ...
    sscv_unitHeatLoadBatteryROM(model,cellIDs);
heatGenUnit_tabs = ...
    sscv_unitHeatLoadBatteryROM(model,tabIDs');
heatGenUnit_connector = ...
    sscv_unitHeatLoadBatteryROM(model,connectorIDs');
heatLoadUnit_bottomFaces = ...
    sscv_unitBCBatteryROM(model,bottomPlateFaces);

Compute Lumped Thermal Mass of the Cell

Define the cell thermal mass required in the Battery (Table-Based) library component.

cellThermalMass = zeros(1,numCellsInModule);
for domain = ["Cell","TabLeft","TabRight", ...
              "ConnectorLeft","ConnectorRight"]
    cellThermalMass = cellThermalMass + ...
        [volume.(domain)].*[density.(domain)].*[spHeat.(domain)];
end

Thermocouple Locations to Probe Control Temperature

The thermocouples are attached to the center of the top surface of the cells. Define spatial coordinates of thermocouples by using reference point coordinates, for the center of the cells.

refPointTopFaceCell1 = ...
    ReferencePoint.Cell + [0,0,cellHeight/2];
thermocouples.probe_locations = ...
    repmat(refPointTopFaceCell1,numCellsInModule,1);
thermocouples.probe_locations(:,1) = ...
    ReferencePoint.Cell(1):-cellThickness:0;

Use these coordinates to find the associated nearest node IDs of the finite-element mesh.

thermocouples.probeNodeIDs = ...
    model.Mesh.findNodes("nearest",thermocouples.probe_locations');
thermocouples.numOfTempProbes = ...
    numel(thermocouples.probeNodeIDs);

The ROM solution is defined using the reduced DoFs. To recover the solution in terms of physical temperatures DoFs, use the function reconstructSolution. For plotting purposes, create a submatrix W of rom.TransformationMatrix that can be used to generate the temperature-time history for the nodes corresponding to thermocouple locations.

thermocouples.W = ...
    rom.TransformationMatrix(thermocouples.probeNodeIDs,:);

Array with Data Required for Simscape Model

Create the pde_rom structure array with all the data needed for a Simscape model. First, add the initial temperature of the battery, in K.

pde_rom.prop.initialTemperature = Tambient;

Add the cell geometry data.

pde_rom.numCellsInModule = numCellsInModule;
pde_rom.prop.cell_width_mm = cellWidth;
pde_rom.prop.cell_thickness_mm = cellThickness;
pde_rom.prop.cell_height_mm = cellHeight;
pde_rom.prop.tabWidth_mm = tabWidth;
pde_rom.prop.tabThickness_mm = tabThickness;
pde_rom.prop.connectorHeight_mm = connectorHeight;
pde_rom.Geometry = model.Geometry;
pde_rom.volume = volume;
pde_rom.area = area;

Add the cell material data.

pde_rom.prop.cellThermalCond.inPlane = ...
    cellThermalCond.inPlane;
pde_rom.prop.cellThermalCond.throughPlane = ...
    cellThermalCond.throughPlane;
pde_rom.prop.tabThermalCond = ...
    tabThermalCond;
pde_rom.prop.connectorThermalCond = ...
    connectorThermalCond;
pde_rom.prop.density = ...
    density;
pde_rom.prop.spHeat = ...
    spHeat;
pde_rom.prop.cellThermalMass = ...
    cellThermalMass;

Add the thermal load matrices. The heatGenUnit_cells and heatLoadUnit_bottomFaces fields contain load matrices, with each column of a matrix corresponding to a cell in the module. The heatGenUnit_tabs and heatGenUnit_connector fields contain load vectors for both the positive and negative ends for each cell.

pde_rom.Q.heatGenUnit_cells = ...
    sscv_unitHeatLoadBatteryROM(model,cellIDs);
pde_rom.Q.heatGenUnit_tabs = ...
    sscv_unitHeatLoadBatteryROM(model,tabIDs');
pde_rom.Q.heatGenUnit_connector = ...
    sscv_unitHeatLoadBatteryROM(model,connectorIDs');
pde_rom.Q.heatLoadUnit_bottomFaces = ...
    sscv_unitBCBatteryROM(model,bottomPlateFaces);

Add the thermocouples data.

pde_rom.thermocouples = thermocouples;

Add the thermal ROM.

pde_rom.rom = rom;

Save the structure array to a MAT-file.

save batteryModuleThermalROM pde_rom

Helper Functions

Assemble the load vector due to the volumetric heat generation.

function F = sscv_unitHeatLoadBatteryROM(model,domainIDs)
% Assign zero globally
F = zeros(size(model.Mesh.Nodes,2),numel(domainIDs));
for i = 1:numel(domainIDs)
    % Assign unit heat generation on specified domain
    model.CellLoad(domainIDs(i)) = cellLoad(Heat=1);
    % Assemble the load vector
    mats = assembleFEMatrices(model,"F");
    F(:,i) = mats.F;
end
end

Assemble the load vector due to the boundary heat flux.

function G = sscv_unitBCBatteryROM(model,boundaryIDs)
% Assign zero globally.
G = zeros(size(model.Mesh.Nodes,2),numel(boundaryIDs));
for i = 1:numel(boundaryIDs)
    % Assign negative heat flux specified boundary
    model.FaceLoad(boundaryIDs(i)) = faceLoad(Heat=-1);
    % Assemble the load vector
    mats = assembleFEMatrices(model,"G");
    G(:,i) = mats.G;
end
end
