extrude

Vertically extrude 2-D geometry or specified faces of 3-D geometry

    Description

    example

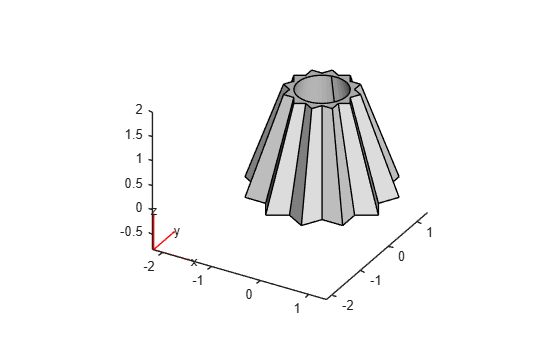

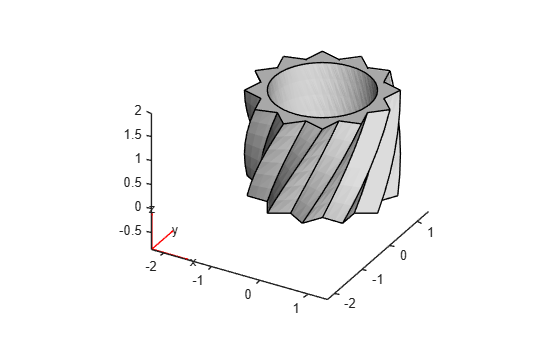

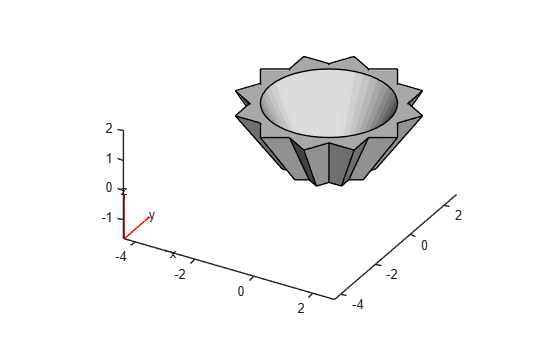

    extrude(g,height) creates a 3-D discrete geometry by extruding a 2-D geometry along the z-axis by the value of height. You can create a stacked multilayered 3-D discrete geometry by specifying height as a vector of thicknesses of the layers.

    example

    extrude(g,FaceID,height) extrudes specified faces of a 3-D geometry along the direction normal to the faces. Here, FaceID specifies which faces to extrude. You can extrude faces into multiple layers by specifying height as a vector of thicknesses of the layers.

    All of the specified faces must be flat and have the same orientation. The extruded volumes must not intersect with each other or with the existing geometry.

    h = extrude(___) returns a handle h. If the original geometry is a DiscreteGeometry object, then the function modifies the original geometry, and h a handle to the modified DiscreteGeometry object. If the original geometry is an AnalyticGeometry object, then h is a handle to a new DiscreteGeometry object. In this case, the original geometry remains unchanged.

    Examples

    collapse all

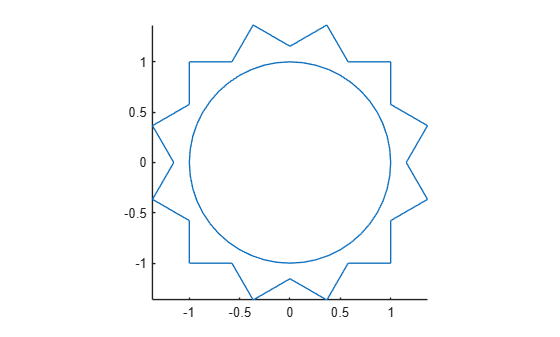

    Create a 3-D geometry by extruding a 2-D geometry along the z-axis.

    Create a PDE model.

    model = createpde;

    Import a 2-D geometry.

    g = importGeometry(model,'PlateHolePlanar.stl');

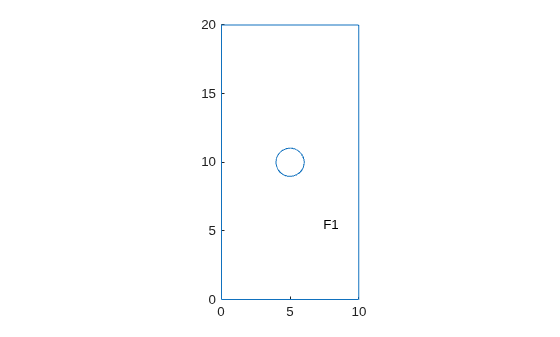

    Plot the geometry and display the face labels.

    pdegplot(g,'FaceLabels','on')

    Figure contains an axes object. The axes object contains an object of type line.

    Create a 3-D geometry by extruding the 2-D geometry along the z-axis by 5 units.

    extrude(g,5)
    ans =
      DiscreteGeometry with properties:

           NumCells: 1
           NumFaces: 7
           NumEdges: 15
        NumVertices: 10
           Vertices: [10x3 double]

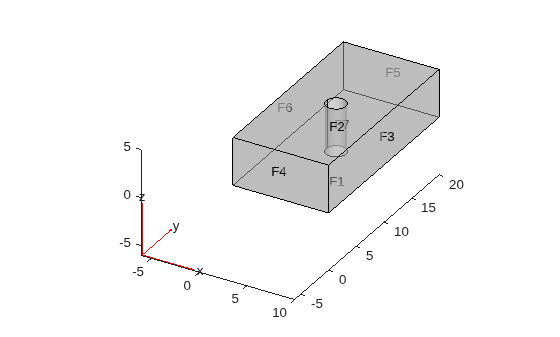

    Plot the new geometry and display the face labels.

    pdegplot(g,'FaceLabels','on','FaceAlpha',0.5)

    Figure contains an axes object. The axes object contains 3 objects of type quiver, patch, line.

    Create a stacked multilayered 3-D geometry by extruding a 2-D geometry along the z-axis.

    Create a PDE model.

    model = createpde;

    Import a geometry.

    g = importGeometry(model,'PlateHolePlanar.stl')
    g =
      DiscreteGeometry with properties:

           NumCells: 0
           NumFaces: 1
           NumEdges: 5
        NumVertices: 5
           Vertices: [5x3 double]



    Plot the geometry and display the face labels.

    pdegplot(g,'FaceLabels','on')

    Figure contains an axes object. The axes object contains an object of type line.

    Create a 3-D geometry consisting of three blocks with holes stacked on top of each other. The heights of the blocks are 5, 10, and 20 units.

    extrude(g,[5,10,20])
    ans =
      DiscreteGeometry with properties:

           NumCells: 3
           NumFaces: 19
           NumEdges: 35
        NumVertices: 20
           Vertices: [20x3 double]

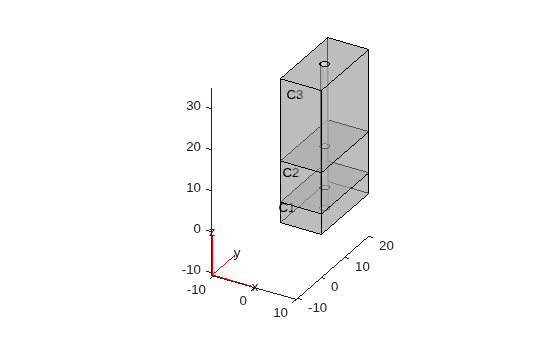

    Plot the new geometry and display the cell labels.

    pdegplot(g,'CellLabels','on','FaceAlpha',0.5)

    Figure contains an axes object. The axes object contains 3 objects of type quiver, patch, line.

    Extrude a 2-D geometry that has a vertex added by the addVertex function. The layers of the extruded geometry all have a corresponding vertex, but there are no edges between these vertices.

    Create a PDE model.

    model = createpde;

    Import a geometry.

    g = importGeometry(model,'PlateHolePlanar.stl');

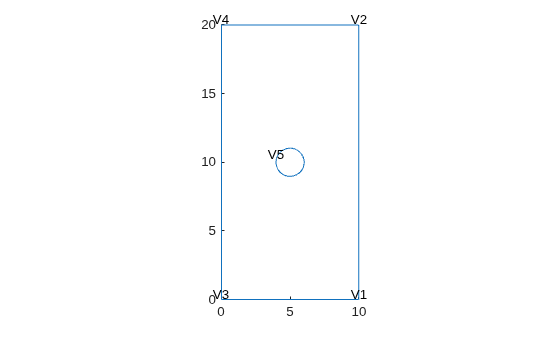

    Plot the geometry and display the vertex labels.

    pdegplot(g,'VertexLabels','on')

    Figure contains an axes object. The axes object contains an object of type line.

    Add a new vertex on the right edge.

    addVertex(g,'Coordinates',[10 12]);

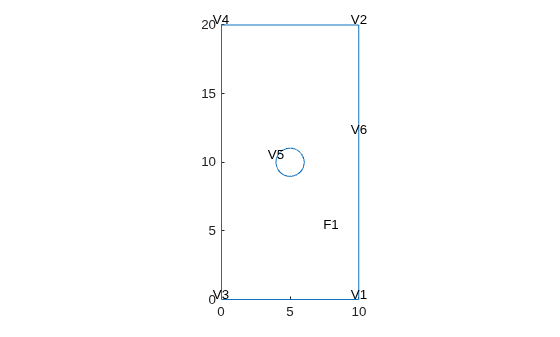

    Plot the new geometry and display the vertex labels.

    pdegplot(g,'FaceLabels','on','VertexLabels','on')

    Figure contains an axes object. The axes object contains an object of type line.

    Create a 3-D geometry consisting of three blocks with holes stacked on top of each other. The heights of the blocks are 5, 10, and 20 units.

    extrude(g,[5,10,20])
    ans =
      DiscreteGeometry with properties:

           NumCells: 3
           NumFaces: 19
           NumEdges: 35
        NumVertices: 24
           Vertices: [24x3 double]

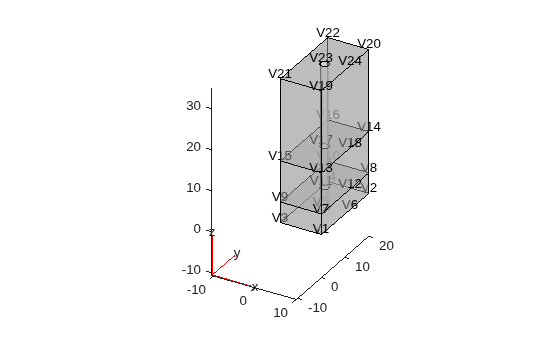

    Plot the new geometry and display the vertex labels. The extrude function replicates the added vertex V6 into three new vertices: V12, V18, and V24. It does not create edges between these vertices.

    pdegplot(g,'VertexLabels','on','FaceAlpha',0.5)

    Figure contains an axes object. The axes object contains 3 objects of type quiver, patch, line.

    Extrude a 2-D geometry that has a face added by the addFace function.

    Create a PDE model.

    model = createpde;

    Import a geometry.

    g = importGeometry(model,'PlateHolePlanar.stl');

    Plot the geometry and display the face and edge labels.

    pdegplot(g,'FaceLabels','on','EdgeLabels','on')

    Figure contains an axes object. The axes object contains an object of type line.

    Fill the hole in the center by adding a face.

    addFace(g,5)
    ans =
      DiscreteGeometry with properties:

           NumCells: 0
           NumFaces: 2
           NumEdges: 5
        NumVertices: 5
           Vertices: [5x3 double]

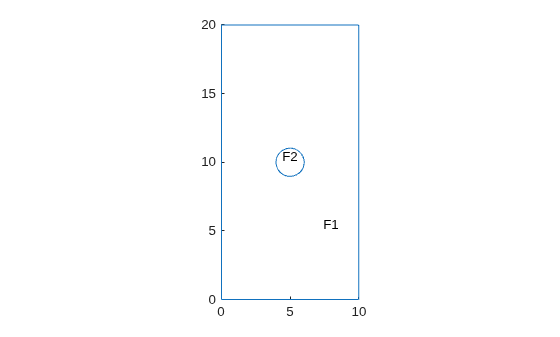

    Plot the modified geometry.

    pdegplot(g,'FaceLabels','on')

    Figure contains an axes object. The axes object contains an object of type line.

    Create a 3-D geometry by extruding the 2-D geometry along the z-axis by 2 units.

    extrude(g,2)
    ans =
      DiscreteGeometry with properties:

           NumCells: 2
           NumFaces: 9
           NumEdges: 15
        NumVertices: 10
           Vertices: [10x3 double]

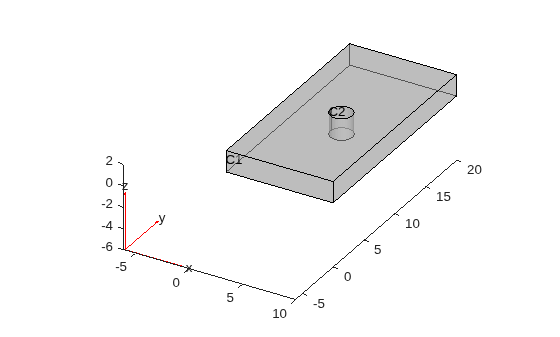

    Plot the new geometry and display the cell labels.

    pdegplot(g,'CellLabels','on','FaceAlpha',0.5)

    Figure contains an axes object. The axes object contains 3 objects of type quiver, patch, line.

    Extrude specified faces of a 3-D geometry.

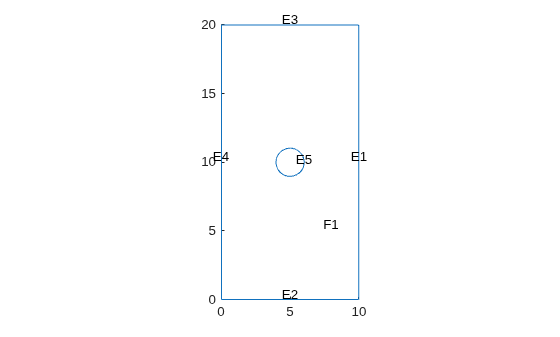

    Import the geometry and plot it with the face and edge labels.

    g = importGeometry('PlateHolePlanar.stl');
    pdegplot(g,'FaceLabels','on','EdgeLabels','on')

    Figure contains an axes object. The axes object contains an object of type line.

    Fill the hole in the center by adding a face. Plot the modified geometry.

    addFace(g,5);
    pdegplot(g,'FaceLabels','on')

    Figure contains an axes object. The axes object contains an object of type line.

    Create a 3-D geometry by extruding the 2-D geometry along the z-axis by 2 units.

    extrude(g,2);

    Plot the new geometry with the cell and face labels.

    pdegplot(g,'CellLabels','on','Facelabels','on','FaceAlpha',0.5)

    Figure contains an axes object. The axes object contains 3 objects of type quiver, patch, line.

    Now, extrude the center face of the geometry by 5 units.

    extrude(g,4,5);

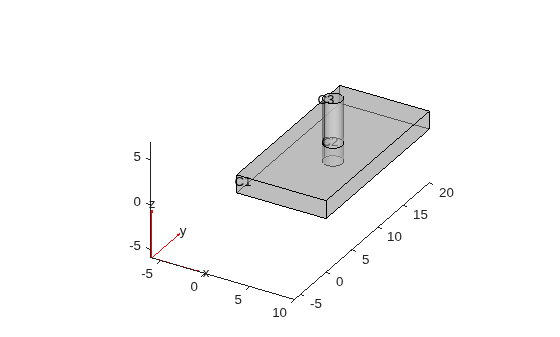

    Plot the resulting geometry with the cell labels.

    pdegplot(g,'CellLabels','on','FaceAlpha',0.5)

    Figure contains an axes object. The axes object contains 3 objects of type quiver, patch, line.

    Now, call extrude again, and this time specify a vector of heights. The function extrudes all specified faces by each of the specified heights, which creates multiple layers.

    extrude(g,[1 2],[3 4]);
    pdegplot(g,'CellLabels','on','FaceAlpha',0.5)

    Figure contains an axes object. The axes object contains 3 objects of type quiver, patch, line.

    Input Arguments

    collapse all

    Geometry, specified as a DiscreteGeometry or AnalyticGeometry object.

    Cell heights, specified as a positive real number or a vector of positive real numbers.

    If height is a vector and g is a 2-D geometry, then height(i) specifies the height of the ith layer of a multilayered (stacked) 3-D geometry. Each layer constitutes a new cell.

    If g is a 3-D geometry, the function extrudes all specified faces into several layers, with height(i) specifying the height of the ith layer.

    Example: extrude(g,5.5)

    Faces to extrude in 3-D geometry, specified as a positive real number or a vector of positive real numbers. If height is a vector, then the function extrudes all specified faces into several layers, same as it does for 2-D geometries.

    Output Arguments

    collapse all

    Resulting geometry, returned as a handle. If the original geometry g is a DiscreteGeometry object, then h is a handle to the modified DiscreteGeometry object g. If g is an AnalyticGeometry object, then h is a handle to a new DiscreteGeometry object. In this case, the original geometry g remains unchanged.

    Tips

    • extrude modifies a geometry, but it does not modify the corresponding mesh. After modifying a geometry, regenerate the mesh to ensure a proper mesh association with the new geometry.

    • If a 2-D geometry has new vertices added by using the addVertex function, extrude replicates the new vertices on each new layer of the extruded 3-D geometry, but it does not connect these vertices by edges.

    • If g is an AnalyticGeometry object, and you want to replace it with the extruded discrete 3-D geometry, assign the output to the original geometry, for example, g = extrude(g,20).

    Introduced in R2020b
