findHeatSource

Find heat source assigned to a geometric region

Domain-specific heat transfer workflow is not recommended. New features might not be compatible with this workflow. For help migrating your existing code to the unified finite element workflow, see Migration from Domain-Specific to Unified Workflow.

Syntax

hsa = findHeatSource(heatSources,RegionType,RegionID)

Description

hsa = findHeatSource(heatSources,RegionType,RegionID) returns the heat source value hsa assigned to the specified region.

Examples

Find Heat Sources for Faces of 2-D Geometry

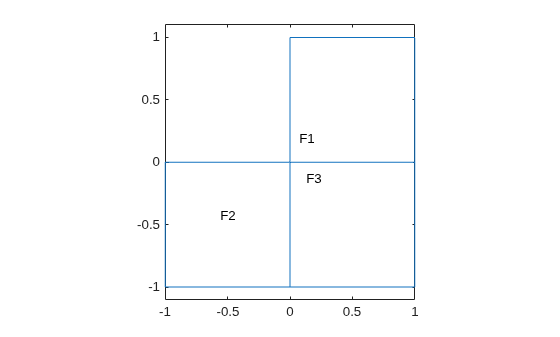

Create a thermal model that has three faces.

thermalmodel = createpde("thermal");
geometryFromEdges(thermalmodel,@lshapeg);
pdegplot(thermalmodel,"FaceLabels","on")
ylim([-1.1 1.1])
axis equal

Specify that face 1 generates heat at 10 W/m^3, face 2 generates heat at 20 W/m^3, and face 3 generates heat at 30 W/m^3.

internalHeatSource(thermalmodel,10,"Face",1);
internalHeatSource(thermalmodel,20,"Face",2);
internalHeatSource(thermalmodel,30,"Face",3);

Check the heat source specification for face 1.

hsaFace1 = findHeatSource(thermalmodel.HeatSources,"Face",1)

hsaFace1 =
  HeatSourceAssignment with properties:

    RegionType: 'face'
      RegionID: 1
    HeatSource: 10
         Label: []

Check the heat source specification for faces 2 and 3.

hsa = findHeatSource(thermalmodel.HeatSources,"Face",[2 3]);
hsaFace2 = hsa(1)

hsaFace2 =
  HeatSourceAssignment with properties:

    RegionType: 'face'
      RegionID: 2
    HeatSource: 20
         Label: []

hsaFace3 = hsa(2)

hsaFace3 =
  HeatSourceAssignment with properties:

    RegionType: 'face'
      RegionID: 3
    HeatSource: 30
         Label: []

Find Heat Sources for Cells of 3-D Geometry

Create a geometry that consists of three stacked cylinders and include the geometry in a thermal model.

gm = multicylinder(10,[1 2 3],"ZOffset",[0 1 3])

gm =
  DiscreteGeometry with properties:

       NumCells: 3
       NumFaces: 7
       NumEdges: 4
    NumVertices: 4
       Vertices: [4x3 double]

thermalmodel = createpde("thermal");
thermalmodel.Geometry = gm;
pdegplot(thermalmodel,"CellLabels","on","FaceAlpha",0.5)

Specify that the cylinder C1 generates heat at $$10W/m^3$$, the cylinder C2 generates heat at $$20W/m^3$$, and the cylinder C3 generates heat at $$30W/m^3$$.

internalHeatSource(thermalmodel,10,"Cell",1);
internalHeatSource(thermalmodel,20,"Cell",2);
internalHeatSource(thermalmodel,30,"Cell",3);

Check the heat source specification for cell 1.

hsaCell1 = findHeatSource(thermalmodel.HeatSources,"Cell",1)

hsaCell1 =
  HeatSourceAssignment with properties:

    RegionType: 'cell'
      RegionID: 1
    HeatSource: 10
         Label: []

Check the heat source specification for cells 2 and 3.

hsa = findHeatSource(thermalmodel.HeatSources,"Cell",2:3);
hsaCell2 = hsa(1)

hsaCell2 =
  HeatSourceAssignment with properties:

    RegionType: 'cell'
      RegionID: 2
    HeatSource: 20
         Label: []

hsaCell3 = hsa(2)

hsaCell3 =
  HeatSourceAssignment with properties:

    RegionType: 'cell'
      RegionID: 3
    HeatSource: 30
         Label: []

Input Arguments

heatSources — Internal heat source of the model

HeatSources property of a thermal model

Internal heat source of the model, specified as the HeatSources property of a ThermalModel object.

Example: thermalmodel.HeatSources

RegionType — Geometric region type

"Face" | "Cell"

Geometric region type, specified as "Face" for a 2-D model or "Cell" for a 3-D model.

Data Types: char | string

RegionID — Geometric region ID

vector of positive integers

Geometric region ID, specified as a vector of positive integers. Find the region IDs by using the pdegplot function.

Data Types: double

Output Arguments

hsa — Heat source assignment

HeatSourceAssignment object

Heat source assignment, returned as a HeatSourceAssignment Properties object.

Version History

Introduced in R2017a
