# pdeplot3D

Plot solution or surface mesh for 3-D problem

## Syntax

## Description

`pdeplot3D(`

plots the solution at nodal locations as colors on the surface of the 3-D
geometry specified in `model`

,"ColorMapData",results.NodalSolution)`model`

.

`pdeplot3D(`

plots the temperature at nodal locations for a 3-D thermal analysis
model.`model`

,"ColorMapData",results.Temperature)

`pdeplot3D(`

plots the von Mises stress and shows the deformed shape for a 3-D structural
analysis model.`model`

,"ColorMapData",results.VonMisesStress,"Deformation",results.Displacement)

`pdeplot3D(___,`

plots the surface mesh, the data at nodal locations, or both the mesh and data,
depending on the `Name,Value`

)`Name,Value`

pair arguments. Use any
arguments from the previous syntaxes.

returns a handle to a plot, using any of the previous syntaxes.`h`

= pdeplot3D(___)

## Examples

### Solution Plot on Surface

Plot a PDE solution on the geometry surface. First, create a PDE model and import a 3-D geometry file. Specify boundary conditions and coefficients. Mesh the geometry and solve the problem.

model = createpde; importGeometry(model,"Block.stl"); applyBoundaryCondition(model,"dirichlet","Face",[1:4],"u",0); specifyCoefficients(model,"m",0,"d",0,"c",1,"a",0,"f",2); generateMesh(model); results = solvepde(model)

results = StationaryResults with properties: NodalSolution: [12691x1 double] XGradients: [12691x1 double] YGradients: [12691x1 double] ZGradients: [12691x1 double] Mesh: [1x1 FEMesh]

Access the solution at the nodal locations.

u = results.NodalSolution;

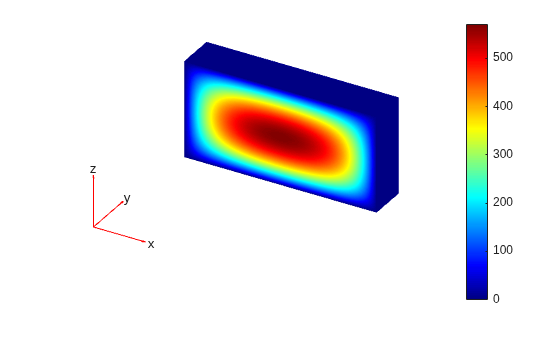

Plot the solution `u`

on the geometry surface.

`pdeplot3D(model,"ColorMapData",u)`

### Solution to Steady-State Thermal Model

Solve a 3-D steady-state thermal problem.

Create a thermal model for this problem.

`thermalmodel = createpde("thermal");`

Import and plot the block geometry.

importGeometry(thermalmodel,"Block.stl"); pdegplot(thermalmodel,"FaceLabel","on","FaceAlpha",0.5) axis equal

Assign material properties.

`thermalProperties(thermalmodel,"ThermalConductivity",80);`

Apply a constant temperature of 100 **°**C to the left side of the block (face 1) and a constant temperature of 300 **°**C to the right side of the block (face 3). All other faces are insulated by default.

thermalBC(thermalmodel,"Face",1,"Temperature",100); thermalBC(thermalmodel,"Face",3,"Temperature",300);

Mesh the geometry and solve the problem.

generateMesh(thermalmodel); thermalresults = solve(thermalmodel)

thermalresults = SteadyStateThermalResults with properties: Temperature: [12691x1 double] XGradients: [12691x1 double] YGradients: [12691x1 double] ZGradients: [12691x1 double] Mesh: [1x1 FEMesh]

The solver finds the temperatures and temperature gradients at the nodal locations. To access these values, use `thermalresults.Temperature`

, `thermalresults.XGradients`

, and so on. For example, plot temperatures at the nodal locations.

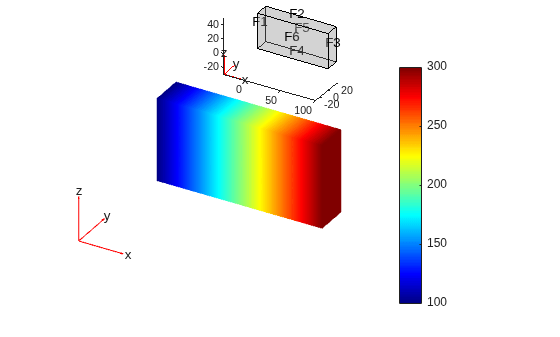

`pdeplot3D(thermalmodel,"ColorMapData",thermalresults.Temperature)`

### Heat Flux for 3-D Steady-State Thermal Model

For a 3-D steady-state thermal model, evaluate heat flux at the nodal locations and at the points specified by `x`

, `y`

, and `z`

coordinates.

Create a thermal model for steady-state analysis.

`thermalmodel = createpde("thermal");`

Create the following 3-D geometry and include it in the model.

importGeometry(thermalmodel,"Block.stl"); pdegplot(thermalmodel,"FaceLabels","on","FaceAlpha",0.5) title("Copper block, cm") axis equal

Assuming that this is a copper block, the thermal conductivity of the block is approximately $$4\phantom{\rule{0.16666666666666666em}{0ex}}W/(cmK)$$.

`thermalProperties(thermalmodel,"ThermalConductivity",4);`

Apply a constant temperature of 373 K to the left side of the block (face 1) and a constant temperature of 573 K to the right side of the block (face 3).

thermalBC(thermalmodel,"Face",1,"Temperature",373); thermalBC(thermalmodel,"Face",3,"Temperature",573);

Apply a heat flux boundary condition to the bottom of the block.

thermalBC(thermalmodel,"Face",4,"HeatFlux",-20);

Mesh the geometry and solve the problem.

generateMesh(thermalmodel); thermalresults = solve(thermalmodel)

thermalresults = SteadyStateThermalResults with properties: Temperature: [12691x1 double] XGradients: [12691x1 double] YGradients: [12691x1 double] ZGradients: [12691x1 double] Mesh: [1x1 FEMesh]

Evaluate heat flux at the nodal locations.

```
[qx,qy,qz] = evaluateHeatFlux(thermalresults);
figure
pdeplot3D(thermalmodel,"FlowData",[qx qy qz])
```

Create a grid specified by `x`

, `y`

, and `z`

coordinates, and evaluate heat flux to the grid.

[X,Y,Z] = meshgrid(1:26:100,1:6:20,1:11:50); [qx,qy,qz] = evaluateHeatFlux(thermalresults,X,Y,Z);

Reshape the `qx`

, `qy`

, and `qz`

vectors, and plot the resulting heat flux.

qx = reshape(qx,size(X)); qy = reshape(qy,size(Y)); qz = reshape(qz,size(Z)); figure quiver3(X,Y,Z,qx,qy,qz)

Alternatively, you can specify the grid by using a matrix of query points.

querypoints = [X(:) Y(:) Z(:)]'; [qx,qy,qz] = evaluateHeatFlux(thermalresults,querypoints); qx = reshape(qx,size(X)); qy = reshape(qy,size(Y)); qz = reshape(qz,size(Z)); figure quiver3(X,Y,Z,qx,qy,qz)

### Deformed Shape for Cantilever Beam Problem

Create a structural analysis model for a 3-D problem.

structuralmodel = createpde("structural","static-solid");

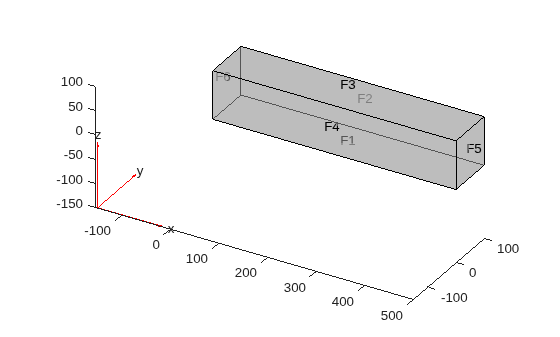

Import the geometry and plot it.

importGeometry(structuralmodel,"SquareBeam.stl"); pdegplot(structuralmodel,"FaceLabels","on","FaceAlpha",0.5)

Specify Young's modulus and Poisson's ratio.

structuralProperties(structuralmodel,"PoissonsRatio",0.3, ... "YoungsModulus",210E3);

Specify that face 6 is a fixed boundary.

structuralBC(structuralmodel,"Face",6,"Constraint","fixed");

Specify the surface traction for face 5.

structuralBoundaryLoad(structuralmodel,"Face",5, ... "SurfaceTraction", ... [0;0;-2]);

Generate a mesh and solve the problem.

generateMesh(structuralmodel); structuralresults = solve(structuralmodel);

Plot the deformed shape with the von Mises stress using the default scale factor. By default, `pdeplot3D`

internally determines the scale factor based on the dimensions of the geometry and the magnitude of deformation.

figure pdeplot3D(structuralmodel, ... "ColorMapData",structuralresults.VonMisesStress, ... "Deformation",structuralresults.Displacement)

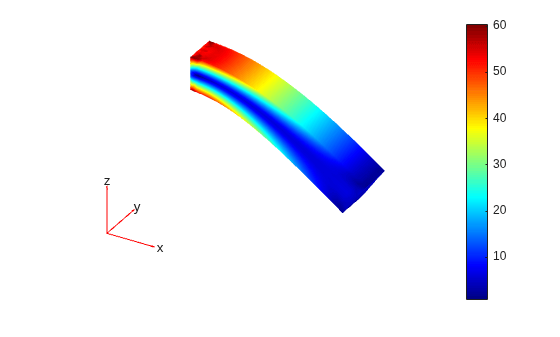

Plot the same results with the scale factor 500.

figure pdeplot3D(structuralmodel, ... "ColorMapData",structuralresults.VonMisesStress, ... "Deformation",structuralresults.Displacement, ... "DeformationScaleFactor",500)

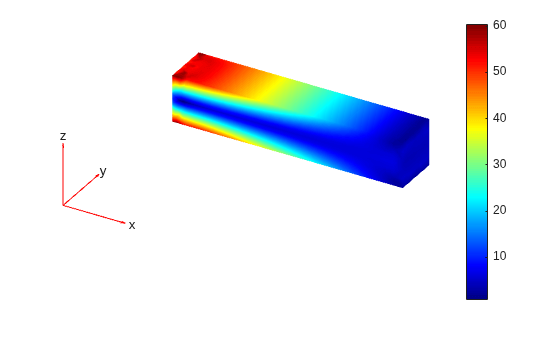

Plot the same results without scaling.

figure pdeplot3D(structuralmodel, ... "ColorMapData",structuralresults.VonMisesStress)

### von Mises Stress for 3-D Structural Dynamic Problem

Evaluate the von Mises stress in a beam under a harmonic excitation.

Create a transient dynamic model for a 3-D problem.

structuralmodel = createpde("structural","transient-solid");

Create the geometry and include it in the model. Plot the geometry.

gm = multicuboid(0.06,0.005,0.01); structuralmodel.Geometry = gm; pdegplot(structuralmodel,"FaceLabels","on","FaceAlpha",0.5) view(50,20)

Specify Young's modulus, Poisson's ratio, and the mass density of the material.

structuralProperties(structuralmodel,"YoungsModulus",210E9, ... "PoissonsRatio",0.3, ... "MassDensity",7800);

Fix one end of the beam.

structuralBC(structuralmodel,"Face",5,"Constraint","fixed");

Apply a sinusoidal displacement along the *y*-direction on the end opposite the fixed end of the beam.

structuralBC(structuralmodel,"Face",3, ... "YDisplacement",1E-4, ... "Frequency",50);

Generate a mesh.

`generateMesh(structuralmodel,"Hmax",0.01);`

Specify the zero initial displacement and velocity.

structuralIC(structuralmodel,"Displacement",[0;0;0],"Velocity",[0;0;0]);

Solve the model.

tlist = 0:0.002:0.2; structuralresults = solve(structuralmodel,tlist);

Evaluate the von Mises stress in the beam.

vmStress = evaluateVonMisesStress(structuralresults);

Plot the von Mises stress for the last time-step.

figure pdeplot3D(structuralmodel,"ColorMapData",vmStress(:,end)) title("von Mises Stress in the Beam for the Last Time-Step")

### Solution to 3-D Electrostatic Analysis Model

Solve an electromagnetic problem and find the electric potential and field distribution for a 3-D geometry representing a plate with a hole.

Create an electromagnetic model for electrostatic analysis.

emagmodel = createpde("electromagnetic","electrostatic");

Import and plot the geometry representing a plate with a hole.

gm = importGeometry(emagmodel,"PlateHoleSolid.stl"); pdegplot(gm,"FaceLabels","on","FaceAlpha",0.3)

Specify the vacuum permittivity in the SI system of units.

emagmodel.VacuumPermittivity = 8.8541878128E-12;

Specify the relative permittivity of the material.

`electromagneticProperties(emagmodel,"RelativePermittivity",1);`

Specify the charge density for the entire geometry.

`electromagneticSource(emagmodel,"ChargeDensity",5E-9);`

Apply the voltage boundary conditions on the side faces and the face bordering the hole.

electromagneticBC(emagmodel,"Voltage",0,"Face",3:6); electromagneticBC(emagmodel,"Voltage",1000,"Face",7);

Generate the mesh.

generateMesh(emagmodel);

Solve the model.

R = solve(emagmodel)

R = ElectrostaticResults with properties: ElectricPotential: [4359x1 double] ElectricField: [1x1 FEStruct] ElectricFluxDensity: [1x1 FEStruct] Mesh: [1x1 FEMesh]

Plot the electric potential.

```
figure
pdeplot3D(emagmodel,"ColorMapData",R.ElectricPotential)
```

Plot the electric field.

pdeplot3D(emagmodel,"FlowData",[R.ElectricField.Ex ... R.ElectricField.Ey ... R.ElectricField.Ez])

### 3-D Mesh Plot

Create a PDE model, include the geometry, and generate a mesh.

model = createpde; importGeometry(model,"Tetrahedron.stl"); mesh = generateMesh(model,"Hmax",20,"GeometricOrder","linear");

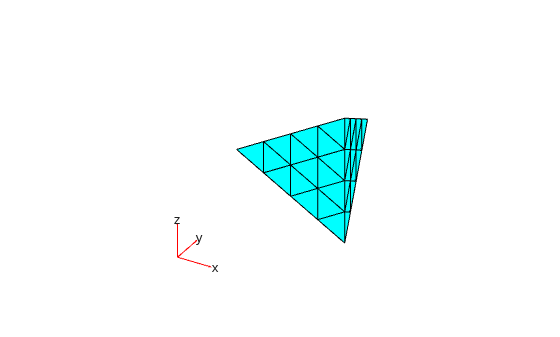

Plot the surface mesh.

pdeplot3D(model)

Alternatively, you can plot a mesh by using `mesh`

as an input argument.

pdeplot3D(mesh)

Another approach is to use the nodes and elements of the mesh as input arguments for `pdeplot3D`

.

pdeplot3D(mesh.Nodes,mesh.Elements)

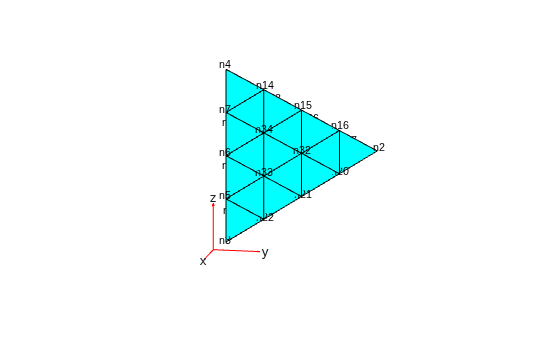

Display the node labels on the surface of a simple mesh.

pdeplot3D(model,"NodeLabels","on") view(101,12)

Display the element labels.

pdeplot3D(model,"ElementLabels","on") view(101,12)

## Input Arguments

`model`

— Model container

`PDEModel`

object | `ThermalModel`

object | `StructuralModel`

object | `ElectromagneticModel`

object

Model container, specified as a `PDEModel`

object,
`ThermalModel`

object, `StructuralModel`

object,
or `ElectromagneticModel`

object.

**Example: **`model = createpde(3)`

**Example: **```
thermalmodel =
createpde("thermal","steadystate")
```

**Example: **```
structuralmodel =
createpde("structural","static-solid")
```

**Example: **```
emagmodel =
createpde("electromagnetic","electrostatic")
```

`mesh`

— Mesh object

`Mesh`

property of a `PDEModel`

object | output of `generateMesh`

Mesh object, specified as the `Mesh`

property of a `PDEModel`

object or as the
output of `generateMesh`

.

**Example: **`model.Mesh`

`nodes`

— Nodal coordinates

3-by-*NumNodes* matrix

Nodal coordinates, specified as a 3-by-*NumNodes* matrix.
*NumNodes* is the number of nodes.

`elements`

— Element connectivity matrix in terms of node IDs

4-by-*NumElements* matrix | 10-by-*NumElements* matrix

Element connectivity matrix in terms of the node IDs, specified as a
4-by-*NumElements* or
10-by-*NumElements* matrix. Linear meshes contain only
corner nodes. For linear meshes, the connectivity matrix has four nodes per
3-D element. Quadratic meshes contain corner nodes and nodes in the middle
of each edge of an element. For quadratic meshes, the connectivity matrix
has 10 nodes per 3-D element.

### Name-Value Arguments

Specify optional pairs of arguments as
`Name1=Value1,...,NameN=ValueN`

, where `Name`

is
the argument name and `Value`

is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.

*
Before R2021a, use commas to separate each name and value, and enclose*
`Name`

*in quotes.*

**Example: **`pdeplot3D(model,"NodeLabels","on")`

`ColorMapData`

— Data to plot as colored surface

column vector

Data to plot as a colored surface, specified as the comma-separated
pair consisting of `"ColorMapData"`

and a column vector
with the number of elements that equals the number of points in the
mesh. Typically, this data is the solution returned by `solvepde`

for a scalar PDE
problem and a component of the solution for a multicomponent PDE
system.

**Example: **`"ColorMapData",results.NodalSolution`

**Example: **`"ColorMapData",results.NodalSolution(:,1)`

**Data Types: **`double`

`FlowData`

— Data for quiver plot

matrix

Data for the quiver plot,
specified as the comma-separated pair consisting of
`"FlowData"`

and an
`M`

-by-`3`

matrix, where
`M`

is the number of mesh nodes.
`FlowData`

contains the *x*,
*y*, and *z* values of the field
at the mesh points. Set `FlowData`

as follows:

```
results = solvepde(model);
[cgradx,cgrady,cgradz] = evaluateCGradient(results);
pdeplot3D(model,"FlowData",[cgradx cgrady cgradz])
```

`pdeplot3D`

plots the real part of complex
data.

**Example: **```
"FlowData",[cgradx cgrady
cgradz]
```

**Data Types: **`double`

`Mesh`

— Indicator to show mesh

`"off"`

(default) | `"on"`

Indicator to show the mesh, specified as the comma-separated pair
consisting of `"Mesh"`

and `"on"`

or
`"off"`

. Specify `"on"`

to show
the mesh in the plot.

**Example: **`"Mesh","on"`

**Data Types: **`char`

| `string`

`NodeLabels`

— Node labels

`"off"`

(default) | `"on"`

Node labels, specified as the comma-separated pair consisting of
`"NodeLabels"`

and `"off"`

or
`"on"`

.

**Example: **`"NodeLabels","on"`

**Data Types: **`char`

| `string`

`ElementLabels`

— Element labels

`"off"`

(default) | `"on"`

Element labels, specified as the comma-separated pair consisting of
`"ElementLabels"`

and `"off"`

or
`"on"`

.

**Example: **`"ElementLabels","on"`

**Data Types: **`char`

| `string`

`FaceAlpha`

— Surface transparency for 3-D geometry

`1`

(default) | real number from `0`

through `1`

Surface transparency for 3-D geometry, specified as a real number from `0`

through `1`

. The default value `1`

indicates no
transparency. The value `0`

indicates complete transparency.

**Example: **`"FaceAlpha",0.5`

**Data Types: **`double`

`Deformation`

— Deformed shape for structural analysis models

`FEStruct`

object representing displacement values
at nodes

Deformed shape for structural analysis models, specified as the
comma-separated pair consisting of `"Deformation"`

and
the `FEStruct`

object representing displacement values
at nodes. The displacement `FEStruct`

object is a
property of `StaticStructuralResults`

, `TransientStructuralResults`

, and `FrequencyStructuralResults`

.

In an undeformed shape, center nodes in quadratic meshes are always added at half-distance between corners. When you plot a deformed shape, the center nodes might move away from the edge centers.

**Example: **`"Deformation",results.Displacement`

`DeformationScaleFactor`

— Scaling factor for plotting deformed shape

positive number

Scaling factor for plotting the deformed shape, specified as the
comma-separated pair consisting of
`"DeformationScaleFactor"`

and a positive number.
Use this argument together with the `Deformation`

name-value pair argument. The `pdeplot3D`

function
chooses the default value based on the geometry itself and on the
magnitude of deformation.

**Example: **`"DeformationScaleFactor",1000`

**Data Types: **`double`

## Output Arguments

`h`

— Handles to graphics objects

vector

Handles to graphics objects, returned as a vector.

## Version History

**Introduced in R2015a**

### R2021b: Electromagnetic Analysis

You can now plot electromagnetic results, such as electric and magnetic potentials, fields, and fluxes.

### R2020a: Improved performance for plots with many text labels

`pdeplot3d`

shows faster rendering and better responsiveness for
plots that display many text labels. Code containing
`findobj(fig,'Type','Text')`

no longer returns labels on
figures produced by `pdeplot3d`

.

### R2018a: Highlighting particular nodes and elements on mesh plots

`pdeplot3d`

accepts node and element IDs as input arguments,
letting you highlight particular nodes and elements on mesh plots.

### R2017b: Structural Analysis

You can now plot structural results, such as displacements, stresses, and strains.

### R2017a: Thermal Analysis

You can now plot thermal results, such as temperatures and temperature gradients.

### R2016b: Transparency, node and element labels

You can now set plot transparency by using `FaceAlpha`

, and
display node and element labels by using `NodeLabels`

and
`ElementLabels`

, respectively.

## Open Example

You have a modified version of this example. Do you want to open this example with your edits?

## MATLAB Command

You clicked a link that corresponds to this MATLAB command:

Run the command by entering it in the MATLAB Command Window. Web browsers do not support MATLAB commands.

# Select a Web Site

Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .

You can also select a web site from the following list:

## How to Get Best Site Performance

Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.

### Americas

- América Latina (Español)
- Canada (English)
- United States (English)

### Europe

- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)

- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
