phased.ScenarioViewer
Display motion of radars and targets
Description
The phased.ScenarioViewer
System object™ creates a 3-D viewer to display the motion of radars and targets that you model
in your radar simulation. You can display current positions and velocities, object tracks,
position and speed annotations, radar beam directions, and other object parameters. You can
change radar features such as beam range and beam width during the simulation. You can use the
phased.Platform
System object to model moving objects or you can supply your own dynamic models.

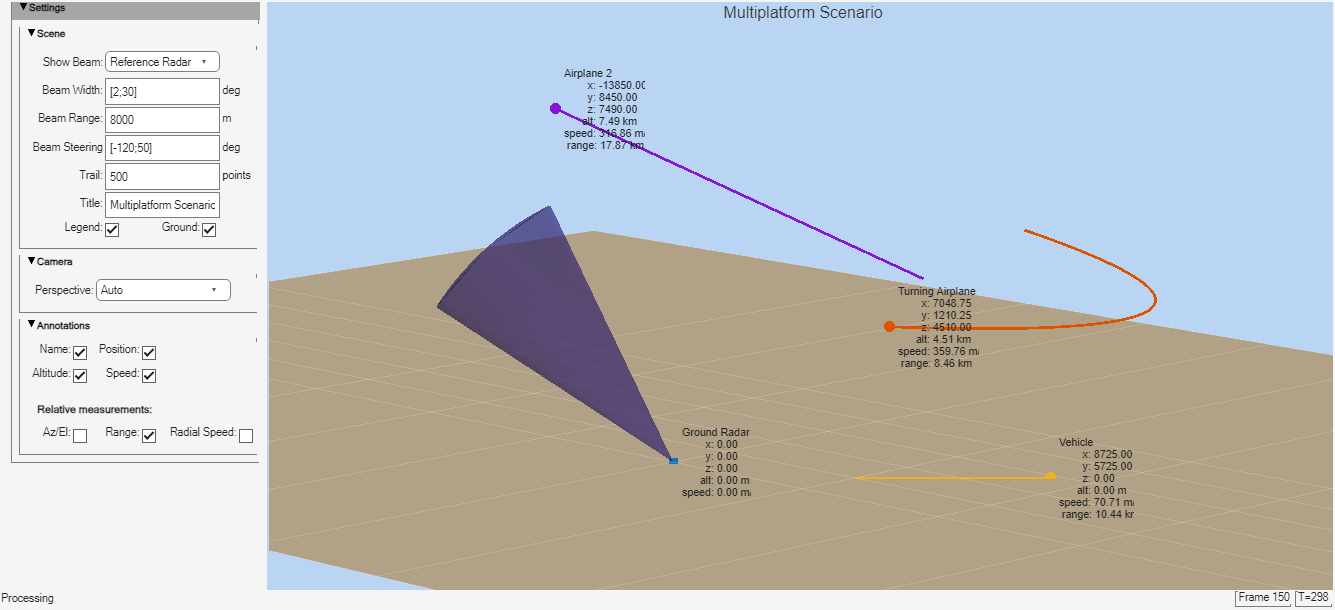

This figure shows a four-object scenario consisting of a ground radar, two airplanes, and a ground vehicle. You can view the code that generated this figure in the Visualize Multiplatform Scenario example.
To create a scenario viewer:
Define and set up the
phased.ScenarioViewer
System object. See Construction. You can set System object properties at construction time or leave them to their default values. Some properties that you set at construction time can be changed later. These properties are tunable.Call the
step
method to update radar and target displayed positions according to the properties of thephased.ScenarioViewer
System object. You can change tunable properties at any time.
Note
Starting in R2016b, instead of using the step
method
to perform the operation defined by the System object, you can call the object with arguments, as if it were a function. For
example, y = step(obj,x)
and y = obj(x)
perform
equivalent operations.
Construction
creates a scenario
viewer System object, sIS
= phased.ScenarioViewersIS
having default property values.
returns
a scenario viewer System object, sIS
= phased.ScenarioViewer(Name,Value)sIS
, with any specified property Name
set to a specified Value
. Name
must appear inside single
quotes (''
). You can specify several name-value pair arguments in any order
as Name1,Value1,...,NameN,ValueN
.
Properties
Name
— Window caption name
'Scenario Viewer'
(default) | character vector
Window caption name, specified as a character vector. The Name
property and the Title
property are different.
Example: 'Multitarget Viewer'
Data Types: char
ReferenceRadar
— Reference radar index
1
(default) | positive integer
Reference radar index, specified as a positive integer. This property selects one of
the radars as the reference radar. Its value must be less than or equal to the number of
radars that you specify in the radar_pos
argument of the step
method. This property is tunable. Target range, radial speed, azimuth,
and elevation are defined with respect to this radar.
Example: 2
Data Types: double
ShowBeam
— Show radar beams
'ReferenceRadar'
(default) | 'None'
| 'All'
Enable the display of radar beams, specified as 'ReferenceRadar'
,
'None'
, or 'All'
. This option determines which
radar beams to show.
Option | Beams to show |
---|---|
'ReferenceRadar' | Show the beam of the radar specified in the
ReferenceRadar property. |
'None' | Do not show any radar beams. |
'All' | Show the beams for all radars. |
This property is tunable.
Example: 'All'
Data Types: char
BeamWidth
— Vertical and horizontal radar beam widths
15 (default) | positive, real-valued scalar | positive, real-valued 2-element column vector | positive, real-valued N-element row vector | positive, real-valued 2-by-N matrix
Vertical and horizontal radar beam widths, specified as a positive real-valued scalar, a 2-element column vector, an N-element row vector, or a 2-by-N matrix. N is the number of radars. All scalar, vector, and matrix entries are positive, real-valued numbers between 0–360°. Units are in degrees.
Value Specification | Interpretation |
---|---|
Scalar | The horizontal and vertical radar beam widths are equal and identical for all radars. |
2-element column vector | The first row specifies the horizontal beam width. The second row specifies the vertical beam width. These values are identical for all radars. |
N-element row vector | Each element applies to one radar. Vertical and horizontal beam widths for each radar are equal. |
2-by-N matrix | Each column applies to one radar. The first row specifies the horizontal beam width and the second row specifies the vertical beam width for each radar. |
When CameraPerspective
is set to 'Radar'
,
the System object uses this property to calculate the value of
CameraViewAngle
. This property is tunable.
Example: [20 10; 18 9]
Data Types: double
BeamRange
— Radar beam range
1000 (default) | positive scalar | real-valued N- element row vector of positive values
Radar beam range, specified as a positive scalar or an N-element row vector, where N is the number of radars. Units are in meters. When specified as a scalar, all radars have the same beam range. When specified as a vector, each element corresponds to one radar. This property is tunable.
Example: [1000 1500 850]
Data Types: double
BeamSteering
— Beam steering direction
[0;0]
(default) | positive real-valued 2-element column vector | positive real-valued N-element row vector
Beam steering directions of radars, specified as a real-valued 2-element column
vector of positive values or 2-by-N real-valued matrix of positive
values. N is the number of radars. Beam steering angles are relative
to the local coordinate axes of each radar. Units are in degrees. Each column takes the
form [azimuthangle;elevationangle]
. When only one column is
specified, the beam steering directions of all radars are the same. Azimuth angles are
from –180° to 180°, and the elevation angles are from –90° to 90°.
This property is tunable.
Example: [20 60 35; 5 0 10]
Data Types: double
VelocityInputPort
— Enable velocity input
true
(default) | false
Enable the velocity input arguments, radar_velocity
and
tgt_velocity
, of the step
method, specified as true
or
false
. Setting this property to true
enables the
input arguments. When this property is false
, velocity vectors are
estimated from the position change between consecutive updates divided by the update
interval. The update interval is the inverse of the UpdateRate
value.
Example: false
Data Types: logical
OrientationInputPort
— Enable orientation input
false
(default) | true
Enable the input of local coordinate system orientation axes,
radar_laxes
and tgt_laxes
, to the step
method, specified as false
or
true
. Setting this property to true
enables the
input arguments. When this property is false
, the orientation axes
are aligned with the global coordinate axes.
Example: true
Data Types: logical
UpdateRate
— Update rate of scenario viewer
1
(default) | positive scalar
Update rate of scenario viewer, specified as a positive scalar. Units are in hertz.
Example: 2.5
Data Types: double
Title
— Display title
''
(default) | character vector
Display title, specified as a character vector. The Title
property and the Name
property are different. The display title
appears within the figure at the top. The name appears at the top of the figure window.
This property is tunable.
Example: 'Radar and Target Display'
Data Types: char
PlatformNames
— Names of radars and targets
'Auto'
(default) | 1-by-(N+M) cell array of character vectors
Names assigned to radars and targets, specified as a 1-by-(N+M)
cell array of character vectors. N is the number of radars and
M is the number of targets. Order the cell entries by radar names,
followed by target names. Names appear in the legend and annotations. When you set
PlatformNames
to 'Auto'
, names are created
sequentially starting from 'Radar 1'
for radars and 'Target
1'
for targets.
Example: {'Stationary Radar','Mobile
Radar','Airplane'}
Data Types: cell
TrailLength
— Length of visible tracks
500
(default) | positive integer | (N+M)-length vector of positive integers
Length of the visibility of object tracks, specified as a positive integer or
(N+M)-length vector of positive integers. N is
the number of radars and M is the number of targets. When
TrailLength
is a scalar, all tracks have the same length. When
TrailLength
is a vector, each element of the vector specifies the
length of the corresponding radar or target trajectory. Order the entries by radars,
followed by targets. Each call to the step
method generates a new visible point. This property is tunable.
Example: [100,150,100]
Data Types: double
CameraPerspective
— Camera perspective
'Auto'
(default) | 'Custom'
| 'Radar'
Camera perspective, specified as 'Auto'
,
'Custom'
, or 'Radar'
. When you set this property
to 'Auto'
, the System object estimates appropriate values for the camera position, orientation, and
view angle to show all tracks. When you set this property to
'Custom'
, you can set the camera position, orientation, and angles
using camera properties or the camera toolbar. When you set this property to
'Radar'
, the System object determines the camera position, orientation, and angles from the radar
position and the radar beam steering direction. This property is tunable.
Example: 'Radar'
Data Types: char
CameraPosition
— Camera position
[x,y,z]
vector of real-values
Camera position, specified as an [x,y,z]
vector of real values.
Units are in meters. This property applies when you set
CameraPerspective
to 'Custom'
. When you do not
specify this property, the System object chooses values based on your display configuration. This property is
tunable.
Example: [100,50,40]
Data Types: double
CameraOrientation
— Camera orientation
[pan,tilt,roll]
vector of positive, real values
Camera orientation, specified as a [pan,tilt,roll]
vector of
positive, real values. Units are in degrees. Pan and roll angles take values from
–180° to 180°. The tilt angle takes
values from –90° to 90°. Camera
rotations are performed in the order: pan, tilt, and roll. This property applies when
you set CameraPerspective
to 'Custom'
. When you
do not specify this property, the System object chooses values based on your display configuration. This property is
tunable.
Example: [180,45,30]
Data Types: double
CameraViewAngle
— Camera view angle
real-valued scalar from 0° to 360°
Camera view angle, specified as a real-valued scalar. Units are in degrees. View
angle values are in the range 0° to 360°. This property applies when you set
CameraPerspective
to 'Custom'
. When you do not
specify this property, the System object chooses values based on your display configuration. This property is
tunable.
Example: 75
Data Types: double
ShowLegend
— Show viewer legend
false
(default) | true
Option to show the viewer legend, specified as false
or
true
. This property is tunable.
Example: true
Data Types: logical
ShowGround
— Show ground plane of scenario
true
(default) | false
Option to show the ground plane of the viewer scenario, specified as
true
or false
. This property is tunable.
Example: false
Data Types: logical
ShowName
— Option to annotate radar and target tracks with names
true
(default) | false
Annotate radar and target tracks with names, specified as true
or
false
. You can define custom platform names using
PlatformNames
. This property is tunable.
Example: false
Data Types: logical
ShowPosition
— Annotate radar and target tracks with positions
false
(default) | true
Option to annotate radar and target tracks with positions, specified as
false
or true
. This property is tunable.
Example: true
Data Types: logical
ShowRange
— Annotate radar and target tracks with ranges
false
(default) | true
Option to annotate radar and target tracks with the range from the reference radar,
specified as false
or true
. This property is
tunable.
Example: true
Data Types: logical
ShowAltitude
— Annotate radar and target tracks with altitude
false
(default) | true
Option to annotate radar and target tracks with altitude, specified as
false
or true
. This property is tunable.
Example: true
Data Types: logical
ShowSpeed
— Annotate radar and target tracks with speed
false
(default) | true
Option to annotate radar and target tracks with speed, specified as
false
or true
. This property is tunable.
Example: true
Data Types: logical
ShowRadialSpeed
— Annotate radar and target tracks with radial speed
false
(default) | true
Option to annotate radar and target tracks with radial speed, specified as
false
or true
. Radial speed is relative to the
reference radar. This property is tunable.
Example: true
Data Types: logical
ShowAzEl
— Annotate radar and target tracks with azimuth and elevation
false
(default) | true
Option to annotate radar and target tracks with azimuth and elevation angles
relative to the reference radar, specified as false
or
true
. This property is tunable.
Example: true
Data Types: logical
Position
— Viewer window size and position
[left bottom width height]
vector of positive, real
values
Scenario viewer window size and position, specified as a [left bottom width
height]
vector of positive, real values. Units are in pixels.
left
sets the position of the left edge of the window.bottom
sets the position of the bottom edge of the window.width
sets the width of the window.height
sets the height of the window.
When you do not specify this property, the window is positioned at the
center of the screen, with width
and height
taking
the values 410
and 300
pixels, respectively. This
property is tunable.
Example: [100,200,800,500]
Data Types: double
ReducePlotRate
— Enable reduced plot rate
true
(default) | false
Option to reduce the plot rate to improve performance, specified as
true
or false
. Set this property to
true
to update the viewer at a reduced rate. Set this property to
false
to update the viewer with each call to the step
method. This mode adversely affects viewer performance. This property
is tunable.
Example: false
Data Types: logical
Methods
hide | Hide scenario viewer window |
reset | Reset state of the System object |
show | Show scenario viewer window |
step | Update scenario viewer display |
Common to All System Objects | |
---|---|
release | Allow System object property value changes |
Examples

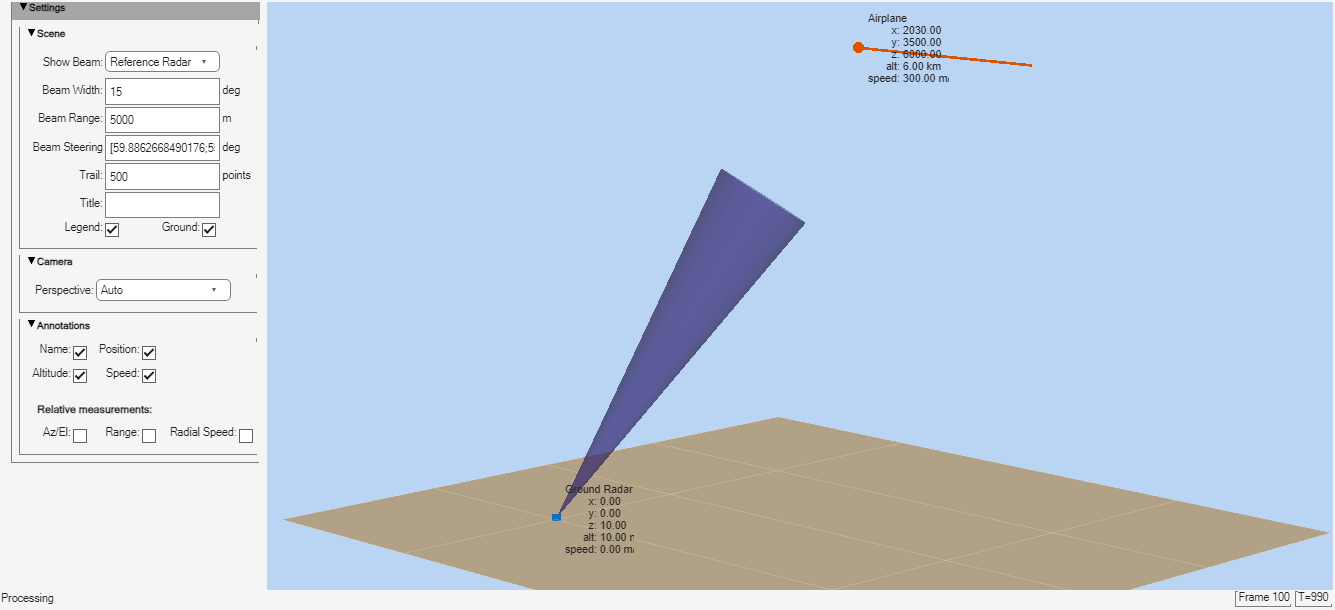

View Tracks of Stationary Radar and One Target
Visualize the tracks of a radar and a single airplane target. The radar is stationary and the airplane is moving in a straight line. Maintain the radar beam pointing at the airplane.
Create the radar and airplane platform System objects™. Set the update rate to 0.1 s.
updateRate = 0.1; radarPlatform = phased.Platform(... 'InitialPosition',[0;0;10], ... 'Velocity',[0;0;0]); airplanePlatforms = phased.Platform(... 'InitialPosition',[5000.0;3500.0;6000.0],... 'Velocity',[-300;0;0]);
Create the phased.ScenarioViewer
System object. Show the radar beam and annotate the tracks with position, speed, and altitude.
sSV = phased.ScenarioViewer('BeamRange',5000.0,'UpdateRate',updateRate,... 'PlatformNames',{'Ground Radar','Airplane'},'ShowPosition',true,... 'ShowSpeed',true,'ShowAltitude',true,'ShowLegend',true);
Run the scenario. At each step, compute the angle to the target. Use that angle to steer the radar beam toward the target.
for i = 1:100 [radar_pos,radar_vel] = step(radarPlatform,updateRate); [tgt_pos,tgt_vel] = step(airplanePlatforms,updateRate); [rng,ang] = rangeangle(tgt_pos,radar_pos); sSV.BeamSteering = ang; step(sSV,radar_pos,radar_vel,tgt_pos,tgt_vel); pause(0.1); end

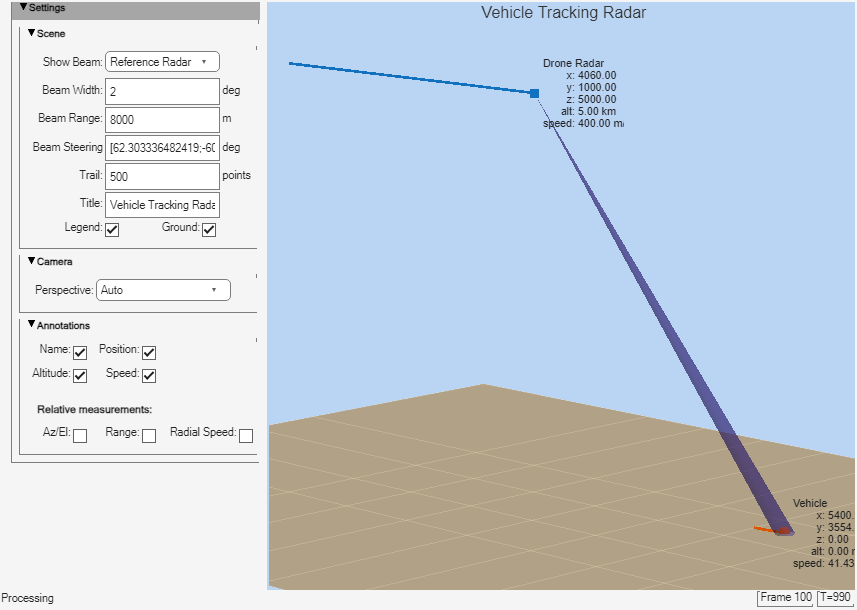

View Tracks of Airborne Radar and Ground Target
Visualize the tracks of an airborne radar and a ground vehicle target. The airborne radar is carried by a drone flying at an altitude of 5 km.
Create the drone radar and ground vehicle using phased.Platform
System objects™. Set the update rate to 0.1 s.
updateRate = 0.1; drone = phased.Platform(... 'InitialPosition',[100;1000;5000], ... 'Velocity',[400;0;0]); vehicle = phased.Platform('MotionModel','Acceleration',... 'InitialPosition',[5000.0;3500.0;0.0],... 'InitialVelocity',[40;5;0],'Acceleration',[0.1;0.1;0]);
Create the phased.ScenarioViewer
System object. Show the radar beam and annotate the tracks with position, speed, and altitude.
viewer = phased.ScenarioViewer('BeamRange',8000.0,'BeamWidth',2,'UpdateRate',updateRate,... 'PlatformNames',{'Drone Radar','Vehicle'},'ShowPosition',true,... 'ShowSpeed',true,'ShowAltitude',true,'ShowLegend',true,'Title','Vehicle Tracking Radar');
Run the scenario. At each step, compute the angle to the target. Use that angle to steer the radar beam toward the target.
for i = 1:100 [radar_pos,radar_vel] = step(drone,updateRate); [tgt_pos,tgt_vel] = step(vehicle,updateRate); [rng,ang] = rangeangle(tgt_pos,radar_pos); viewer.BeamSteering = ang; viewer(radar_pos,radar_vel,tgt_pos,tgt_vel) pause(.1) end
Visualize Multiplatform Scenario
This example shows how to create and display a multiplatform scenario containing a ground-based stationary radar, a turning airplane, a constant-velocity airplane, and a moving ground vehicle. The turning airplane follows a parabolic flight path while descending at a rate of 20 m/s.
Specify the scenario refresh rate at 0.5 Hz. For 150 steps, the time duration of the scenario is 300 s.
updateRate = 0.5; N = 150;
Set up the turning airplane using the Acceleration
model of the phased.Platform
System object™. Specify the initial position of the airplane by range and azimuth from the ground-based radar and its elevation. The airplane is 10 km from the radar at 60° azimuth and has an altitude of 6 km. The airplane is accelerating at 10 m/s² in the negative x-direction.
airplane1range = 10.0e3; airplane1Azimuth = 60.0; airplane1alt = 6.0e3; airplane1Pos0 = [cosd(airplane1Azimuth)*airplane1range;... sind(airplane1Azimuth)*airplane1range;airplane1alt]; airplane1Vel0 = [400.0;-100.0;-20]; airplane1Accel = [-10.0;0.0;0.0]; airplane1platform = phased.Platform('MotionModel','Acceleration',... 'AccelerationSource','Input port','InitialPosition',airplane1Pos0,... 'InitialVelocity',airplane1Vel0,'OrientationAxesOutputPort',true,... 'InitialOrientationAxes',eye(3));
Set up the stationary ground radar at the origin of the global coordinate system. To simulate a rotating radar, change the ground radar beam steering angle in the processing loop.
groundRadarPos = [0,0,0]'; groundRadarVel = [0,0,0]'; groundradarplatform = phased.Platform('MotionModel','Velocity',... 'InitialPosition',groundRadarPos,'Velocity',groundRadarVel,... 'InitialOrientationAxes',eye(3));
Set up the ground vehicle to move at a constant velocity.
groundVehiclePos = [5e3,2e3,0]'; groundVehicleVel = [50,50,0]'; groundvehicleplatform = phased.Platform('MotionModel','Velocity',... 'InitialPosition',groundVehiclePos,'Velocity',groundVehicleVel,... 'InitialOrientationAxes',eye(3));
Set up the second airplane to also move at constant velocity.
airplane2Pos = [8.5e3,1e3,6000]'; airplane2Vel = [-300,100,20]'; airplane2platform = phased.Platform('MotionModel','Velocity',... 'InitialPosition',airplane2Pos,'Velocity',airplane2Vel,... 'InitialOrientationAxes',eye(3));
Set up the scenario viewer. Specify the radar as having a beam range of 8 km, a vertical beam width of 30°, and a horizontal beam width of 2°. Annotate the tracks with position, speed, altitude, and range.
BeamSteering = [0;50]; viewer = phased.ScenarioViewer('BeamRange',8.0e3,'BeamWidth',[2;30],'UpdateRate',updateRate,... 'PlatformNames',{'Ground Radar','Turning Airplane','Vehicle','Airplane 2'},'ShowPosition',true,... 'ShowSpeed',true,'ShowAltitude',true,'ShowLegend',true,'ShowRange',true,... 'Title','Multiplatform Scenario','BeamSteering',BeamSteering);
Step through the display processing loop, updating radar and target positions. Rotate the ground-based radar steering angle by four degrees at each step.
for n = 1:N [groundRadarPos,groundRadarVel] = groundradarplatform(updateRate); [airplane1Pos,airplane1Vel,airplane1Axes] = airplane1platform(updateRate,airplane1Accel); [vehiclePos,vehicleVel] = groundvehicleplatform(updateRate); [airplane2Pos,airplane2Vel] = airplane2platform(updateRate); viewer(groundRadarPos,groundRadarVel,[airplane1Pos,vehiclePos,airplane2Pos],... [airplane1Vel,vehicleVel,airplane2Vel]); BeamSteering = viewer.BeamSteering(1); BeamSteering = mod(BeamSteering + 4,360.0); if BeamSteering > 180.0 BeamSteering = BeamSteering - 360.0; end viewer.BeamSteering(1) = BeamSteering; pause(0.2); end
Version History
Introduced in R2016a
MATLAB Command
You clicked a link that corresponds to this MATLAB command:
Run the command by entering it in the MATLAB Command Window. Web browsers do not support MATLAB commands.
Select a Web Site
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
You can also select a web site from the following list:
How to Get Best Site Performance
Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.
Americas
- América Latina (Español)
- Canada (English)
- United States (English)
Europe
- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)
- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
