mdlxSetup

Set up Modelithics library

Since R2023a

collapse all in page

    Syntax

    mdlxSetup(libpath)

    Description

    mdlxSetup(libpath) sets up the Modelithics® library specified in libpath. libpath is persistent across MATLAB® sessions.

    Note

    This function requires a Modelithics SELECT+ Library™ or a Modelithics Exemplar Library license. For more information, see Modelithics Libraries for MATLAB.

    example

    Examples

    collapse all

    Open Live Script

    Set up Modelithics SELECT+ Library™.

    mdlxSetup('C:\mdlx_library\SELECT')

    Create a new Modelithics library object related to the library you set up.

    mdlx = mdlxLibrary;

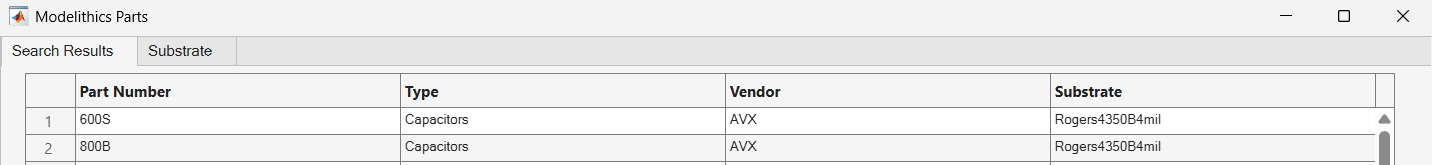

    Search the library for a component that you can mount on the Rogers4350B4mil substrate with the vendor name ATC.

    search(mdlx,'Rogers4350B4mil',Vendor='ATC')

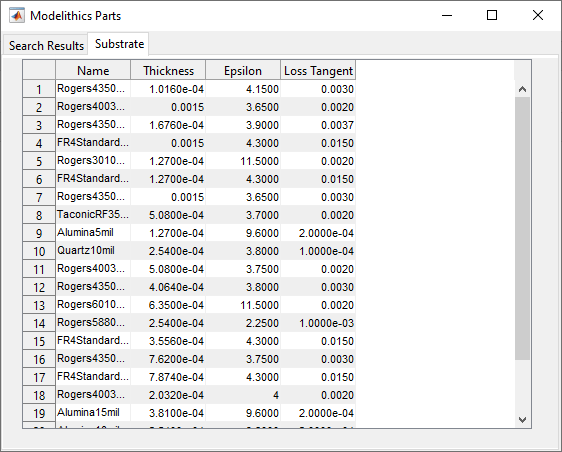

    search-mdlx.png search-substrate.png

    The ATC 600S capacitor on a 4 mil Roger 4350B substrate fits the search criteria. Create a Modelithics component object that matches these characteristics.

    pobj = mdlxPart(mdlx,'600S','Capacitors','ATC','Rogers4350B4mil',Value=1.2e-12);

    Create a circuit named C_ATC_600S_Rogers4350B4mil.

    hckt = circuit('C_ATC_600S_Rogers4350B4mil')


    Add the Modelithics component to the circuit.

    add(hckt,[1 2],pobj);

    Set the ports of the circuit.

    setports(hckt, [1 0],[2 0]);

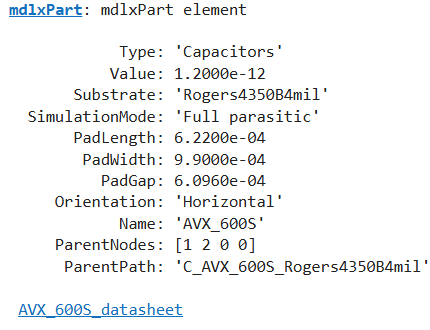

    Display the Modelithics component.

    disp(pobj)


    Calculate the S-parameters of the circuit.

    S = sparameters(hckt,freq);

    Plot the S-parameters characteristics.

    figure;
rfplot(S)


    Input Arguments

    collapse all

    Modelithics library folder path, specified as a string scalar.

    Version History

    Introduced in R2023a
